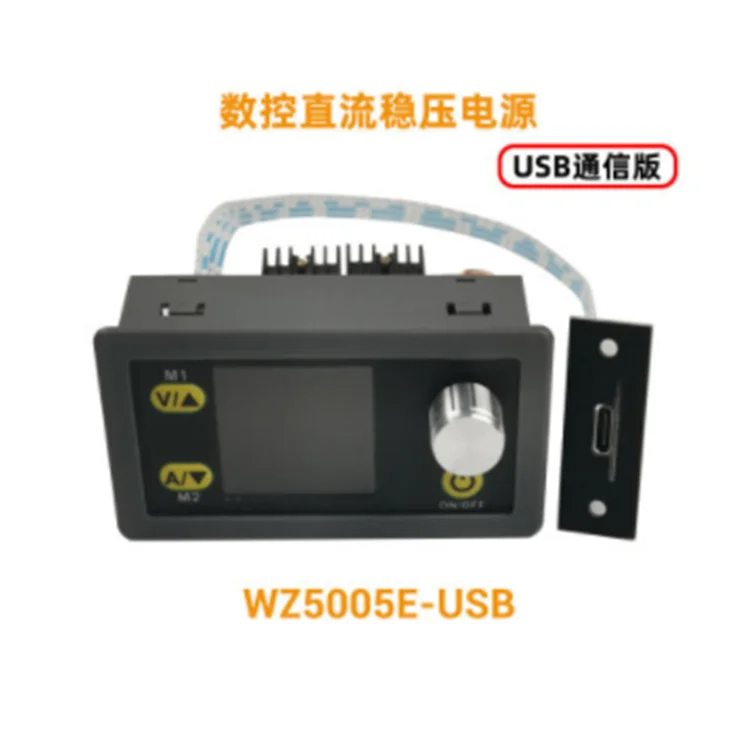

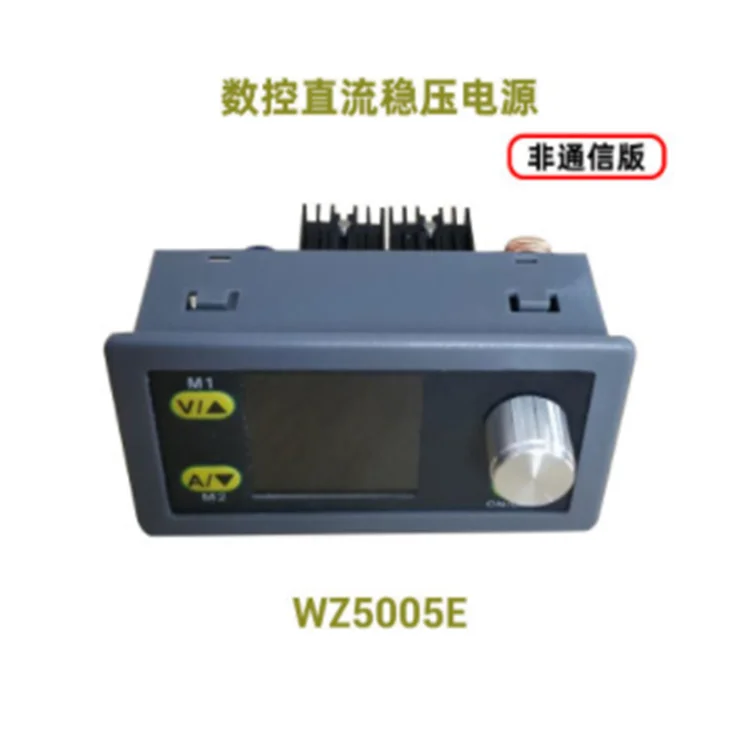

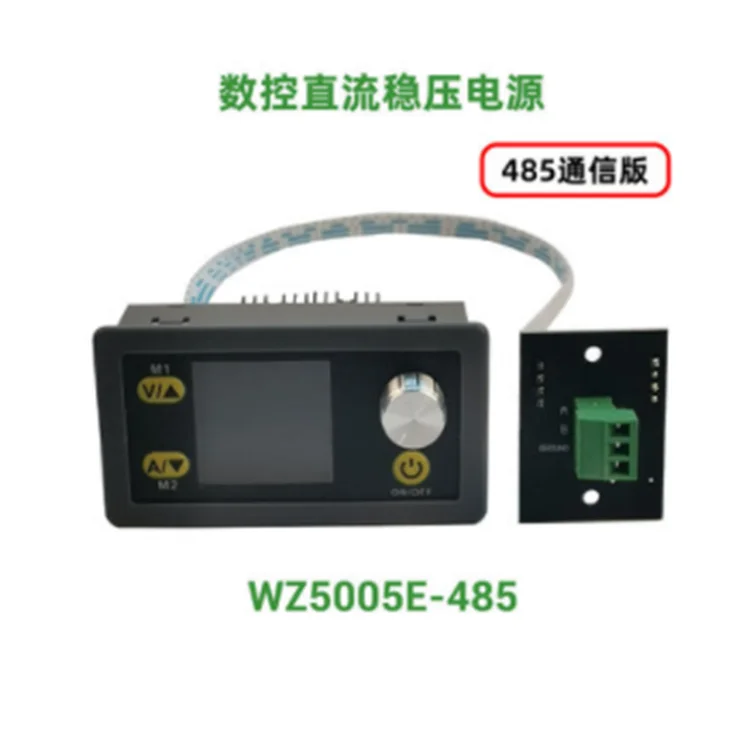

WZ5005E LCD voltage ammeter constant voltage constant current step down module 50V5A Adjustable NC DC regulated power supply

WZ5005E LCD voltage ammeter constant voltage constant current step-down module  50V5A  Adjustable NC DC regulated power supply

Product Information

Product model: WZ5005E

Screen display: 1.44 "color LCD

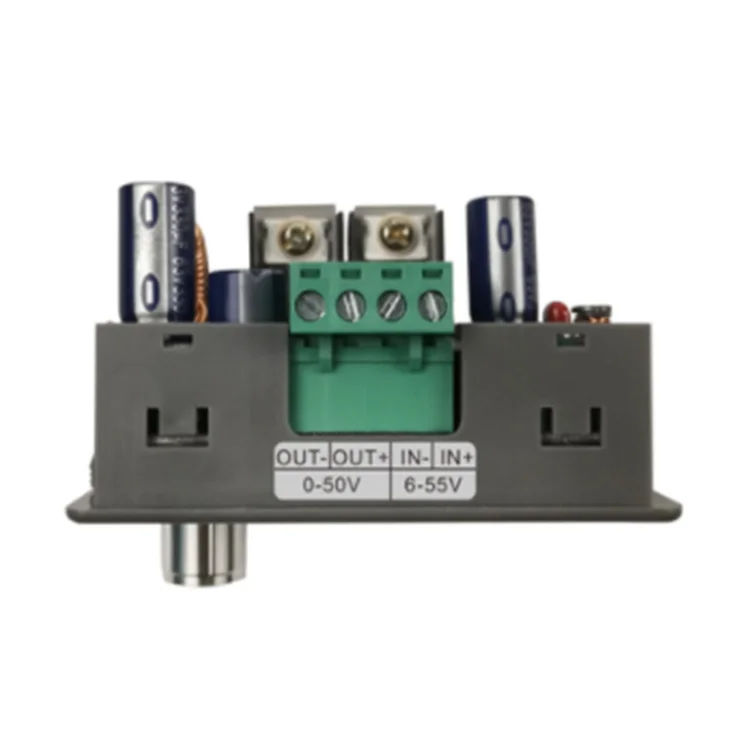

Input voltage range: 6-55.00V

Input voltage resolution: 0.01V

Output voltage range: 0-50.00V

Output voltage resolution: 0.01V

Output current range: 0-5.000A

Output current resolution: 0.001A

Output power range: 0-250.0W

Input voltage accuracy: ± (1%+5 words)

Output voltage accuracy: ± (0.3%+3 words)

Output current accuracy: ±(0.5%+5 words)

Typical value of output ripple: 150mV peak-peak value

Normal operating temperature range: -10° C - 40° C

Time range: 10000 hours

Energy measurement range: 0-99999.999WH

Capacity measurement range: 0-99999.999AH

Capacity energy statistical error: +2%

Screen brightness: A total of 7 levels 0-6

Step-down working mode: differential pressure > 0.05% + 1 v

Packing weight: about 105g

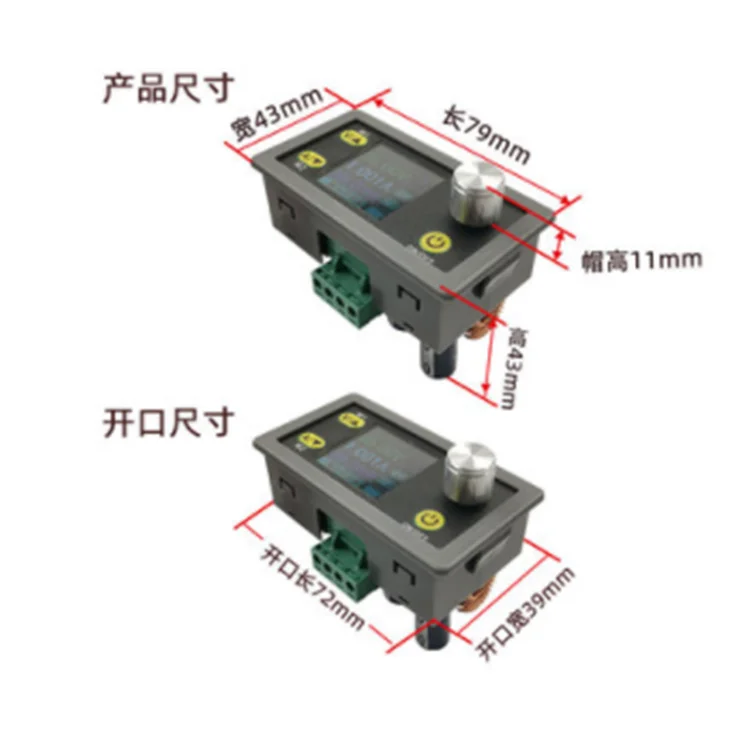

Product size 79x43x54mm

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
