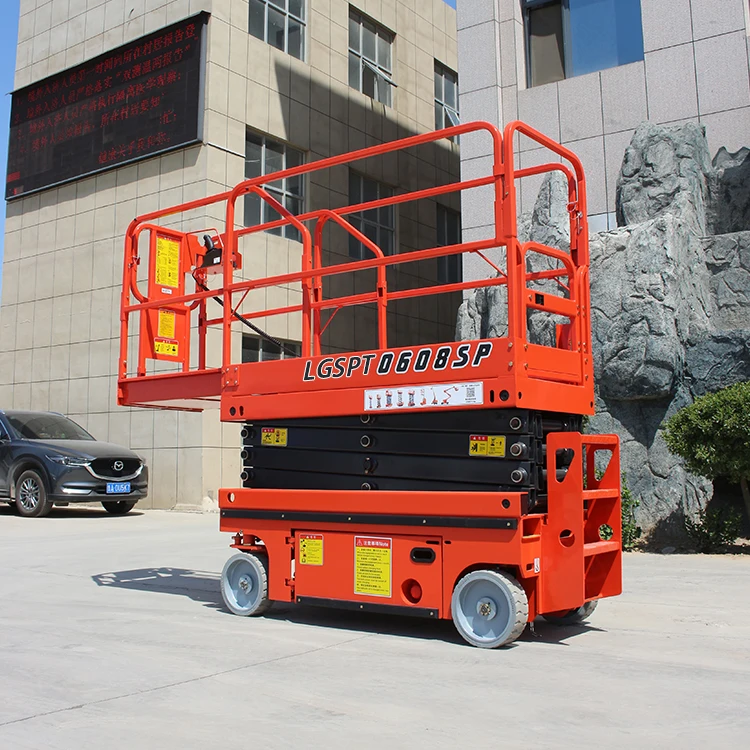

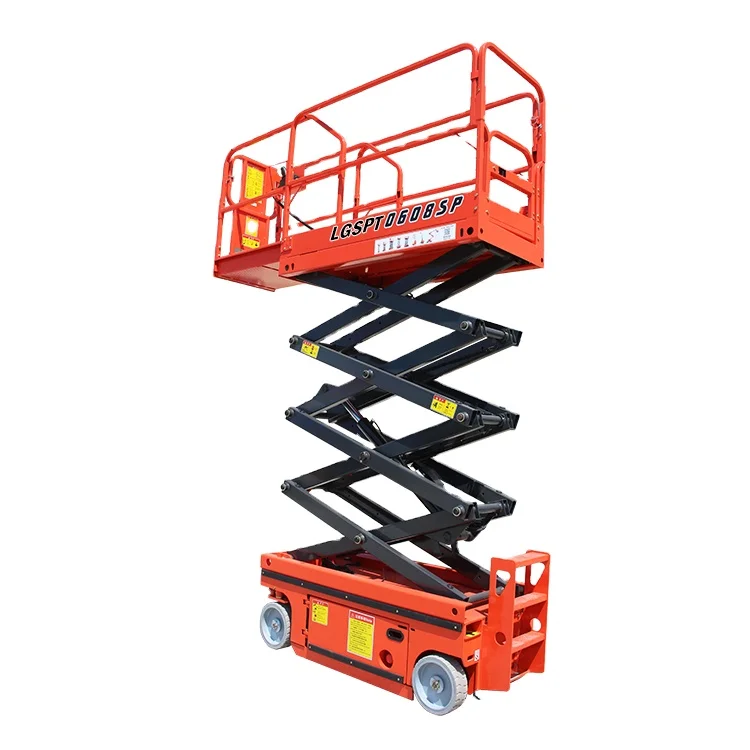

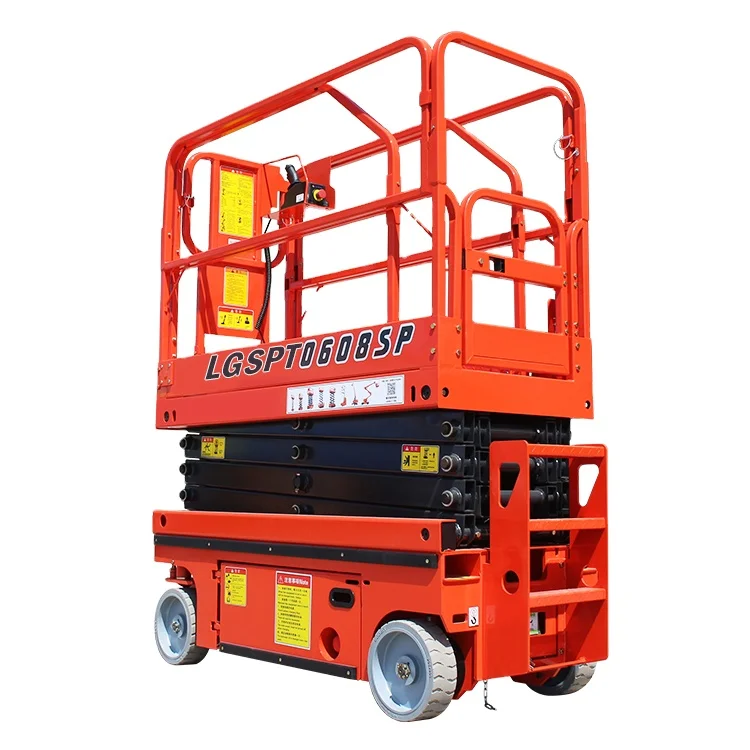

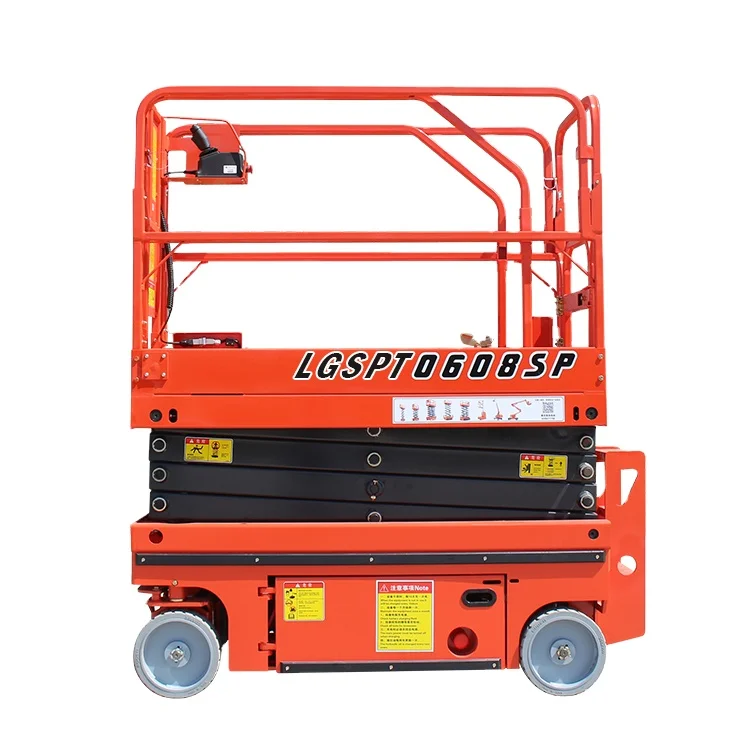

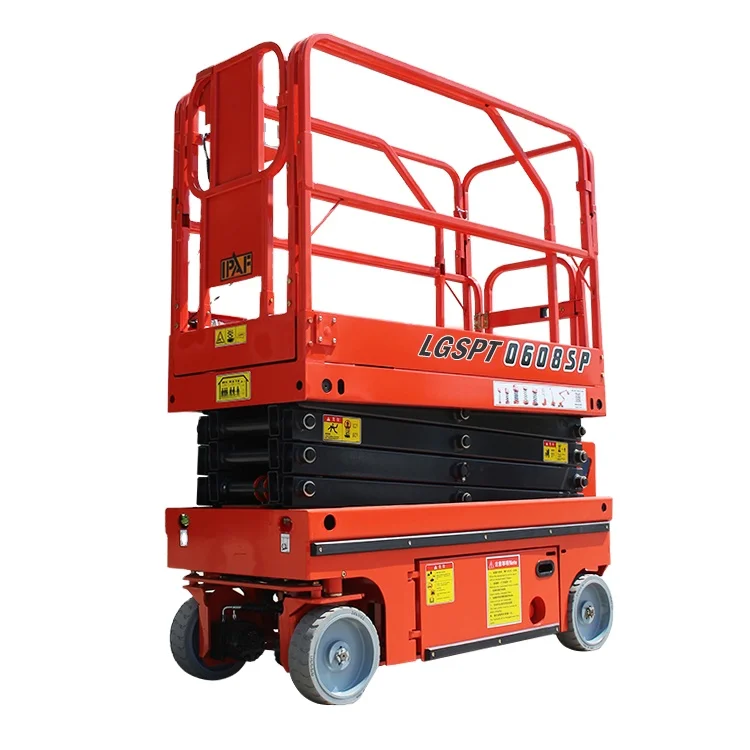

Liagong LGSPT0608SP Small Goods Lift Hydraulic Cargo Elevator Warehouse Freight Lifter Customizable 2170kg 2980kg 3600kg
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600696396366):
Product Overview
Description
The fully self-propelled elevator is a special equipment for high-altitude operations with a wide range of uses. Its scissor
mechanical structure enables the lifting platform to have higher stability, a large working platform and a higher load-bearing capacity, so that the high-altitude operation range is larger, and it is suitable for multiple people to work at the same time.Lifting power is divided into 220V or 380V power source, diesel engine, or battery power source, special environment can also use explosion-proof pump station and explosion-proof electrical appliances. The rise is 4-12 meters, and the load is 0.3 tons. It adopts Italian and domestic hydraulic pump station, and the countertop uses non-slip insulating gusset, which is non-slip, please rest assured to use it.
mechanical structure enables the lifting platform to have higher stability, a large working platform and a higher load-bearing capacity, so that the high-altitude operation range is larger, and it is suitable for multiple people to work at the same time.Lifting power is divided into 220V or 380V power source, diesel engine, or battery power source, special environment can also use explosion-proof pump station and explosion-proof electrical appliances. The rise is 4-12 meters, and the load is 0.3 tons. It adopts Italian and domestic hydraulic pump station, and the countertop uses non-slip insulating gusset, which is non-slip, please rest assured to use it.
Product Paramenters
Model No. | LGSPT0608 | LGSPT0810 | LGSPT1012 | LGSPT1214 | LGSPT1416 | |
Loading capacity | kg | 450 | 450 | 320 | 320 | 320 |
Loading capacity for extension platform | kg | 113 | 113 | 113 | 113 | 113 |
Max work people | 2 | 2 | 2 | 2 | 2 | |
Working height | M | 8 | 10 | 12 | 13.8 | 15.7 |
Platform height | mm | 6 | 8 | 10 | 11.8 | 13.7 |
Overall length | mm | 2480 | 2480 | 2480 | 2480 | 2850 |
Overall Width | mm | 1190 | 1190 | 1190 | 1190 | 1250 |
Overall height(Unfold guard bar) | mm | 2200 | 2320 | 2450 | 2570 | 2635 |
Overall height(Fold guard bar) | mm | 1660 | 1780 | 1910 | 2030 | 2105 |
Working Platform Size | mm | 2270x1220 | 2270x1120 | 2270x1120 | 2270x1120 | 2640x1120 |
Platform extension size | mm | 900 | 900 | 900 | 900 | 900 |
Minimum ground clearance(folding) | mm | 100 | 100 | 100 | 100 | 100 |
Minimum ground clearance(rising) | mm | 19 | 19 | 19 | 19 | 19 |
Wheelbase | mm | 1895 | 1895 | 1895 | 1895 | 2230 |
Minimum turn radius(inner wheel) | mm | 0 | 0 | 0 | 0 | 0 |
Minimum turn radius(External wheels)) | mm | 2200 | 2200 | 2200 | 2200 | 2700 |
Lifting Motor | V/KW | 24/3.3 | 24/3.3 | 24/3.3 | 24/4.5 | 24/4.5 |
Travel Speed (Lowered) | km/h | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Travel Speed (Lifting State) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Rising/falling speed | sec | 24/34 | 28/38 | 45/36 | 84/38 | 88/60 |
Battery | V/Ah | 4×6/225 | 4×6/240 | 4×6/240 | 4×12/300 | 4×12/300 |
Charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 |
Maximum climbing ability | % | 25 | 25 | 25 | 25 | 25 |
Maximum working allowable angle | / | 2°/3° | 2°/3° | 2°/3° | 2°/3° | 2°/3° |
Tyre | mm | 381x127 | 381X127 | 381X127 | 381X127 | 381X127 |
Overall weight | KG | 2170 | 2360 | 2640 | 2980 | 3600 |
Related Products
LGSPT0608
LGSPT0810
LGSPT1012
LGSPT1214
LGSPT1214(steel)
LGSPT1416(steel)
Main Categories
Company Profile
Customer Case
Transportation
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
