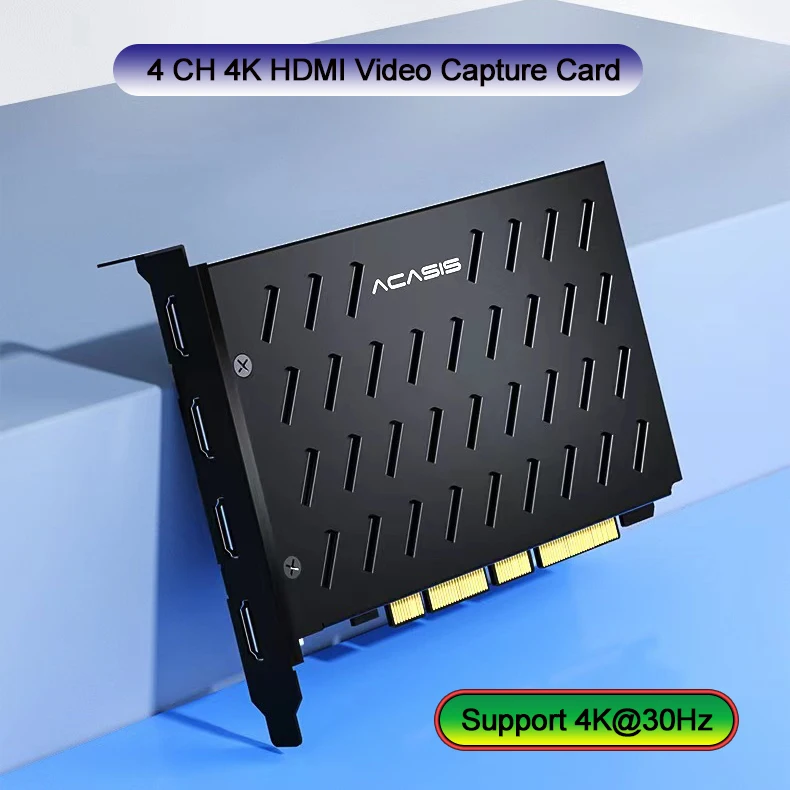

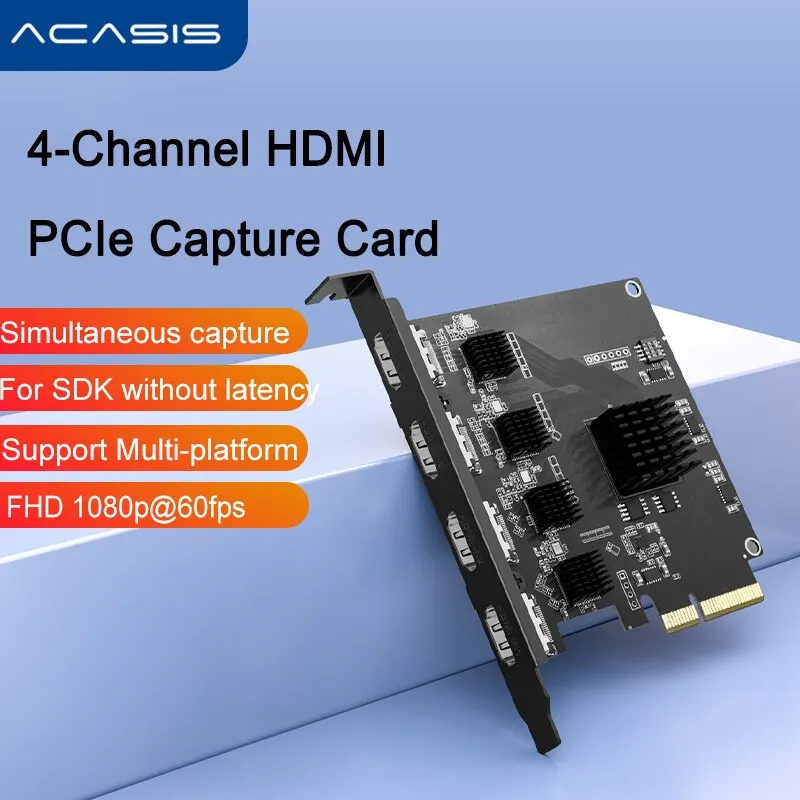

Acasis High Speed Quality PCIe Capture card 4 CH 1080P/4K HD Video Capture Card for live streaming
- Category: >>>
- Supplier: Acasis Inc. Co. Ltd.
Share on (1600696569282):
Product Overview
Description
Product Description
Driver Download
//www.acasis.com/download_drivers (Model:AC-4HDMI)
Note：
Innovative design
When there are only two signal sources,
it will only two channels keep active, saving you CPU resources.
X86 and X64 versions of the following operating systems are supported
Windows XP Professional
Windows Server 2003
Windows vista
Windows server 2008
Windows 7
Windows server 2008 R2
Windows Media Live Encober
Real Peoducer plus
Videolan for Windows
256 MB DDR2 working frequency is 160Mhz, bit width is 64bit
Firmware upgrade
Can be inserted into Pci-express x4, x8 or x16 slot; can be installed in a full-height (4U) chassis
117mm X102.9mm
<=8W
Description
Size：100*86mm
Main interface：PCI-Express*4
Input interface：HDMI*4
Video input：1920*1080p 60Hz
Video storage：1920*1080p 60Hz
Image raw data format：YUY2
Video format：H.264 Main profile（Hardware Compression）
Video resolution：1920*1080p 60/50fps
1920*1080p 30/25/24fps
1280*720p 60/50fps
1024*768p 60fps
800*600p 60fps
640*480p 60fps
720*480p 60fps
720*576p 60fps
Audio input interface:HDMI Embedded Audio
Audio sample format:Stereo/16-Bit/48000Hz
Power consumption：《=5W
Range of working temperature：-20~85°
Storage temperature range：-40~100°
Relative temperature range：5%-90%
SDK:VC++/.NET/VB/V4L2
Feature
1.Support 4 HDMI simultaneous acquisition, clear and stable live broadcast;
2.Professional video processing function：Collect the original real video and provide motion adaptive de-interlacing effect;
3.Fully compatible: standard VS Stream driver, compatible with Directshow interface;

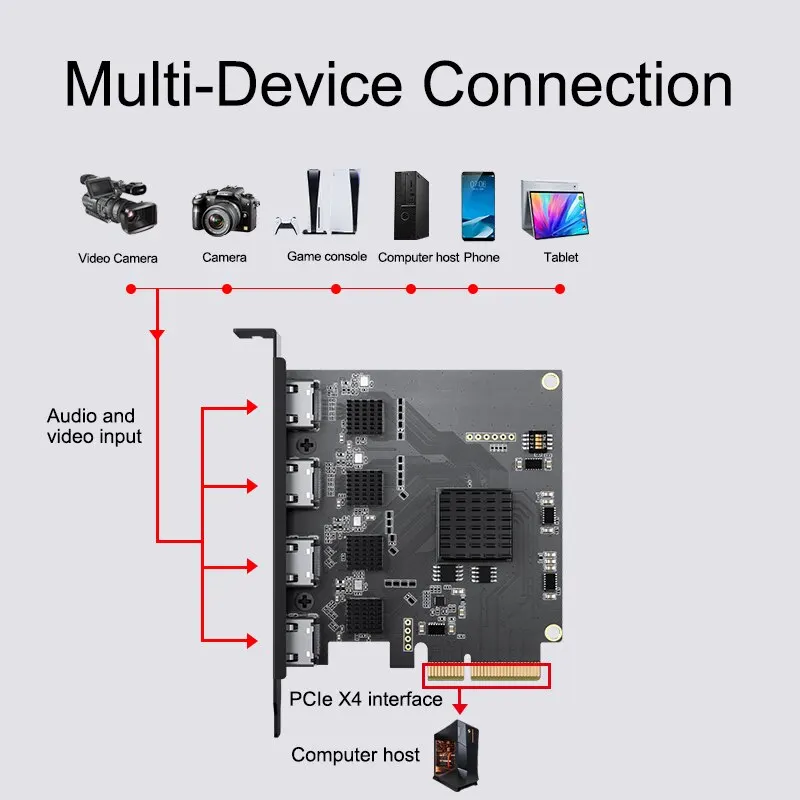

4.Multiple equipment linking methods: cameras, game consoles, TV boxes, video recorders, DV;

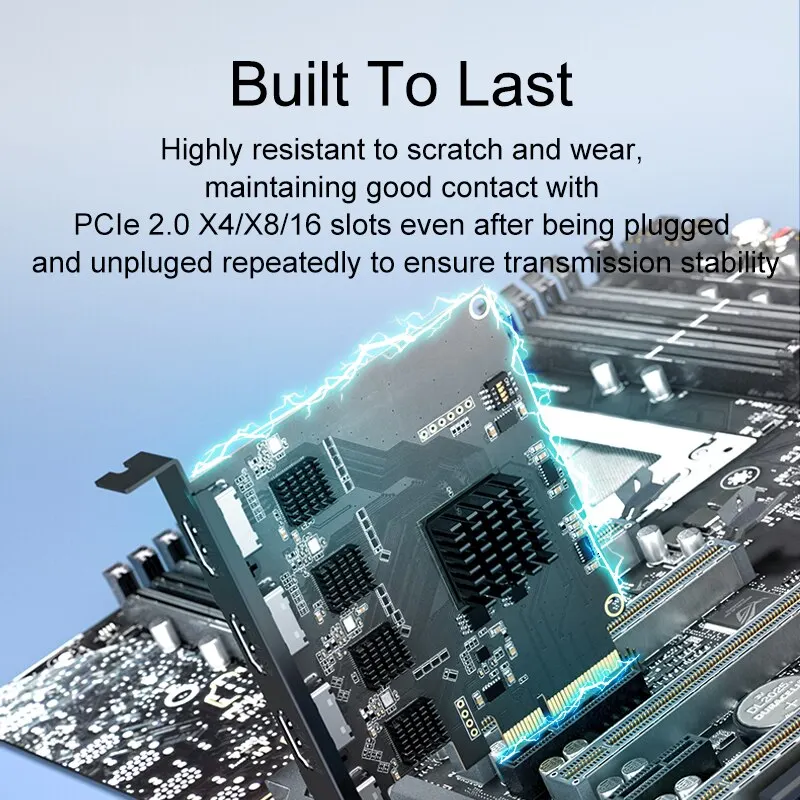

5.Super stability: All chips and capacitive components use high-quality industrial-grade components, which can work continuously for 24*7 hours without interruption;

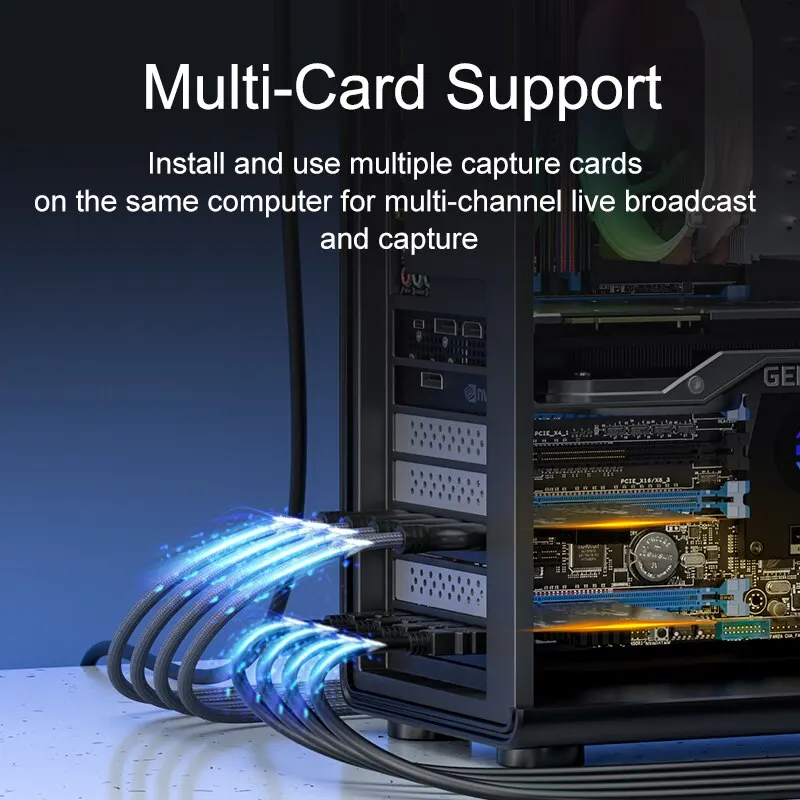

6.Support one machine with multiple cards: the same computer can install multiple PCI-E capture cards to work at the same time to achieve multiple live broadcasts;
7.Suitable for a variety of scenarios: video conferences, game live broadcasts, camera live broadcasts, surgical video live broadcasts and various high-definition video collections, which can be easily dealt with.
//www.acasis.com/download_drivers (Model:AC-4HDMI)
Note：
Innovative design
When there are only two signal sources,
it will only two channels keep active, saving you CPU resources.
X86 and X64 versions of the following operating systems are supported
Windows XP Professional
Windows Server 2003
Windows vista
Windows server 2008
Windows 7
Windows server 2008 R2
Windows Media Live Encober
Real Peoducer plus
Videolan for Windows
256 MB DDR2 working frequency is 160Mhz, bit width is 64bit
Firmware upgrade
Can be inserted into Pci-express x4, x8 or x16 slot; can be installed in a full-height (4U) chassis
117mm X102.9mm
<=8W
Description
Size：100*86mm
Main interface：PCI-Express*4
Input interface：HDMI*4
Video input：1920*1080p 60Hz
Video storage：1920*1080p 60Hz
Image raw data format：YUY2
Video format：H.264 Main profile（Hardware Compression）
Video resolution：1920*1080p 60/50fps
1920*1080p 30/25/24fps
1280*720p 60/50fps
1024*768p 60fps
800*600p 60fps
640*480p 60fps
720*480p 60fps
720*576p 60fps
Audio input interface:HDMI Embedded Audio
Audio sample format:Stereo/16-Bit/48000Hz
Power consumption：《=5W
Range of working temperature：-20~85°
Storage temperature range：-40~100°
Relative temperature range：5%-90%
SDK:VC++/.NET/VB/V4L2
Feature
1.Support 4 HDMI simultaneous acquisition, clear and stable live broadcast;
2.Professional video processing function：Collect the original real video and provide motion adaptive de-interlacing effect;
3.Fully compatible: standard VS Stream driver, compatible with Directshow interface;
4.Multiple equipment linking methods: cameras, game consoles, TV boxes, video recorders, DV;
5.Super stability: All chips and capacitive components use high-quality industrial-grade components, which can work continuously for 24*7 hours without interruption;
6.Support one machine with multiple cards: the same computer can install multiple PCI-E capture cards to work at the same time to achieve multiple live broadcasts;
7.Suitable for a variety of scenarios: video conferences, game live broadcasts, camera live broadcasts, surgical video live broadcasts and various high-definition video collections, which can be easily dealt with.
