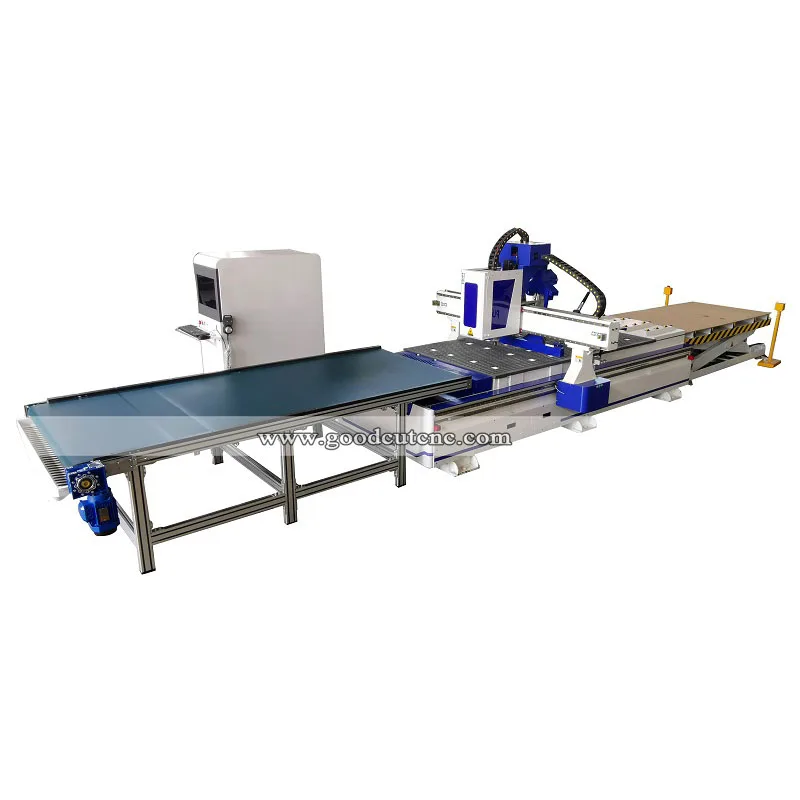

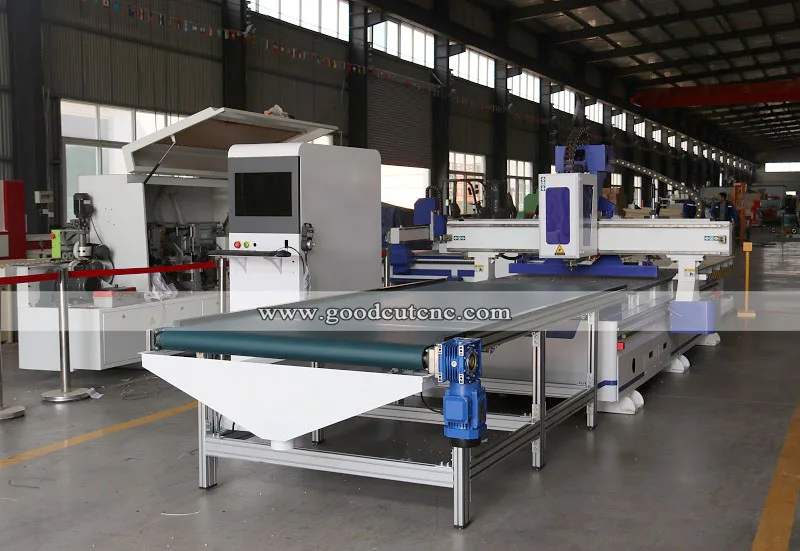

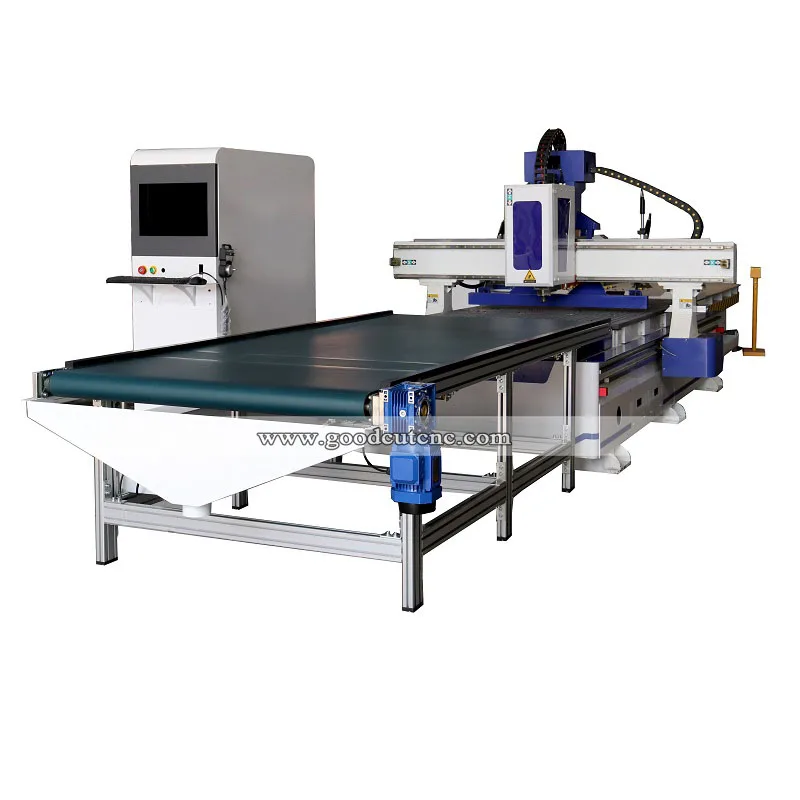

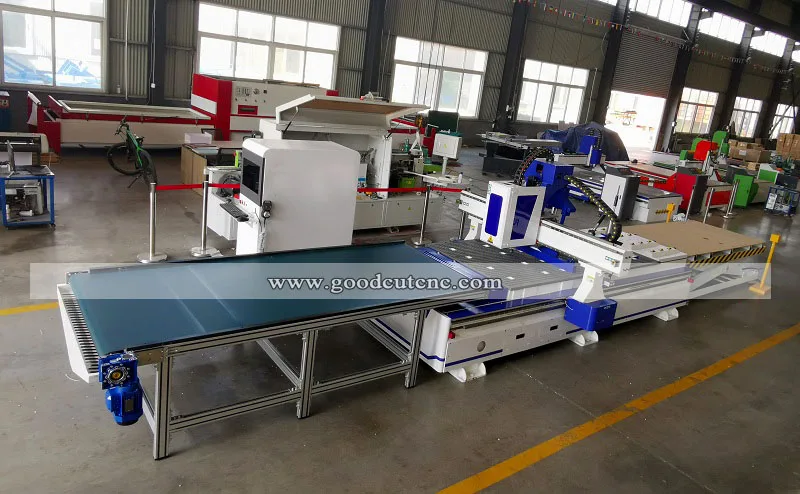

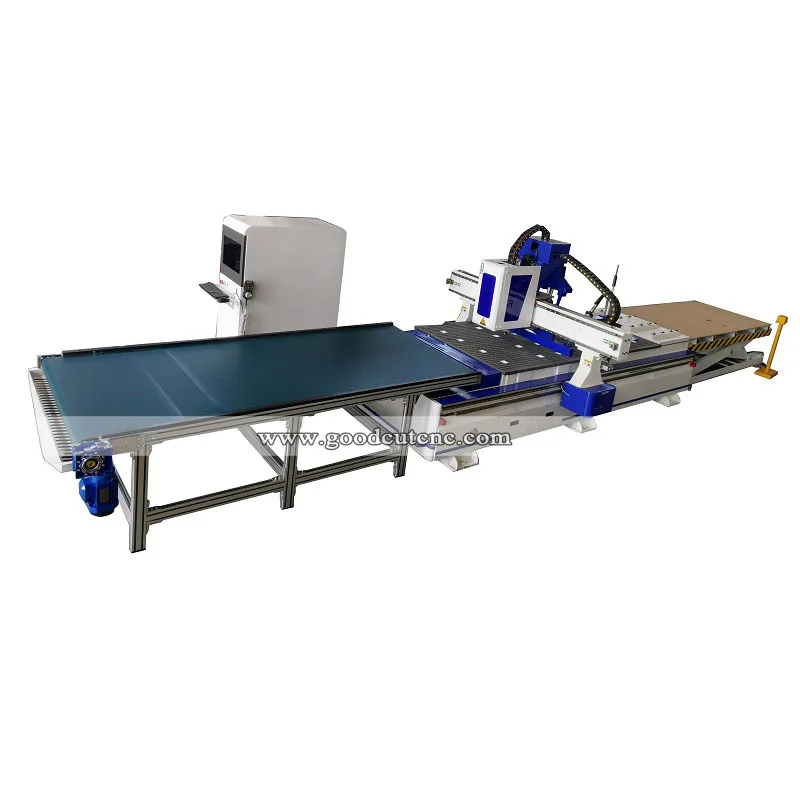

1325 4*8ft ATC cnc milling machines woodworking machinery for wood engrave with auto feeding device
Product Description
Machine Model | GC1325AF |
Working Area(X, Y, Z) | 1300mm*2500mm*200mm |
Machine Structure | Heavy duty frame |
Table Structure | Vacuum table with 7.5kw vacuum pump |
X, Y, Z Guides | Taiwan imported HIWIN rail guides |
Z Transmission | Ball screw |
Spindle Power | 4.5KW 6kw air cooling |
Collet | ER32 |
Spindle Speed | 18000R/min |
Max.Traveling Speed | 75000mm/min |
Max.Working Speed | 25000mm/min |
Control System | Taiwan LNC |
Positioning Accuracy | ≤0.02mm |
Processing Accuracy | ±0.02mm |
Motor | Servo Motor + Japanese Shimpo Gearbox |
Driver | Servo driver |
Auto Lubrication System | Yes |
Work Zero Sensor X, Y, Z axis | Yes |
Auto Height Sensor | With |
Dust Collector | With |
Coordinate Cylinder | Y axis 4pcs + X axis 2pcs |
Working Voltage | AC380V, 50HZ |
Warranty | 24 months |
Product Features
1. Heavy duty Strong machine frame, adopt high temperature quenching handle, high stability
2. Taiwan high precision helical gear rack and square linear rails
3. High density Vacuum table with vacuum pump for fix materials
4. Leadshine servo motor. Optional: Japanese YASKAWA servo motor
5. Whole Auto feeding and auto unloading work for save labor and time
Details

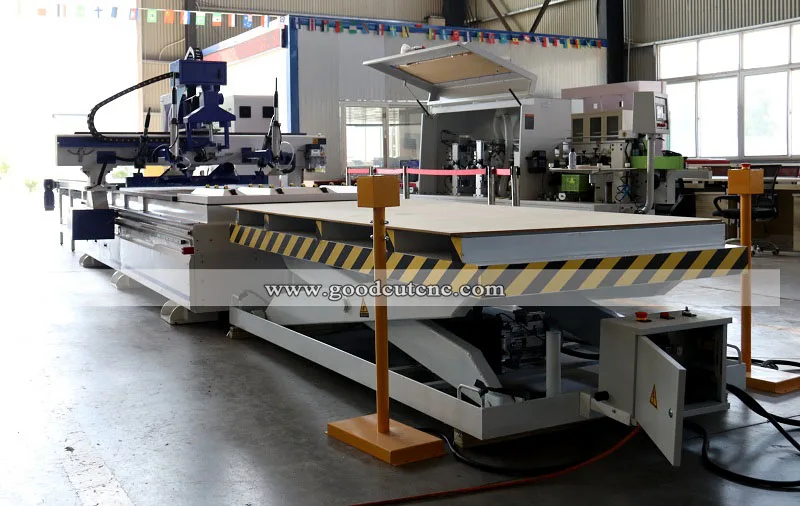

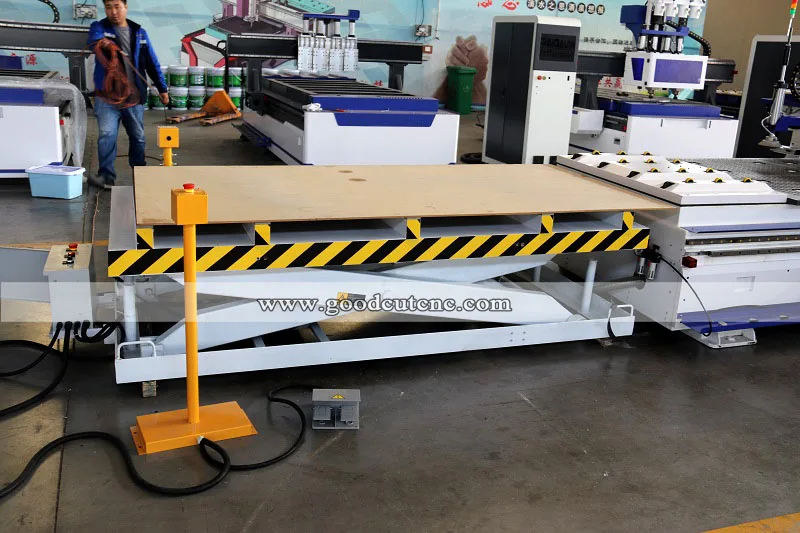

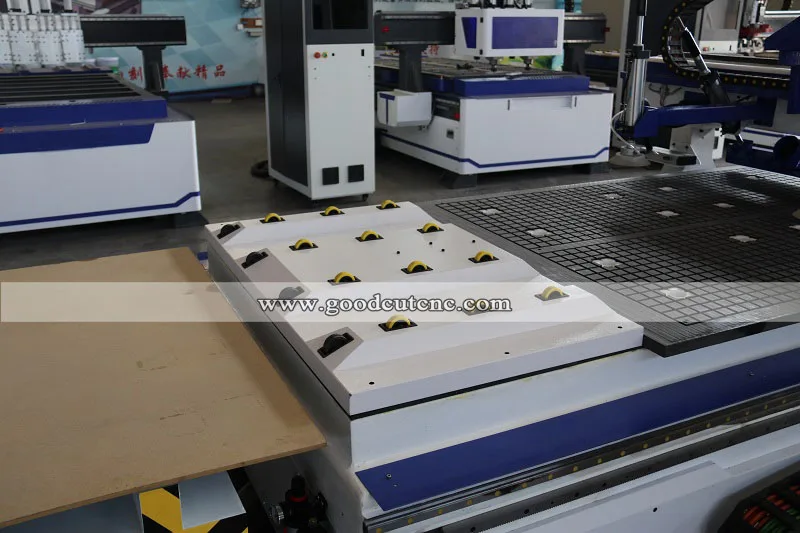

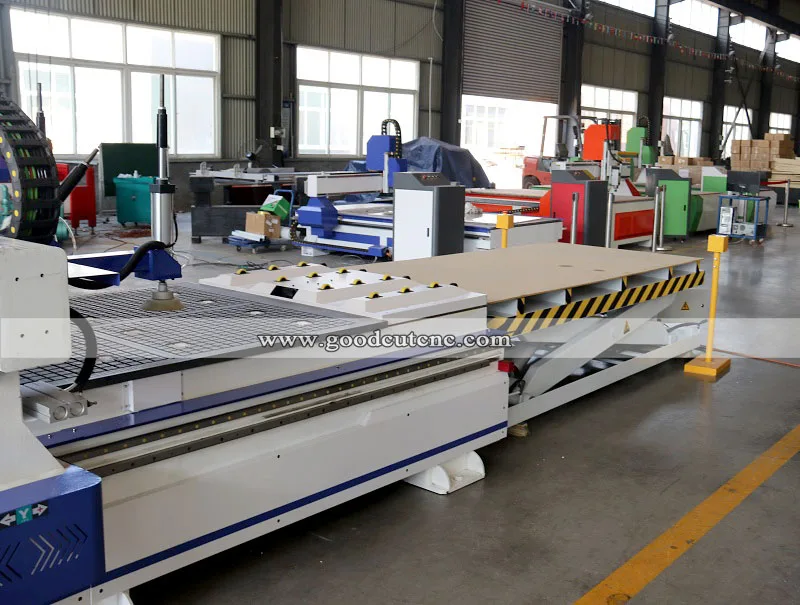

Auto feeding device
With automatic feeding materials system can feed wood sheet automaticlly

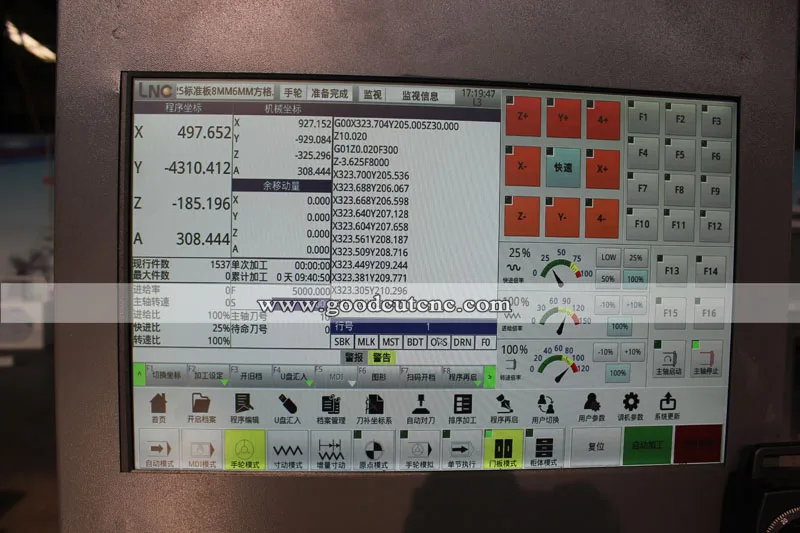

Controller
Taiwan LNC advanced control system(Taiwan SYNTEC is also optional)
Auto feeding wheel

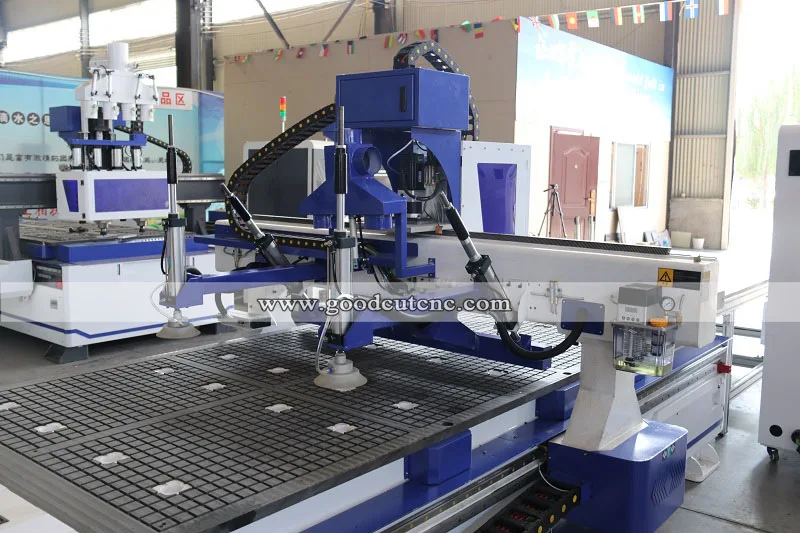

Coordinate cylinder
With coordinate cylinder can help fix materials strongly and delivery workpiece smoothly
Spindle
HQD,HSD.
long lifespan, low noise, free maintenance.

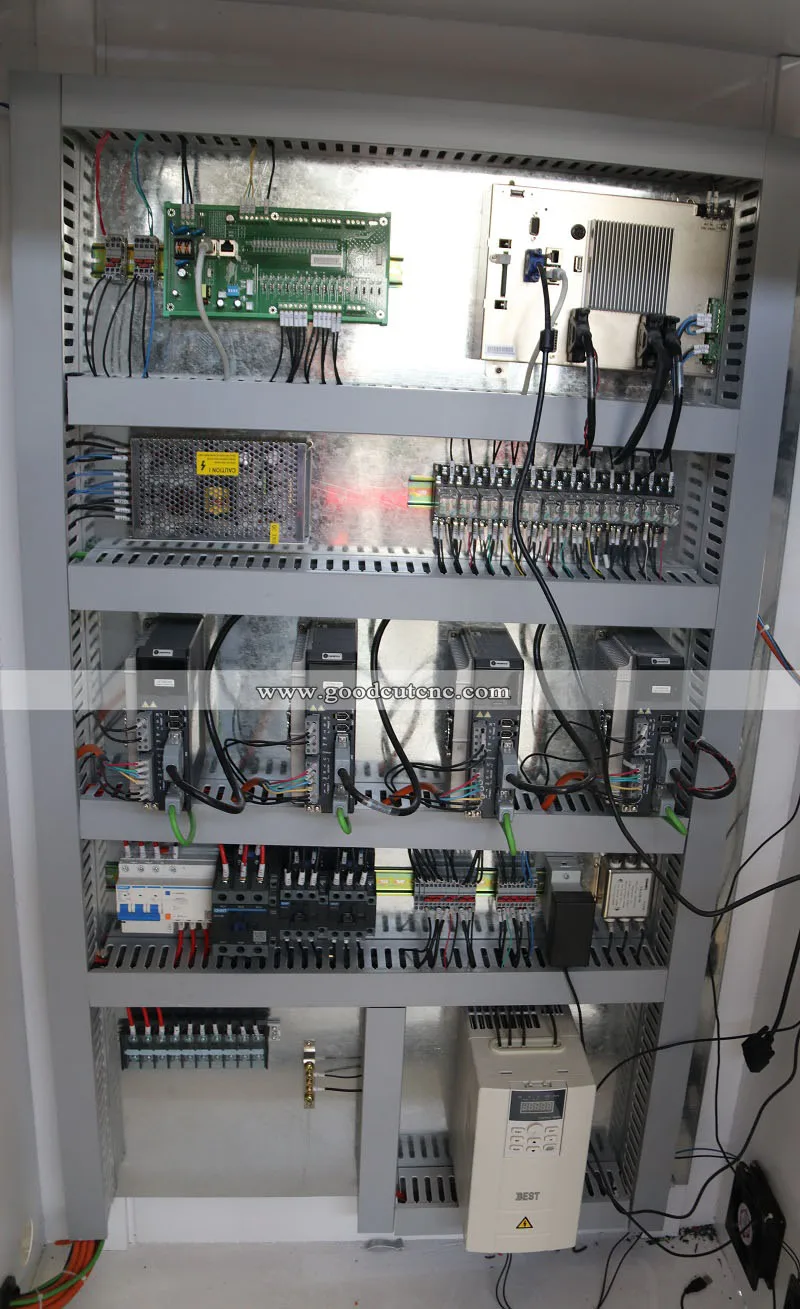

Motor and driver
Yaskawa / Delta / Leadshine Motor and driver etc
Inverter
Taiwan Delta Inverter / Best Inverster / Fuling Inverter
Guide Rails
HIWIN Guide Rail.
Fast running speed and strong bearing capacity.
Optional Parts:
1. Automatic tool change device
2. Double bags dust collector
Applications
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2.Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds. 4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, alum- inum plate engraving and milling process.
Samples Show
Packaging & Shipping
Company Infomation
Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine, wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.
