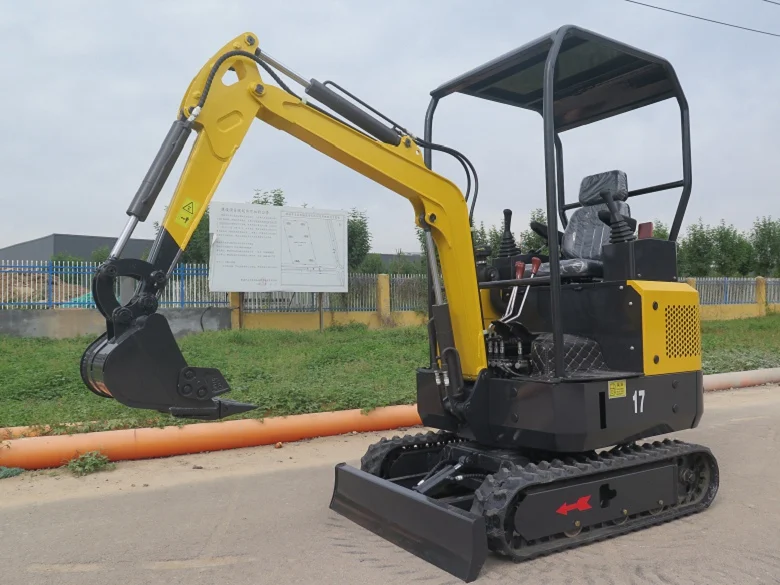

Brand New Cheap high quality bucket for sale Crawler Small Digger Mini Excavators
- Category: Excavators >>>
- Supplier: Jiangsu,Maidili,Machinery,Import,&,Export,Co.,Ltd.
Share on:
Product Overview
Description
Dimensions | Unit | Specification |
Wheel base | mm | 1100 |
Length of track | mm | 1300 |
Platform distance from the ground | mm | 380 |
Rotation radius of platform tail | mm | 933 |
Width of chassis | mm | 1100 |
Width of track | mm | 18o |
Height of track | mm | 320 |
Length of transport | mm | 2550 |
Full vehicle height | mm | 2200 |
Operating range | ||
Maximum surface excavation radius | mm | 2400 |
Maximum excavation depth | mm | 1800 |
Maximum excavation height | mm | 2740 |
Maximum unloading height | mm | 1750 |
Maximum vertical excavation depth | mm | 1320 |
Minimum radius of turn | mm | 1190 |
Maximum lifting height of shovel | mm | 325 |
Maximum dig depth of shovel | mm | 175 |
Engine | ||
Machine weight | kg | 1200 |
Standard bucket capacity | m³ | 0.03 |
Rated power rating | kw | 莱动LD385国Ⅱ国Ⅲ/18.1 |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO，EPA.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
