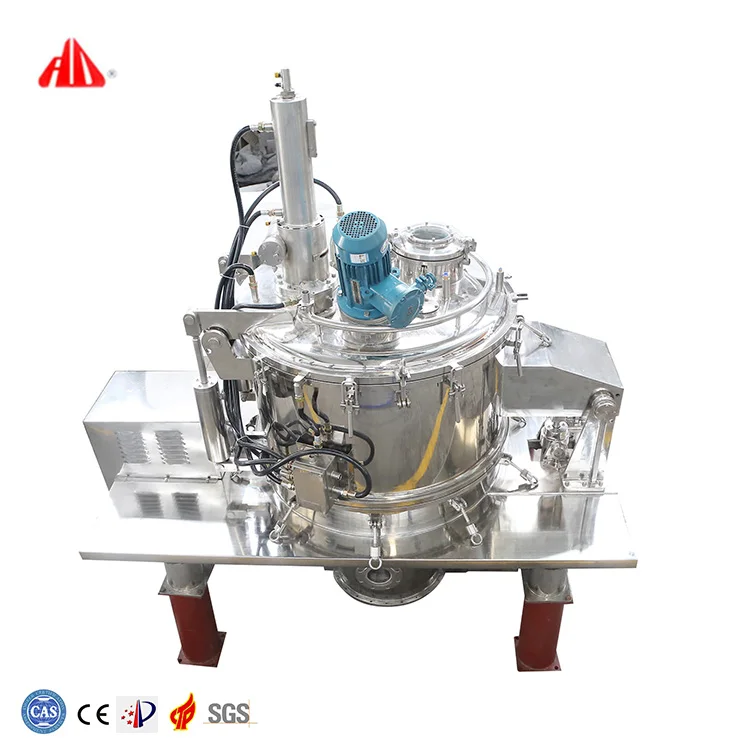

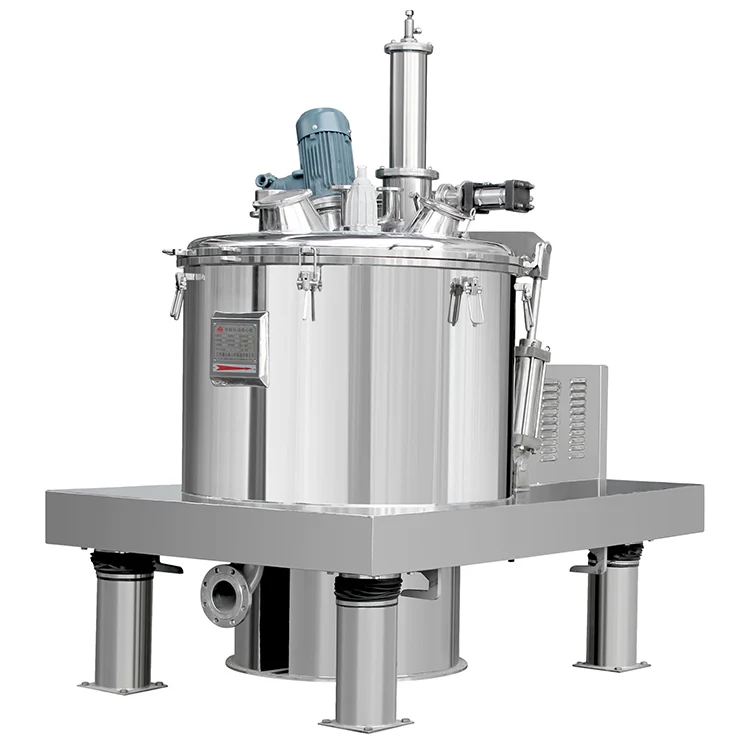

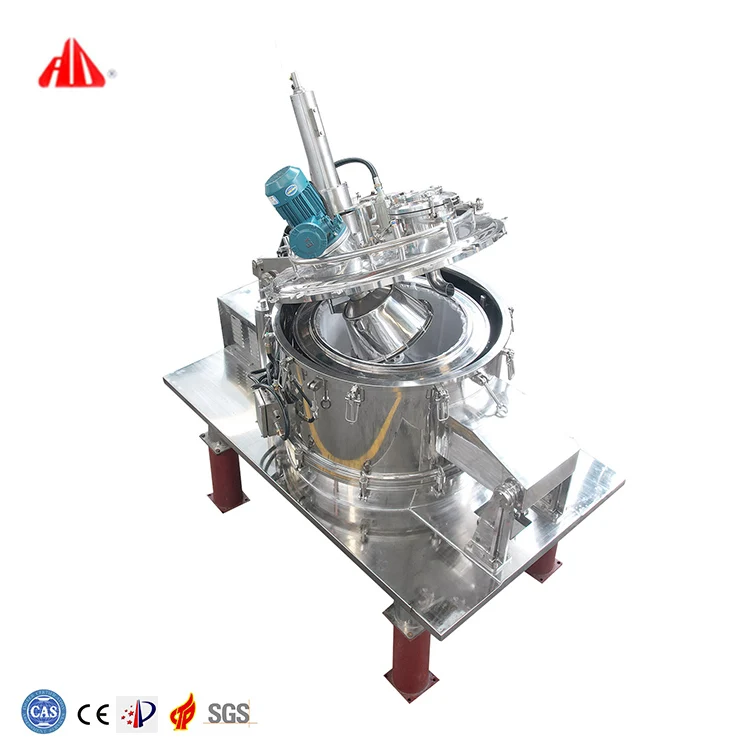

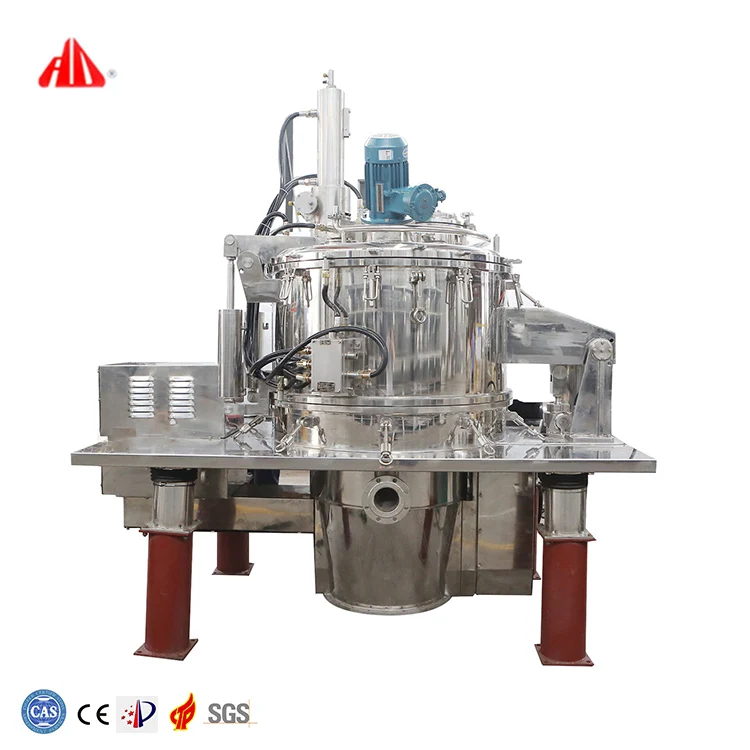

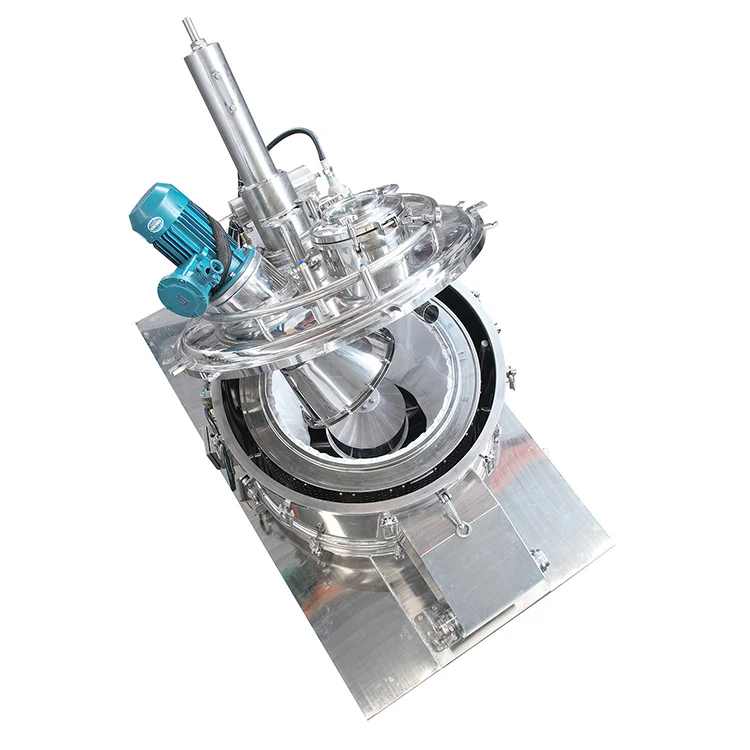

Jieda Plq1250 Bottom Discharge Vertical Scraper Centrifuges With Good Price
- Category: >>>
- Supplier: Jiangsu Jieda Centrifuge Manufacture Co. Ltd.
Share on (1600697290753):
Product Overview
Description
Product Description

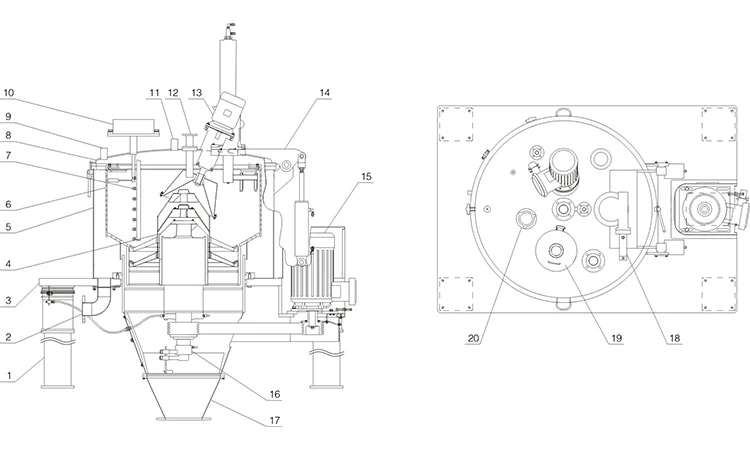

1. Vibration absorber
2. Mother liquid outlet
3. Machine base
4. Spindle part
5. Housing
6. Bowl part
7. Washing pipe
2. Mother liquid outlet
3. Machine base
4. Spindle part
5. Housing
6. Bowl part
7. Washing pipe
8. Machine cover
9. Oxygen connection pipe
10. Level detector
11. Nitrogen pipe
12. Feeding pipe
13. Rotary distributor
14. Flap turning device
9. Oxygen connection pipe
10. Level detector
11. Nitrogen pipe
12. Feeding pipe
13. Rotary distributor
14. Flap turning device
15. Motor part
16. Pneumatic device
17. Discharging outlet
18. Scraper device
19. Hand-hole and sight glass
20. Inspection hole lamp
16. Pneumatic device
17. Discharging outlet
18. Scraper device
19. Hand-hole and sight glass
20. Inspection hole lamp
Main Features of Jieda PLQ1250 Model Automatic Basket Centrifuge:
1. Automatic frequency converter to control speed.
2. It has all advantages of common vertical scraper down discharging centrifuge.
3. Full-automatic operation for hanging bag falling off and reset.
4. The filter bag can move up and down inside the drum to produce oscillation effect and remove the remnant filter cake throughly.
5. Big clamshell or shell whole reversible type are achievable according to users' demands.
2. It has all advantages of common vertical scraper down discharging centrifuge.
3. Full-automatic operation for hanging bag falling off and reset.
4. The filter bag can move up and down inside the drum to produce oscillation effect and remove the remnant filter cake throughly.
5. Big clamshell or shell whole reversible type are achievable according to users' demands.

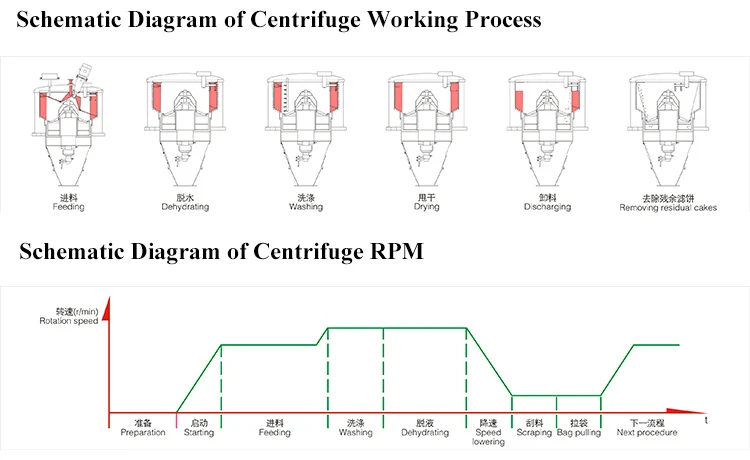

Working Principle of Jieda PLQ1250 Model Automatic Basket Centrifuge:
During the process of discharging, the scraper acts, under the impact of which most material are discharged through the blanking
hole on the bottom of drum to the outside. The remnant material layer will generate oscillation effect by the influence of
automatic hanging bag mechanism inside the drum and then the remnant material layer will be removed.
hole on the bottom of drum to the outside. The remnant material layer will generate oscillation effect by the influence of
automatic hanging bag mechanism inside the drum and then the remnant material layer will be removed.
Specification
Model | PLQ800 | PLQ1000 | PLQ1250 | PLQ1600 |
Drum Diameter(mm) | 800 | 1000 | 1250 | 1600 |
Drum Height(mm) | 400 | 450 | 500 | 800 |
Drum Volume(L) | 100 | 175 | 300 | 775 |
Maximum Loading Limit(kg) | 135 | 235 | 400 | 1050 |
Drum Rotational Speed(rpm) | 1200 | 1000 | 1000 | 850 |
Separation Factor(ω²r/g) | 645 | 560 | 700 | 647 |
Motor Power(KW) | 7.5 | 11 | 22 | 37 |
Machine Weight(kg) | 2200 | 3500 | 5000 | 9500 |
Dimension(L*W*H)(mm) | 1800*1300*2300 | 2100*1430*2250 | 2450*1800*2460 | 3000*2200*2700 |

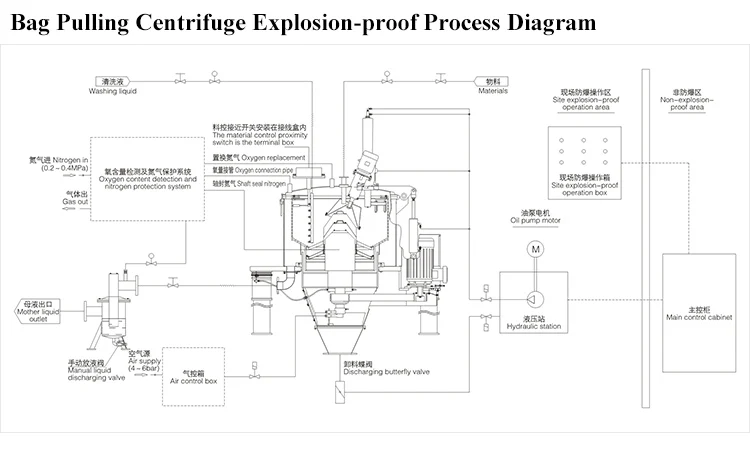

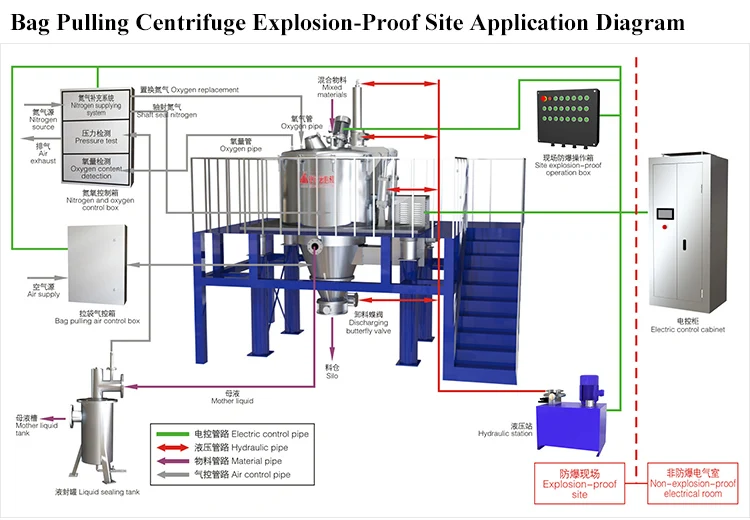

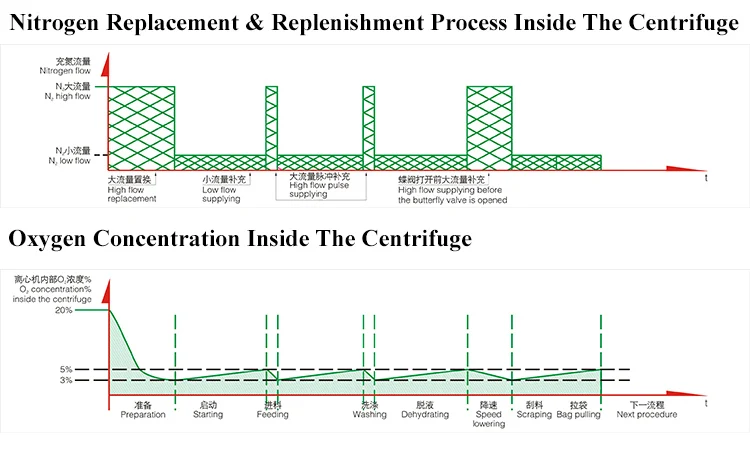

Explosion-proof Working Principle of Jieda PLQ1250 Model Automatic Basket Centrifuge:
The explosion-proof bag pulling centrifuge is manufactured according to the explosion-proof standard. Before the centrifuge is
started, high flow nitrogen replacement is carried out. The gas inside the centrifuge is ensured to be insert through adopting
oxygen content detection, pressure test and other ways, so as to meet the centrifuge running requirements. After the equipment
runs, the oxygen content is monitored in a dynamic manner and high flow nitrogen replacement or low flow low pressure nitrogen
supplying is carried out, so as to ensure that the equipment meets the explosion-proof running requirements.
started, high flow nitrogen replacement is carried out. The gas inside the centrifuge is ensured to be insert through adopting
oxygen content detection, pressure test and other ways, so as to meet the centrifuge running requirements. After the equipment
runs, the oxygen content is monitored in a dynamic manner and high flow nitrogen replacement or low flow low pressure nitrogen
supplying is carried out, so as to ensure that the equipment meets the explosion-proof running requirements.
Company Profile
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing,
product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a
Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery
Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for
Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete
manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality
system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has
cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge
separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion,
more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a
Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery
Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for
Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete
manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality
system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has
cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge
separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion,
more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Our Workshop
Warehouse
Certifications
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation andcommissioning? Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors? Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality? My factory is a state owned enterprise with more than 20 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous
brand. Series of test and inspection are done in the whole producing stage.
brand. Series of test and inspection are done in the whole producing stage.
