CT360S CNC Lathe automatic high precision metal Flat Bed CNC lathe Machine
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600697298121):
Product Overview
Description
▪ Electronic handwheel for manual travel of X- and Y-axis come standard

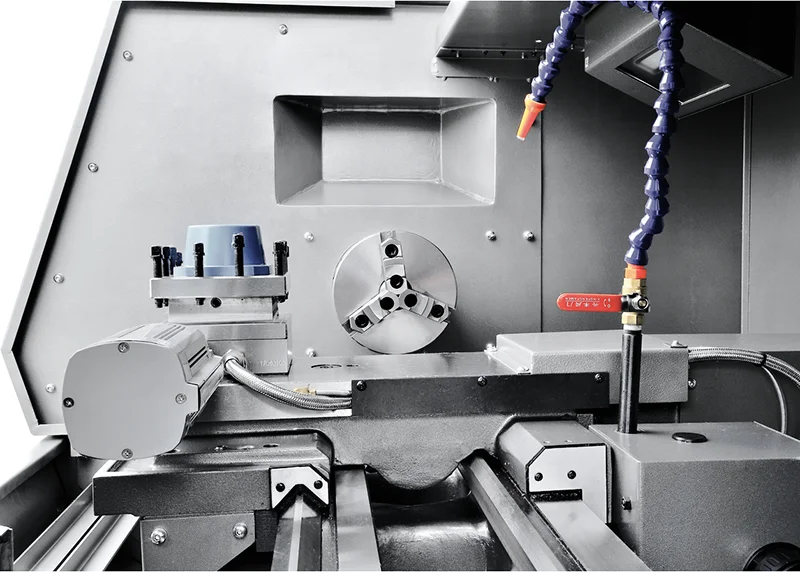

▪ Wide cross slide allows mounting of various tool post holders
▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ40 mm)
▪ Wide cross slide allows mounting of various tool post holders
▪ Stable tailstock with hydraulically adjustable tailstock spindle
▪ High rapid feed allows significant reduction of downtime.
▪ Main spindle features pre-tightened high-quality angular bearings, guarantees best
possible accuracy
▪ User-friendly, easy-to-understand Fanuc control 0i TF (5)
▪ Solid headstock features precisely bedded main spindle (spindle bore Φ40 mm)

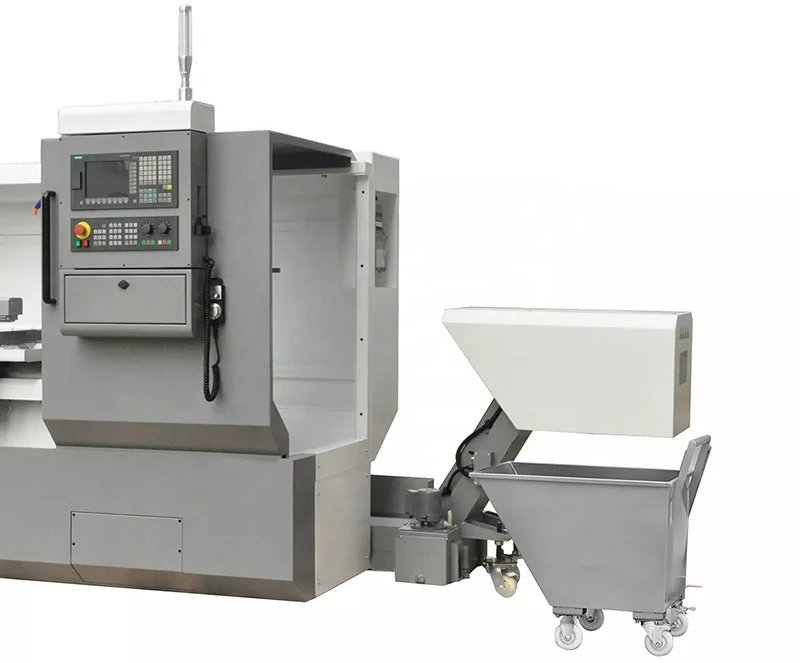

Siemens or Fanuc CNC System

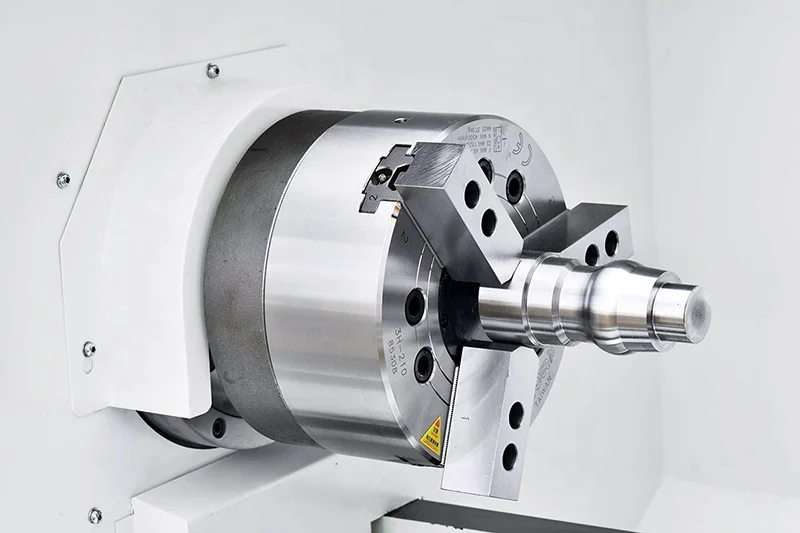

3-Jaw Hydraulic Chuck

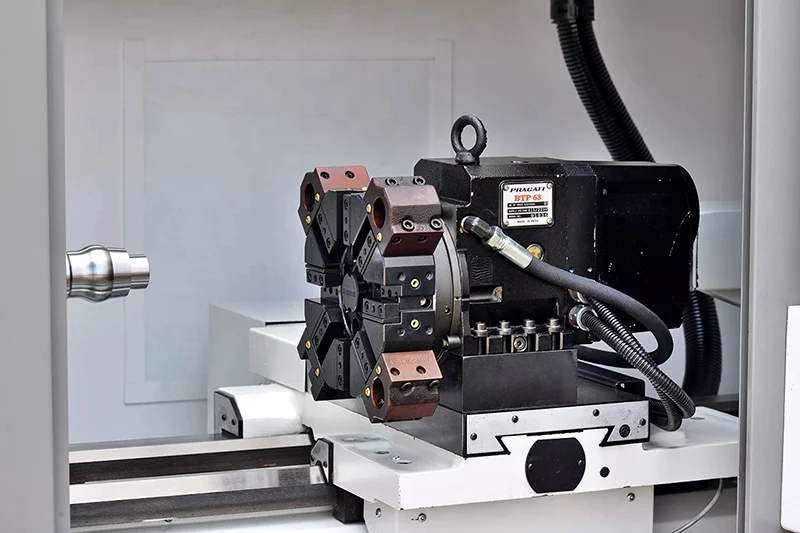

6-station electrical tool changer
Technical Parameters
Model | CT-360S CNC |
CAPACITY: | |
Swing over bed | Φ360 mm |
Swing over cross slide | Φ180 mm |
Distance between centers | 500/750/1000 mm |
Max. turning length | 450/700/950 mm |
6-station turret max. turning length | 340/590/840 mm |
6-station turret max. turning diameter | Φ225 mm |
Manual chuck dia. | 6" (160 mm); 8" (200 mm) |
Hydraulic chuck dia. | 8" (200 mm) |
TRAVEL: | |
Cross slide travel (X-axis) | 215 mm |
when using stationary cutting blocks | 295 mm |
Longitudinal travel (Z-axis) | 490/740/990 mm |
X/Z-axis guide rails | sliding type |
Bed width | 312 mm |
X/Z-axis ball screw dia. × thread pitch. accuracy class | Φ20x5. P3/32×6. P4 mm |
SPINDLE: | |
Spindle speed | 200-2800 rpm |
Spindle taper | С5/МK-5 |
Spindle bore | Φ40 mm |
Bar diameter (hydraulic chuck) | Φ28 mm |
TOOL: | |
Tool station number | 4; 6 pcs |
Tool section size | 20×20 mm |
TAILSTOCK: | |
Tailstock quill taper | МK-4 |
Tailstock quill diameter | Φ60 mm |
Tailstock quill travel | 120 mm |
SPEED: | |
X/Z-axis rapid traverse | 8/10 m/min |
COOLANT: | |
Coolant pump power | 0.09 kw |
POWER: | |
Main motor power | 4; 5.5 kw |
Main motor torque | 41; 57 N.m |
Spindle torque | 78; 101 N.m |
DIMENSIONS: | |
Overall dimensions (L×W×H) | 1870/2120/2379×1200×1415 mm |
Weight approx. | 1500/1700/1900 kg |
Detailed Description
FAQ
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What’s the delivery time, and what’s the package?
Re: Normally the delivery time is about 45-60 days. All our CNC machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
