Hetai hot selling ES8005K 75S30M1 series 750w cheap price high power micro servo motor 24v brushless servo motor
- Category: >>>
- Supplier: Changzhou Hetai Motor And Electrical Appliance Co. Ltd.
Share on (1600697333764):
Product Overview
Description
Product Description
ES8005K-75S30M1
24V Servo Motor
Factory Supply Stable Performance
ES80 series 750w factory supply high power micro servo motor 24v brushless servo motor
Specification
Rated Voltage（V) | 24 |
Rated Power（W） | 750 |
Model | ES8005K-75S30M1 |
Rated Current（Amps） | 40 |
Rated Speed（RPM） | 3000 |
Rated Torque（N.M） | 2.38 |
Maximum Torque（N.M） | 7.14 |
Torque Constant（N.M/Amps） | 0.057 |
Rotor Moment Of Inertia（Kg.cm2） | 1.51*10-4 |
Resistance Line-line（Ω） | 0.03 |
Inductance Line-line（mH） | 0.20 |

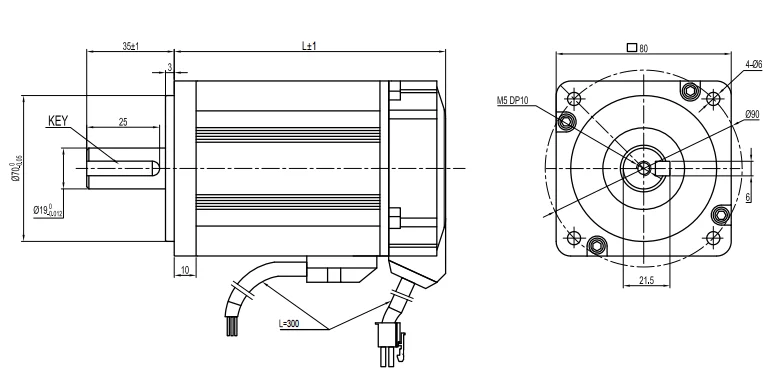

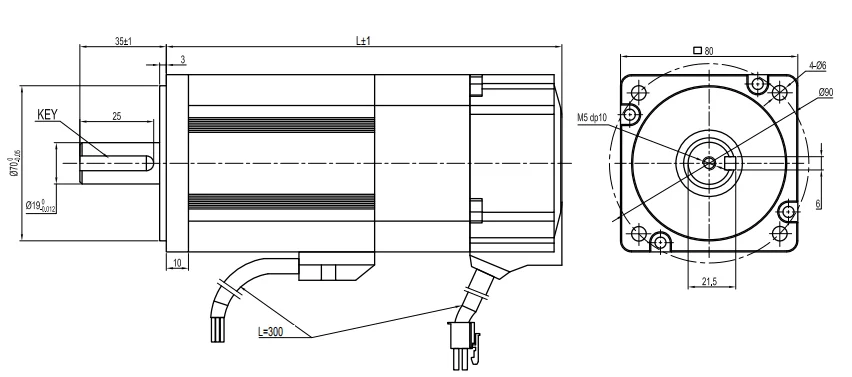

No Brake Series
With Brake Series
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years. The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.
Product Range
Certificate
Quality insurance
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023
BLDC Motor ROHS report
Date: May 16, 2022
Stepper motor ROHS report
Date: May 16, 2022
Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024
Why Choose Us
Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service
Engineering Support
Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery,intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.
Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.

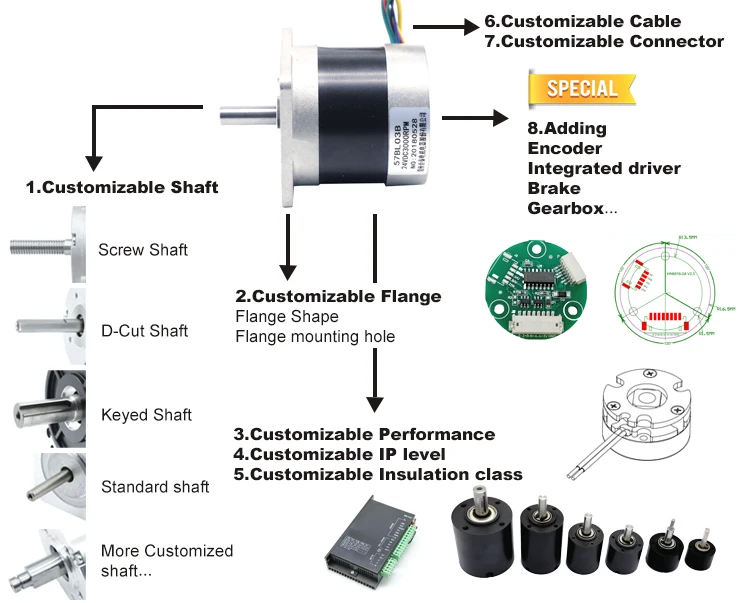

Which part of the motor can be customised?
1.Customizable Shaft
Screw Shaft/ D-Cut Shaft/ Keyed Shaft/ Standard Shaft/ More Customized Shaft
2.Customizable Flange
Flange Shape/ Flange mounting hole
3.Customizable Performance
4.Customizable IP level
5.Customizable Insulation class
6.Customizable Cable
7.Customizable Connector
8.Adding Encoder, Intergrated driver, Brake, Gearbox...
Laboratory Equipment
Motor automatic test system
Laboratory Equipment
High and low temperature test chamber
Laboratory Equipment
Lifespan Test
Mass Production Advantage
Large-scale production
Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
CNC CENTER
Eight CNC PRECISION AUTOMATIC LATHES
CNC CENTER
Seven CNC AUTOMATIC MACHINING CENTERS
Seven CNC AUTOMATIC MACHINING CENTERS
Quality Control Process

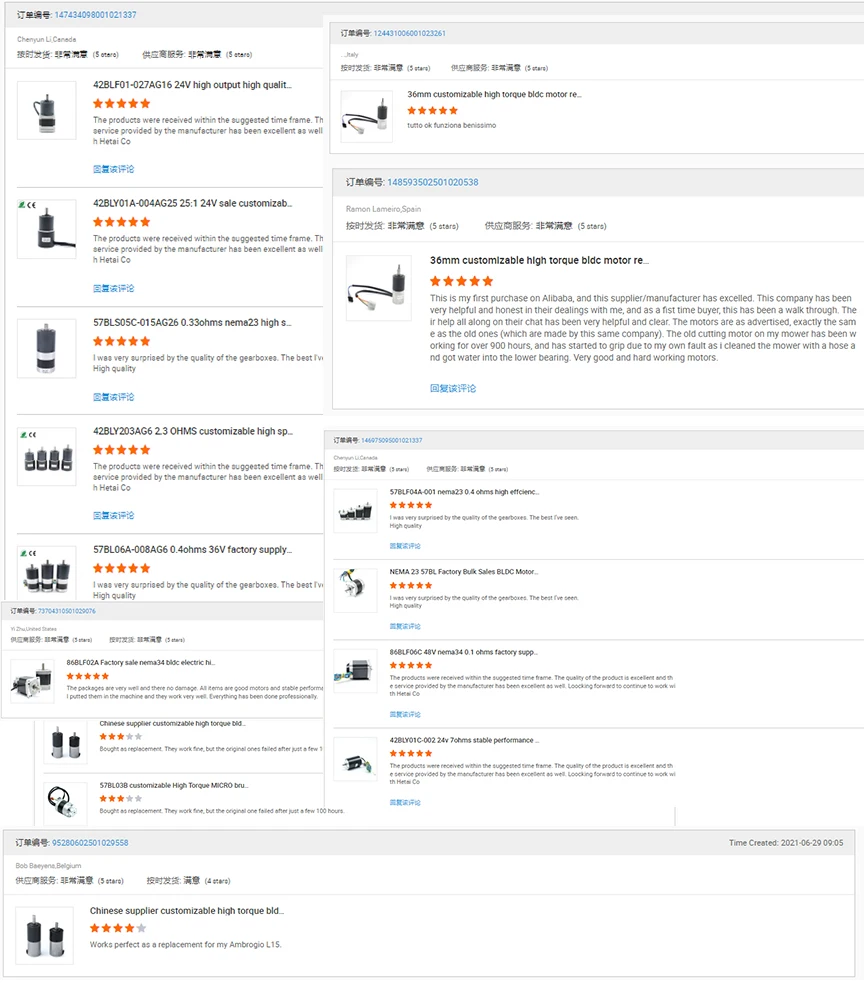

Customer Feedback
