DPB 140 high quality variety tablet packaging blister sealing packing machine
- Category: >>>
- Supplier: Shenzhen Nuoya Pharmaceutical Equipment Co. Ltd.
Share on (1600697352624):
Product Overview
Description

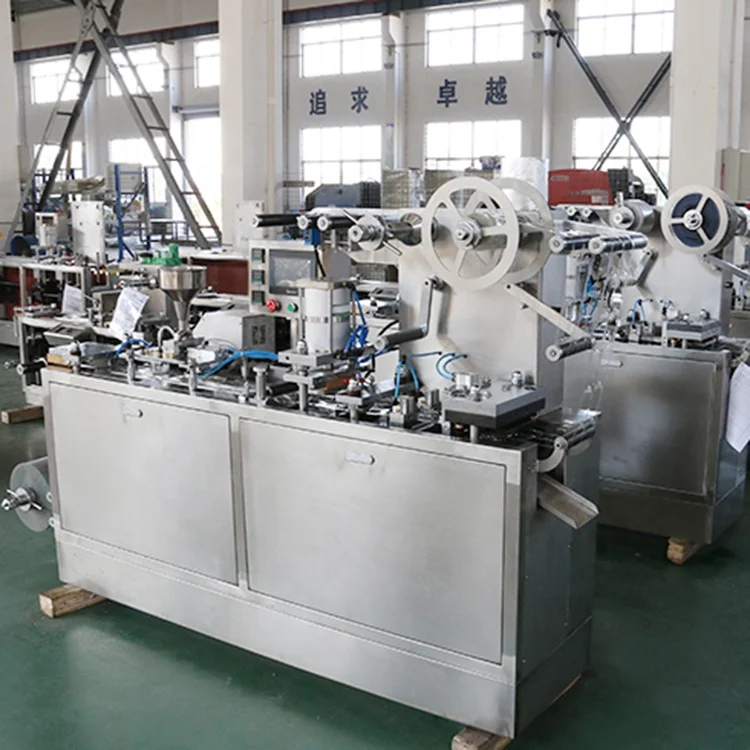

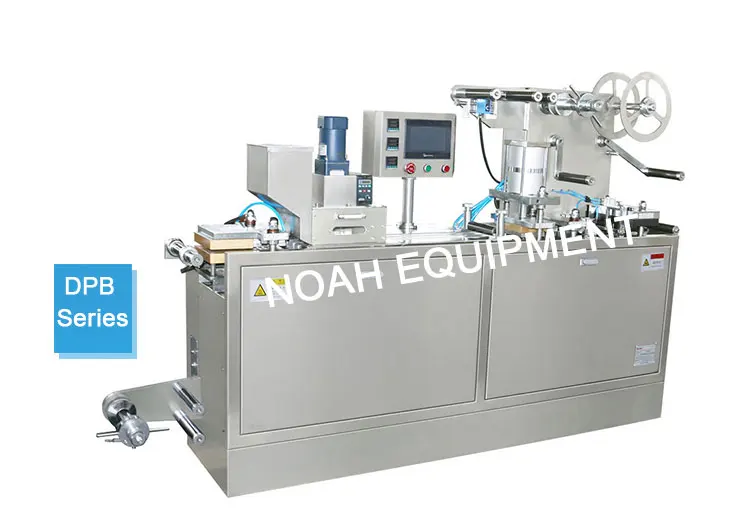

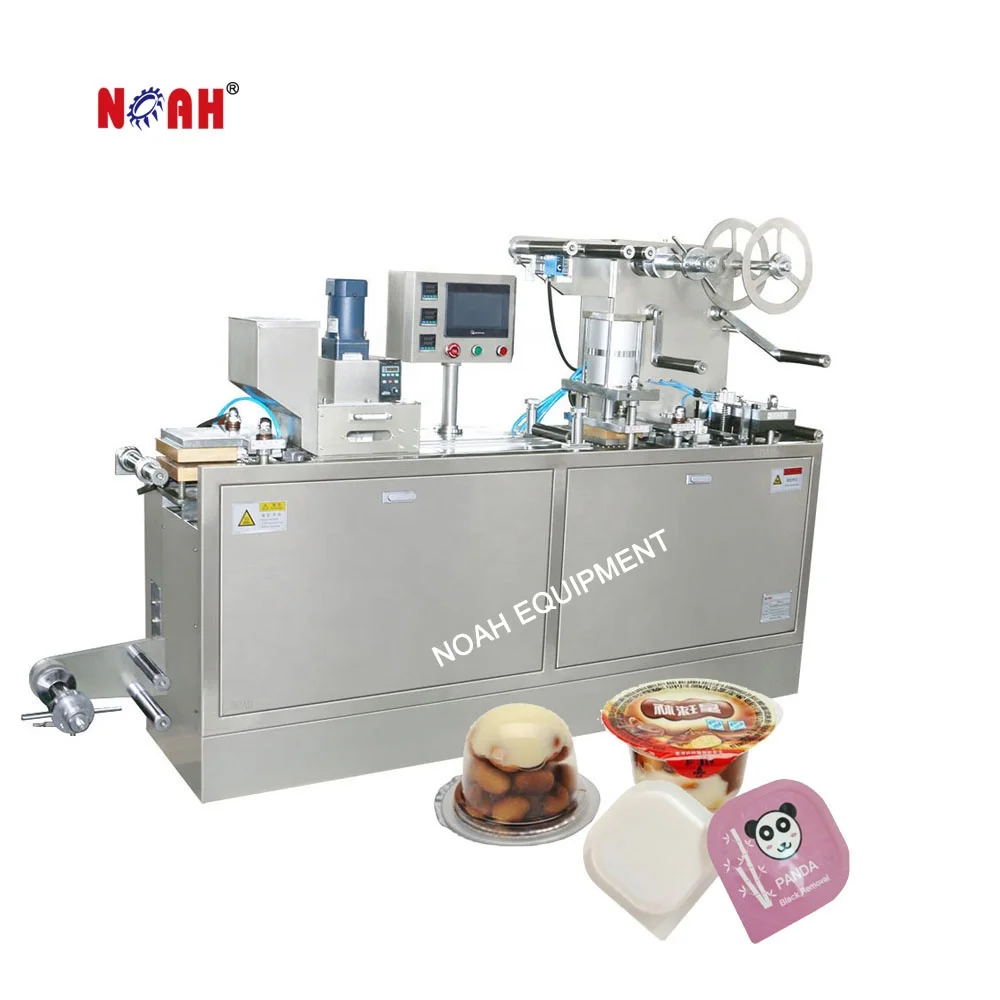

DPB-140 high quality variety tablet packaging blister sealing packing machine
Products Description
Cutting frequency (times/min) | 20-40 | ||||||
Capacity (strips/h) | 4,800 | ||||||
Max shaping areas and depth (mm) | 130 x 100 x 26 | ||||||
Stroke (mm) | 20-120 (can be manufactured as user's requirements) | ||||||
Standard sheet (mm) | 80 x 57 (can be manufactured as user's requirements) | ||||||
Air pressure (kW) | 0.4-0.6 | ||||||
Total power | 380V/220V, 50Hz, 3.2kW | ||||||
PVC hard pieces (mm) | 0.15-0.5 x 140 | ||||||
PTP aluminum foils (mm) | 0.02-0.035 x 140 | ||||||
Dialysis paper (mm) | 50-100g x 140 | ||||||
Mould cooling: tap water or back water | |||||||
Overall dimensions (mm) | 2,300 x 560 x 1,410 | ||||||
Weight (kg) | 800 | ||||||
Our machine is a new product designed for dosage rooms of hospitals, medium-size and small-size food plants, and health care product plants, widely used for packing foodstuffs,and electronic components.
Performance and characteristic:
1. Travel scope can be adjusted.
2. Mould is located by locating groove, so that it’s easy to change mould. Adopt cool-forming moulds（Optional）.
3. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
4.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Performance and characteristic:
1. Travel scope can be adjusted.
2. Mould is located by locating groove, so that it’s easy to change mould. Adopt cool-forming moulds（Optional）.
3. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
4.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

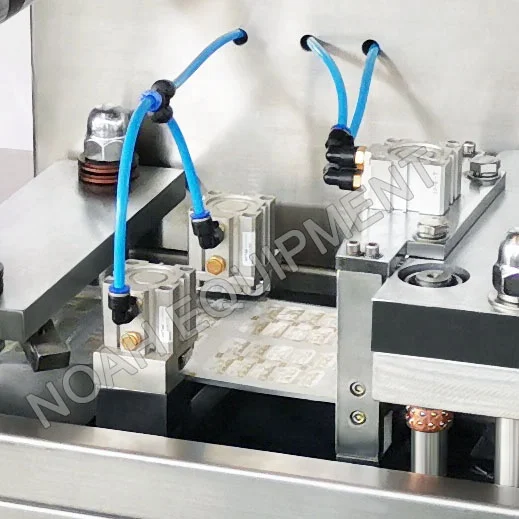

Detailed images
