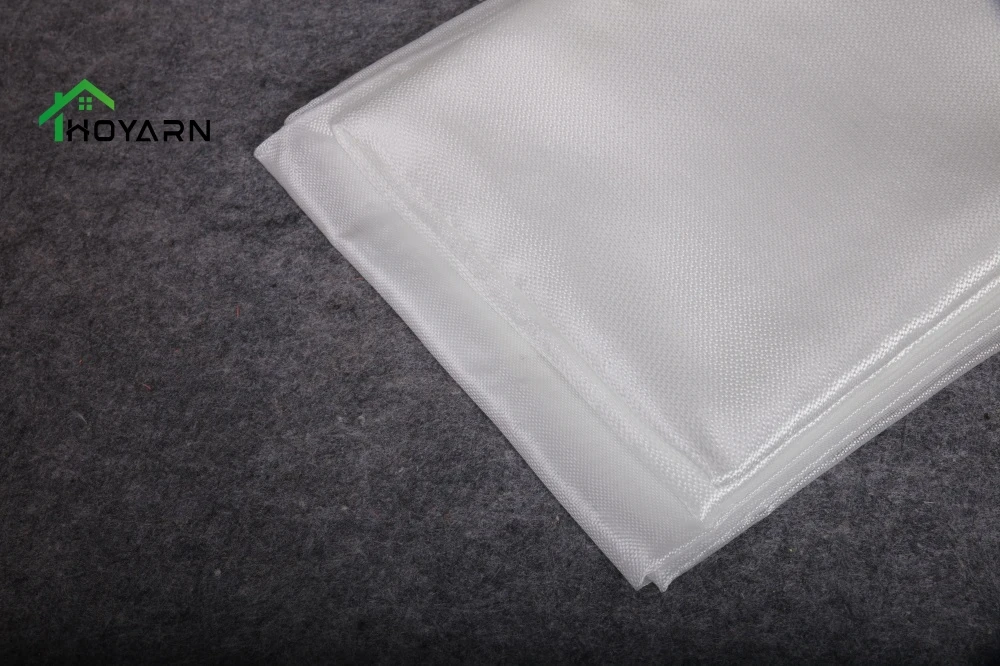

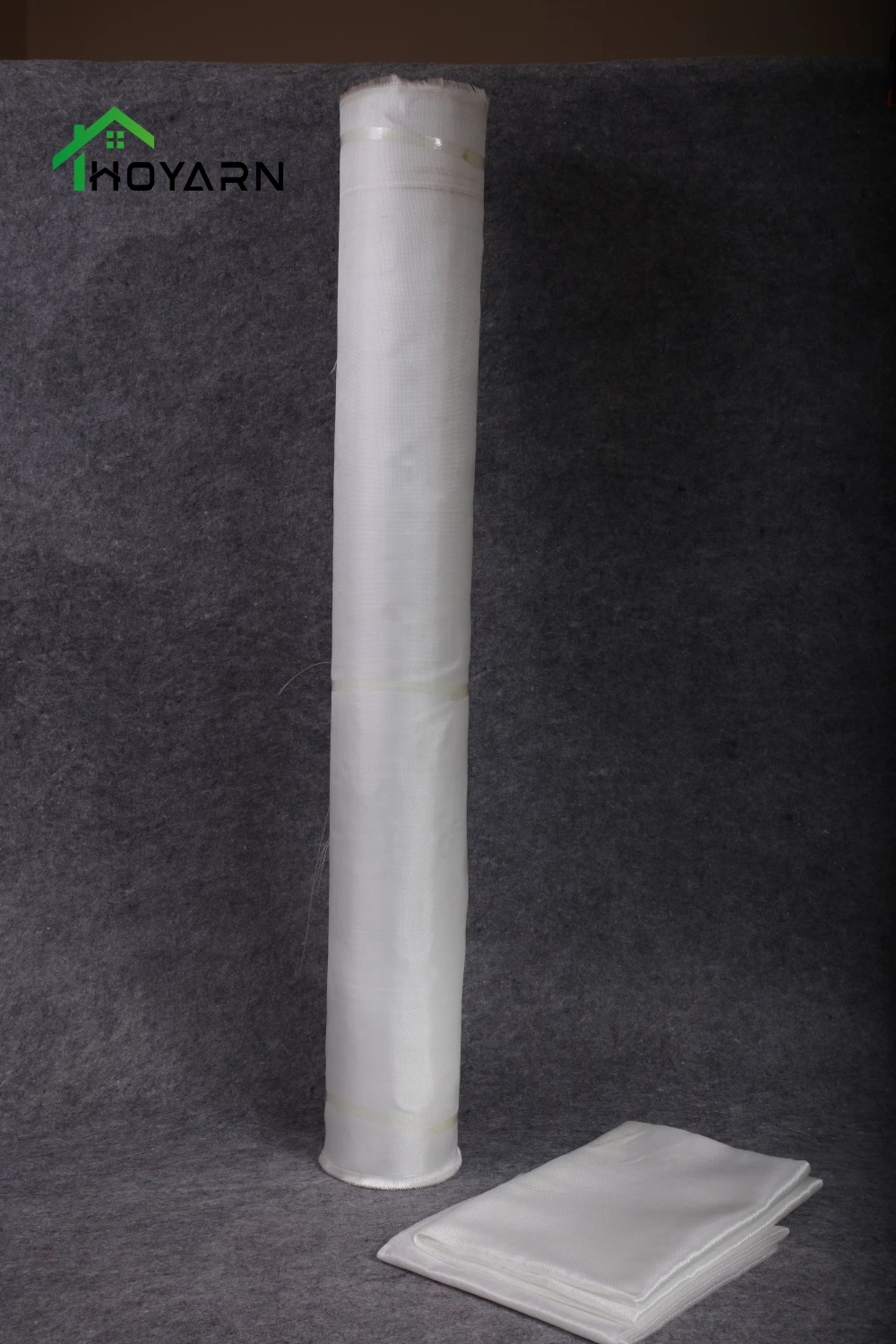

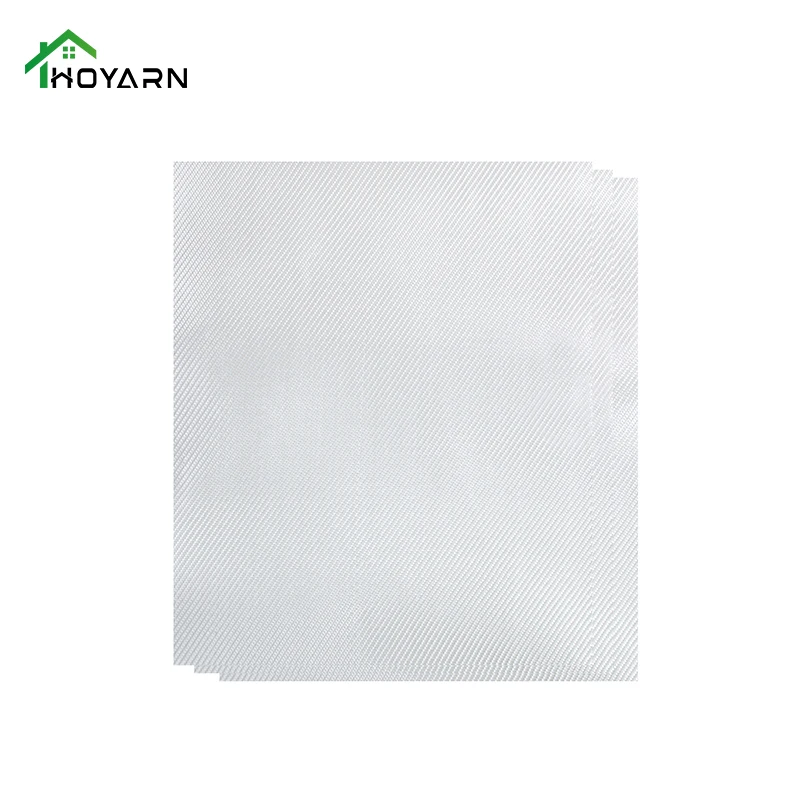

China Supplier Fireproof Alkali resistant Waterproof Material 180g 10*10 Fiberglass Cloth Fiberglass Plain Weave Cloth
- Category: Fiberglass Cloth >>>
- Supplier: Hebei Xiongan Hengyun Technology Co. Ltd.
Share on (1600697371401):
Product Overview
Description
Product Description
Product Introduction
Fiberglass cloth is mainly divided into two categories: medium-alkali and alkali-free. Alkali-free fiberglass plain cloth is mainly used to produce various types of electrical insulation laminates, printed circuit boards, ships and boats, and molds. Medium-alkali fiberglass plain cloth is mainly used in the construction industry and for the production of plastic-coated packing sheets.
Product Function-Pipeline Wrapping
Anti-corrosion: First, clean the rust on the pipeline; then, wrap the exterior of the pipeline with fiberglass cloth of suitable density and asphalt coating or other products for two or three layers.
Heat insulation: after wrapping the pipeline that has undergone the anti-corrosion process with a heat preservation quilt or insulated pipe, wrap the heat preservation layer with fiberglass cloth of suitable width and density, and then apply the coating or wrap the pipeline with the asphalt cloth directly.
Product Features:
Anti-corrosion, waterproof, sun-proof
Anti-decay if buried in the ground
Anti-weathering when placed in the air
Product Function-Waterproof Cloth
Application scope: Mainly used for building waterproofing in such spaces as bathrooms, basements, warehouses, swimming pools, etc.
Method: First, clean the roof before evenly coating the top surface of the roof with asphalt paint; put the fiberglass cloth on the asphalt when the maximum viscosity is achieved, and then coat the fiberglass cloth with asphalt paint for three or four layers.
Features:
Strong penetration, high tensile strength, anti-weathering, the resin is adhesive, the best waterproof material in the construction industry
Product Function-Fireproof Cloth
Method: apply two layers of fiberglass cloth, fill the interval between the two players with calcium silicate thinner material and wait for several hours to dry naturally
Features: waterproof, fireproof, acid and alkali-resistant, no deformation, anti-corrosion
Fiberglass cloth is mainly divided into two categories: medium-alkali and alkali-free. Alkali-free fiberglass plain cloth is mainly used to produce various types of electrical insulation laminates, printed circuit boards, ships and boats, and molds. Medium-alkali fiberglass plain cloth is mainly used in the construction industry and for the production of plastic-coated packing sheets.
Product Function-Pipeline Wrapping
Anti-corrosion: First, clean the rust on the pipeline; then, wrap the exterior of the pipeline with fiberglass cloth of suitable density and asphalt coating or other products for two or three layers.
Heat insulation: after wrapping the pipeline that has undergone the anti-corrosion process with a heat preservation quilt or insulated pipe, wrap the heat preservation layer with fiberglass cloth of suitable width and density, and then apply the coating or wrap the pipeline with the asphalt cloth directly.
Product Features:
Anti-corrosion, waterproof, sun-proof
Anti-decay if buried in the ground
Anti-weathering when placed in the air
Product Function-Waterproof Cloth
Application scope: Mainly used for building waterproofing in such spaces as bathrooms, basements, warehouses, swimming pools, etc.
Method: First, clean the roof before evenly coating the top surface of the roof with asphalt paint; put the fiberglass cloth on the asphalt when the maximum viscosity is achieved, and then coat the fiberglass cloth with asphalt paint for three or four layers.
Features:
Strong penetration, high tensile strength, anti-weathering, the resin is adhesive, the best waterproof material in the construction industry
Product Function-Fireproof Cloth
Method: apply two layers of fiberglass cloth, fill the interval between the two players with calcium silicate thinner material and wait for several hours to dry naturally
Features: waterproof, fireproof, acid and alkali-resistant, no deformation, anti-corrosion
170g 9*8 fiberglass cloth | ||||||
test items | the measured figure A | the measured figure B | determinant | |||
warp | 100tex | 103tex | eligibility | |||
weft | 100tex | 98tex | eligibility | |||
tension of warp | 1200N±5% | 1270N | eligibility | |||
tension of weft | 1100N±5% | 1185N | eligibility | |||
density of warp | 9/cm | 9/cm | eligibility | |||
density of weft | 8/cm | 8/cm | eligibility | |||
width | 1030mm | 1030mm | eligibility | |||
gram | 170g/m2±5 | 173g | eligibility | |||
length of roll | 800-1000m/roll | qualified | eligibility | |||
resist-high temperature | 350℃ | 360℃ | eligibility | |||

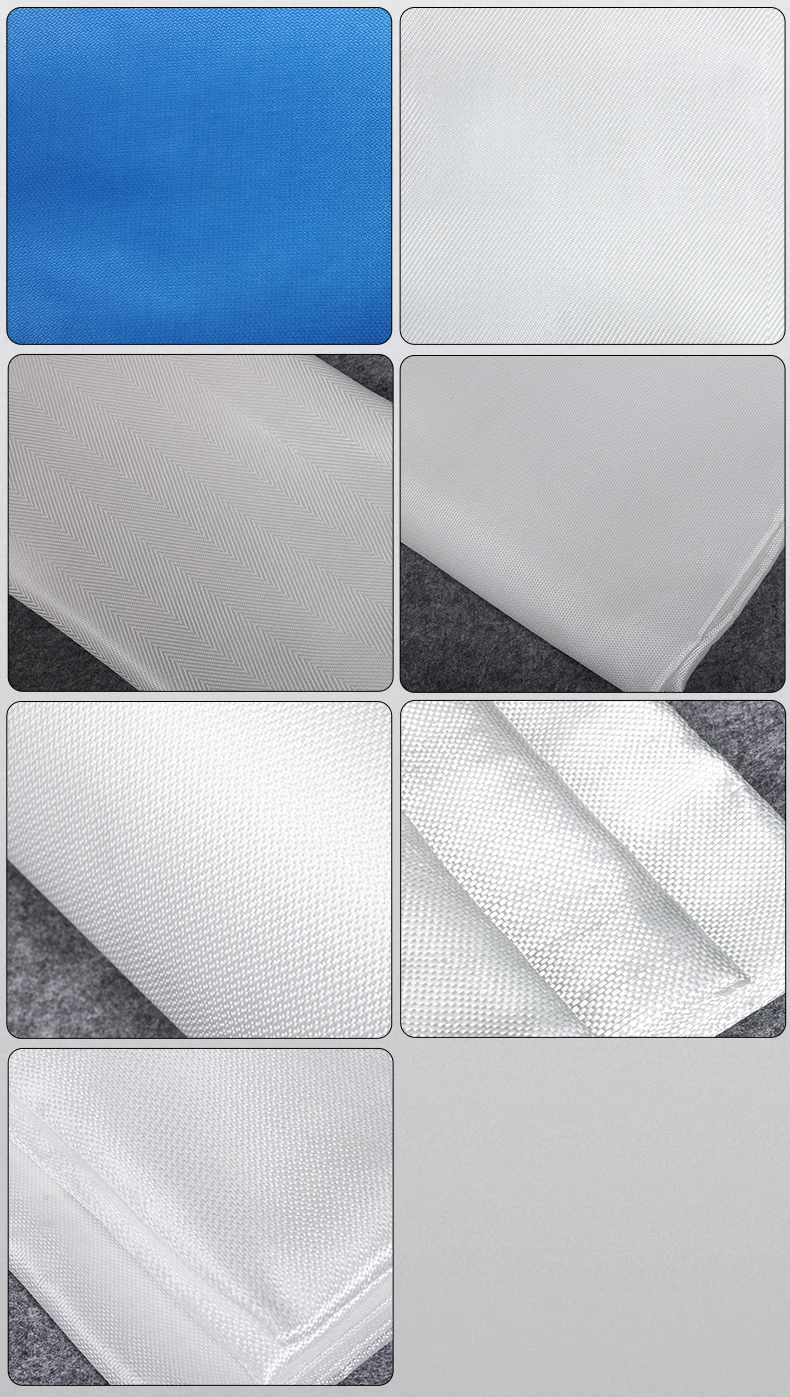

Product Details
Technical Data
Size | 100g | 135g | 160g | 190g |
Yarn Count | 70tex/38tex | 70tex/65tex | 135tex/70tex | 135tex/135tex |
Diameter of Fiber | 11um | 11um | 11um | 11um |
Weight Per Unit Area | 100±3% | 135±3% | 160±3% | 190±3% |
Length of Roll | 100/250/400m±1% | 100/250/400m±1% | 100/250/400m±1% | 100/250/400m±1% |
Width | 1m/2m | 1m/2m | 1m/2m | 1m/2m |
Tension of Warp | 1200N | 1200N | 1380N | 1350N |
Tension of Weft | 900N | 1100N | 1200N | 1350N |
Density of Warp and Weft | 10/cm 8/cm | 10/cm 10/cm | 8/cm 9/cm | 9/cm 9/cm |
Water Content | 0.5% | 0.5% | 0.5% | 0.5% |
Test Report | ||||||
Fiberglass cloth (plain)10*10 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥10±0.5 | 10 | Qualified | |||
Weft density (unit/cm) | ≥10±0.5 | 10 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥600 | 650 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥600 | 700 | Qualified | |||
Fiberglass cloth (plain) 9*9 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥9±0.5 | 9.5 | Qualified | |||
Weft density (unit/cm) | ≥9±0.5 | 10 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥800 | 900 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥800 | 870 | Qualified | |||
Fiberglass cloth (plain) 8*8 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥8±0.5 | 8.1 | Qualified | |||
Weft density (unit/cm) | ≥8±0.5 | 8.1 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥600 | 650 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥600 | 700 | Qualified | |||
