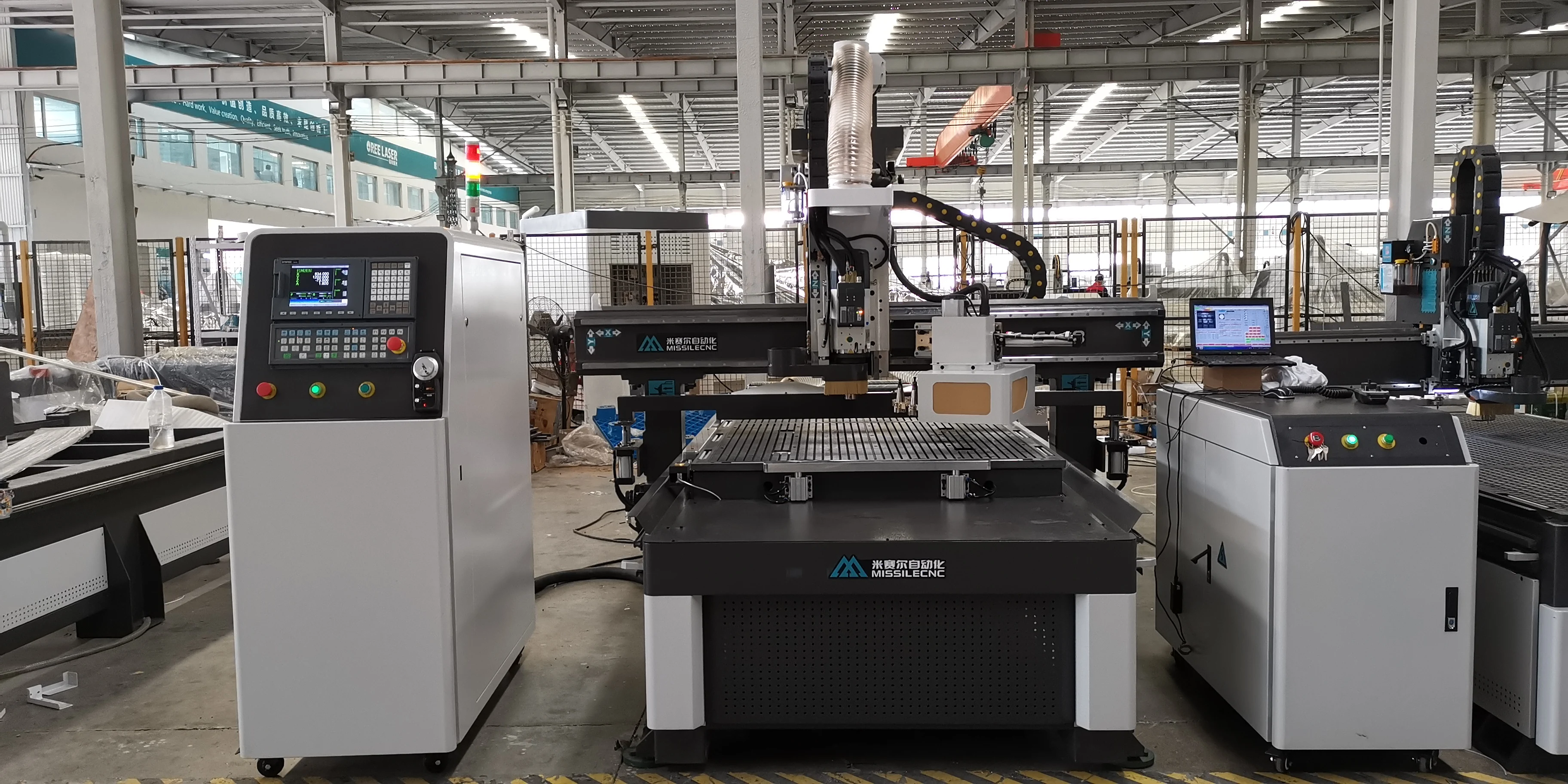

1325 atc cnc nesting router wood router furniture cabinet making machine
- Category: >>>
- Supplier: Jinan Missile CNC Equipment Co. Ltd.
Share on (1600697390617):
Product Overview
Description
Product Description

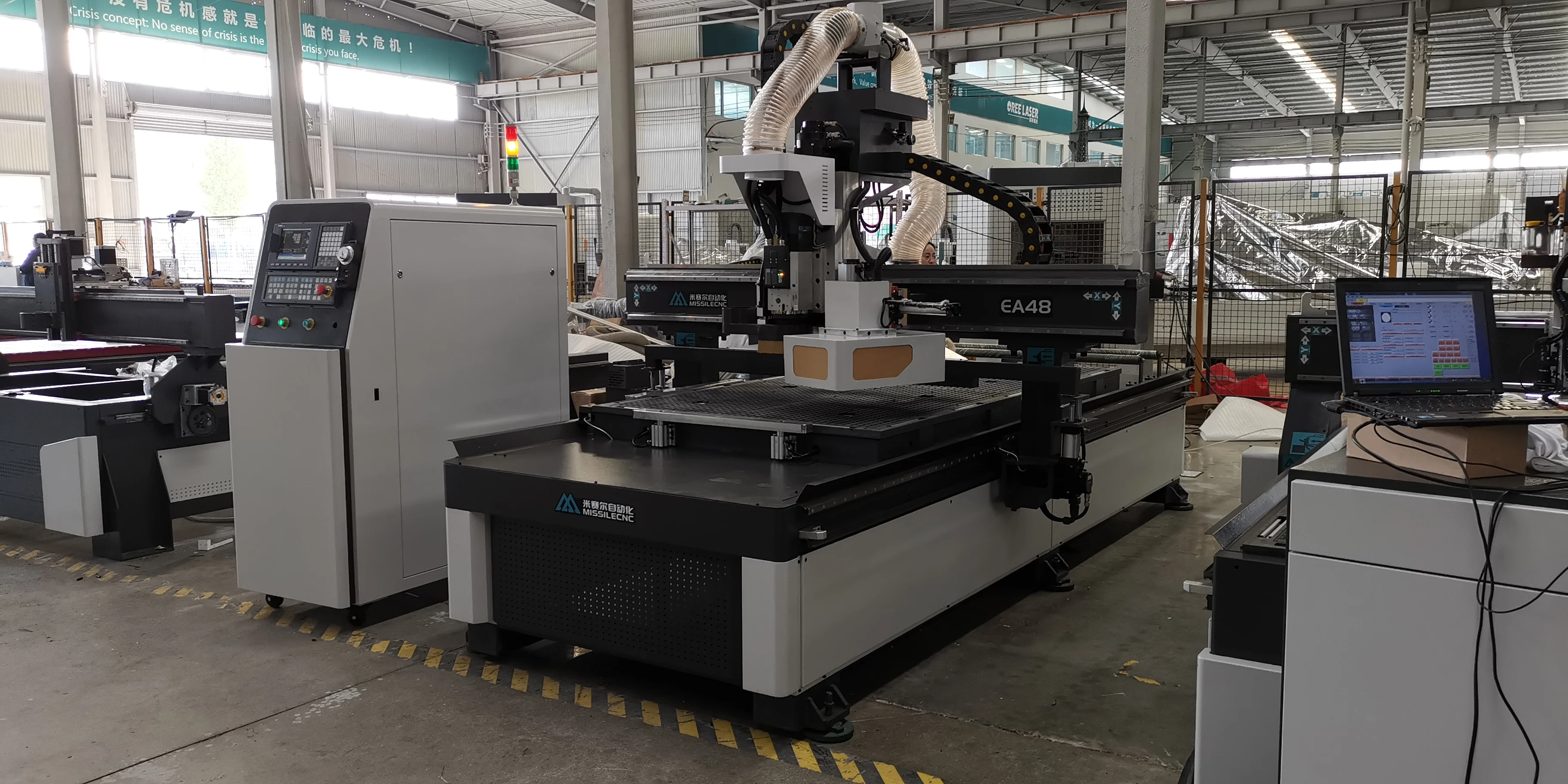

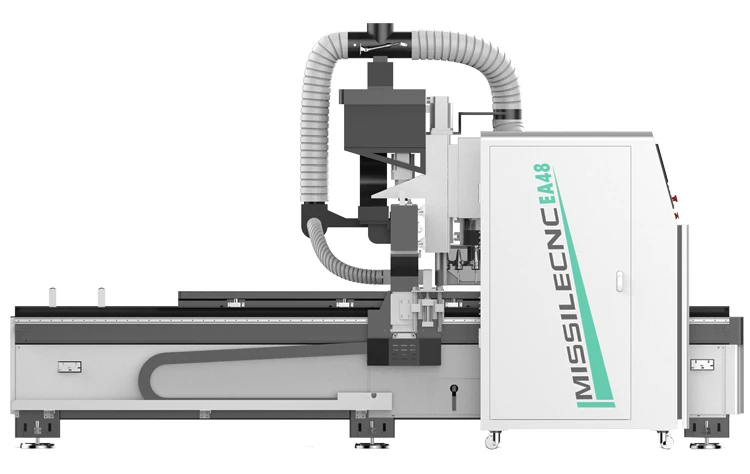

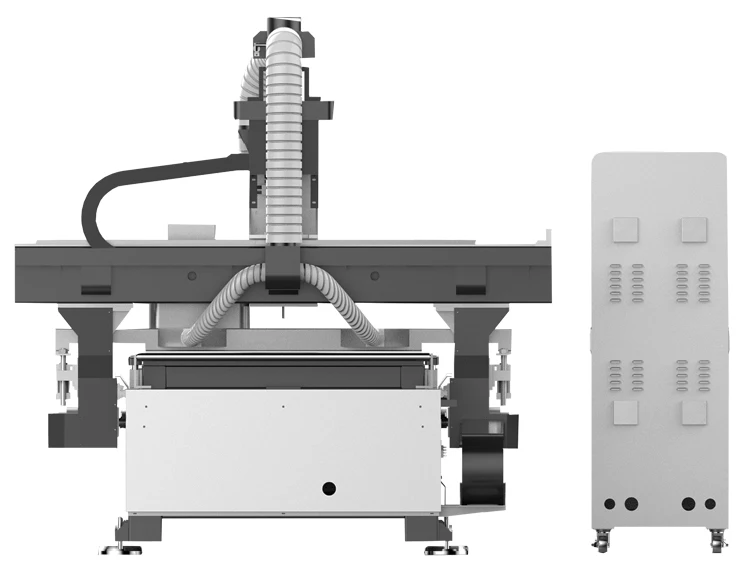

MISSILE CNC NESTED BASED ROUTER EA48-2040

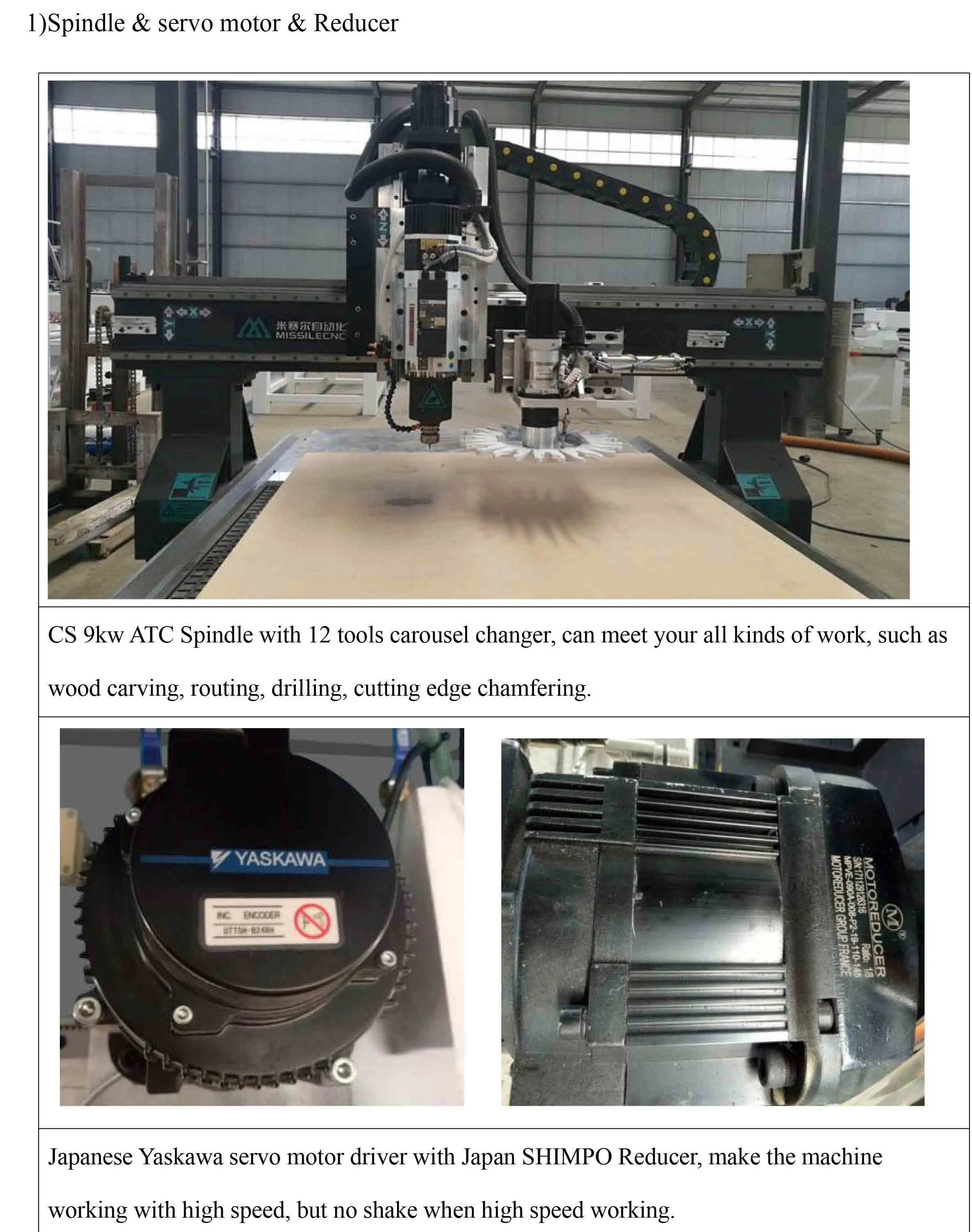

EA48 comes with 9.0kw ATC spindle with 12 carousel magazines,so EA48 has versatile functions:routing,drilling,cutting,edge chamfering,etc.

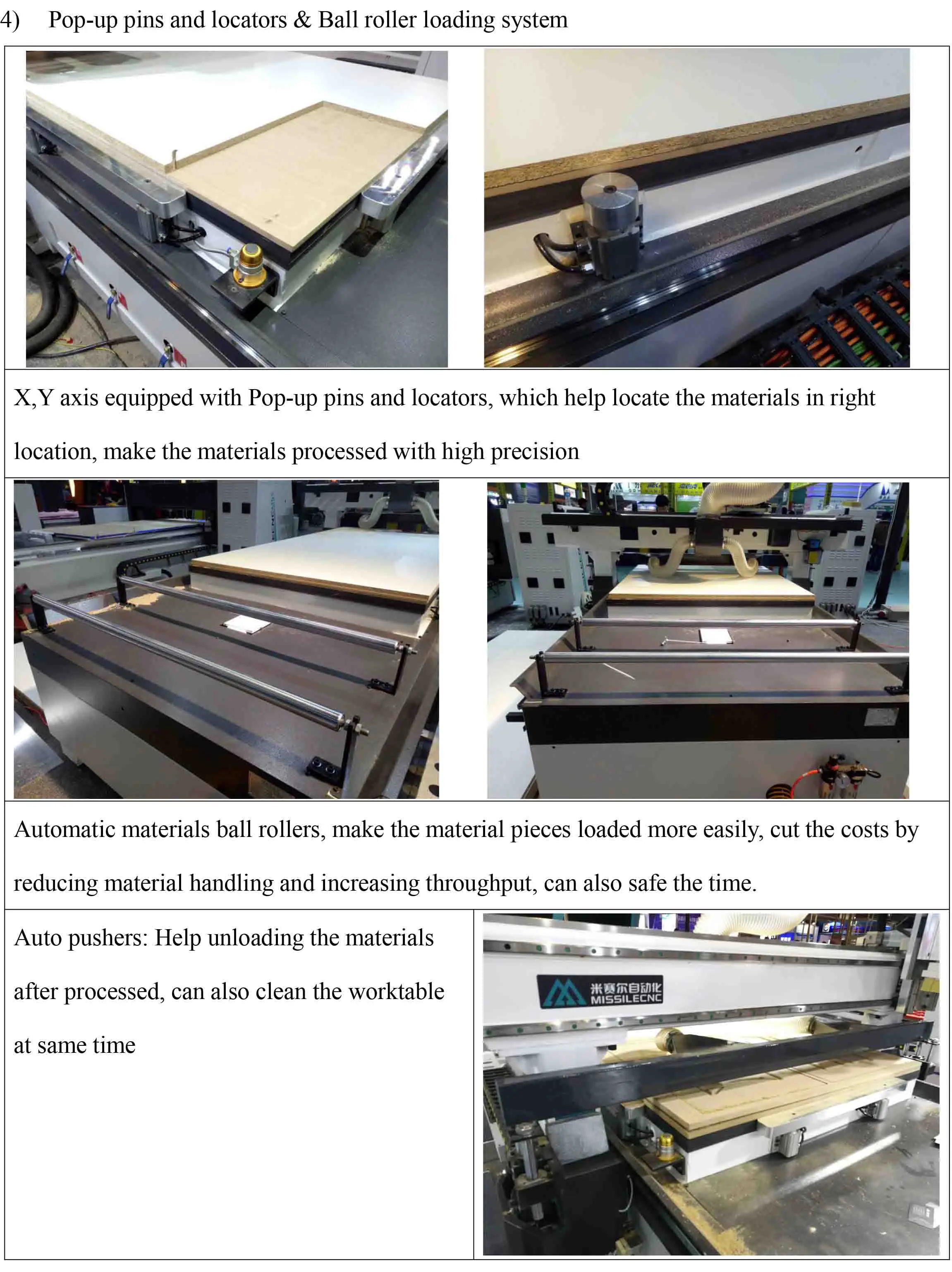

EA48 comes with cylinder positioning system.
EA48 equipped with pusher which can push finished material down from the main working table and clean the table surface at the same time,in this situation,operator can downloading easily,and the new loading material can be also firmly adsorbed.
Applications
Panel furniture industry:wood furniture making,cabinet,closet,kitchen etc.Door and windows:engraving,chamfering,cutting,relief etc.
Suitable for processing display counters,artifical stone flow management units,petrochemical PF filter plates,headboard,insulation
plates,styrofoam model,yacht bedroom,OA office desktop
Suitable for processing display counters,artifical stone flow management units,petrochemical PF filter plates,headboard,insulation
plates,styrofoam model,yacht bedroom,OA office desktop
Specification
Item | Value |
Condition | New |
Traveling position accuracy | 0.02mm |
Number of Axes | 3 |
No. of Spindles | Single |
Working Table Size(mm) | 2000×4000 |
Machine Type | CNC Router |
Repositioned accuracy | 0.02mm |
CNC or Not | CNC |

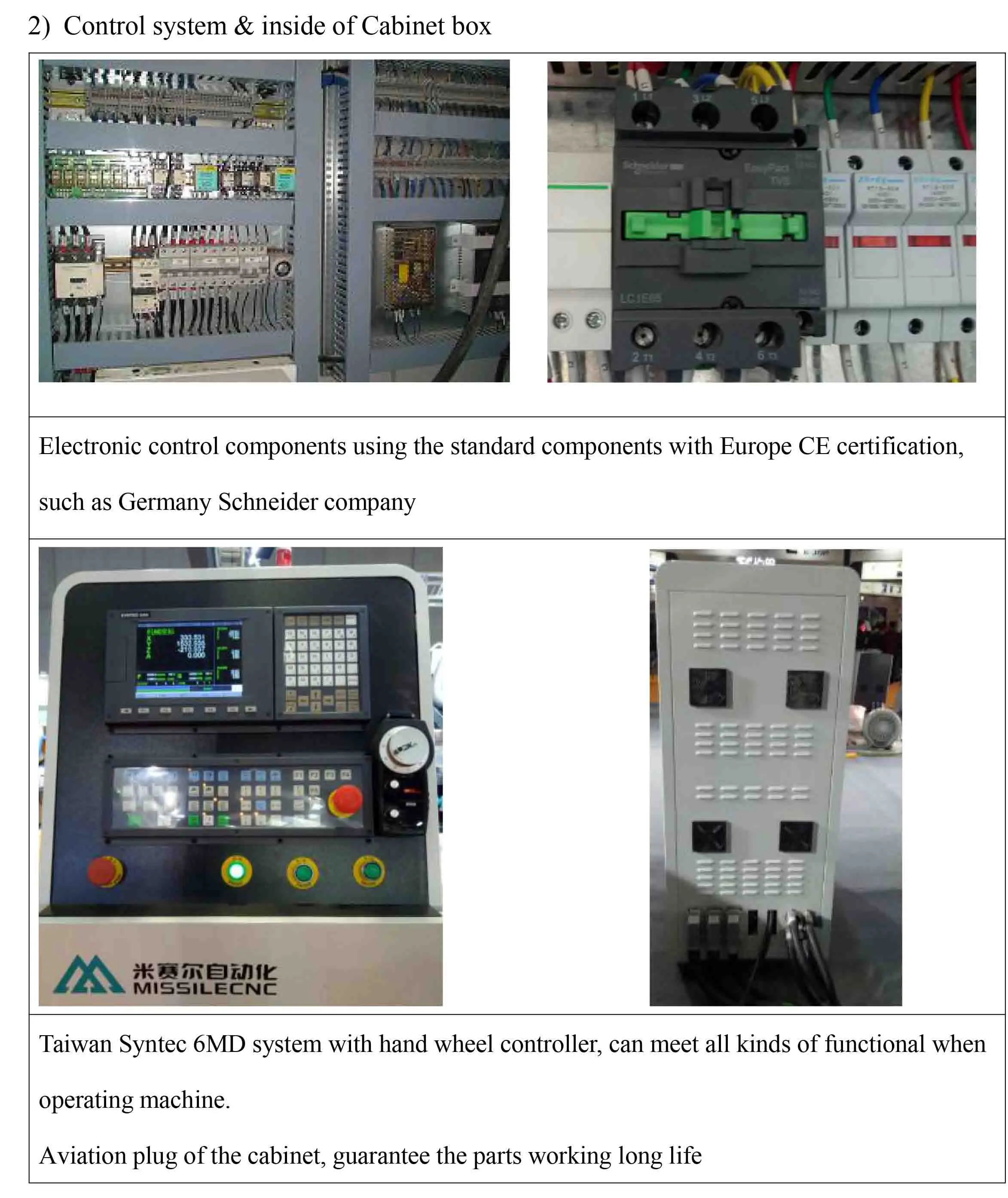

Control system | NC Studio, Syntec, DSP |
Place of Origin | China |
Province | Shandong |
Brand | Missile |
Working voltage | AC380V/50HZ/3PH |
Size | 5.1m*2.9m*2.1m |
Gross weight | 2500kg |
Warranty | 1 Year |
Key Selling Points | Multifunctional |
Applicable Industries | Retail, Advertising Company, Cabinet making, Furniture making |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Spindle, Inverter, Guide, Rack, Control system, Brake for Z axis, Reducer |
Spindle power | 9KW |
Reducer | Japan shimpo |
Drive system | Leadshine servo |
Inverter | Fuling |

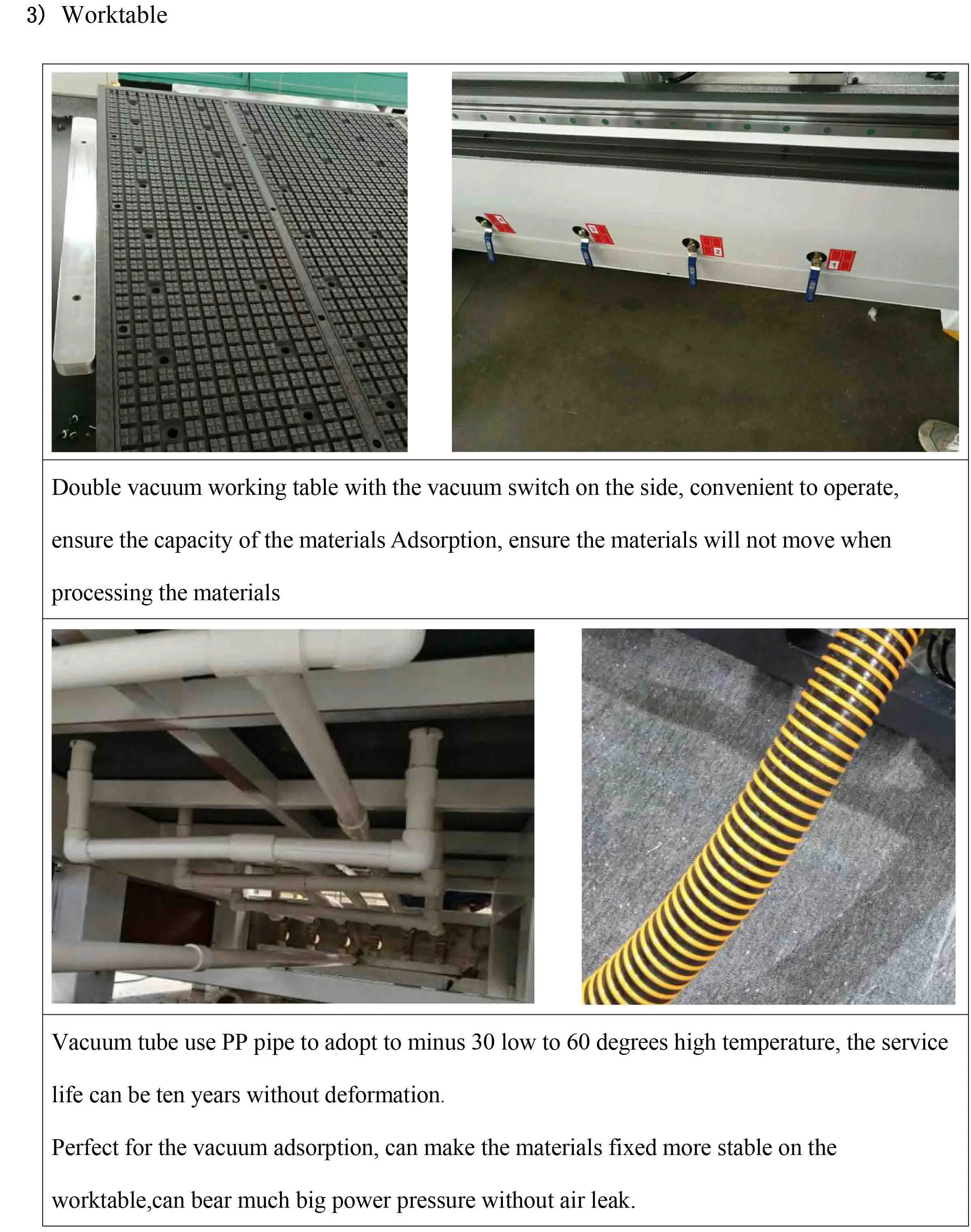

Table surface | Vacuum table |
Brake for Z axis | Yes |
Vacuum pump | Air vacuum pump |
Working area | 2000*4000mm |
Spindle rotating speed | 18000RPM |
Max.working speed | 25000mm/min |

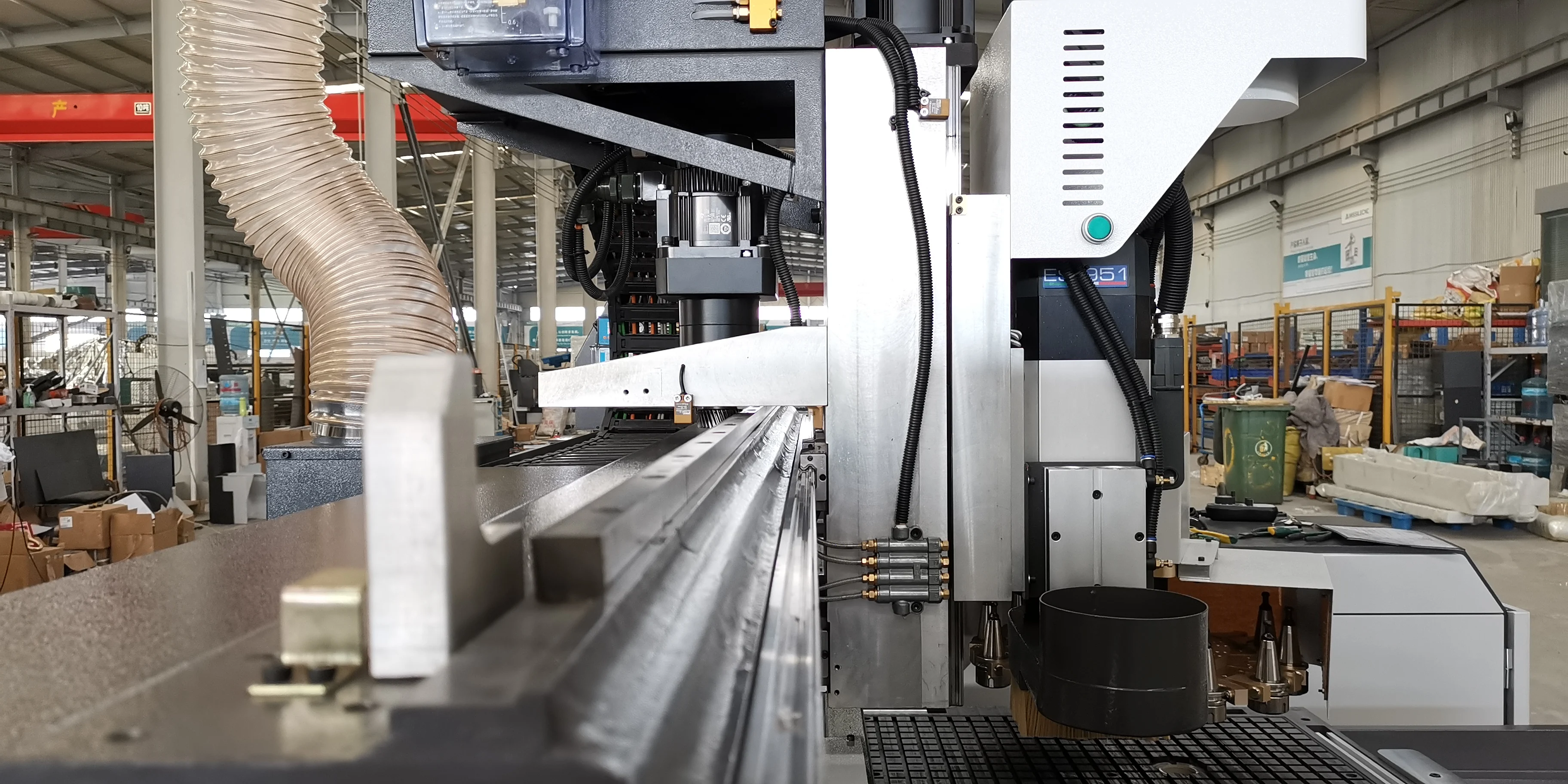

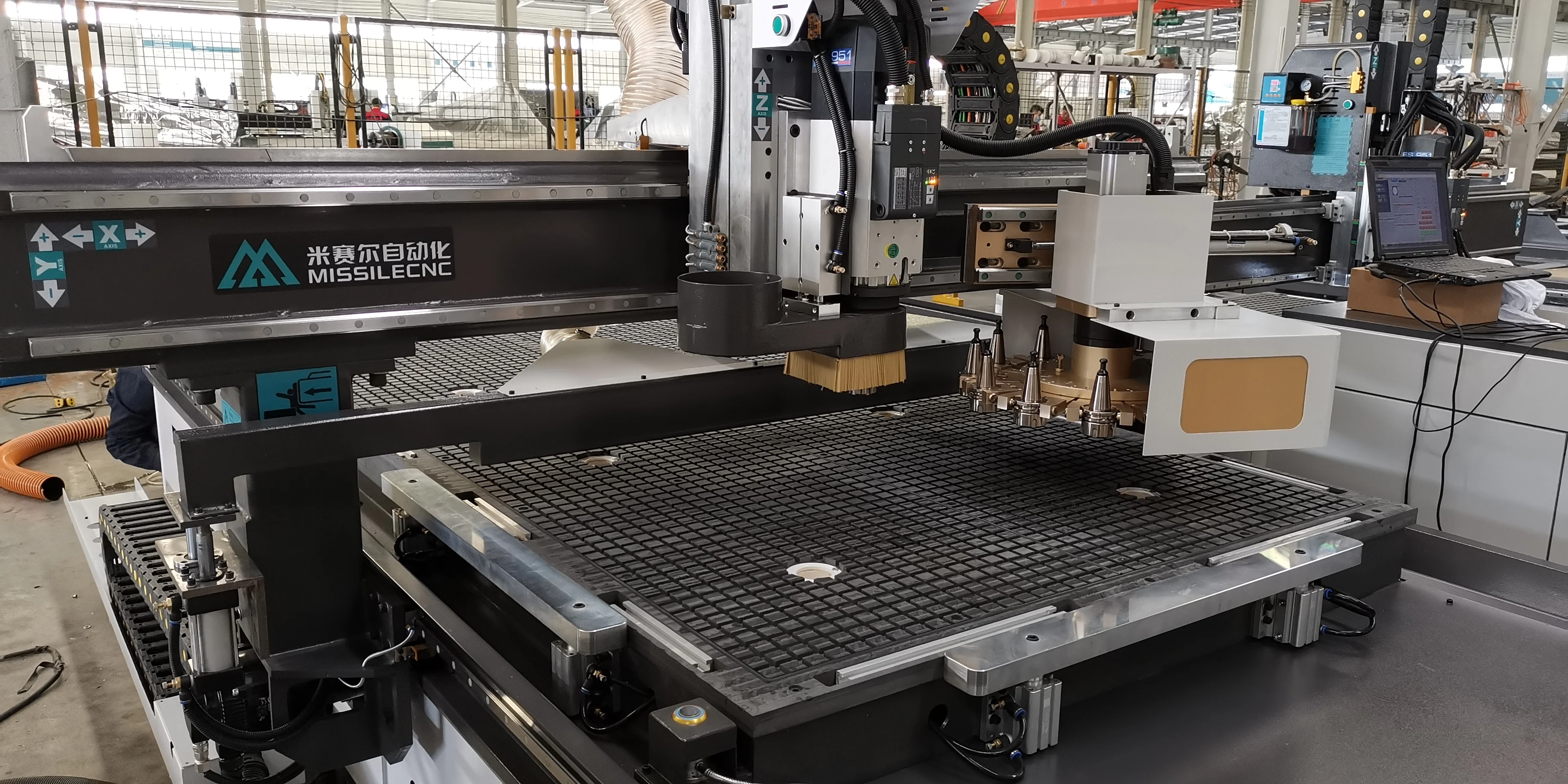

Details Images
Company Profile
MISSILE CNC is a research and development manufacturer specializing in high precision, high quality and high standard CNC router machine. The main product line includes:
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers
MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers
MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
OUR ADVANTAGES
We keep most machines in stock and can typically dispatch equipment in 72 hours or less,so you can get working as soon as possible.We can provide on-site training and service for customers.All around the world,all around the clock,we are always here for you.
