RF Microwave Filter bank passive components T/R Components for Communication Systems RF POI
- Category: >>>
- Supplier: Nanjing Shinewave Technology Co. Ltd.
Share on (1600697395481):
Product Overview
Description

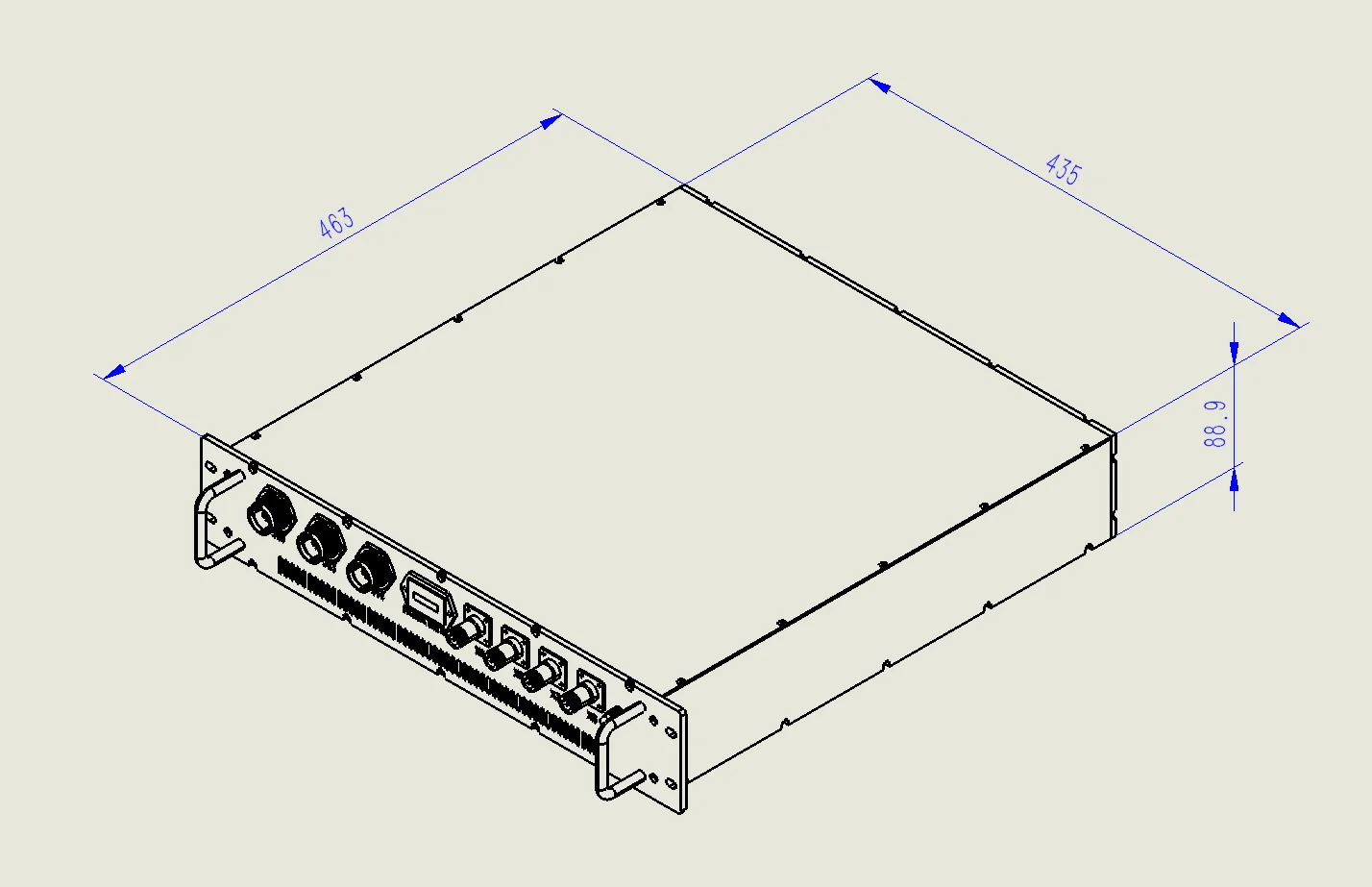

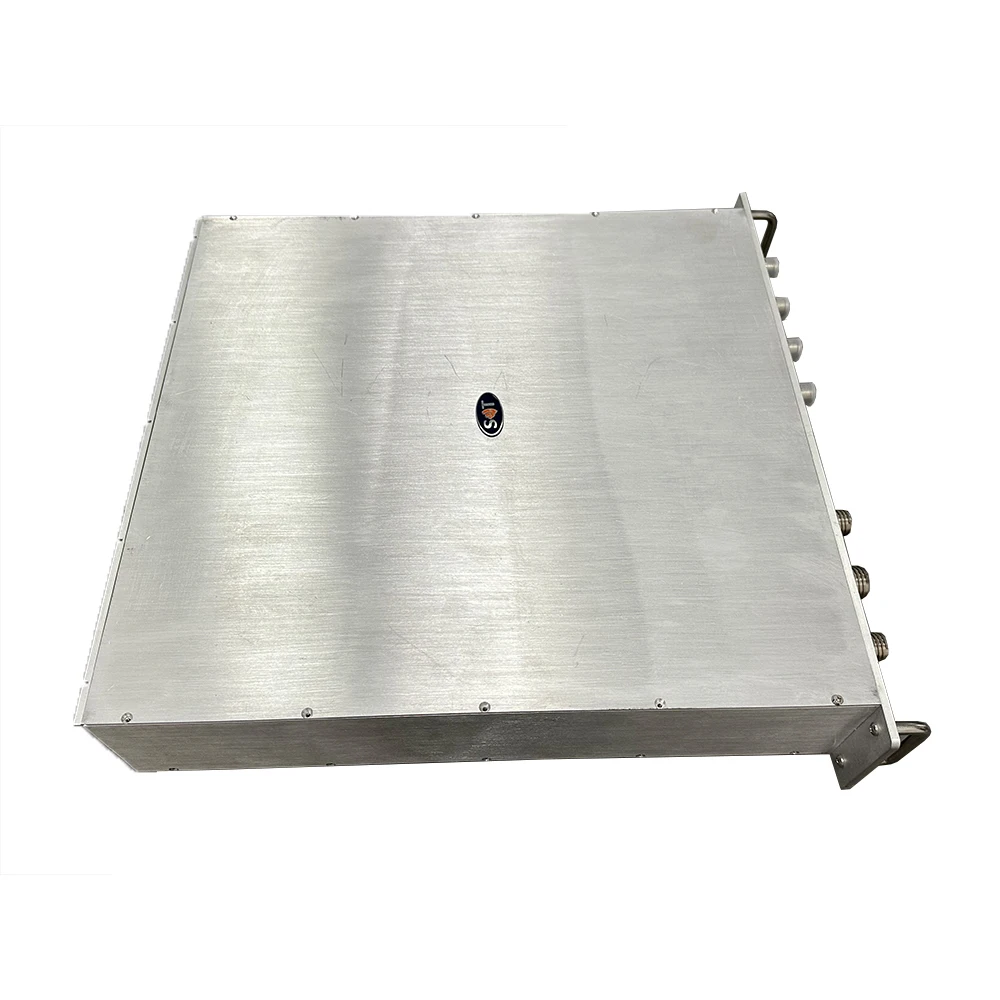

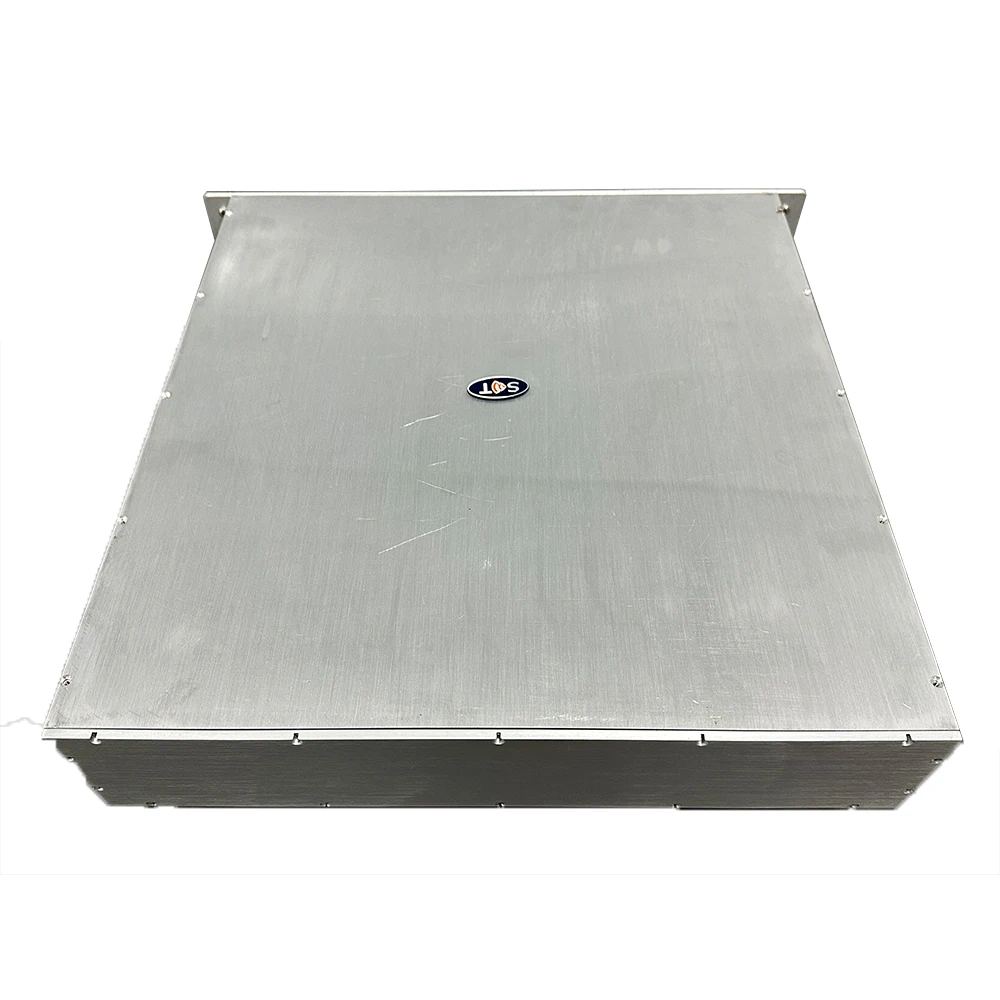

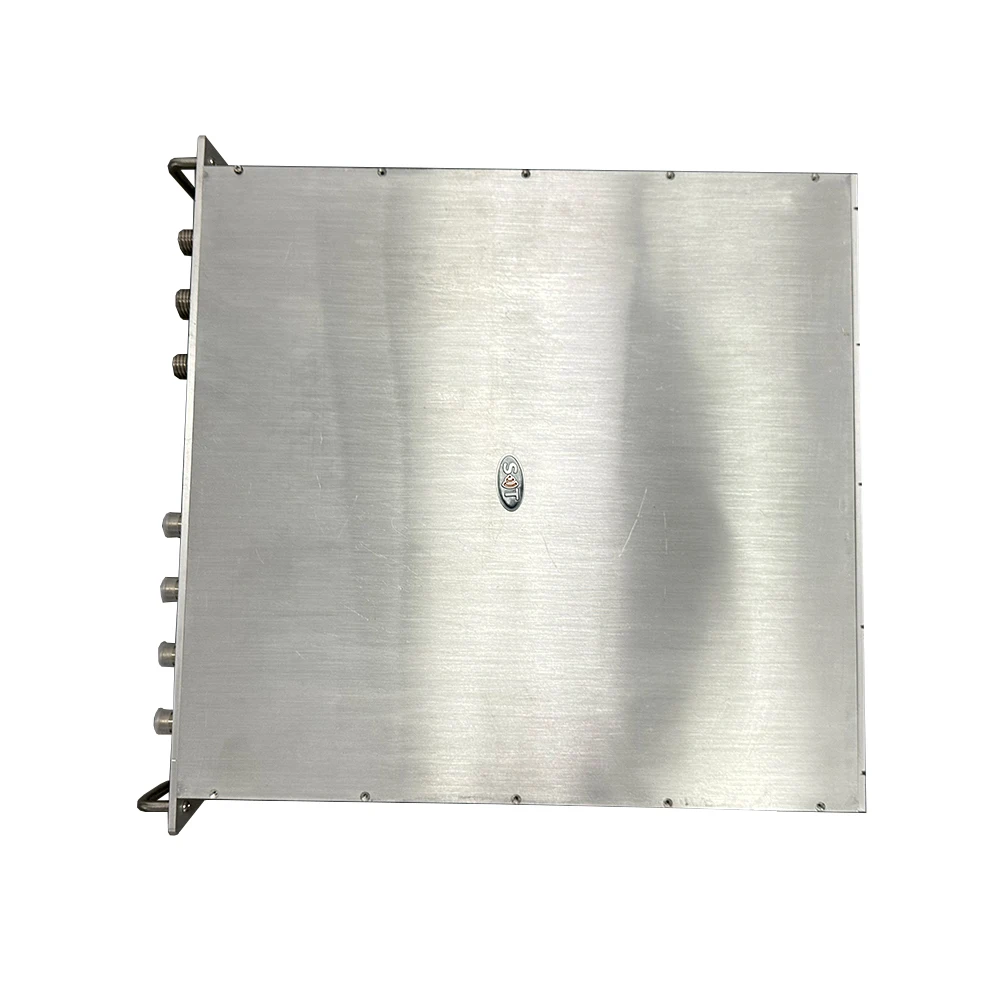

Product Display
Truth Table of Filter Channels
Control Signal | Channel Freq (MHz) | Insertion loss(dB) | Rejection |
0000 | 960-980 | <=3 | >40dB@1000-2000MHz |
0001 | 980-1000 | <=3.2 | >40dB@DC-960MHz&1012-2000MHz |
0010 | 1000-1012 | <=3 | >40dB@DC-980MHz&1050-2000MHz |
0100 | 1050-1070 | <=3 | >40dB@DC-1012MHz&1110-2000MHz |
0101 | 1110-1130 | <=3 | >40dB@DC-1070MHz&1150-2000MHz |
0110 | 1130-1150 | <=3 | >40dB@DC-1110MHz&1170-2000MHz |
1000 | 1150-1170 | <=3 | >40dB@DC-1130MHz&1190-2000MHz |
1001 | 1170-1190 | <=3 | >40dB@DC-1150MHz&1215-2000MHz |
1010 | 1190-1215 | <=3 | >40dB@DC-1170MHz&1235-2000MHz |
Connectors | |
VSWR | <=1.5 |
Passband Ripple(dB) | <=1 |
Switching Time(us) | <=1 |
Control Signal | 4 bits (TTL 0/5V) |
Operating Temperature | -40 °C to 70 °C |
Maximum Power Rating | >30dBm |
Input Power Supply | 28V |
1 | V1 |
2 | V2 |
3 | V3 |
4 | V4 |
5 | VD（+3.3V) |
6 | GND |
7 | NULL |
8 | NULL |
9 | NULL |
Main Products
Company Profile
Nanjing Shinewave Technology Co.,Ltd.is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems.Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier, low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,duplexer power divider, coupler, power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and services.
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
Certifications
Packing&Shipping
Default packaging. Normally carton, the packaging may be different if there is different production batch.
Port of Delivery: Shanghai
