Full Automatic Injection Ampoule Bottle Filling Capping Sealing Packaging Machine Production Line
- Category: >>>
- Supplier: Hangzhou Shengde Machinery Co. Ltd.
Share on (1600697460130):
Product Overview
Description
Products Description
Model | SED-6AGL-J |
Speed | 8000pcs/h/5ml |
voltage | 380V, 50Hz |
power consumption | About5kw |
filling head | 6 |
Filling accuracy | ≤±2%. (Test by normal temperature WFI) |
fuel gas consumption | 0.2-0.3Mpa 、0.3-0.5 m3/h |
oxygen gas consumption | 0.3-0.5Mpa 、1.0-1.2 m3 /h |
qualified sealing rate | ≥99.9% |
ampoules breakage rate | ＜0.01% |
noise | ＜70dB |
weight | 2200KG |
Transfer table height | FL＋950mm |

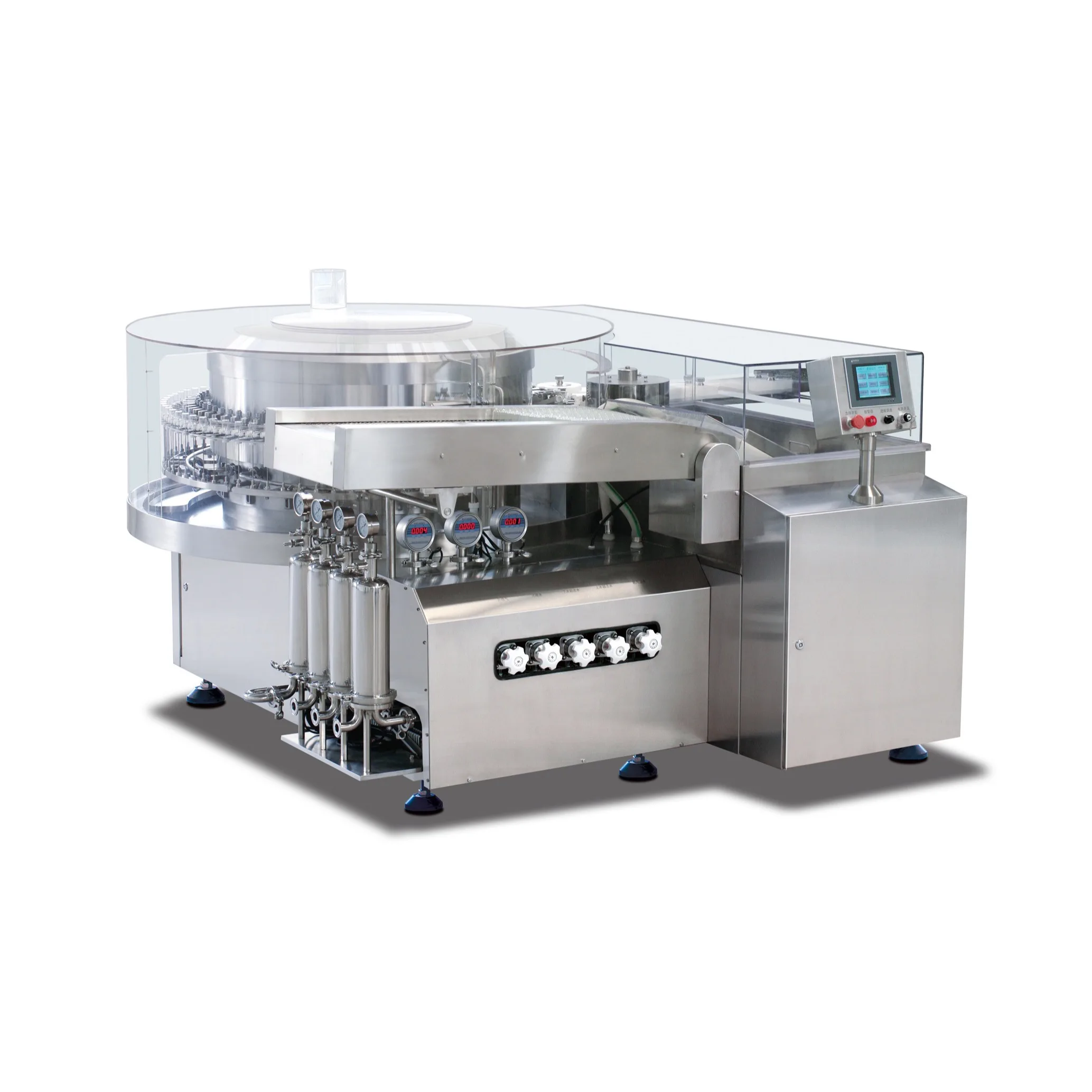

Ultrasonic washing machine specification
Model | SED-80CXP-J |
Speed | 18000~21000pcs/h/5ml |
Voltage | 380V, 50Hz |
Power consumption | 13kw |
Compressed air pressure | 0.4—0.6MPa |
Compressed air consumption | About 35-40m3/h |
WFI supply pressure | 0.3—0.5MPa |
WFI supply temperature | 40℃～60℃ |
WFI consumption | About 0.4-0.6m3/h |
Circulation water supply pressure | 0.3--0.5MPa |
Ultrasonic power | 600-1000W adjustable |
Bottles damage rate | ＜0.01% |

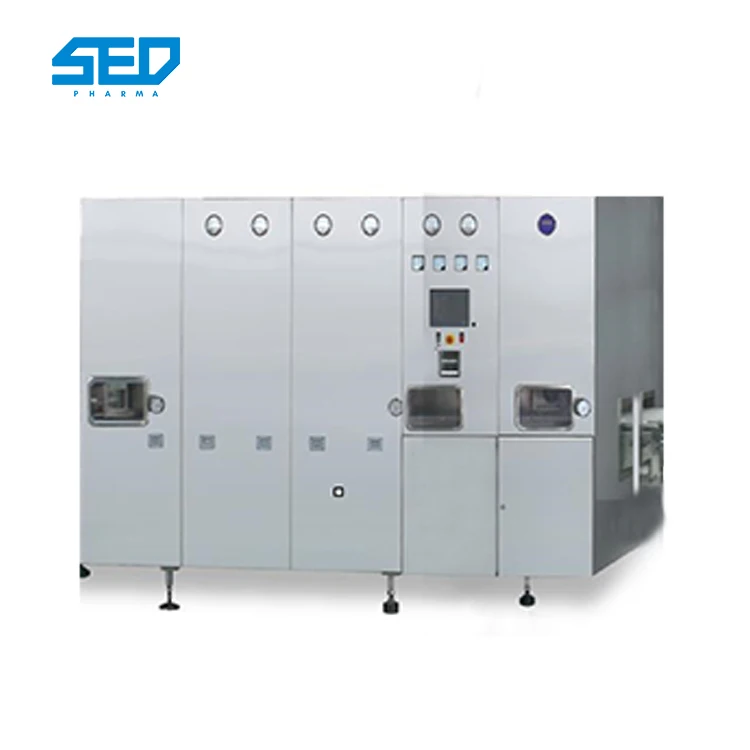

Hot air circulation sterilization tunnel
Model | SED-11000RXG-J (Air Cooling Type) |
Dry capacity | 11000pcs/h/5ml |
Voltage | 380V, 50Hz |
Power consumption | 65kw |
Fresh air | 4000m3/H |
Vials outlet temperature | ≤ room temperature +15℃ |
Bottle damage rate | ＜0.005% |
Working temperature difference between each zones | Empty load ≤±5℃ full load≤±10℃ |
Sterilization temperature | 280℃-350℃ adjustable |
Mesh belt speed adjustment | 100-400mm/min |
Noise | ＜70dB |
Weight | 4500KG |
Transfer table height | FL+950mm |
