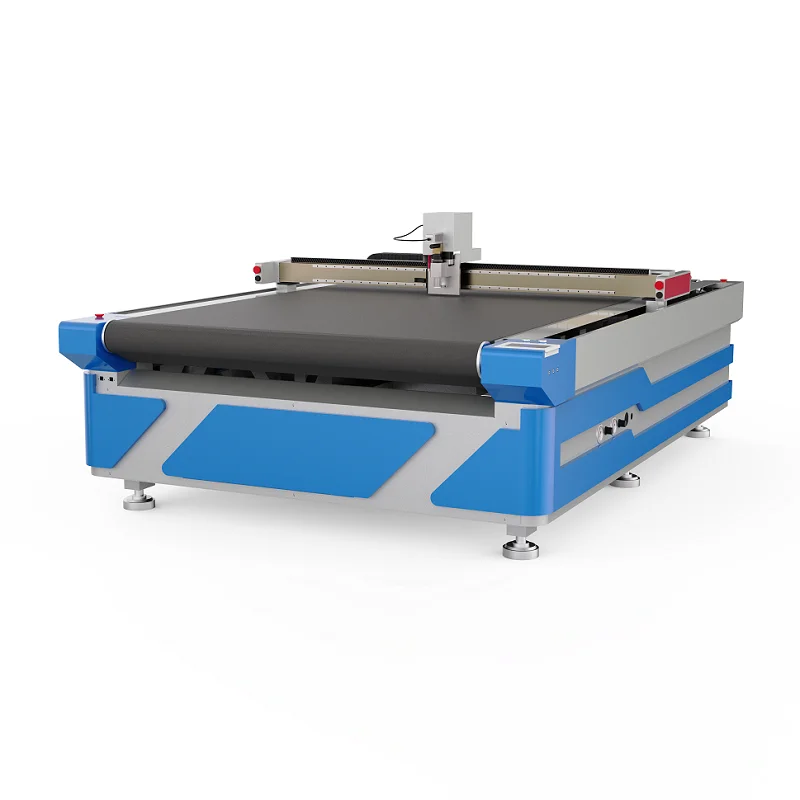

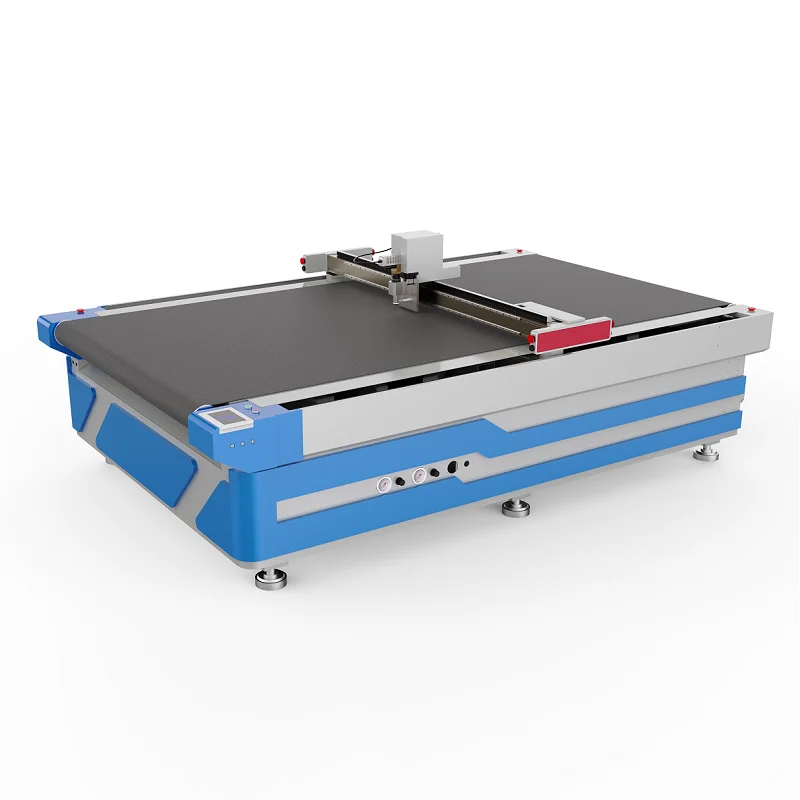

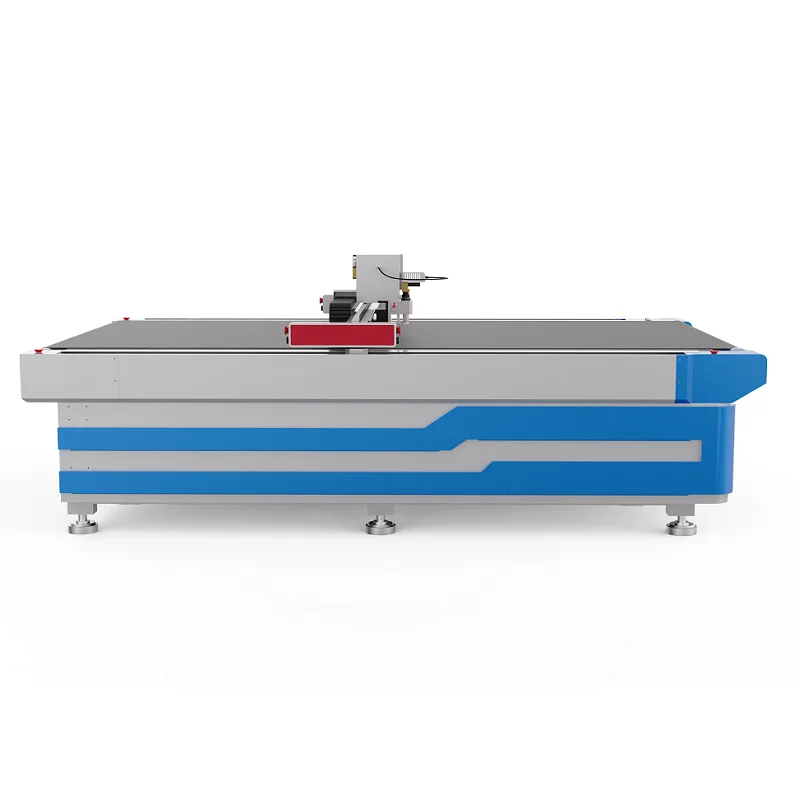

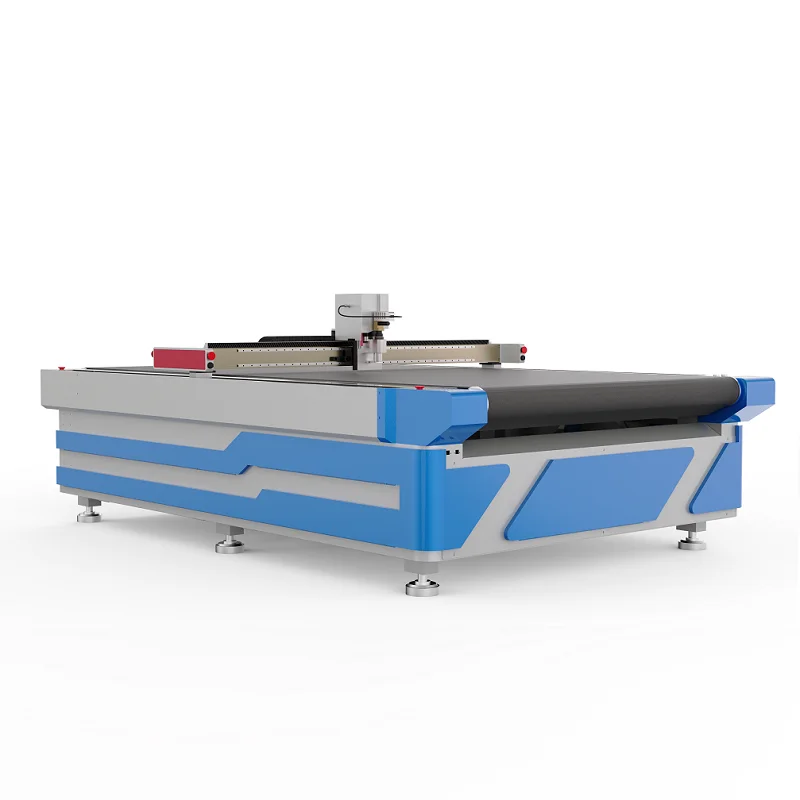

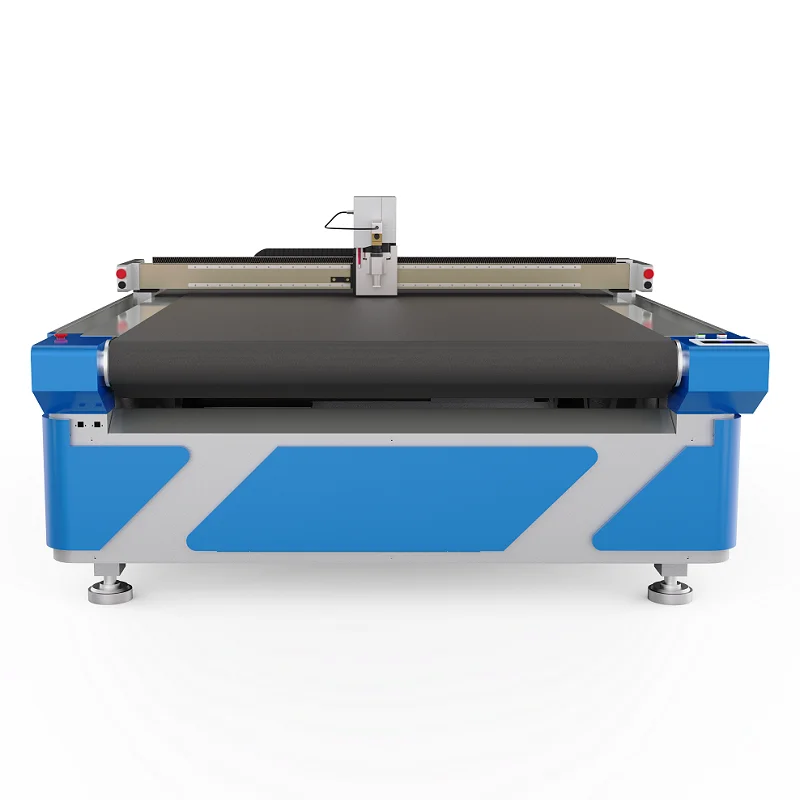

Hot sale electric cloth tailoring cutting machine
- Category: >>>
- Supplier: Jinan Yizhou Laser Technology Co. Ltd.
Share on (1600697469953):
Product Overview
Description
Product Description
How Cutting Machine Works
Brief introduction:
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly.
foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
The YIZHOU Digital Cutting System is a high precision system what can realize through cutting, kiss cutting, milling, Conveyor system for each size, Optional for Electric Oscillating Tool, Pneumatic Oscillating Tool, CNC Router, V-Cut Tool, Kiss-Cut Tool, Driven Rotary Tool, CCD Camera Registration System, Autoloader, Projector, Nature Leather System
punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material
with different cutting tools, suitable for different kind of materials. feeding and collecting quickly.
Application materials:
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cellfoam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Applicable industries:
It is quite suitable for sample making, short run and mass production in sign, advertising, printing and packaging.
Characteristics:
1. Blade: We use Swiss technology, patented design. The service life can reach 5 years, and the vibration frequency can reach 20,000 times/min. The vibration amplitude is within 1mm range.
2.Our custom-designed aluminum Vacuum table with thickness of 42.5mm, the levelness can reach 0.02mm.
3. Rails and racks: We use Original PMI rails and racks. 100,000 factory slip tests.
4. Our machine structure: 8mm thickness main tube welding+6mm thickness tube for structure side V Model stable
structure.And it adopts triangular structure welding. more stable.
5.limit: We use OMRON's, famous and best quality.
6. Motor and drive: our export standard is panasonic, famous and best quality.
7.Conveyor: The mesh belt we use is 4mm thick, cut-resistant felt, imported from Taiwan, and the price is 3-4 times higher than that of domestic ordinary ones
What we need to know from your side:
please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us!
1. What materials do you need to process? The size and thickness?
2. What is your business scope? Are you an end user or distributor?
please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us!
1. What materials do you need to process? The size and thickness?
2. What is your business scope? Are you an end user or distributor?
Technical Parameters
modle | Y1625 |
working size | 1600*2500mm |
max.cutting thickness | 0-50mm |
Cutting material | PVC , mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth etc. |
cutting type | electrical oscillating cutting tooldrive rotary cutting tool pneumatic oscillating cutting tool |
working table | section vacuum-cast aluminum vacuum flatbed table |
max.cutting speed | 0-1500mm/s |
motion system | digital servo motor & driver |
repeat location accuracy | 0.01mm |
voltage | ac220v/50hz ac380v/50hz 60hz |
media fixture method | section vacuum system |
pupm power | 5.5kw/7.5kw/9kw/11kw |
operating environment | temperature 0-40 humidity 20%-80%RH |
software | yizhou CAD |
format support | AI/DXF/DWG/JPG/BMP/PLT/DST |
interface | USB/LAN/Serial Port |
Support Multi language.
With USB or WLAN Communication port
With USB or WLAN Communication port

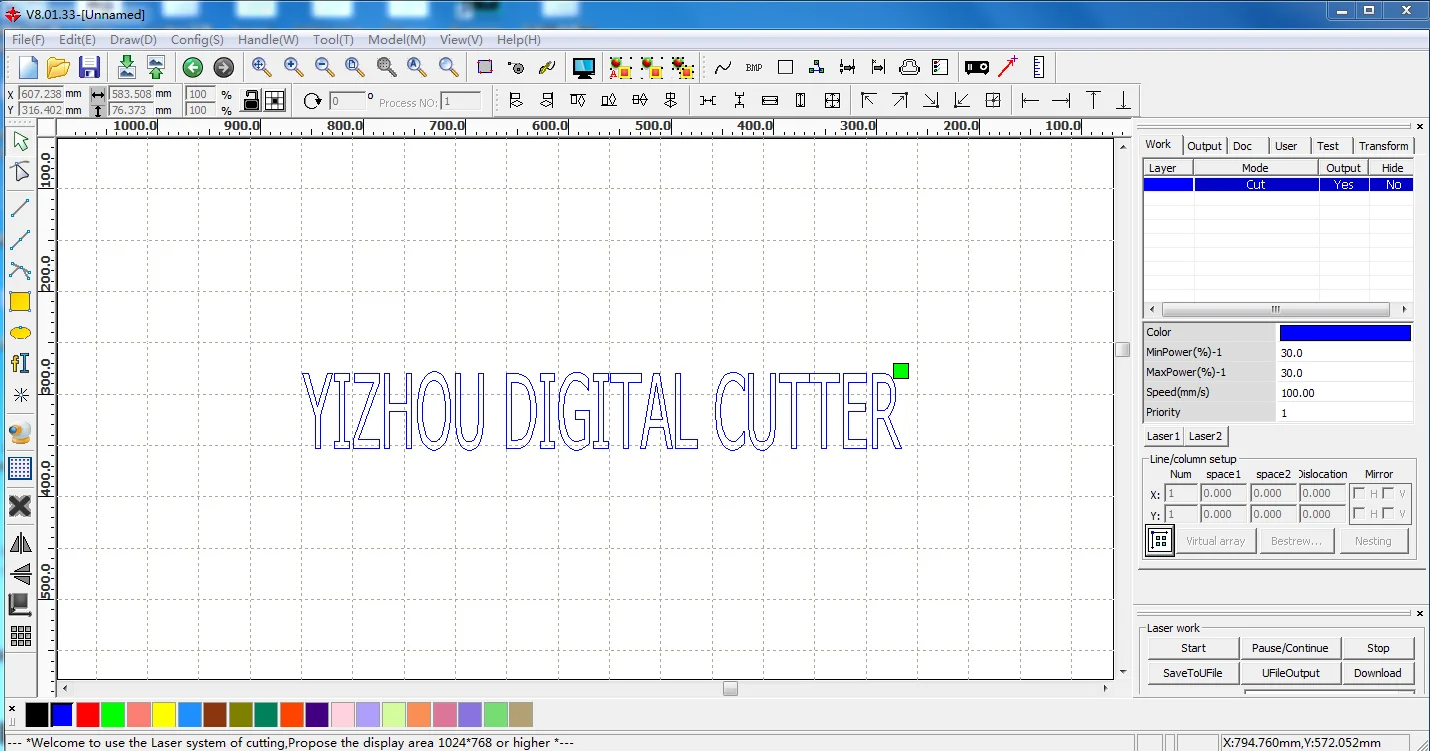

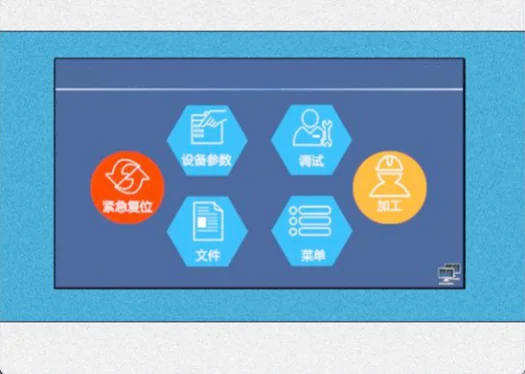

Simple Control Software
RDworks software ,support multi-language
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.
support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control.

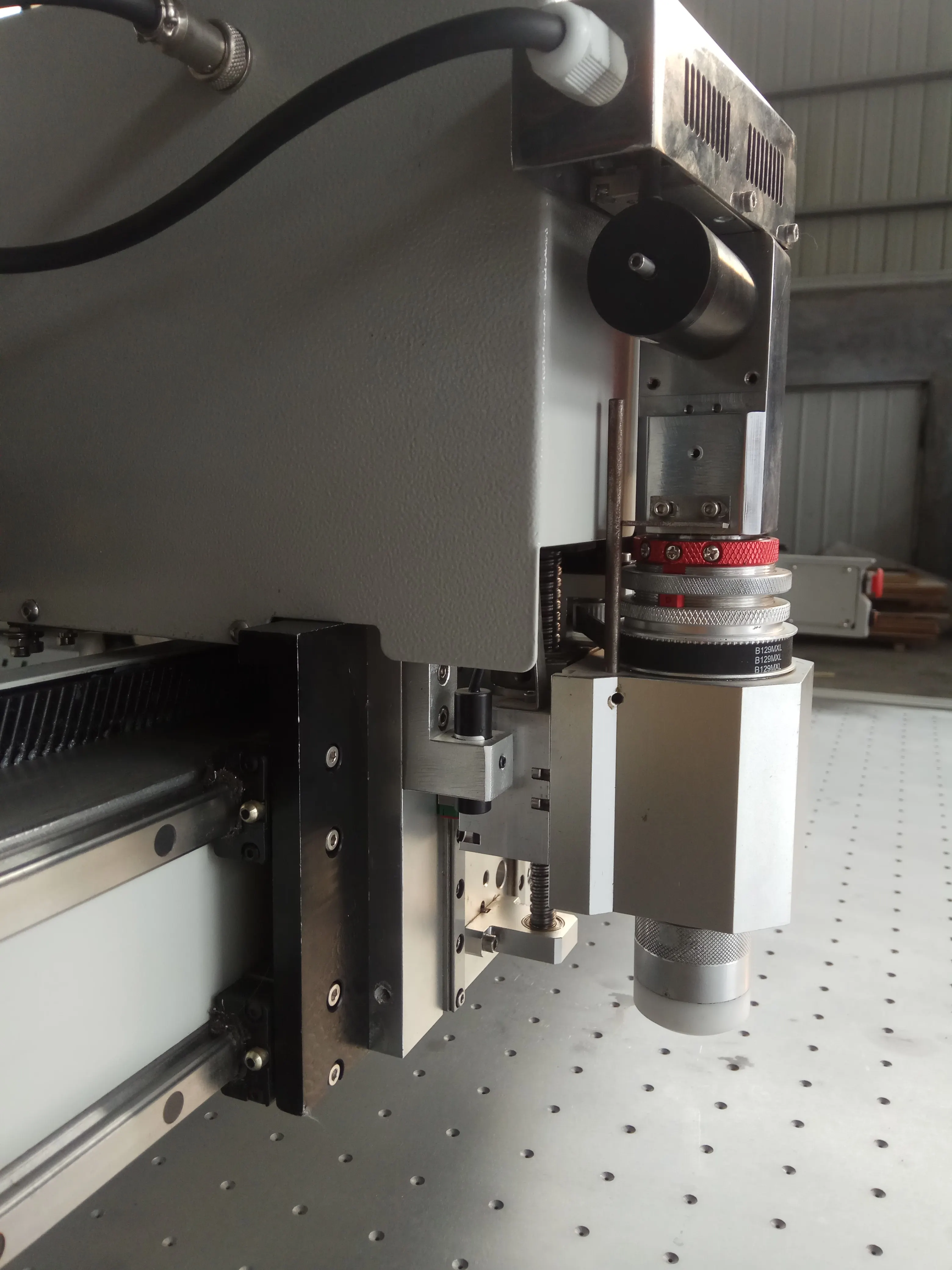

Patent design,improve the knife installation,
Much easier. NSK bearing. Inner Lubrication system. Reduce the noise and heat for electricial control card.Knife vibratingUp-down 1mm
Much easier. NSK bearing. Inner Lubrication system. Reduce the noise and heat for electricial control card.Knife vibratingUp-down 1mm

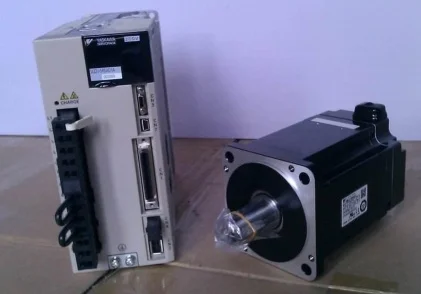

Panasonic A6 Series:
Cutting head turning:100W
Xyaxis:750W
famous and best quality.

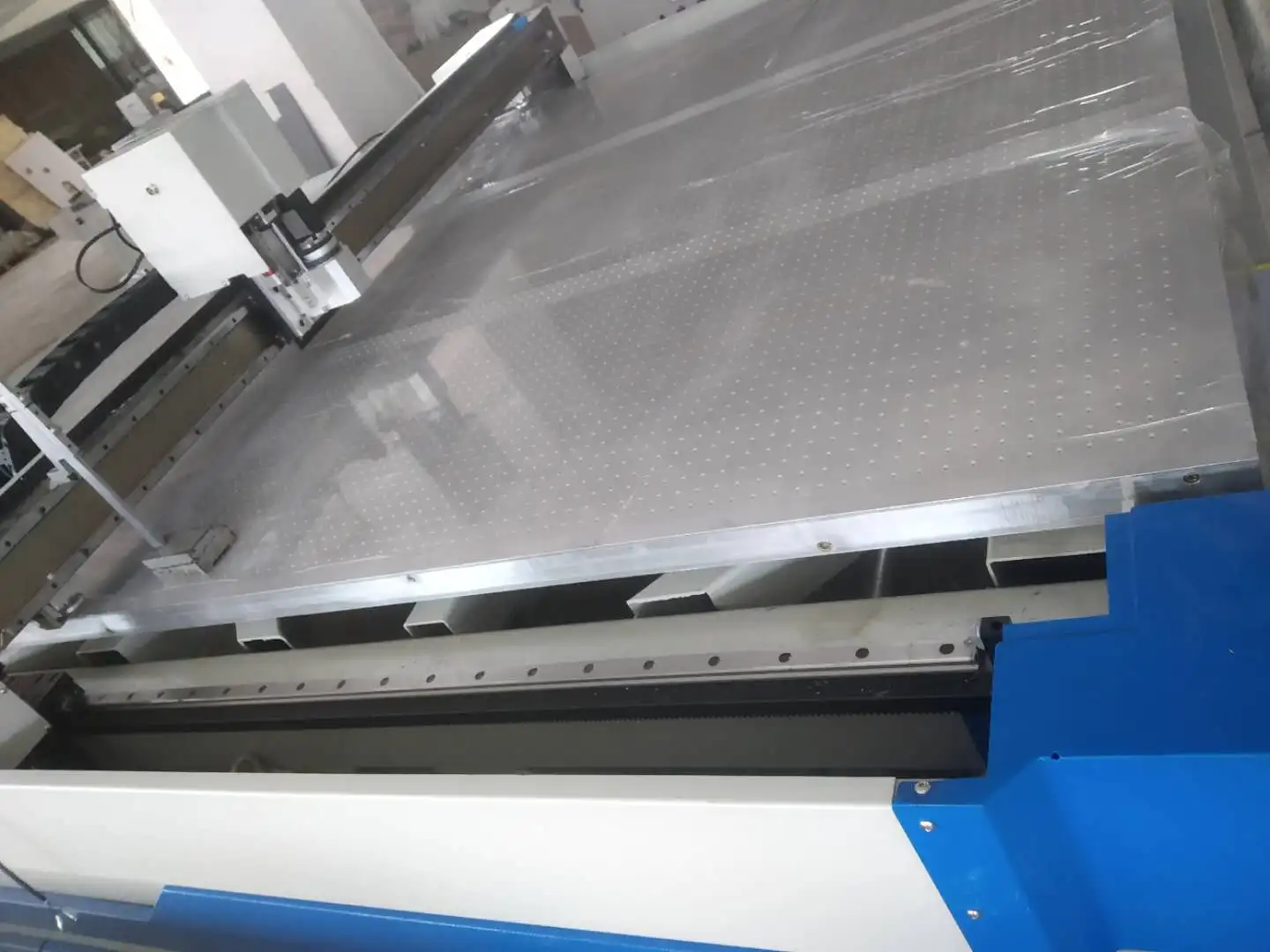

42.5mm Thickness Aluminiuim vacuum Table
Left and right Flat level:0.02mm
Frong and back flat level:0.01mm
Left and right Flat level:0.02mm
Frong and back flat level:0.01mm

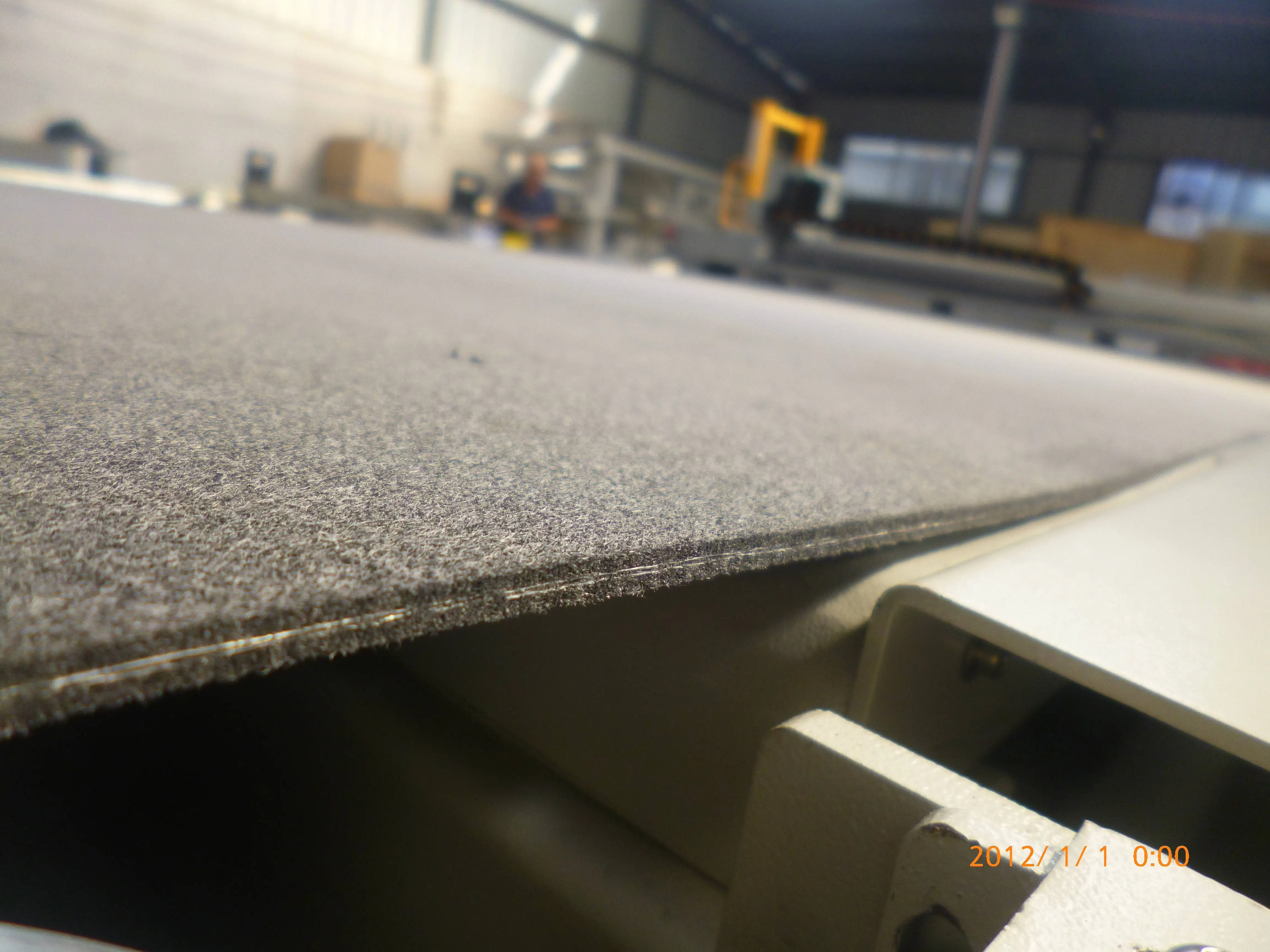

4mm thickness
Diamond Joint connector

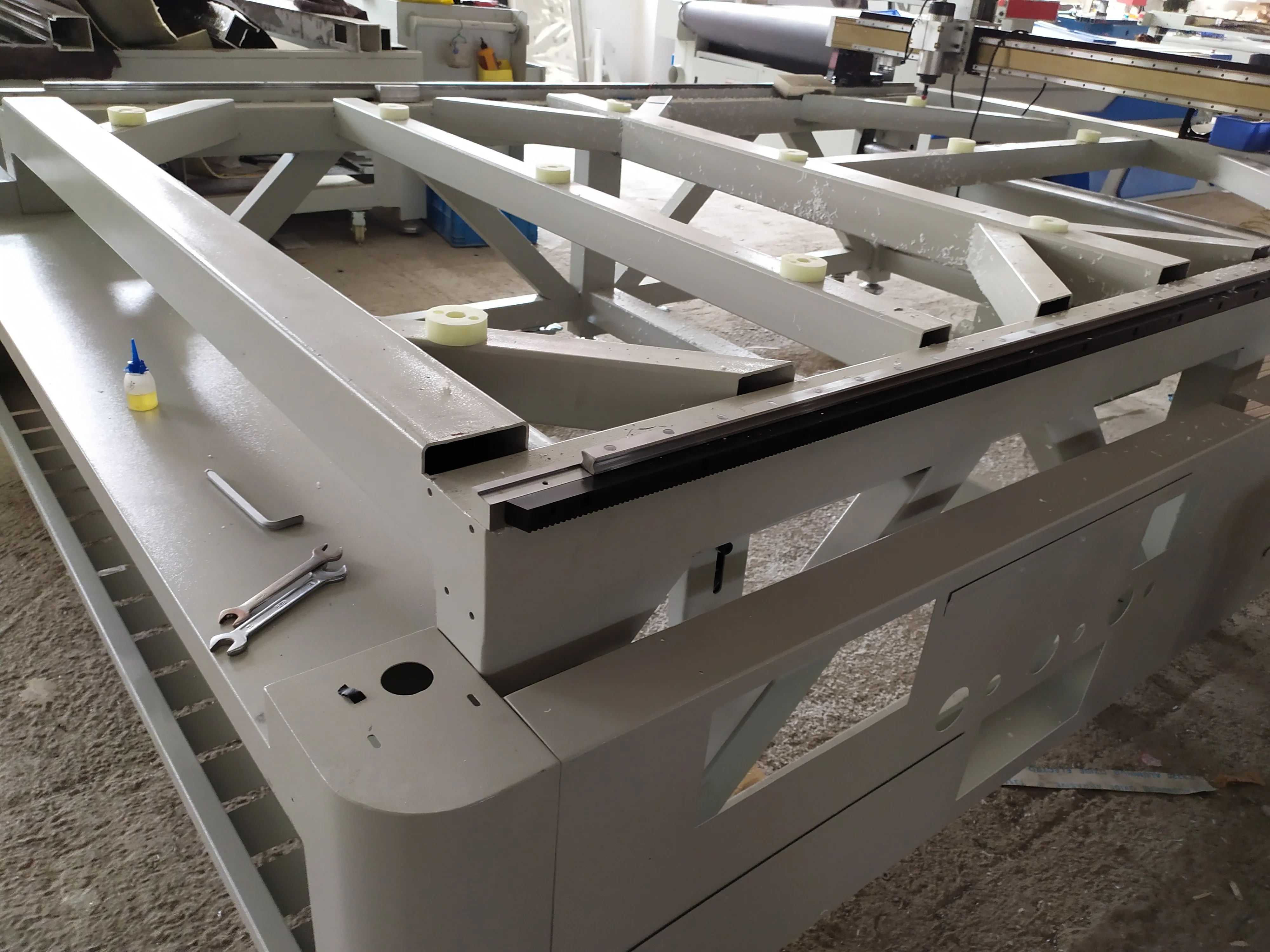

8mm thickness main tube welding+6mm thickness tube for structure side
V Model stable structure
V Model stable structure
Cutting Samples
