YDCS chinese herb crusher crushing machine
- Category: >>>
- Supplier: Jiangyin Yinda Machinery Co. Ltd.
Share on (1600697470525):
Product Overview
Description
Welcome to visit Yinda Machinery Factory!
Why Choose Us:
1. Your Expert Powder Handling Systems Manufacturer for 15 years
2. 2 Years Warranty, Factory Price, Own R&D Team
3. GMP Validation Certification: IQ, OQ, PQ and FAT
4. Provide alibaba quality and delivery guarantee services.
5. Offsite&onsite quality control and quality assurance services
1. Your Expert Powder Handling Systems Manufacturer for 15 years
2. 2 Years Warranty, Factory Price, Own R&D Team
3. GMP Validation Certification: IQ, OQ, PQ and FAT
4. Provide alibaba quality and delivery guarantee services.
5. Offsite&onsite quality control and quality assurance services
Product Description

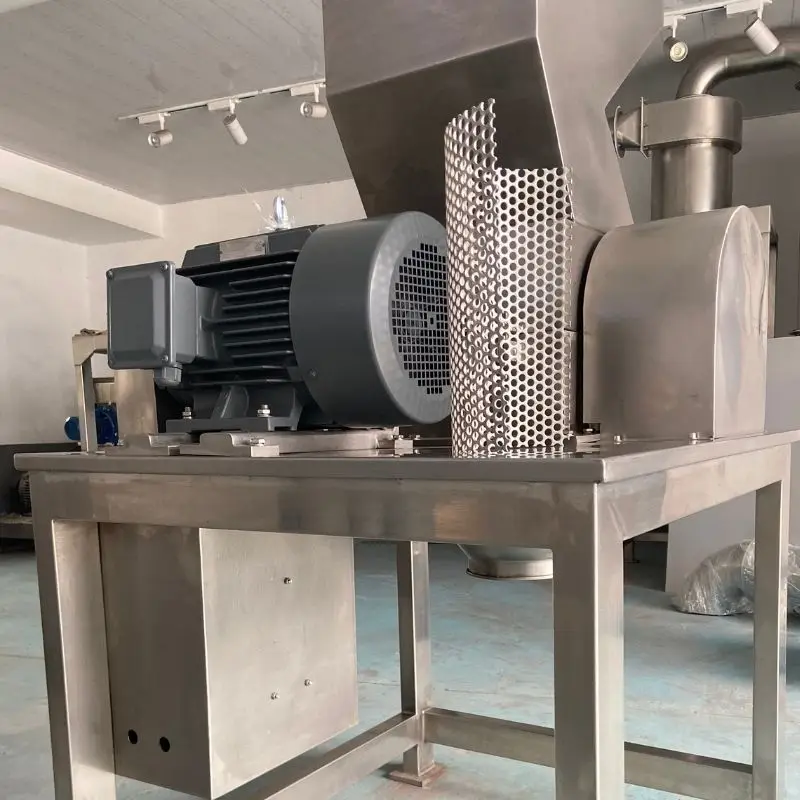

This equipment is composed of a feeding port, crushing chamber, discharge port, operating
electric box, and optional dust removal system. The machine is designed according to the GMP standard, the whole machine is made of stainless steel, simple structure, easy to clean, and low noise. It is currently the ideal equipment for coarse grinding.It is applied as supporting equipment before fine crushing processing in lines
of pharmaceutical and foodstuff etc. It has a good effect on most materials. It is suitable for making granules or be used as a primary mill.
of pharmaceutical and foodstuff etc. It has a good effect on most materials. It is suitable for making granules or be used as a primary mill.
Model | YDCS-80 | YDCS-100 | YDCS-200 | YDCS-300 | YDCS-400 | ||||
Capacity（kg/h) | 50-60 | 60-80 | 100-200 | 200-300 | 300-500 | ||||
Speed of principal axis (r/min) | 960 | 960 | 960 | 960 | 960 | ||||
Input size (mm) | ≤50-100 | ≤10 | ≤10 | ≤12 | ≤15 | ||||
Output size(mm) | 0.5-20 | 60-120 | 60-120 | 60-120 | 60-120 | ||||
Grinding Motor(kw) | 1.1 | 3 | 4 | 5.5 | 11 | ||||
Grinding machine(mm) | 510*450*980mm | 650*500*1100mm | 800*650*1200mm | 900*700*1400mm | 900*800*1440mm | ||||
Details Images

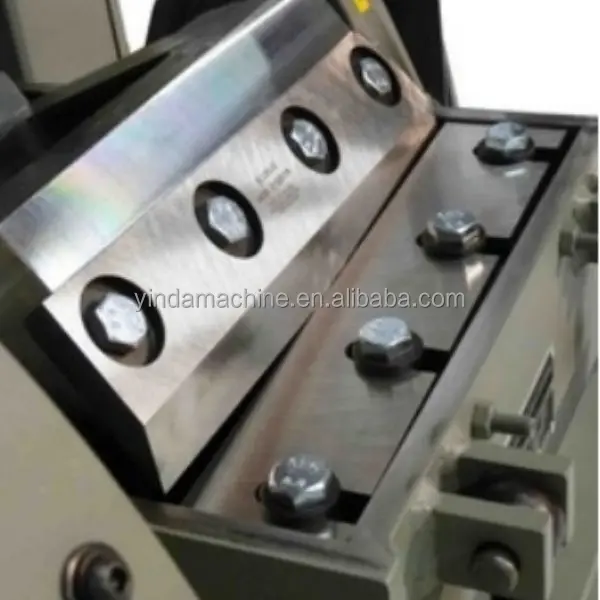

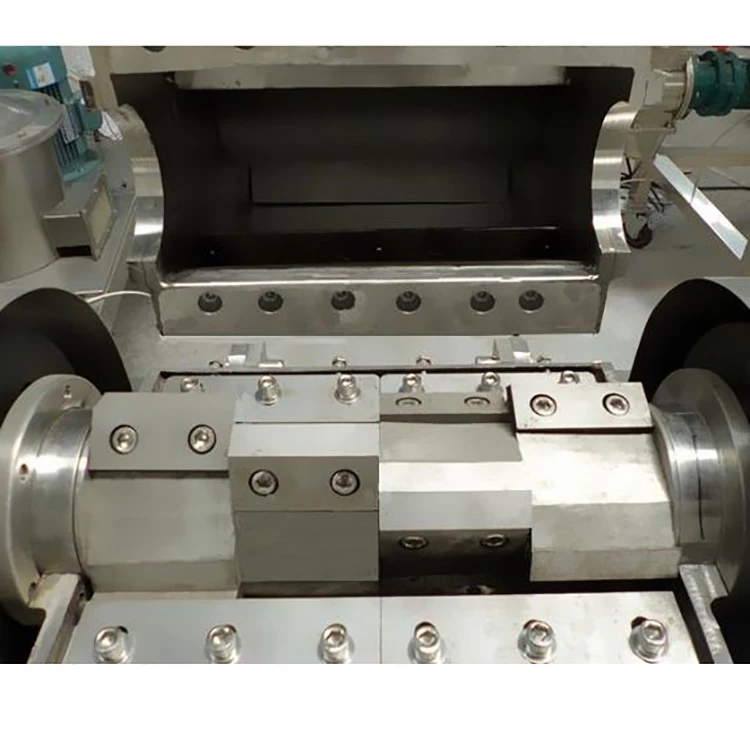

●The rotating and the fixed blades impact and shear each other to achieve the pulverizing effect.
●The blades are made of high-quality alloy and can be reused repeatedly.
●The blades are made of high-quality alloy and can be reused repeatedly.
2. smoothly and no blocking for the fine powder.

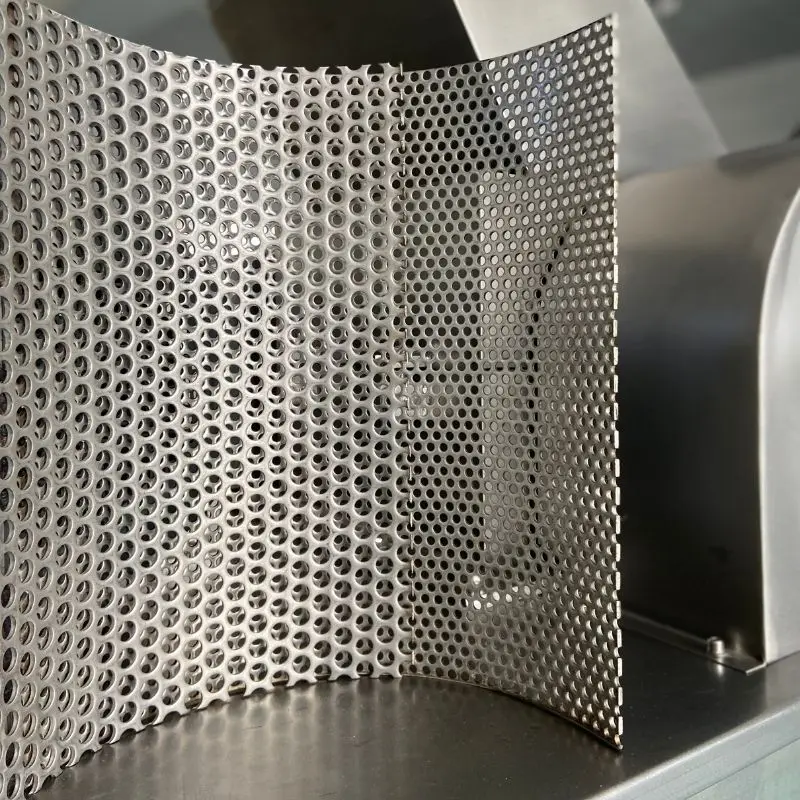

Main features: 1. High throughput and ease of maintenance and cleaning 2. Suitable for dry and fibrous material pulverisation processes 3. Continuous production with relatively reasonable energy requirements 4. The final size could be regulated by a filter screen. |
Industrial Application
YDCS-100 Universal dry food crusher industrial coarse crushing machine is widely used for dry and brittle material particle and powder processing,and suitable for chemical,pharmaceuticals，food，pigments,dyes,pesticides battery materials，minerals，refractory materials and other industries.
Food additives Industry
Seasoning Industry
Pharmaceutical Industry
Mineral Industry
Chemicals Industry
Grains Industry
Company Profile
Yinda Machinery is a leading manufacturer of powder processing equipment in China.
Focusing on total powder solutions for 23 years, we have accumulated rich and in-depth experience and a wealth of technology to give you more support and assistance in technical issues.
We supply high-performance powder processing equipment and solutions such as powder milling machines, powder mixers, vibration screens, packaging machines, and one-stop production lines to users worldwide.
Focusing on total powder solutions for 23 years, we have accumulated rich and in-depth experience and a wealth of technology to give you more support and assistance in technical issues.
We supply high-performance powder processing equipment and solutions such as powder milling machines, powder mixers, vibration screens, packaging machines, and one-stop production lines to users worldwide.
Long-term experience, continuous development work and effective daily communication with our customers provide you with the best equipment solutions for your application and customised total powder preparation.
Packing & Delivery
Wooden Case Package For LCL Shipment To shanghai port
Plastic film for FCL Shipment to shanghai port
FAQ
1. what material you want to crush, is it dry?
2. what is the size of your raw material?
3. what capacity you want the grinding machine do？
4. what powder of fineness you want to get by the grinding machine?(can measure by mesh,mm,micron)
5. if you know the oil content or humidity of your raw material,it will be more help
2. what is the size of your raw material?
3. what capacity you want the grinding machine do？
4. what powder of fineness you want to get by the grinding machine?(can measure by mesh,mm,micron)
5. if you know the oil content or humidity of your raw material,it will be more help
