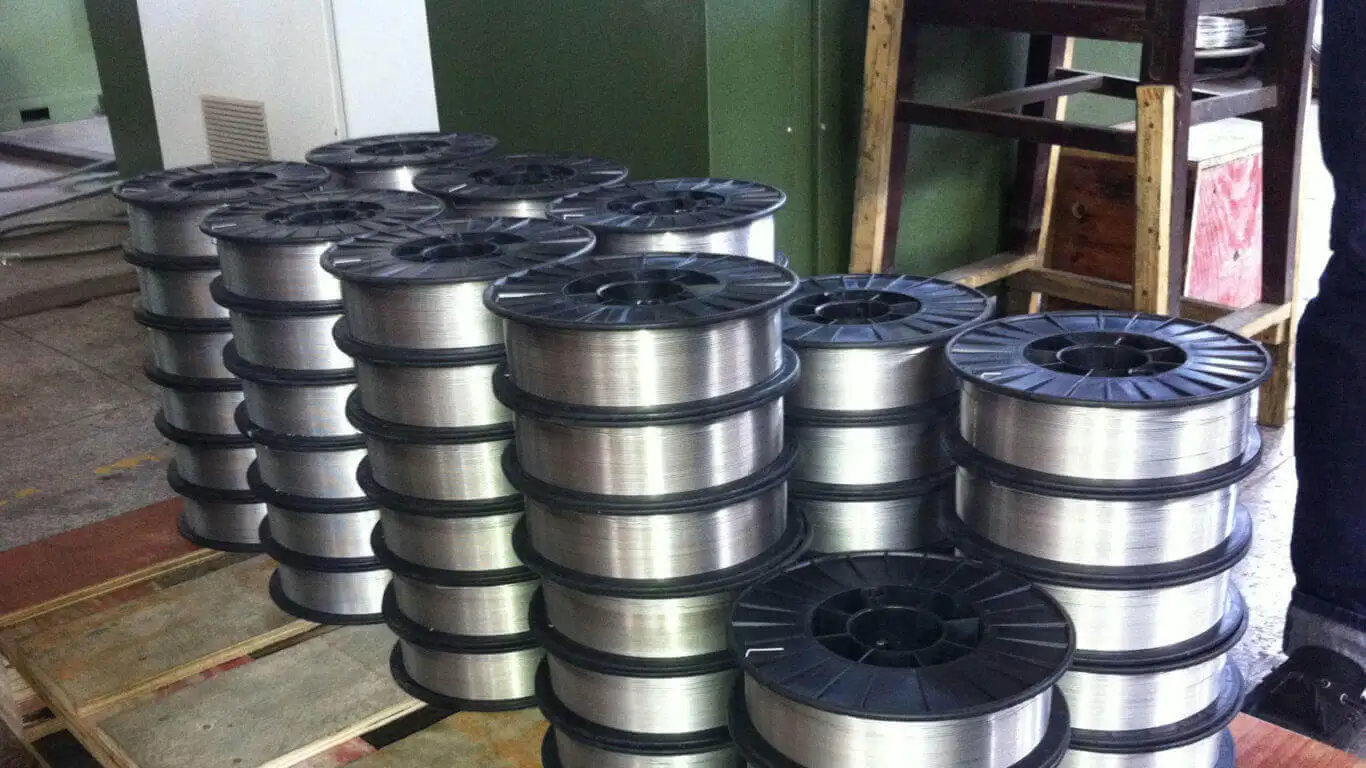

0.025mm 0.03mm Nickel Alloy Inconel 625 Welding Wire Thin Wire
- Category: >>>
- Supplier: Wuxi Anchang Metal Products Co. Ltd.
Share on (1600697543496):
Product Overview
Description
Product Description

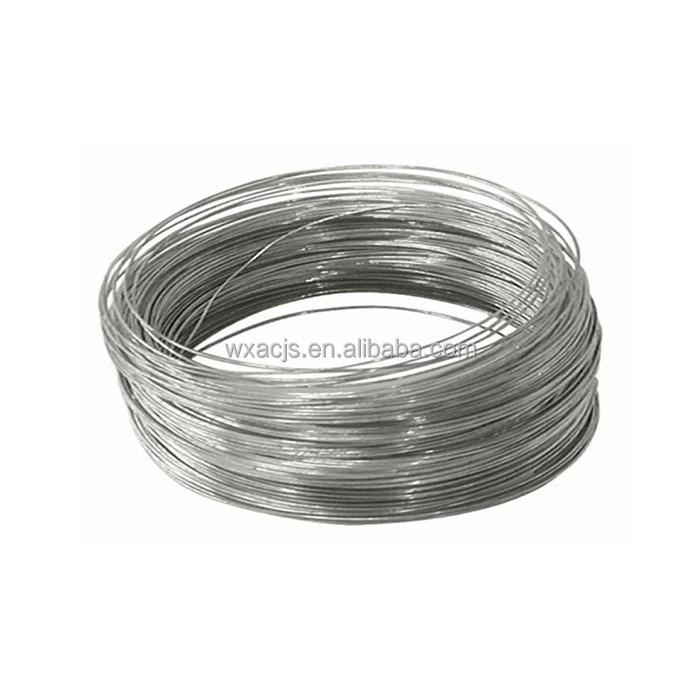

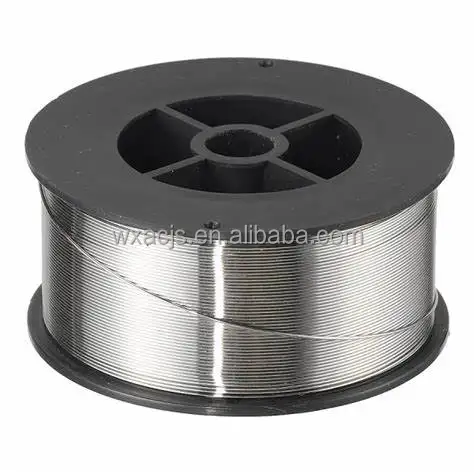

Inconel Wire
Inconel materials are nickel-chrome-based superalloys. Inconel wire has high corrosion resistance, oxidation resistance, strength at high temperatures, and creep resistance. Inconel wire is able to withstand elevated temperatures and extremely corrosive environments.
Benefits of Inconel Wire
* Impeccable Resistance to High Corrosion Environments
* Good fabrication properties
* High strength alloy
* Oxidation Resistant
* High tensile strength
* Suitable for high temperature
Usage of Inconel Wire
* Aerospace Industry
* Nuclear Industry
* Jet Engines
* Fuel Nozzles
* Engine Components
* Afterburner Rings
* Saltwater marine applications
* Oil and Gas extraction
* Industrial Processing
* Pharmaceutical Industry
* Fuel Nozzles
* Engine Components
* Afterburner Rings
* Saltwater marine applications
* Oil and Gas extraction
* Industrial Processing
* Pharmaceutical Industry
Specification
Product Name | Inconel Wire |
Application | * Oil & Gas Extraction * Heat Treat Applications * Rapid Temperature Changes * Saltwater Applications * Jet Engines |
Diameter | 0.025mm-5mm |
Length | customized |
Material | Inconel 600/601/602CA/617/625/713/718/738/X-750 |
Standard | GB, AISI, ASTM, DIN, EN, SUS, UNS |
Surface | Bright |
Package | Standard export package/Customized |
Chemical Composition (%) | ||||||||||||||||||
Inconel | Ni | Cr | Fe | Mn | Cu | Al | Si | C | S | |||||||||
600 | 72 | 14-17 | 6-10 | 1.0 | 0.5 | 0.5 | 0.15 | 0.015 | ||||||||||
617 | 44.2-56.0 | 20-24 | 3 | 0.5 | 0.5 | 0.8-1.5 | 0.5 | 0.15 | 0.015 | |||||||||
625 | 58 | 20-23 | 5 | 0.5 | 0.4 | 0.5 | 0.1 | 0.015 | ||||||||||
690 | 59.5 | 30 | 9.2 | 0.35 | 0.01 | 0.02 | 0.35 | 0.019 | 0.003 | |||||||||
718 | 50-55 | 17-21 | Balance | 0.35 | 0.2-0.8 | 0.65-1.15 | 0.35 | 0.08 | 0.015 | |||||||||
X-750 | 70 | 14-17 | 5-9 | 1.0 | 0.5 | 0.4-1.0 | 0.5 | 0.08 | 0.01 | |||||||||
Mechanical Properties | ||||||||
Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |||||
Rockwell B (HR B) max | Brinell (HB) max | |||||||
Psi – 1,35,000 , MPa -930 | Psi – 75,000 , MPa – 517 | 42.5 | -- | -- | ||||
Physical Properties | ||||
Density | lb/in3 | 0.306 | ||
Mg/m3 | 8.47 | |||
Melting Range | °F | 2470-2575 | ||
°C | 1354-1413 | |||
Specific Heat | Btu/lb-°F | 0.106 | ||
J/kg-°C | 444 | |||
Electrical Resistivity | ohm-circ mil/ft | 620 | ||
μΩ-m | 1.03 | |||
Curie Temperature | °F | -192 | ||
°C | -124 | |||
Permeability at 200 oersted (15.9 kA/m) | 1.010 | |||
Recommend Products
Company Profile
Detection
Why Choose Us
Packing & Delivery
Q1: Can you provide samples?
A1: Yes, free samples will be provided regarding to your needs. And the delivery cost, which will be returned after the first cooperation, needs to be afforded by the customers.
Q2: What is your delivery time?
A2: Within 7 days after deposit received for in-stock. 15-30 days for products out of stock.
Q3: What is your payment terms?
A3: 30% T/T in advance, the balance before shipment or based on BL copy or LC at sight.
Q4: How can you guarantee the quality?
A4: Confirmed samples before mass production; strict inspection before delivery.
Q5: What is the time of preparing a sample?
A5: 1-3 days.
Q6: What’s your shipping port?
A6: Shanghai, Ningbo, Tianjin or negotiated.
Q7: What’s the package?
A7: Standard export sea worthy package or negotiated.
Q8: Can we visit your factory?
A8: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
