Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing
Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing

Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing

Share on (1600697609749):


Price:$24,000.00 - $25,000.00

Quantity:


Product Overview

Description





Products Description


EPS Styrofoam Shape Moulding Molding Machine For Thermal Insulation Wall Roof Panel and Cornice Round Ceil Products
EPS Styrofoam Shape Moulding Molding Machine for Ice Cream Insulation and Rice Cooker Box is defined as a process manufacturing EPS formed products such as EPS packages or insulation materials by the moulds are filled with expanded EPS beads by means of pneumatic filling injectors,pressure filling systems,shaped by steam heating in the closed state with the aid of a vacuum.
EPS products have wide application fields in heat insulation, food and Electronics packaging and building decorates terms and so on.






Specifications and Advantages of Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing


Technical Data
Item
Unit
BES-PZE-1400
BES-PZE-1600
BES-PZE-1750
BES-PZE-1800
Mould Dimension
mm
1400×1200
1600×1350
1750×1500
1800×1600
Max Product Dimension
mm
1200×1000×350
1400×1100×350
1550×1300×350
1610×1400×350
Rear Window Size
mm
1300×1080
1450×1150
1600×1350
1680×1440
Stroke
mm
190-1440
220-1470
220-1470
220-1470
Steam Entry
mm
DN100
DN100
DN100
DN100
Steam Consumption
t/t
(8-10T) steam consumption for 1T EPS raw material
Water Entry
mm
DN80
DN80
DN80
DN80
Cooling Water Consumption
kg/cycle
50-150
55-180
60-190
80-200
Compressed Air Entry
mm
DN65
DN65
DN65
DN65
Compressed Air Consumption
m3/cycle
1.8
2
2
2.2
Vacuum Pump Capacity
m3/h
230
280
280
280
Connected Load
kw
15.2
17.2
17.2
17.2
Overall Dimension
mm
4970×2320×3890
5020×2700×3970
5020×2850 ×4070
5100×2950×4350
Machine Weight
kg
6000
7000
7500
8500
Cycle Time
s
60-120
70-130
70-130
80-140
Other Specifications Can Also Be Produced According to Client's Requirements


1. This machine applies PLC and touch screen,advanced moulding technique and can produce various shapes of EPS products.
2. This machine can provide different kinds of foam articles with lower moisture content, high foaming speed and lower consumption of energy.
3. There are four kinds of operating mode (automatic,semi-automatic,pause-startup and manual operation)with safe-guard protective device to ensure safe operation.
4. This machine has microcomputer control and touch screen display. It can function high efficiently under computer control and management with high automation.Simplicity of operation and easy to maintain,it can reduce the labor intensity.
5. This machine applies advanced electrical and hydraulic integration system,which improves the moulding speed,lowers the energy consumption remarkably and reduces the environmental pollution.
6. Mechanic de-mould mode.

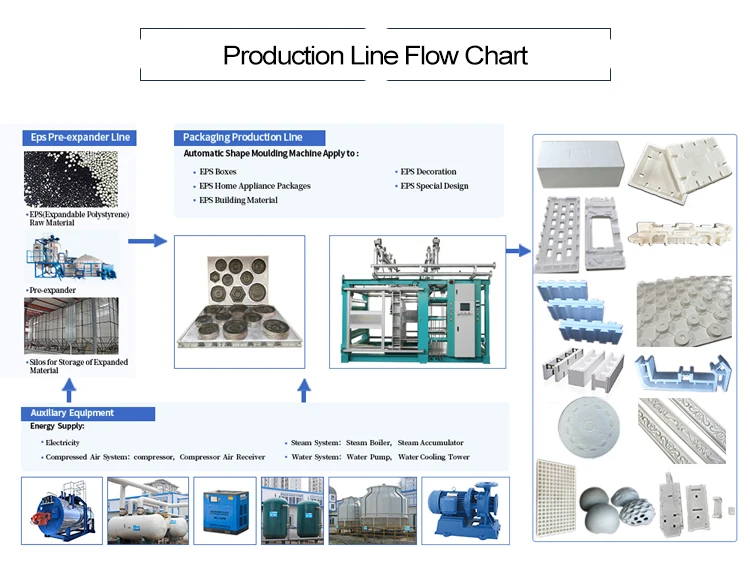

The Production Line

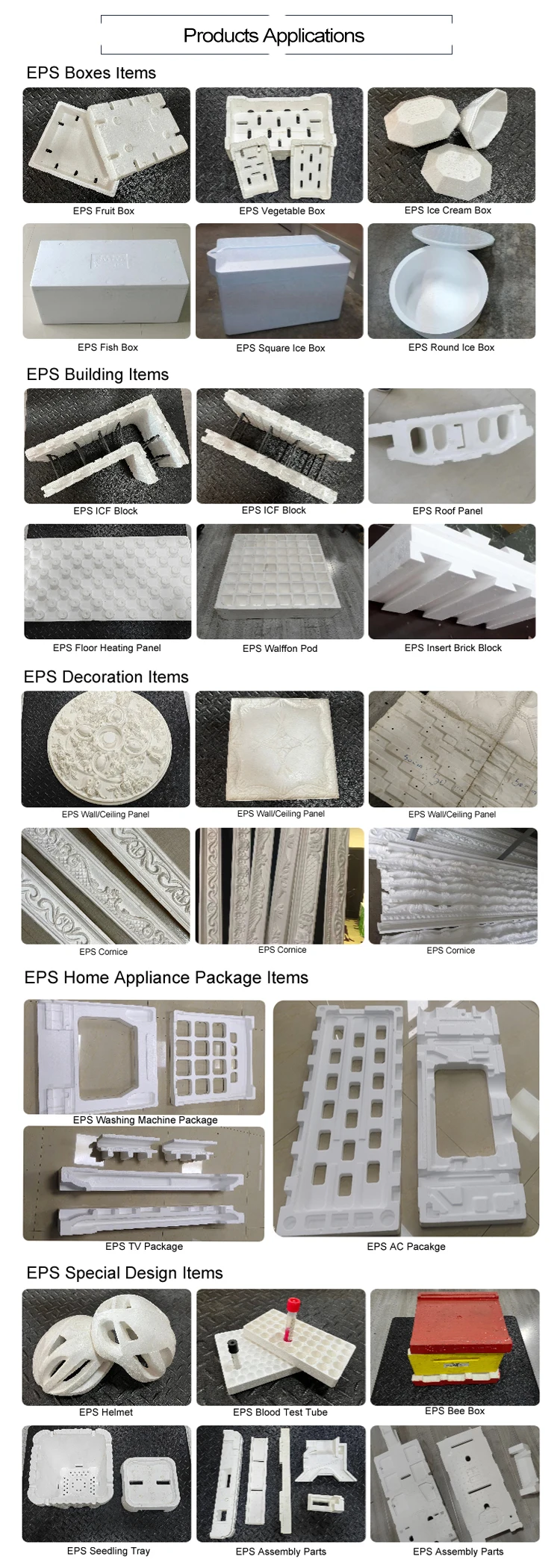

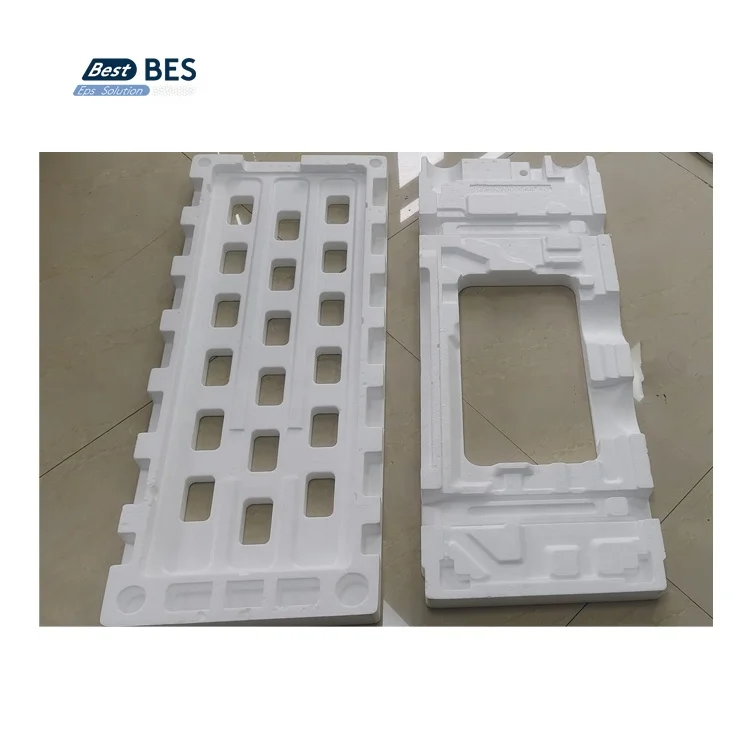

Applications of Eps Shape Moulding Molding Styrofoam Container Cooler Box And Home Appliance Packaging making Machine for TV AC Packing




Company Profile




BES , offer one-stop service basing on years EPS industry experience under serving over 100+ foreign customer ,high efficiency machine, best EPS solution .
1.Design of Turn-key Production line,make the layout and choose the Best suitable EPS machinery and auxiliary equipment.
2.On-site Installation,Start-up, Staff Training.
3.Optimize production efficiency,Reduce production costs, Decrease energy Costs.
4.Supply on line technical support and door to door technical service.


EPS Pre-expander Machine
1. Stable quality: Controlled by touch screen and PLC, easy to operate.
2. Energy saving :High output and save energy,stable
quality and less labor.
3. Full automatic and continuous production.

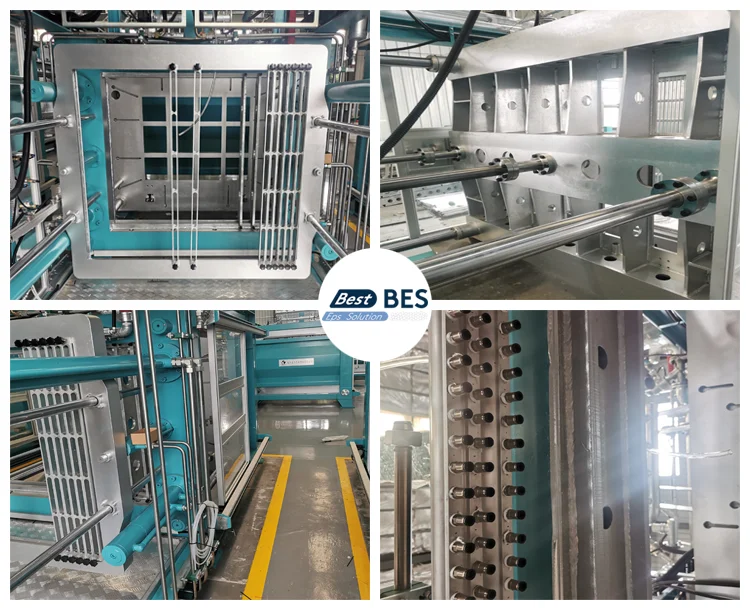

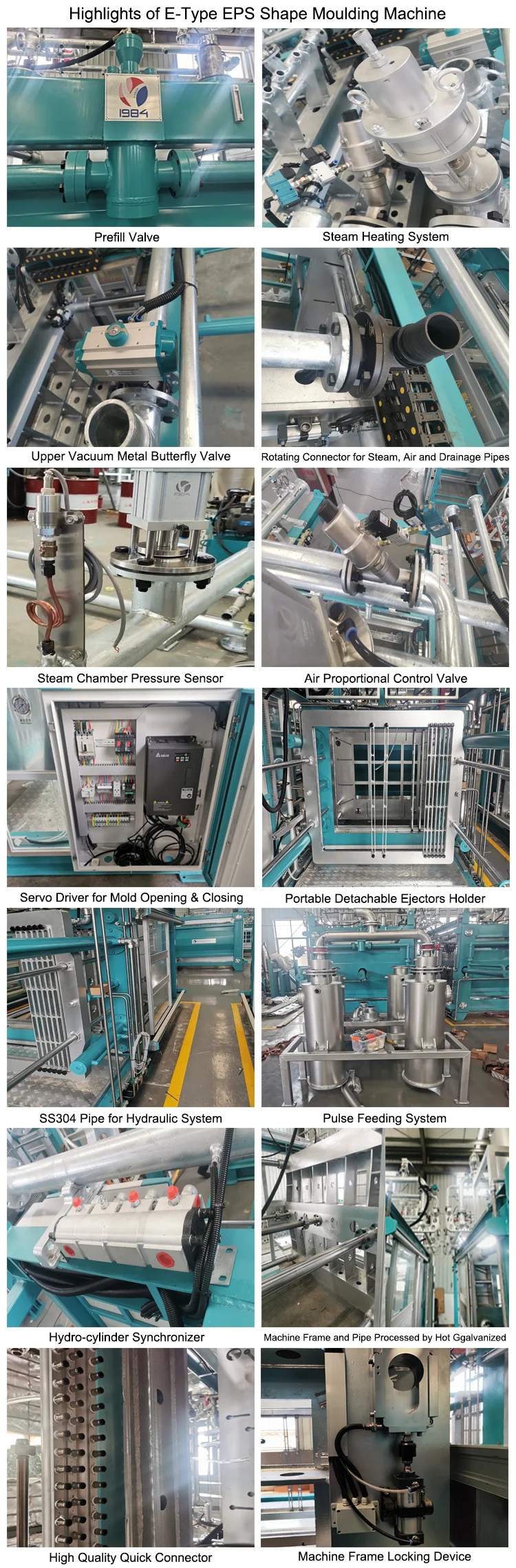

EPS Shape Moulding Machine
1. High efficiency :With vacuum system creates fast product molding and cooling, while decreasing water content.
2.Low consumption:P.I.D system will bring the accurate steam control for any type of molds production.
3.Full automatic :Controlled by PLC and touch screen, easy to operate.


EPS Block Moulding Machine
1. Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
2. Apply hydraulic pressure transmission, hydraulic ingot stripping, which makes steady running and tight locking.
3. Apply high-efficient vacuum system and cooling device to improve moulding speed and reduce the moisture content.

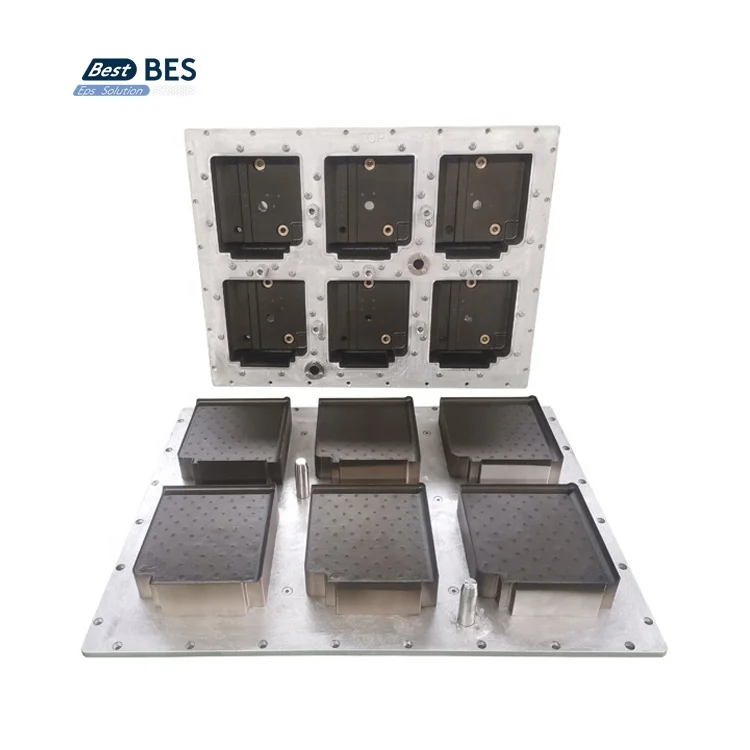

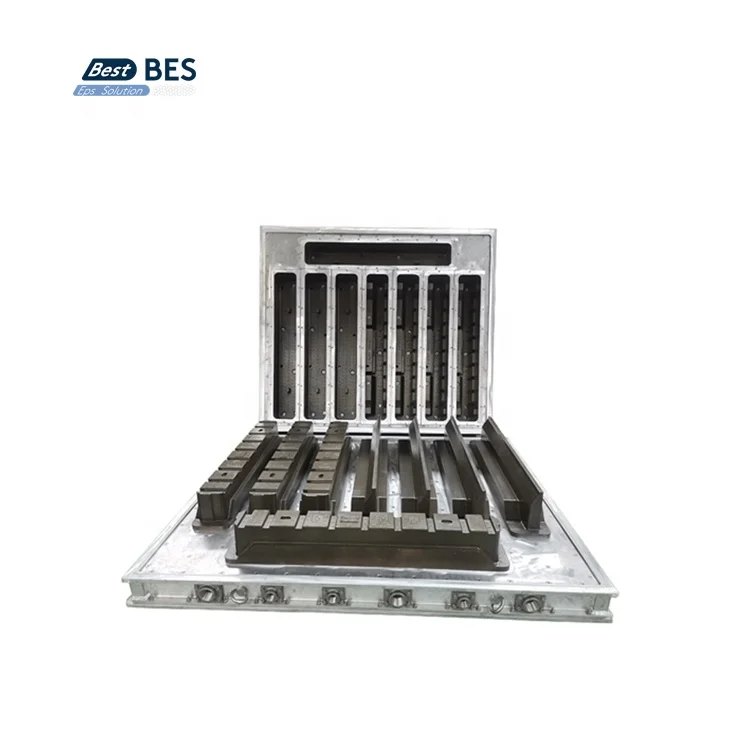

EPS Moulds
1.Made of high quality aluminum material, and mould frame is made by extruded aluminum alloy profile, strong and long lasting.
2.Processed by CNC machines, mould sizes are precise.
3. All cavities and cores coated by Teflon.


Our Service


re-sales Service
On-purchase Service
After-sales Service
* EPS Production Designing
* Pre-expander and Material Distribution Management System
* Installation and Training
* EPS Production Cost Analysis
* Complete EPS Shape Molding Production Line and EPS Molds and ​​​​​​​ Complete EPS Block Production Equipment and Cutting Line System
* Production Process Diagnosis and Optimization
* Technical Introduction
* Central Vacuum and Cooling System
* On-Line Technical Service Support
* Complete Plant Layout Design
* Pressurizing Filling System and EPS Recycling System and Mixing Station
* On-Site Technical Service Support




Packing & Delivery




FAQ


1.How Can I get a EPS machine quotation?
There has multiple way to reach us, please contact us by website live chat, email, or phone number, forms, our expert will contact with you within 8 working hours.
We can send the quotation lists when get the detail inquire.
Welcome to reach us now.

2.What is the delivery time for EPS machine after placed the order?
It’s depended on what you have ordered, below is regular delivery for your reference.
EPS Expandable Polystyrene machine: 60 days.
EPS Expandable Polystyrene mold: 20-30 days.
EPS Expandable Polystyrene machine spare parts: 3-7 days.

3.What is the normal delivery term to order EPS machine from China?
The standard delivery term for EPS machine is
EXW Factory
FOB Ningbo or Shanghai
CIF
Welcome to contact us to get more information
