Plastic Hose Extrusion Single Wall Corrugated Pipe Machine SWC Pipe Production Line
1. Single wall corrugated tube extrusion machine uses PVC, PP, PE as raw material to produce small dimater single-wall corrugated pipe.
2. Through the corresponding mould and setting machine, the products can be smooth evenly both internal and external.
3. Application of products: Cable threading pipe, washing machine drain pipe, vacuum tubes, ventilation drain pipe, etc.

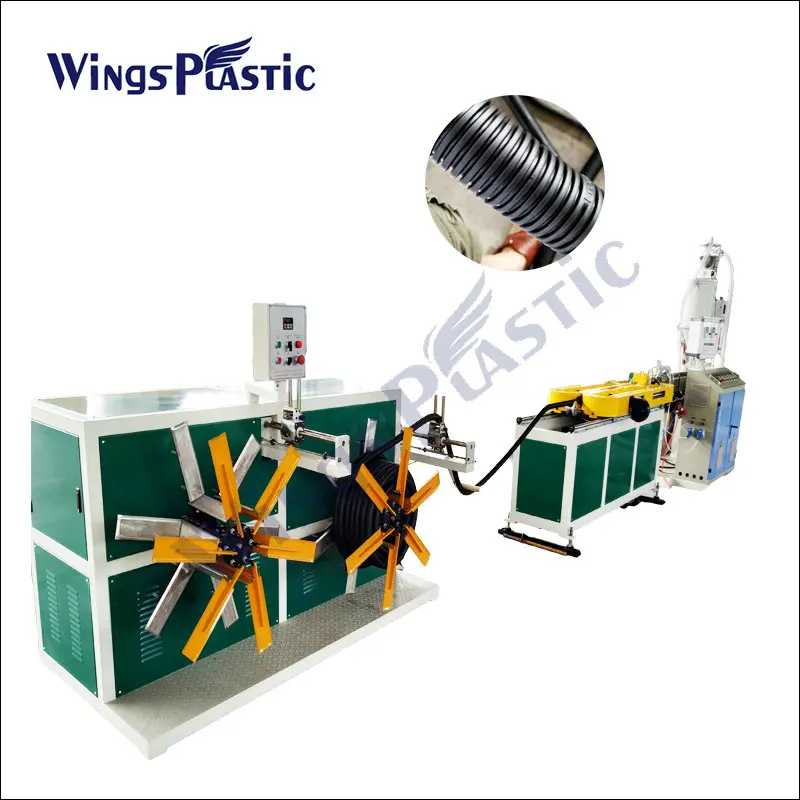

Production Flow: Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
Features: High and stable extrusion capacity Corrugator mould one mould two size Good water cooling or air cooling system
Configuration List of Single Wall Corrugated Tube Extrusion Machine:: | ||
Automatic vacuum feeder | 1set | |
Dryer | 1set | |
Single-screw extruder | 1set | |
Corresponding single-wall corrugated pipe extruding die | 1set | |
Single-wall corrugated pipe molding machine | 1set | |
Coiling machine | 1set | |
Meter counter | 1set | |

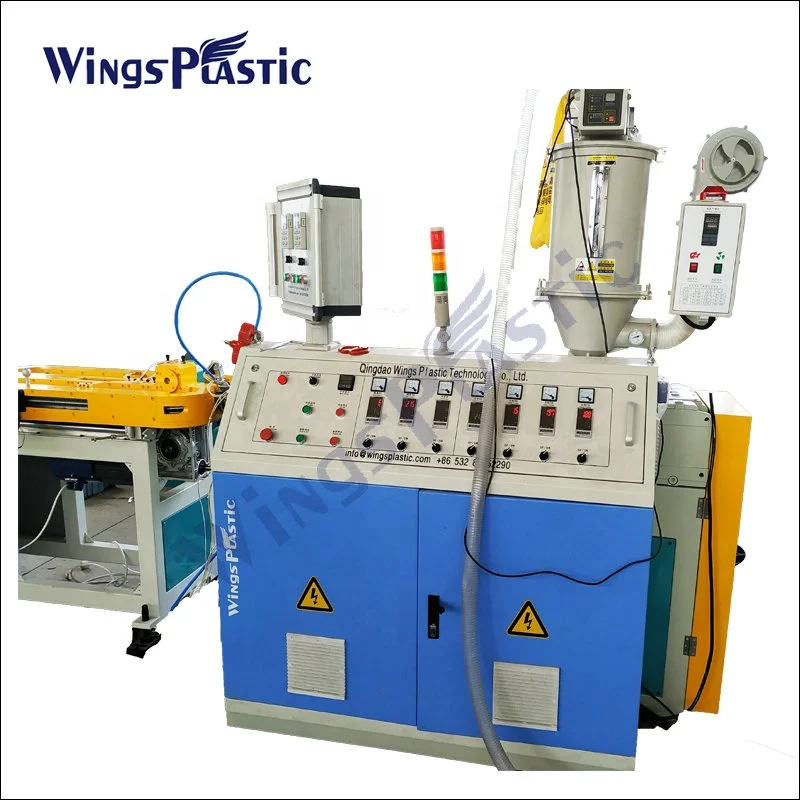

Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE
extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system
advantages:extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system
All parts are high standard for exporting..use domestic and foreign well known brands Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw we will according to your pipe diameter and speed match suitable motor to save energy ect.

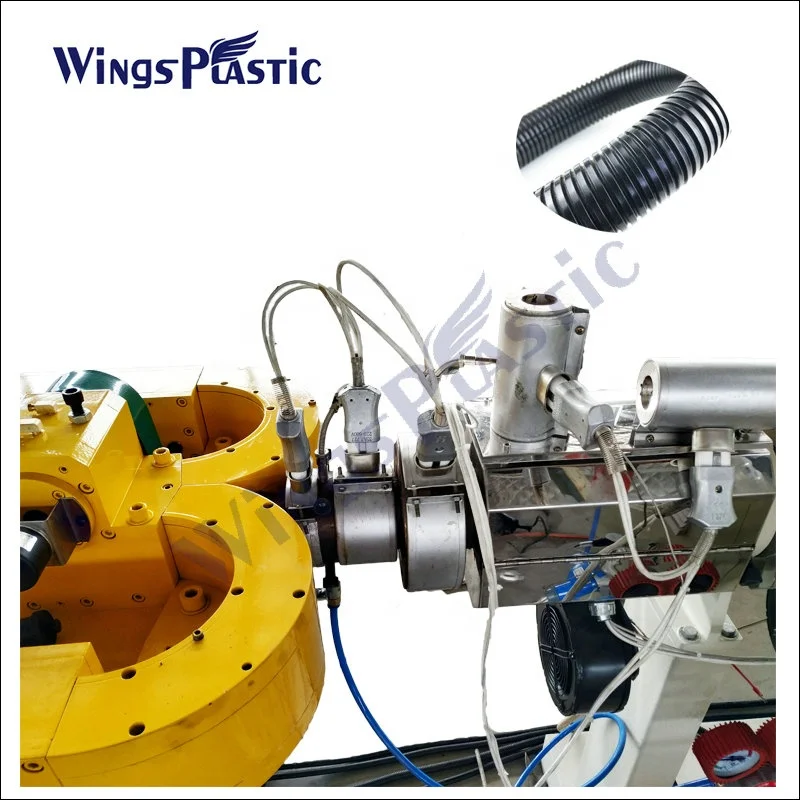

Extrusion Die and The Core Bar and Mouth Mould
1)Material :40Cr , the surface of die is chromeplated, anti-corrosive which better quality than 45#steel
2)One set mold have two sizes design can save cost and easy change to another size of mold...this to meet different reqirements
from customer.
3)Adopt 55 pairs of big block molds total lenghth 3942 mm
from customer.
3)Adopt 55 pairs of big block molds total lenghth 3942 mm
The core bar and mouth mould
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.

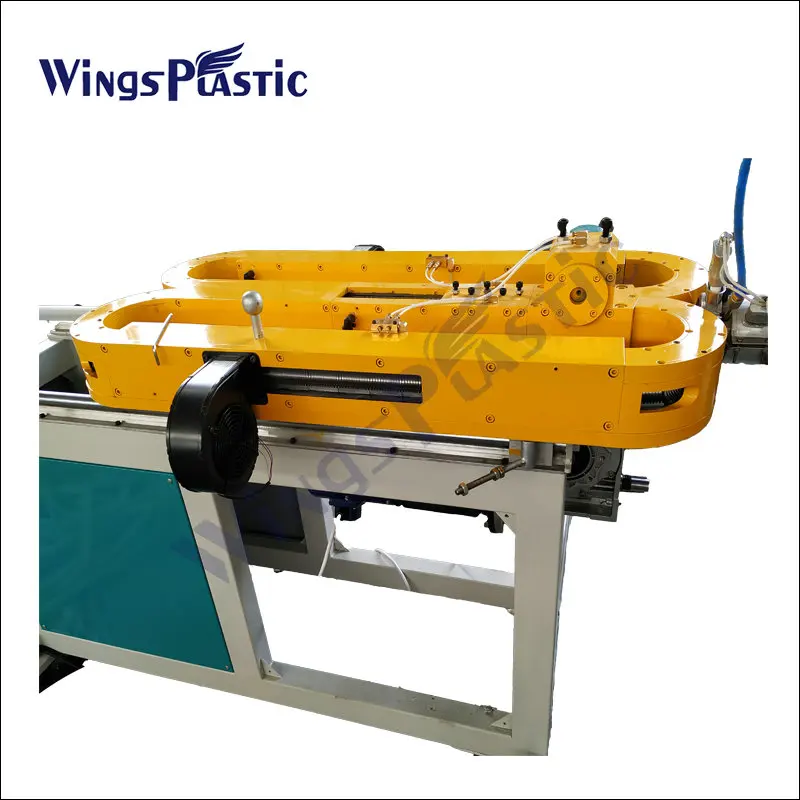

High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working
speed.It is added water cooling and fan cooling two system.
speed.It is added water cooling and fan cooling two system.
Forming machine with large cooling area .Temperature fast cooling down.this means the speed will be faster. we test for indian
machine speed 20-25mm /minute.
machine speed 20-25mm /minute.
Moulds Block
Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.

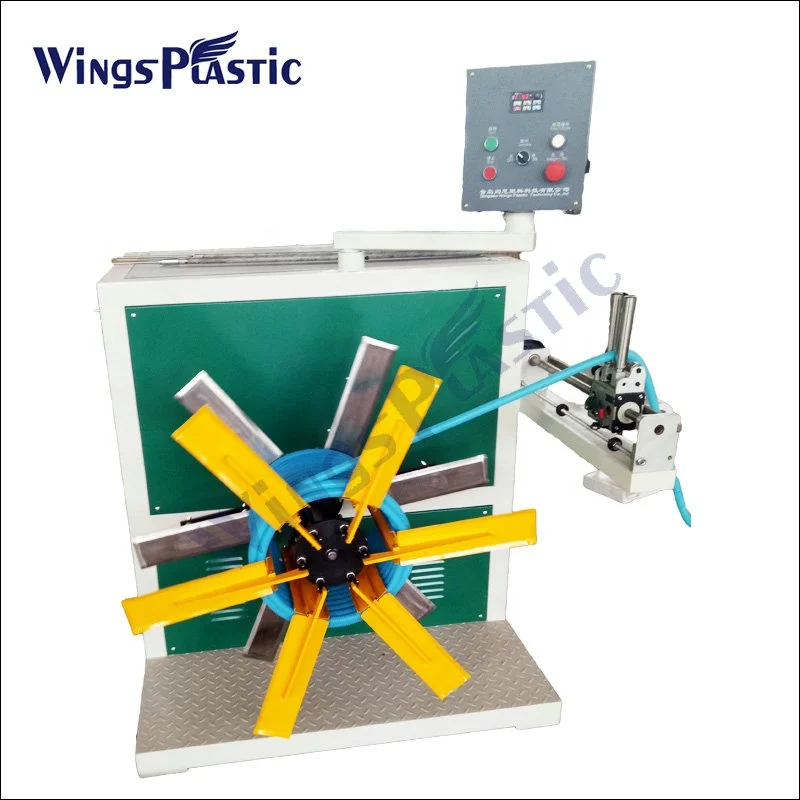

Automatic coiler
No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.
double station rewinder
Advantages:
1)it has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency controland pneumatic self open - lock switching.
Advantages:
1)it has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency controland pneumatic self open - lock switching.

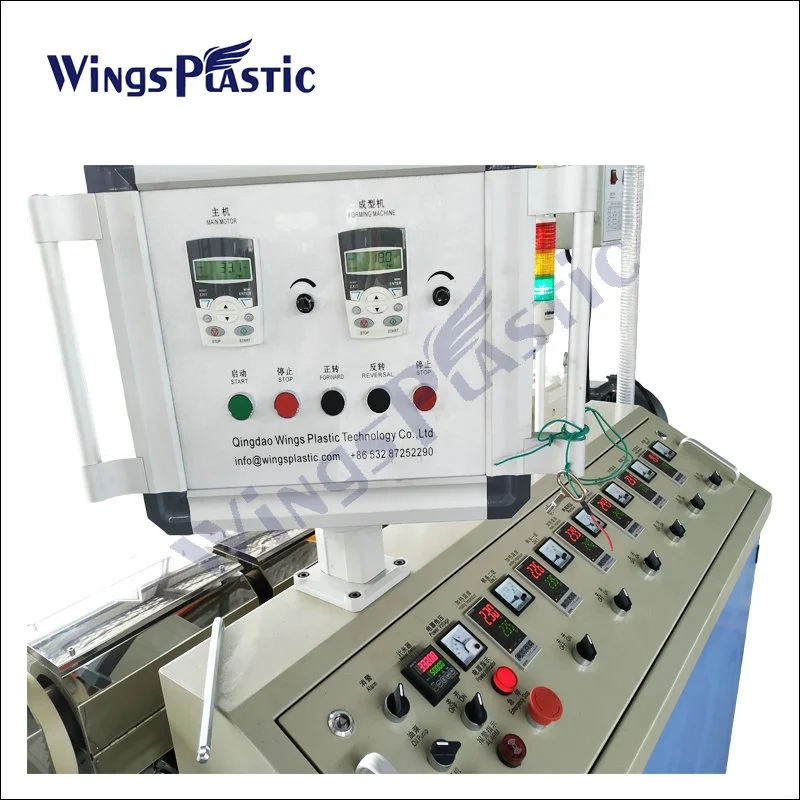

Control Box
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control.
Configurable alarm strategy.
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

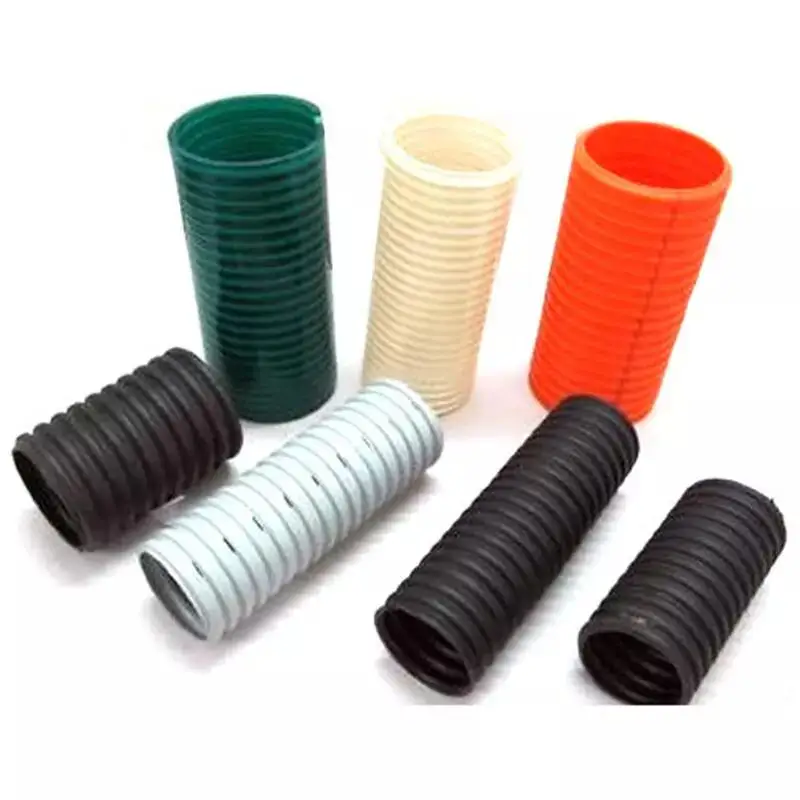

Final Product & Application
Our Advantage
1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould，replace the jet printer.
Our Service
1.prefessional service team, high work efficiency. The machine price is reasonable and high quality. We can also make turnkey project for buyers. And we can provide best after sale service.
2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.
2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line,
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
