FT OPTO hot sale FM3D0325AM Motorized Smart Automatic 360 degree rotation 3D digital Video 4K camera Microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (1600697661601):
Product Overview
Description

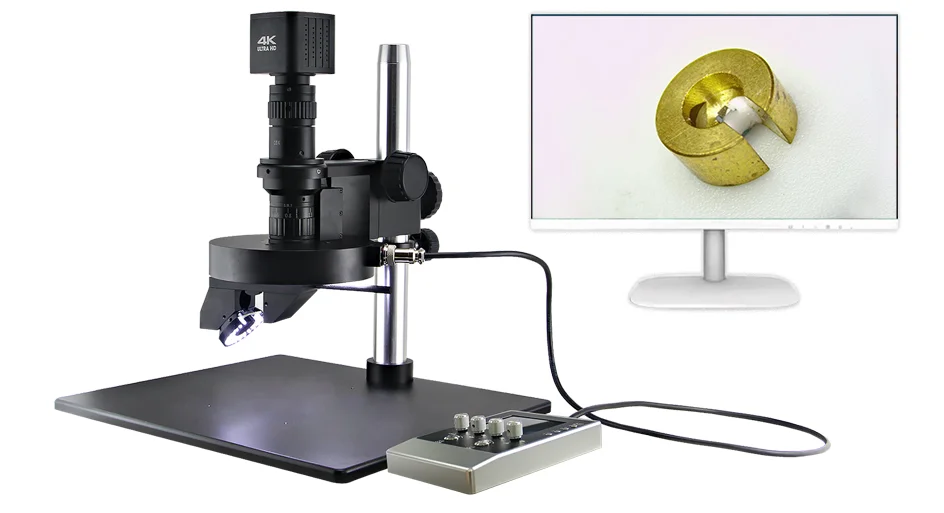

FM3D0325AM Motor 360 degree rotation 3D Video 4K camera Microscope
Product Description
It is widely used in electronic components,precision hardware,
deep hole wall,life science,animal and plant morphology,
criminal investigation and identification and so on.
Optical parameter

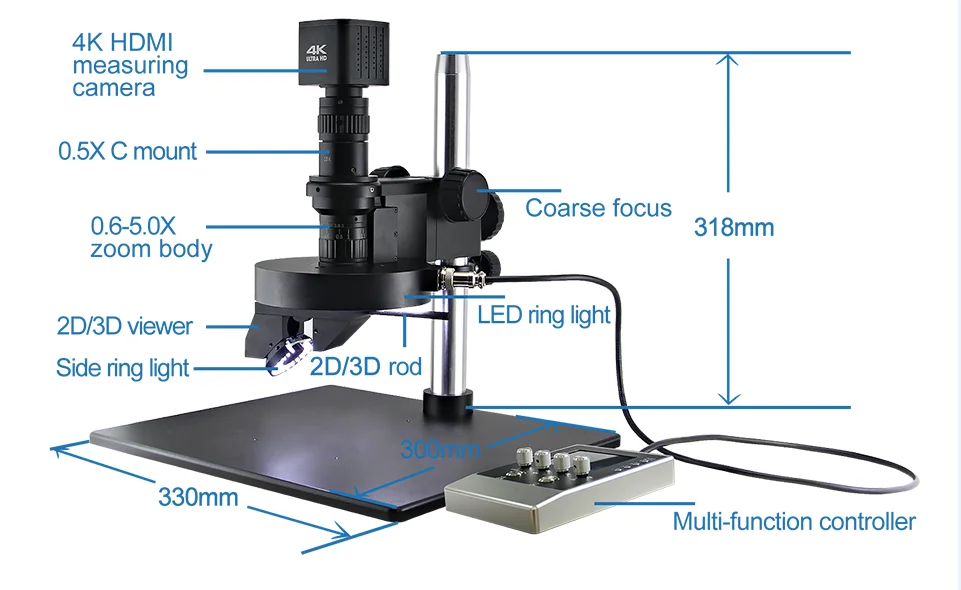

Model | FM3D0325AM |
Optical magnification | 0.6-5.0X zoom body with 0.5X C mount |
Total magnification | 14-120X (based on 15.6 inch 4K monitor) |
Working distance | 2D:86mm 3D:50mm |
Ratio | 1:8.3 |
Field of view | 25.6x14.4-3.0*1.7mm |
Lens mount | Standard C mount |
Observe mode | 2D observation |

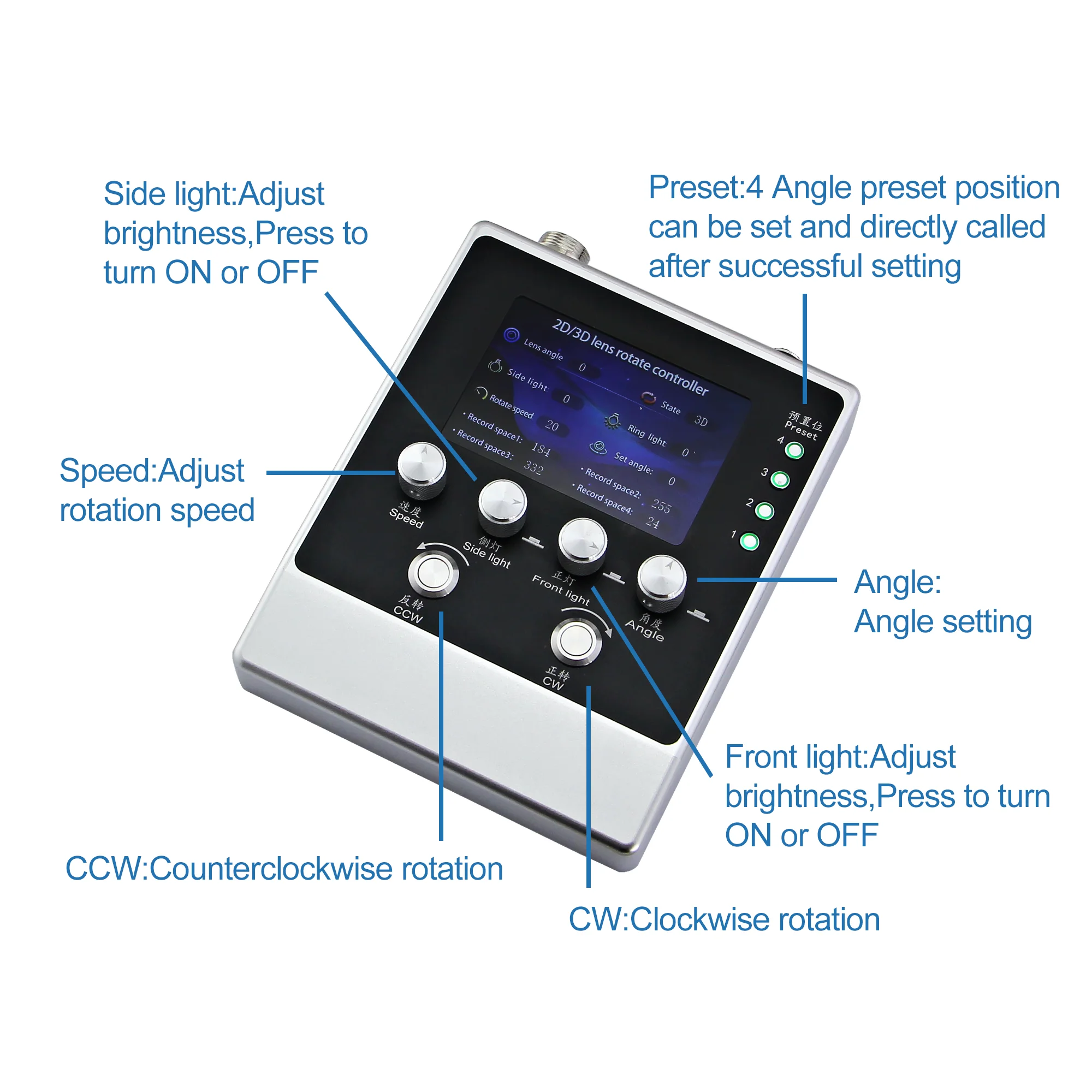

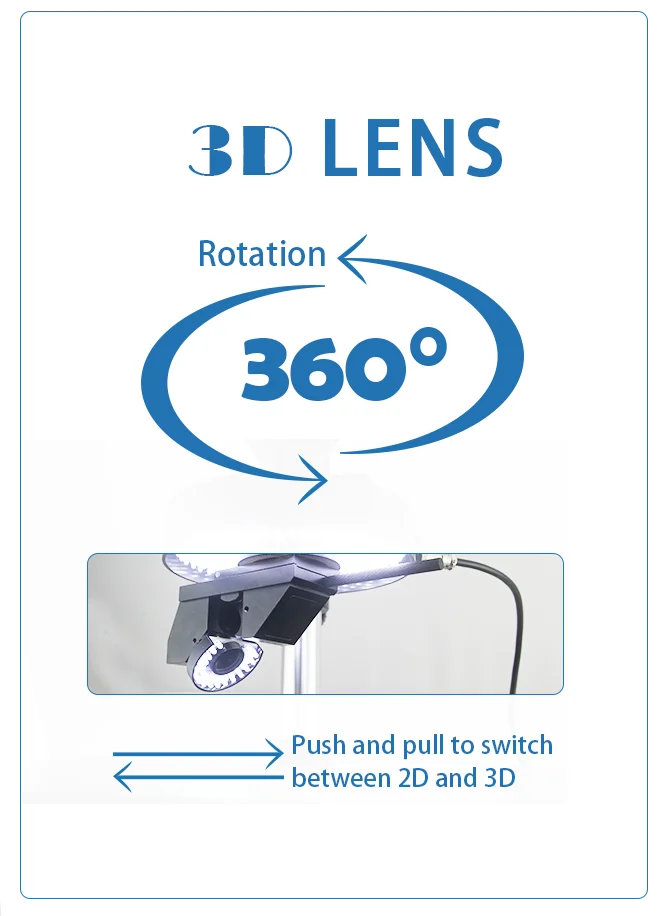

Automatic 360 degree rotation 3D observation | |
Push and pull | |
Sensor | 1/1.8” SONY CMOS |
Resolution | 3840x2160 |
Pixel | 8.0MP |
Frame | 60 FPS |
Pixel size | 2.0μm x 2.0μm |
Output | HDMI output |

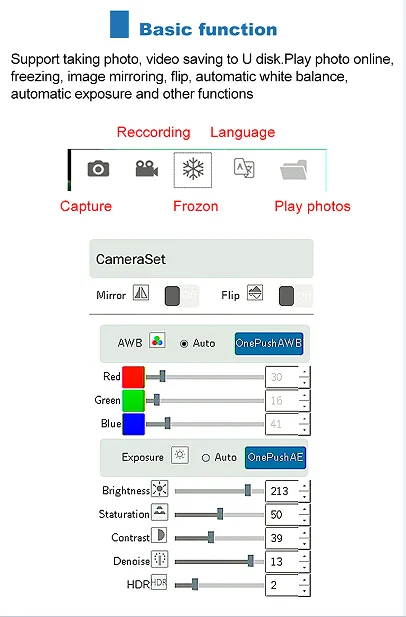

Memory function | Take photo and video to U disk |

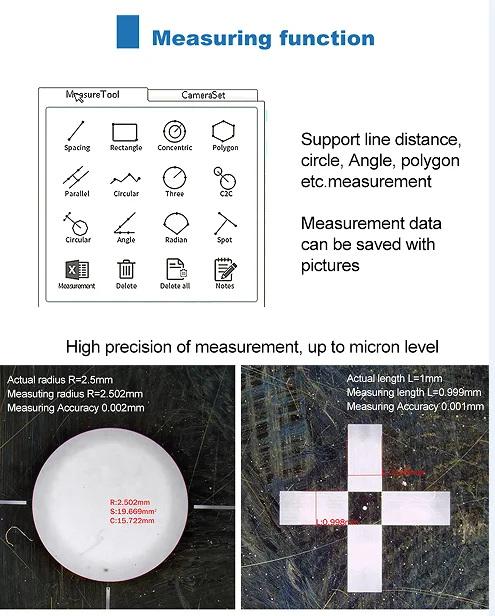

Measuring function | Support measuring of line, angle, circle, radian, rectangle, polygon etc., precision reaches the level of micron. |

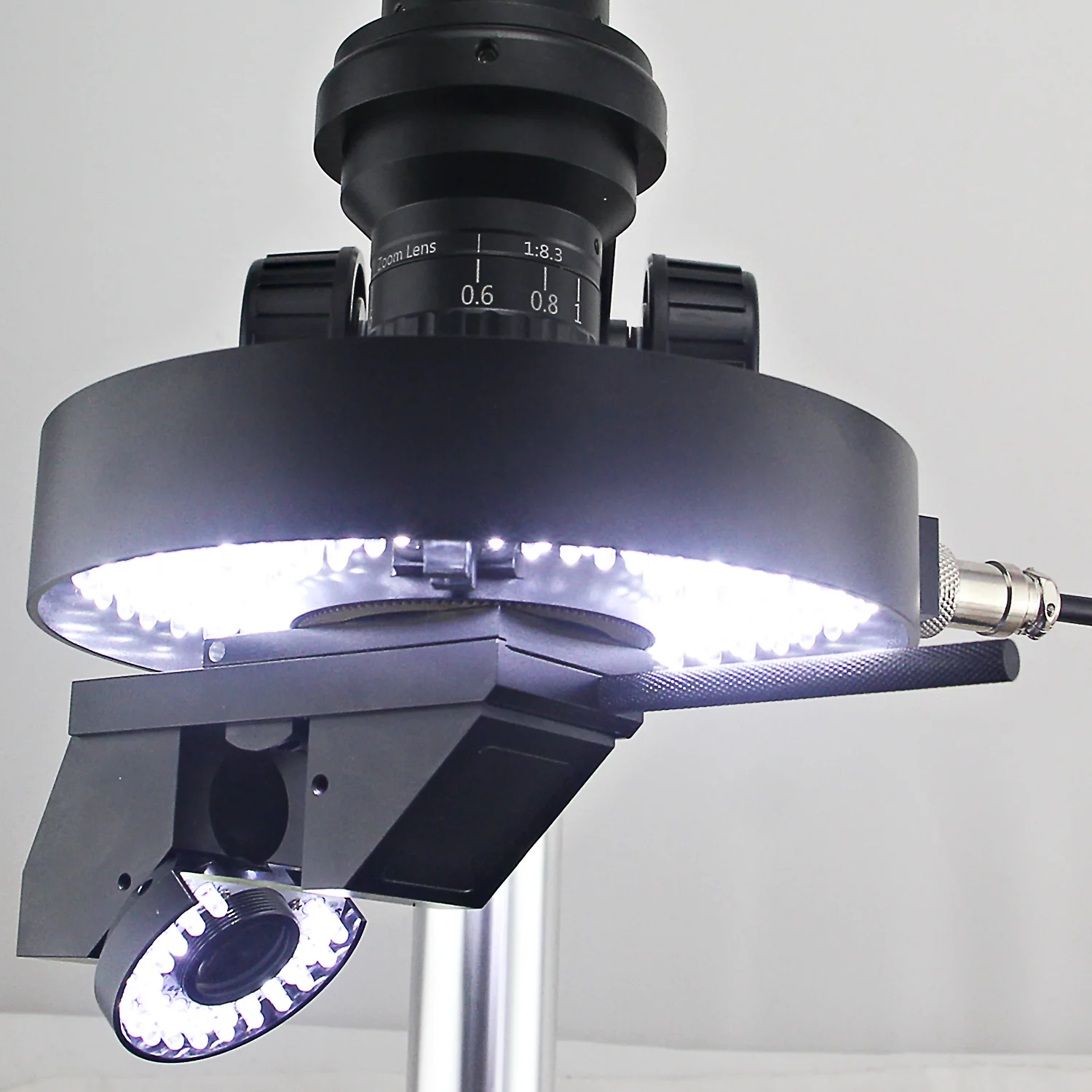

Front light | 267 PCS LED，color temperature 6000K，Brightness 0-100% adjustable |
Side light | 31 PCS LED, color temperature 6000K，Brightness 0-100% adjustable |
Base size | 330*300mm |
Focus | Coarse focus |
Height of post | 318mm |
Product Features
Product Details

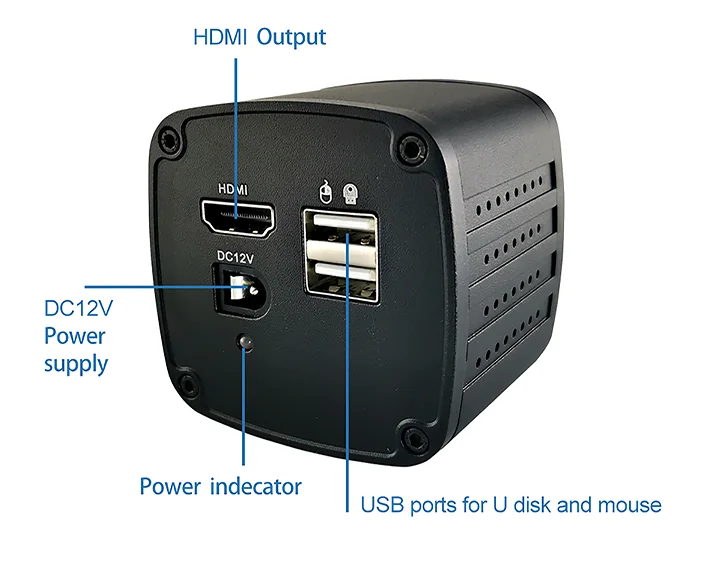

Camera details
Our Company
Guilin FT-OPTO Co.,Ltd established in 2009, with more than 13 years of optical experience ,with good reputation in optical industrial.Which is technical enterprise specializing in precision optical instrument,optical-mechanical integration industry, integrating product technical management, development and scale manufacturing.
We are professional factory of high resolution zoom lens, video microscope, measuring microscope, smart
We are professional factory of high resolution zoom lens, video microscope, measuring microscope, smart
microscope,auto inspection system microscope and microscope accessory.

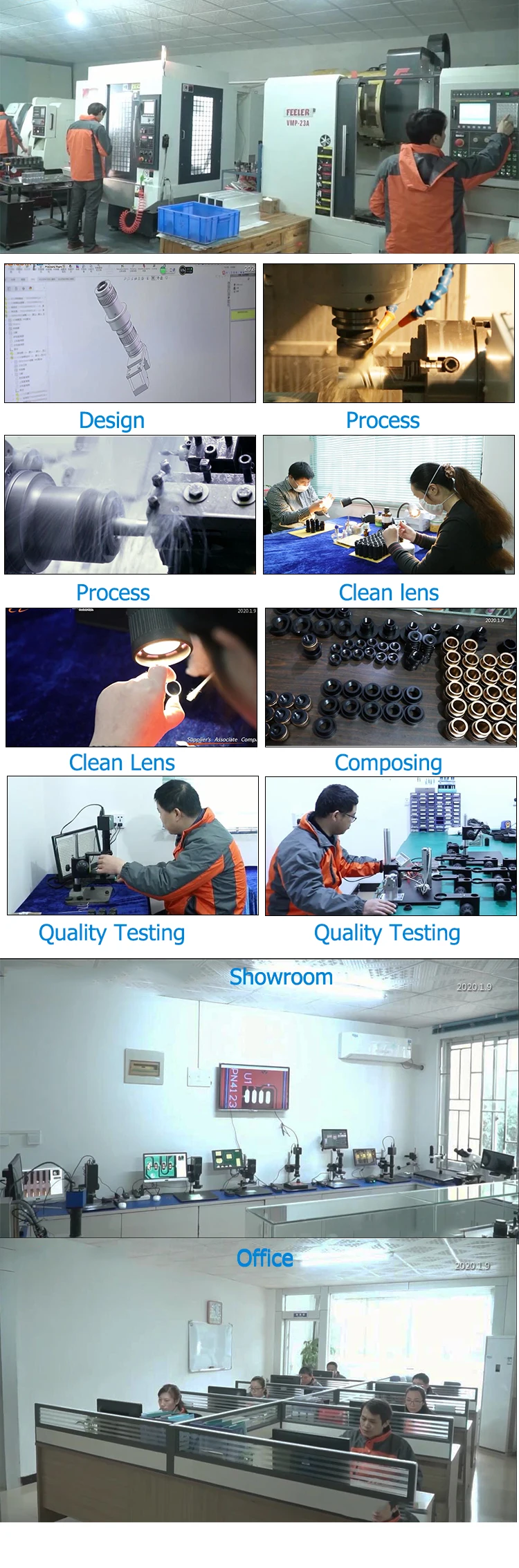

At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products. Sound after-sales service to ensure the response to customer questions within 24 hours.
At present, company equipped with mechanical processing center, turning center, CNC lathe, CNC milling machine and other equipment. our cooperation company strictly control the quality of products, before shipment to 100% full inspection to ensure customers receive all qualified products. Sound after-sales service to ensure the response to customer questions within 24 hours.
Exhibition
FAQ
Q: Can I get the sample order?
A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.
A: Yes.We welcome sample order to test and check quality.Mix sample are acceptable.
Q: How long is the delivery date?
A: It usually 7-10 working days.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.
Q: How to proceed the order if I have logo to print?
A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.
Q: How is your quality control?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment way?
A: T/T,Paypal
Q: Do you offer guarantee for products
A: Yes,we offer one year warranty for the product.
A: It usually 7-10 working days.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL,Fedex,Tnt ,SF ,EMS, By sea or By air.It usually takes 3-5 working days to arrive.
Q: How to proceed the order if I have logo to print?
A: First,artwork for visual confirmation,and next is sample picture or sending sample to you.
Q: How is your quality control?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment way?
A: T/T,Paypal
Q: Do you offer guarantee for products
A: Yes,we offer one year warranty for the product.
Our Strengths
*Our company is specialized in microscope more than 12 years,Products cover many kinds of microscope .
*Our professionals enforce strictly to ensure the lead time and quality.
*Our professionals enforce strictly to ensure the lead time and quality.
*We are industry and trade integration company,we have technical R&D engineer,Quality control and sales.
*According to customers different requirements recommend most suitable model.
*We would be able to offer you a price quote based different purchase quantity.And try our best to supply highly quanlity based on lowest price.
*Add your logo whatever you need, we can make your product perfectly.
Trust us,we are your best cooperators and friends!
We are waiting for your information!
