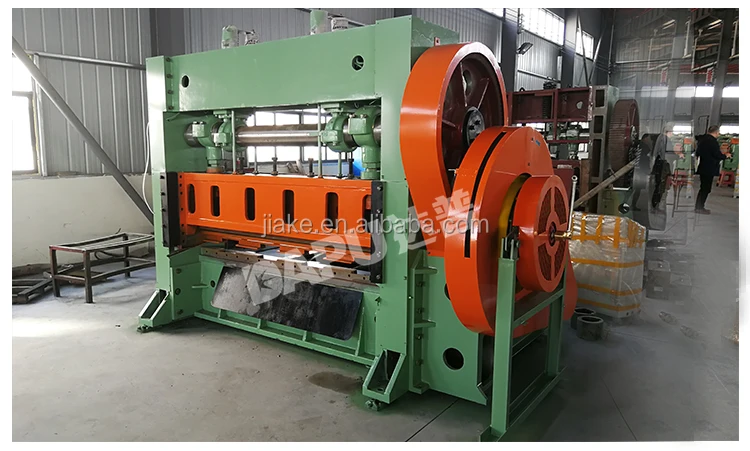

Expanded Diamond Metal Sheet Mesh Machine With High Capacity
- Category: >>>
- Supplier: Hebei Jiake Welding Equipment Co. Ltd.
Share on (1600697697384):
Product Overview
Description

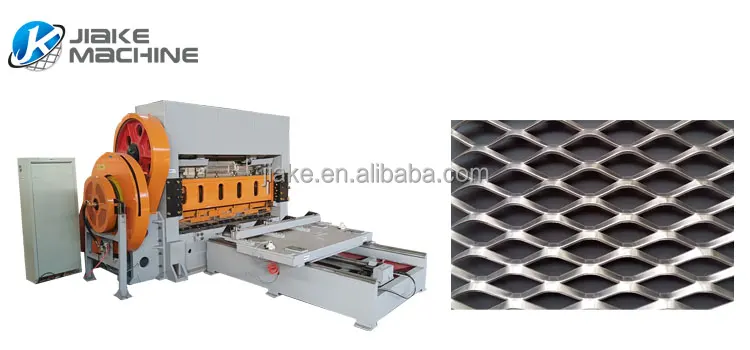

High speed expanded metal mesh making machine
Product Description
Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.
The machine tool is mainly used for punching and drawing metal materials such as cold-rolled steel sheets and aluminum, sheets into hexagonal nets and diamond-shaped nets. This type of steel mesh is mainly used in shipbuilding, mining, machinery, constraction, transportation, petroleum, urban construction, and protection.
Technical parameter
Model | DP25-16 | DP25-25 | DP25-40 | DP25-63 | DP25-100 | DP25-160 |
| Material Thickness(mm) | 0.1-1 | 0.1-1.5 | 0.1-2.5 | 0.5-3 | 0.5-5 | 0.5-8 |
| Material Max.width(mm) | 1000 | 1250 | 1500 | 2000 | 2000/2500 | 2000/2500/3200 |
Speed (times/min) | 220 | 200 | 110 | 75 | 60 | 50 |
| Feed Distance(mm) | 0-2.2 | 0-3 | 0-6 | 0-6 | 0-10 | 0-10 |
Mesh opening Size LWD(mm) | ≤25 | ≤30 | ≤80 | ≤150 | ≤180 | ≤200 |
| Motor(kw) | 5.5 | 5.5 | 11 | 11 | 18.5/22 | 30 |
| Weight(T) | 2.2 | 3 | 7 | 11 | 13/15 | 18/20/26 |
| Size(mm) | 1.1×1.7×2 | 1.5×2.1×2 | 1.8×3.2×2.1 | 3.4×3.4×2.35 | 3.4×3.6×2.65 | 3.5×3.7×2.65 |
Note:The machine can be designed according to your metal materials and metal thickness.

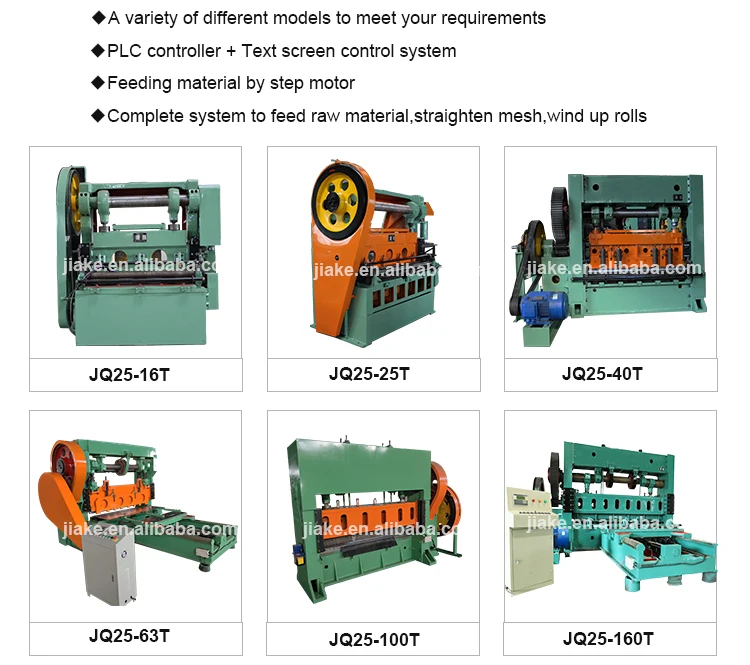

Product Models
Product details

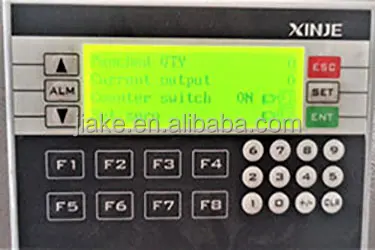

1.Text screen + PLC

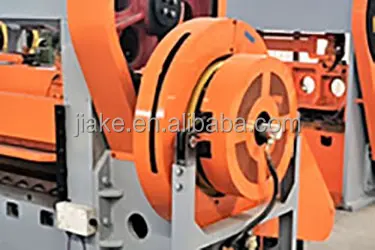

| 2.Pneumatic clutch
|

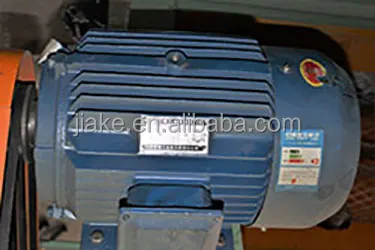

3.Main motor

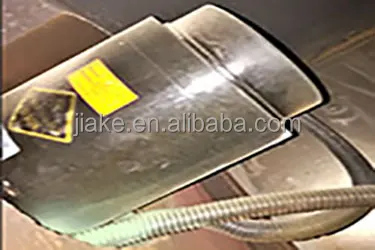

| 4.Feeding material by step motor
|

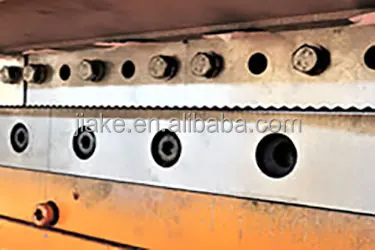

5.Alloy cutter
| 6.Auto lubrication system
|

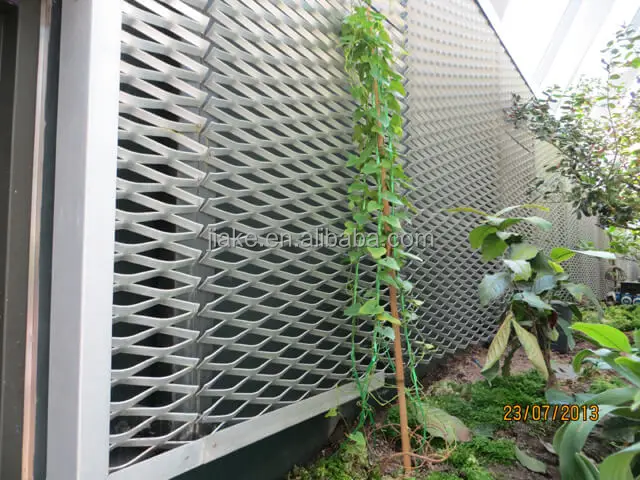

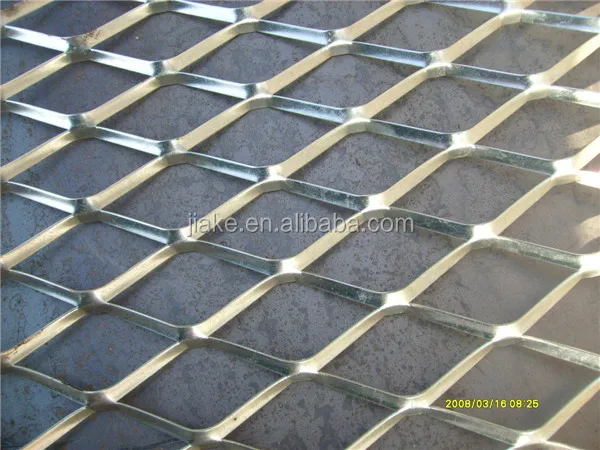

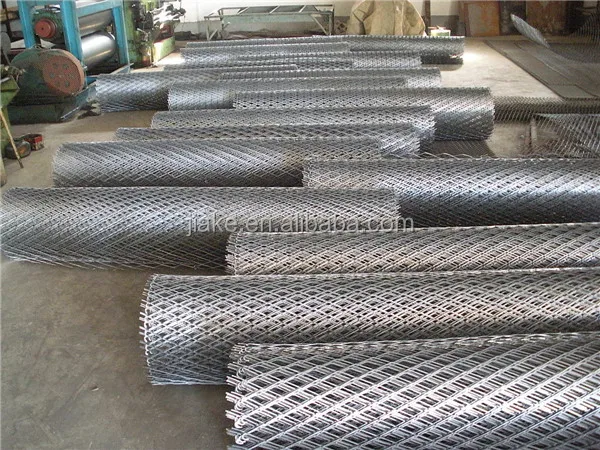

Finished Product

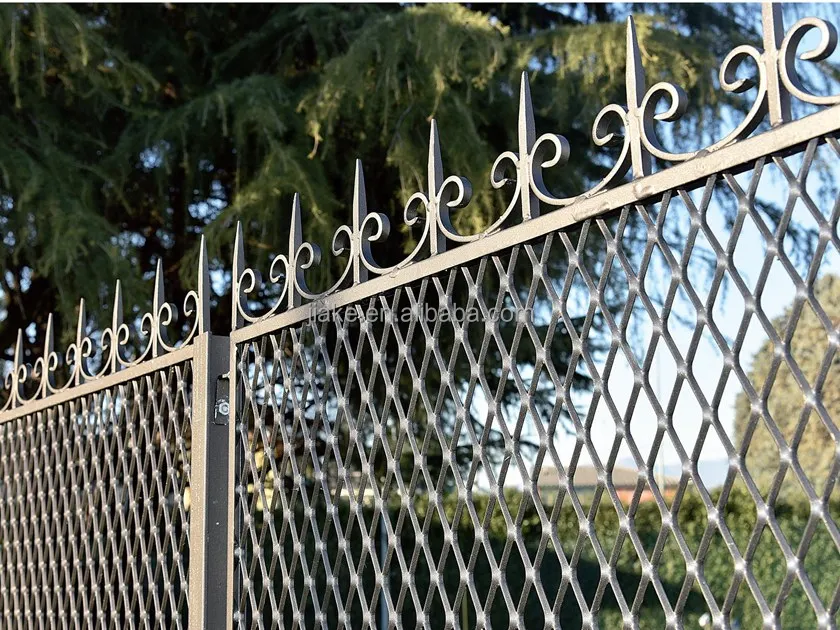

The function of the product: The steel plate mesh is mainly used for the protection of civil construction batch cement, mechanical equipment, handicraft manufacturing, and high-grade speaker mesh. Highway guardrails, fencing for stadiums and green belts on roads.
It can also be used in the construction industry, highways and bridges as reinforcement.
 |  |
 |  |

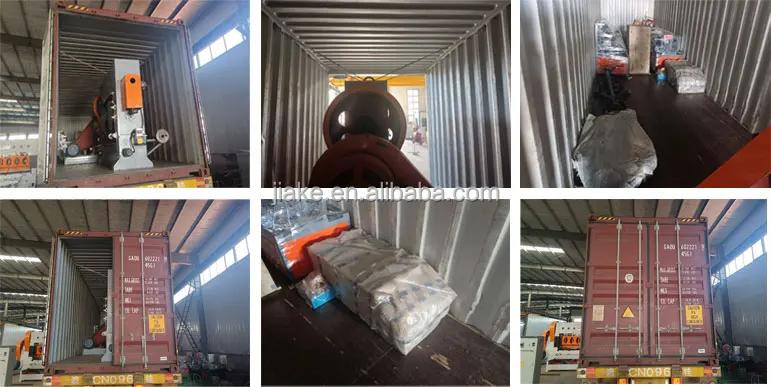

Packaging & Shipping
About Us
FAQ
—FAQ—
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
