Product Overview

Description

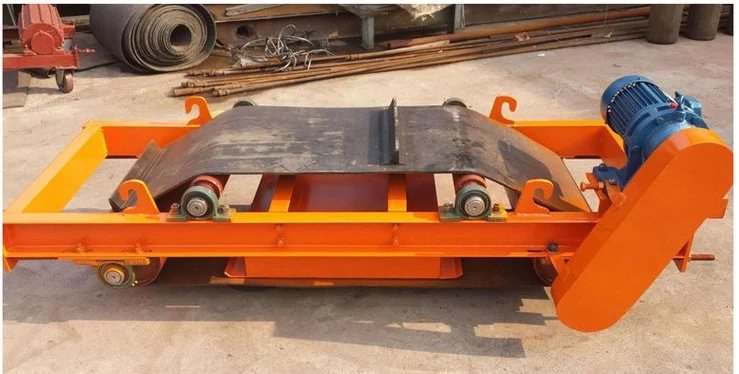

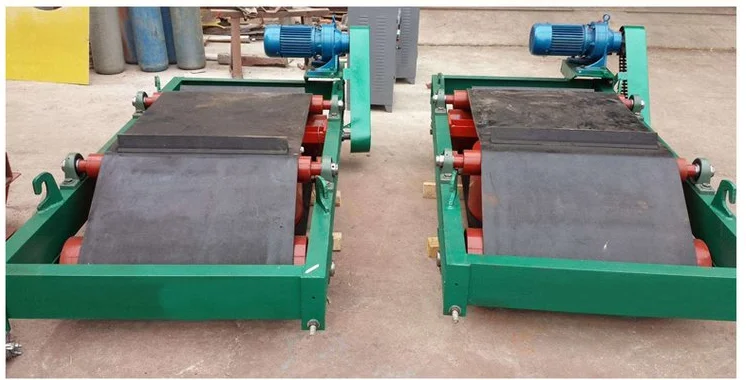

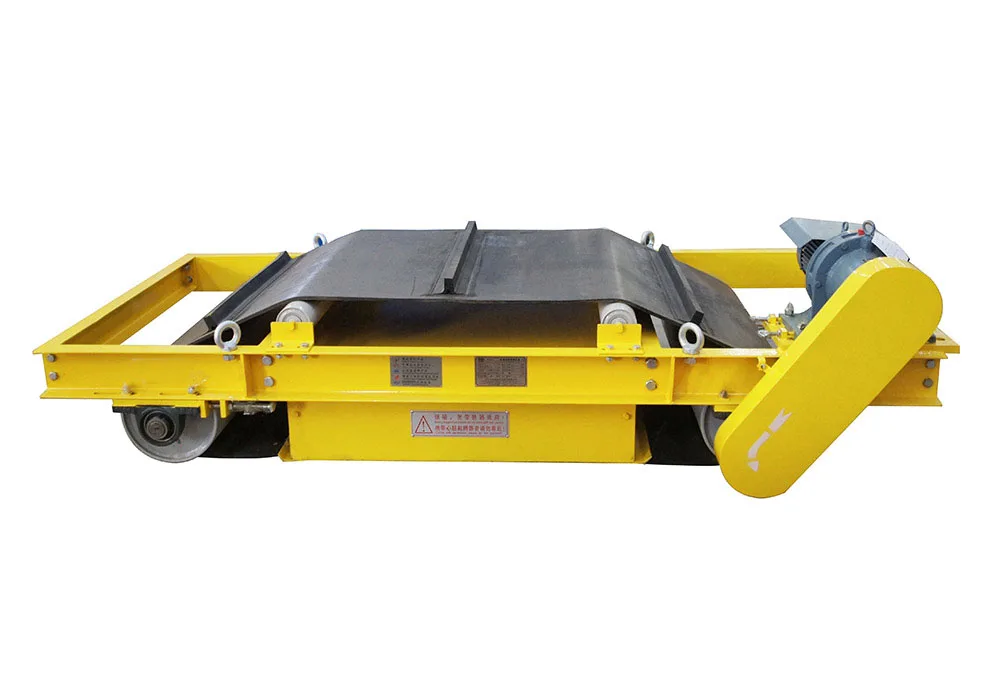

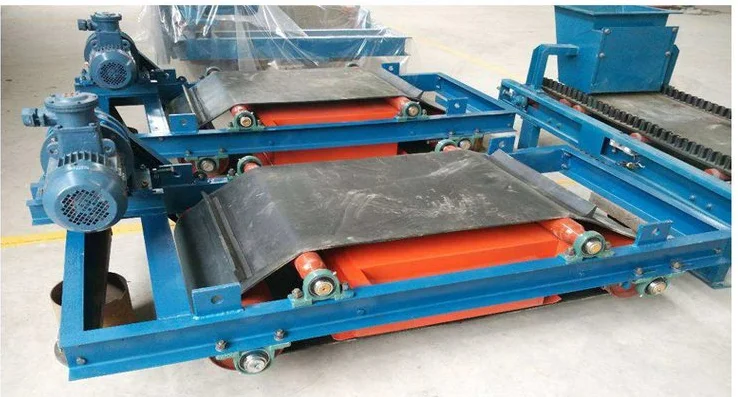

Self-unloading conveyor belt metal  remover

BCRCYD (C) series permanent magnet self-unloading iron remover is composed of permanent magnet magnetic core, iron scrap belt, deceleration motor, frame, roller and other parts, and is used in conjunction with various conveyors. It is used to automatically remove ferromagnetic substances weighing 0.1--25 kg from non-magnetic materials. Its internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine without failure in harsh environments.

The self-unloading iron remover has the advantages of maintenance-free, strong magnetic force, long service life, simple installation, convenient use, reliable operation, etc. The service life of the internal permanent magnet magnetic system is more than 10 years.



It is suitable for all kinds of mines, coking plants, coal washing plants, brick factories, building materials, compression plate factories, etc. on belt conveyors, vibrating conveyors, electromagnetic vibrating feeders, and unloading chutes to protect the front of the crusher. Continuous iron removal in materials, this machine is suitable for iron removal in materials with large iron content.

The iron unloading mechanism is composed of a frame, a cycloidal pinwheel reducer (hereinafter referred to as a reduction motor), a main driven roller, an idler, a pulley (or a sprocket), a V-belt (or a pulley) and an iron unloading belt equipped with a scraper.



1. Select the correct equipment according to the requirements of the impurity removal rate and the environment of the construction site;

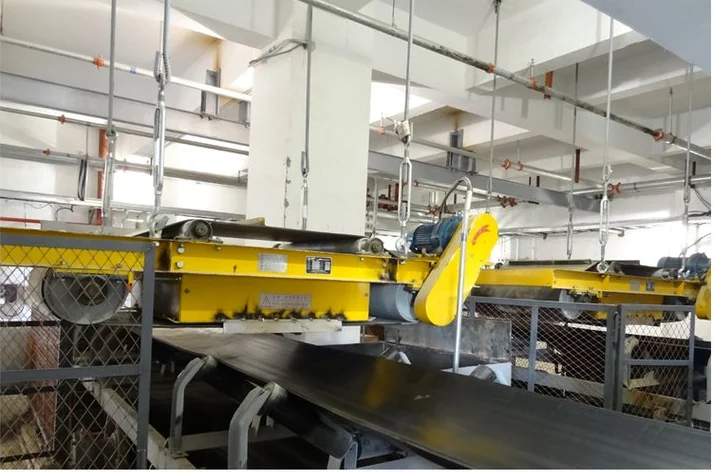

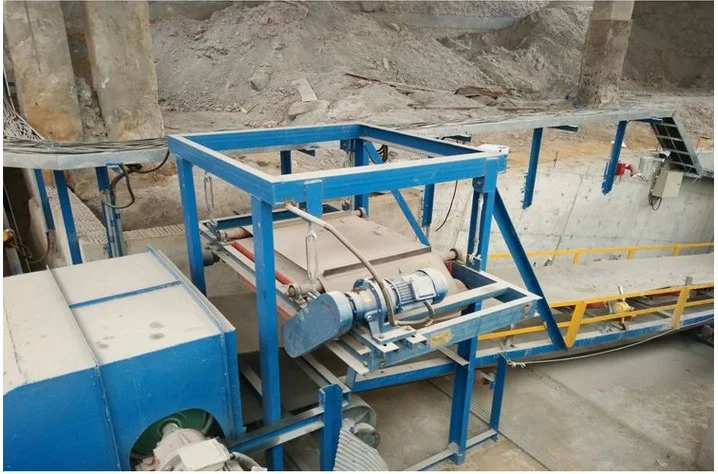

2. When installed on the head of the belt conveyor, because the material has inertia, it is in a loose state when it leaves the belt, which is conducive to the removal of ferromagnetic materials in the material;



3. When the equipment is installed in the middle of the belt conveyor, the idler can be changed to a non-magnetic flat idler, so that the effect of iron removal is further improved;



4. When the site environment is special and the situation is complicated, it should be specially designed for the user to meet the requirements of the special situation;



5. When multi-stage iron removal is used, the iron removal of the latter stage should be too sharp, otherwise the effect of low iron removal will occur.



Model	Suitable width mm	Rated lifting height	Material thickness mm	power	Suitable speed	Weight kg
BCRCYD-6	600	175mm	120	2.2kw	4.5m/s	1190
