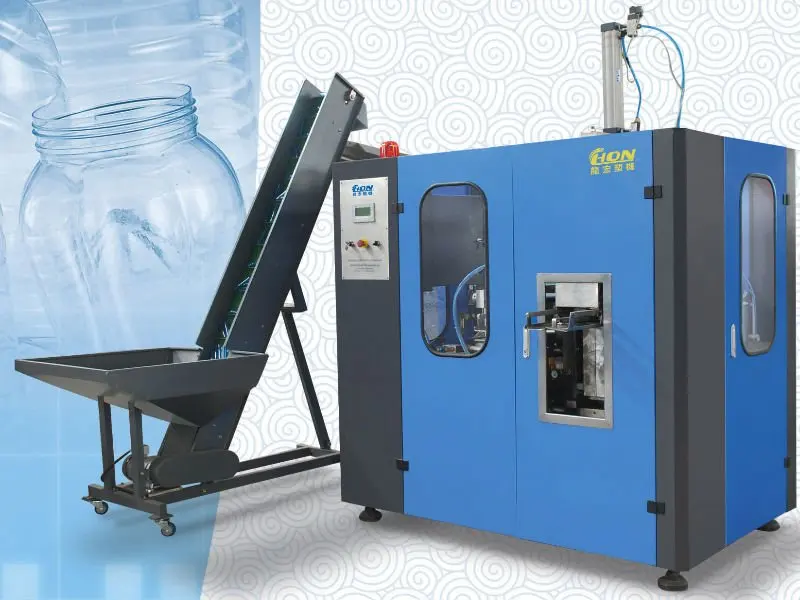

100ml 2L Automatic Preform Stretch Blow Molding Plastic Water Oil Beverage Food Jar Moulding PET Bottle Blowing Making Machine
- Category: >>>
- Supplier: Zhangjiagang Luye Machinery Co. Ltd.
Share on (1600697777054):
Product Overview
Description
SINCE 1989
LUYE More than 30 years Professional Manufacturer of Turn-key Beverage Machinery.
PRODUCT APPLICATION

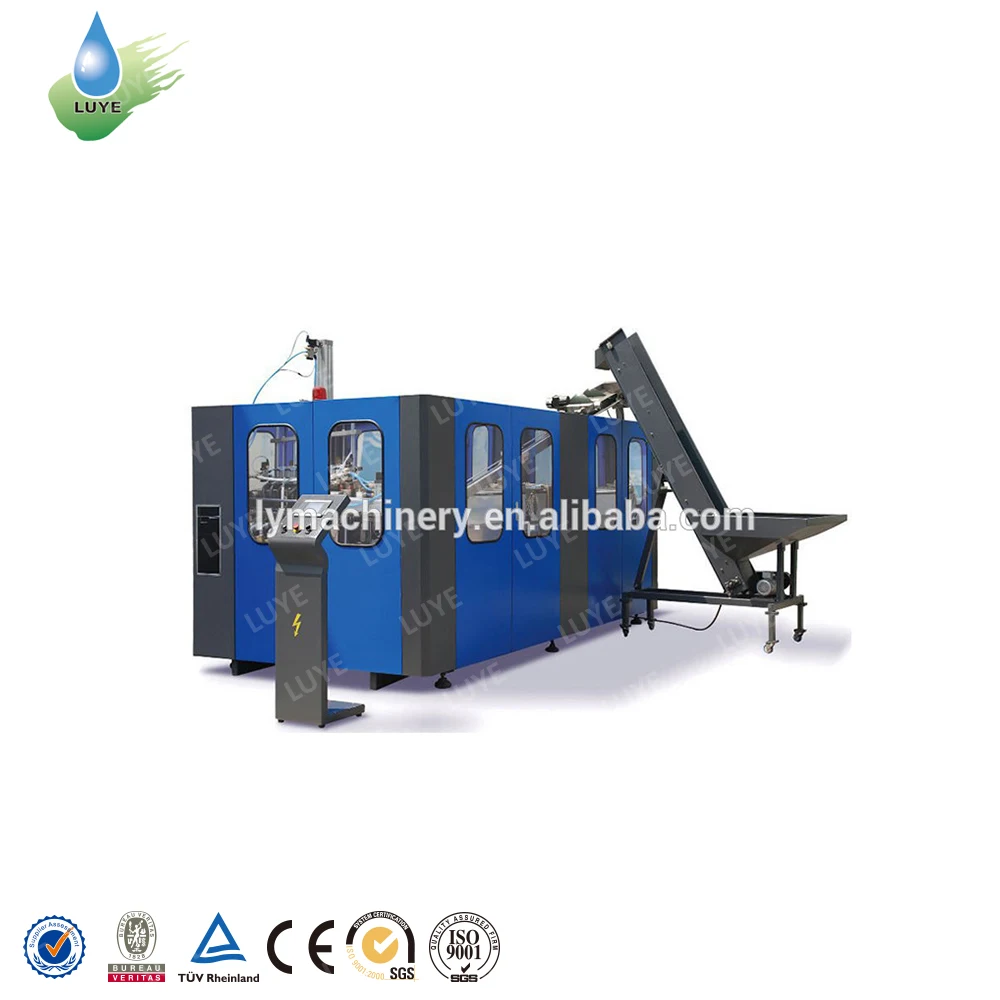

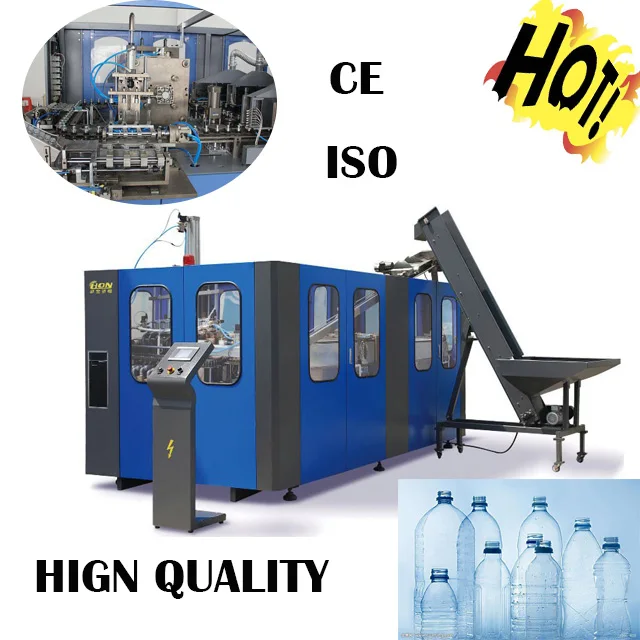

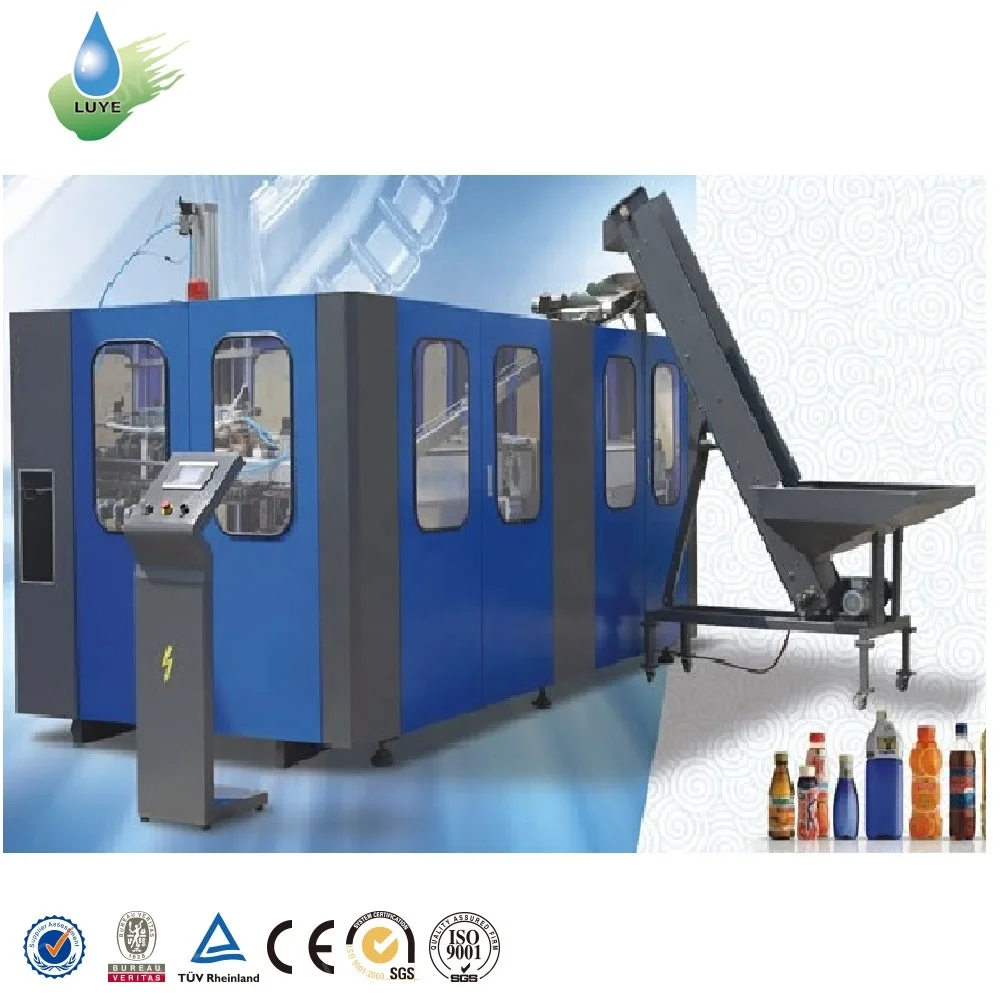

CM-A2/A4 Full automatic blow molding machine

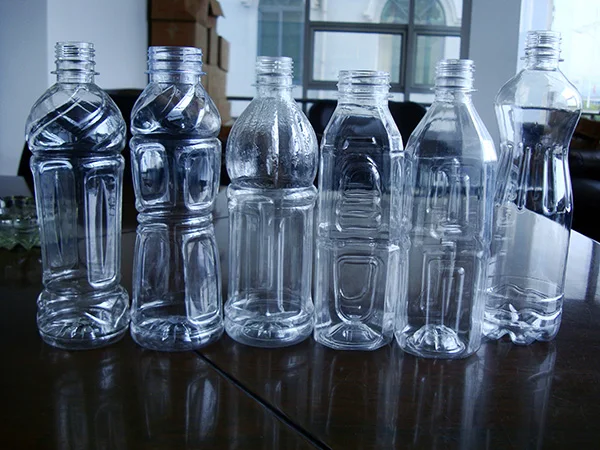

It is suitable for producing PET plastic containers and bottles in all shapes. It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
Model | ITEM | CM-A2 | CM-A4 |
Productivity | Depend on bottle design | 1800-2000PCS/H | 3200-4000PCS/H |
Product type | Volume | 0.1-2L | 0.1-2L |
Body diameter | less 100mm | less 100mm | |
Height | less 310mm | less 310mm | |
Neck diameter | 38mm | 38mm | |
Mould | Cavity | 2 | 4 |
Mold thickness | 240mm | 240mm | |
Mold size | 260*240*370mm | 510*240*360mm | |
Main machine power | Electrical source power | 380V/220V 50/60HZ 3Phase | 380V/220V 50/60HZ 3Phase |
Power | 25kw | 49kw | |
Really use power | 6.5kw | 13kw | |

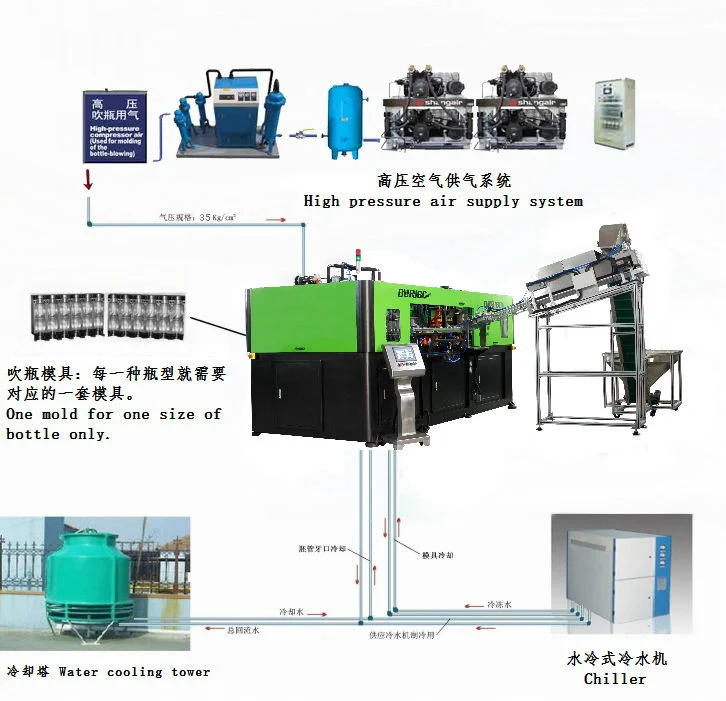

Air system | HP air compressor | 1.4 m3/min 3.0Mpa | 2.0 m3/min 3.0Mpa |
LP air compressor | 1.0 m3/min 1.0Mpa | 1.6 m3/min 1.0Mpa | |
Air Tank | 0.6m3 3.0Mpa | 0.6m3 3.0Mpa | |
Air dryer | 1.0m3/min 3.0Mpa | 2.0m3/min 3.0Mpa | |
Cooling water | Water Chiller | 3HP | 3HP |
Machine | Size(L*W*H) | 1900*1280*1930mm | 1900*1860*1930mm |
Weight | 2000kg | 3600kg | |
Preform unscrambler | Size(L*W*H) | 2000*950*2480mm | 2000*950*2480mm |
Weight | 250kg | 250kg |

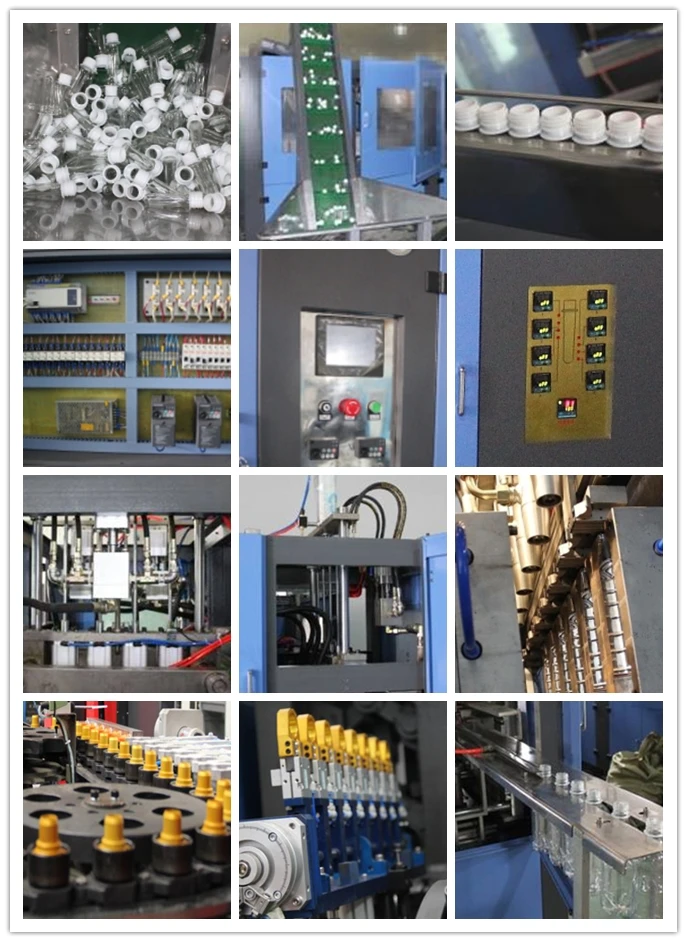

FEATURES OF MAIN BODY :
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.
1.1 NEW AUTO PREFORM UNSCRAMBLER SYSTEM.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator
to add the preforms into the hopper when lacks preform instead of stopping the machine.
1.2 NEW HEATING SYSTEM.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
1.3 THE APPLICATION OF SERVO SYSTEM ON MAIN TRANSMISSION.
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.

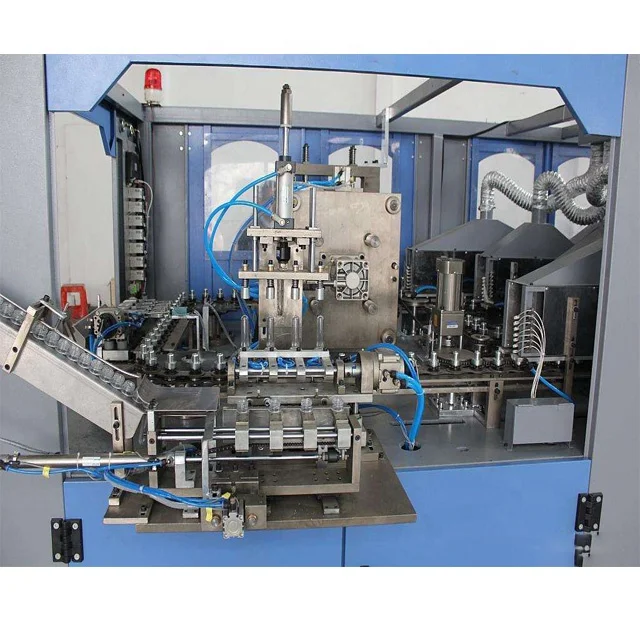

1.4 SERVO TECHNOLOGY INNOVATION ON CLAMPING SYSTEM & STRETCHING.
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
1.5 EASY TO CHANGE BOTTLE SHAPE.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.
1.6 INTELLIGENT HUMAN-MACHINE INTERFACE.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.
1.6 INTELLIGENT HUMAN-MACHINE INTERFACE.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
