Product Overview

Description


Product description

            Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter

      Ultrasonic flowmeters measure water, seawater, industrial sewage, acid and alkali, alcohol, beer, various oils and other single homogeneous liquids that can be transmitted to ultrasonic waves.

       Ultrasonic flowmeter consists of  host and  sensor.

Parameters
\t
    Category
\t
                                                                    Performance parameters
\t








               HOST
\t
Working principle
\t
Ultrasonic time difference principle
\t
Accuracy
\t
Better than 1%
\t
Display
\t
Can be connected to 2x10 backlit Chinese characters or 2x20 characters Western-style LCD monitors, which can support Chinese, English and Italian languages.
\t
Signal output
\t
1 channel 4-20Ma current output, impedance 0-1K, accuracy 0.1% (optional)
\t
1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)
\t
1 relay output
\t
Signal input
\t
3 line 4-20Ma current input, accuracy 0.1%, can collect temperature, pressure, liquid level and other signals
\t
Can be connected to a three-wire PT100 platinum resistor for thermal measurement
\t
Data Interface
\t
Isolating the RS485 serial interface, the flowmeter can be upgraded through a PC computer, and supports protocols such as MODUBUS.
\t
Data Record
\t
Thermal printer, external SD card, capacity up to 2G
\t

    Pipe Condition
\t
Pipe Material
\t
Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. All dense pipes, allowing lining
\t
Pipe inner diameter
\t
15-6000mm
\t
Straight pipe
\t
The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter)
\t
Measuring medium
\t
Species
\t
Water, sea water, industrial sewage, acid and alkali, alcohol, beer, various oils, etc.
\t
Turbidity
\t
10000ppm and Less air bubbles
\t
Flow Rate
\t
0-±10m/s
\t
Temperature
\t
-30---+160℃
\t
Working Temperature
\t
Humidity
\t
Host:-20--+60℃,Sensor:-30---+160℃
\t
Humidity
\t
Host:85%RH,sensor protection level :IP67
\t
Power supply
\t
DC8-36V,or AC10-30V,AC85-264V
\t
Power consumption
\t
1.5W

 Sensor selection


More Details




LCD DISPLAY

High-definition LCD backlight display meter reading is convenient for straight pipe, including instantaneous flow, cumulative flow and so on.



SMT automatic patch

SMT automatic SMD circuit guarantees high quality product performance and extremely low maintenance rate



ABS waterproof interface

Waterproof ABS electrical interface will not aging cracking, high waterproof and dustproof performance




Waterproof housing

The housing is made of IP67 waterproof grade housing, anti-corrosion and moisture proof, outdoor installation, long-term stability

Application

       Ultrasonic flowmeters use the principle of ultrasonic time difference to measure water, seawater, sewage, alcohol, beer, various oils and other single homogeneous liquids that can conduct ultrasonic waves.

                                            Click Here For More Information
Packing & Delivery

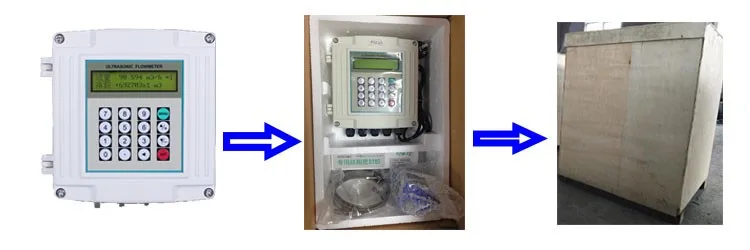

Packing:The ultrasonic  flowmeter packed by cartoon ,then put into wooden box,then delieveried by air or sea.
Logistics:Usually delieveried by TNT,UPS,SF,Fed,DHL,EMS.
Payment:L/C,D/A,D/P,T/T,Western Union,MoneyGram, payments for offline orders.
Production time:After customers deposite arrived our bank,then arrange produce as soon as possible.

Our company

     Henan Junyuan Automation is a high-tech enterprise specializing in the research, development and production of flow meters such as ultrasonic flowmeter and  electromagnetic flowmeters ects.
     The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking , medicine, light industry, environmental protection and other industries.
    Our philosophy: the pursuit of excellence, professionalism.
    Our aim: to survive by quality, to win the word of mouth by service

Our Team


Our Office


Our Certifications
FAQ

1.Q: you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

2.Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .

3.Q: What is the warranty for your product ?
A: Warranty: 2 years

4.Q:How to intallation flowmeter ?
A:We can provide manual of flowmeter ,kindly contacts us freely.
5..Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
6..Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce
immediately.
