LeFu LF Automatic Roll Laminator LF1700 D4
- Category: Office Equipment >>>
- Supplier: Zhengzhou,Yerong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

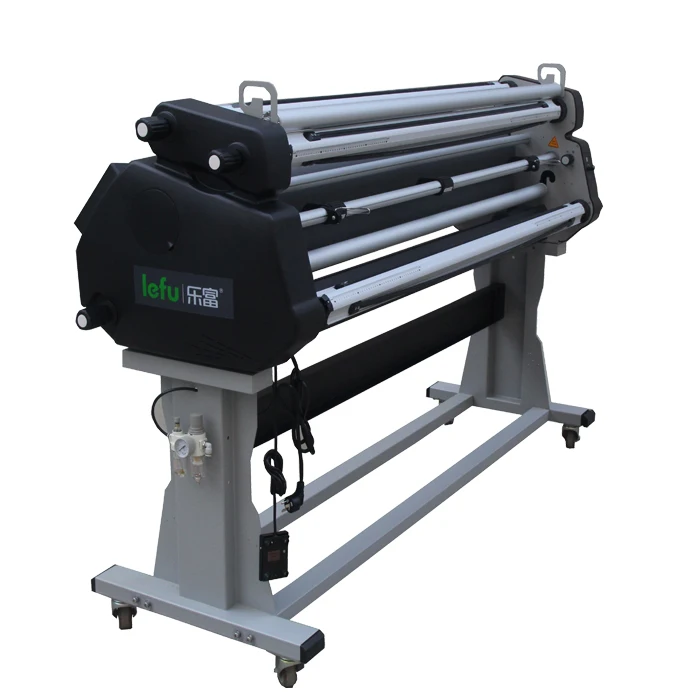

LeFu LF1700-D4 Automatic Warm and Cold Laminator
LeFu LF1700-D4 Automatic Warm and Cold Laminator, Max Lamination Width: 1630mm, Max Lamination Temp: 0~60°C/0~140°F, Max Lamination Speed: 18 M/Min.
LeFu LF1700-D4 Automatic Warma nd Cold Laminator can be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners Etc.
TECHNICAL DATA
Model | LF1700-D1 Automatic Hot and Cold Laminator |
Cutters | 3 sets |
Max Lamination Width | 1630mm/64'' |
Max Lamination Thickness | 28mm/1.1'' |
Lamination Speed | 0~8m/minute |
Lamination Type | Warm and Cold |
Diameter of Upper Roller | 130mm (Silicon) |
Preheated Time | 10-15 min |
Pressure/Height Adjust | Automatic |
Max Lamination Temp | 0~60°C/0~140°F |
Voltage | AC110V-240V 50HZ-60HZ |
Working Power | Standard 2800W |
Working Electric Current | 12A |
Hand Protection Device | Safety Laser Sensor |
Anti Static Electricity | Yes |
Certificate | CE, RCM, ROHS |
Packing Dimension | 2260*870*720mm=1.4CBM (Including Air Compressor) |
G.W. | 240KGS |
PRODUCT CONFIGURATION
Model: LF1700-D4 Automatic Warm and Cold Roll Laminator
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F
Max Lamination Speed: 8 M/Minute
Roller Up and Down: Pneumatic Pressure
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F
Max Lamination Speed: 8 M/Minute
Roller Up and Down: Pneumatic Pressure
LF1700-D4 Automatic Warm and Cold Laminator with new designing and functions provides unbeaten performance. This super machine can run up to 18m/min with a wide range of medias. Suitable for business that are looking to build in extra capacity and more versatility.
Its new upgraded panel with Speed, Temperature and Lamination statistics display provides clear and easier operation.
Its new upgraded panel with Speed, Temperature and Lamination statistics display provides clear and easier operation.
① Electron Magnetic Valve----Adjust Roller Up and Down though Compressed Air
② Intelligent Control System----Lamination Speed, Temperature and Lamination Statistics Display
③ Speed Controller----Control Lamination Speed 0-18 M/Minute
④ Material Bar----To Hold Lamination Photos
⑤ Liner Film Bar---- To Hold Lamination Bottom Paper
⑥ Film Bar----To Hold Lamination Film
⑦ Emergency Stop----Can Give Laminator Emergency Stop
⑧ Silicon Roller----Long Time Service Life under High Temperature Lamination
⑨ Lamination Platform----Can Check Lamination Quality on Time
⑩ Universal Wheel----To Move Laminator Conveniently
② Intelligent Control System----Lamination Speed, Temperature and Lamination Statistics Display
③ Speed Controller----Control Lamination Speed 0-18 M/Minute
④ Material Bar----To Hold Lamination Photos
⑤ Liner Film Bar---- To Hold Lamination Bottom Paper
⑥ Film Bar----To Hold Lamination Film
⑦ Emergency Stop----Can Give Laminator Emergency Stop
⑧ Silicon Roller----Long Time Service Life under High Temperature Lamination
⑨ Lamination Platform----Can Check Lamination Quality on Time
⑩ Universal Wheel----To Move Laminator Conveniently
LAMINATOR DETAILS
● Operation is more Intuitive and Convenient
● Pulse-Type Speed Control Knob, Precise and Durable
● Lamination Speed, Temperature and Lamination Statistics Display
● Pulse-Type Speed Control Knob, Precise and Durable
● Lamination Speed, Temperature and Lamination Statistics Display
● LF1700-D1 Hot Roll Laminator Lamination Sart-stop and Speed Control.
● Cutting Function Active. Lamination Statistics Display
Rear Safety Trimmer
●There are 3 Rear Tungsten Steel Trimmer●Tungsten Steel Trimmer Usage can be More than 15000m
Strengthen Materials Bar
● LF1700-D1 Hot Roll Laminator Winding Diameter is 320mm.● Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination
● Remove Static during High Speed Lamination
● Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically
● Silicon Roller Can Avoid Any Bubbles and Folds during Lamination
● Up and Down Roller use Silicon and Solid Seamless Steel Tube
● Silicon Roller Has Long Time Service Life under High Temperature Lamination
LEFU FACTORY
222
LeFu is a leading manufacturer of Roll laminator, Flatbed Laminator, Cutting device, Film stand and clips, PVC Film for all segments of the graphics and building industries in China.
For many years, LeFu has been an innovative force in the lamination industry from the first automated heat-assist cold laminator to the year 2011 introduction of flatbed laminator a revolutionary adhesive system designed specifically for rigid or flexible materials. Amazingly, LeFu launched the hybrid laminating and cutting machine in the year 2014, which brings an efficient and profession way for sign makers.
For many years, LeFu has been an innovative force in the lamination industry from the first automated heat-assist cold laminator to the year 2011 introduction of flatbed laminator a revolutionary adhesive system designed specifically for rigid or flexible materials. Amazingly, LeFu launched the hybrid laminating and cutting machine in the year 2014, which brings an efficient and profession way for sign makers.
LEFU EXPO
Rich experience of lamination technologies in the hardware and film, we have design, develop, manufacture and sell laminator to 31600 users for 61 countries (2017). Our two laminator brands MeFu and LeFu full-auto and semi-auto hot and cold laminators are popular in world market. The quality and service are welcome by our customers.
LEFU TEAM
LEFU has standard for many types of wide format laminator, and that did not happen by accident, since we invented the method and technology, it has undergone a natural development based on our customer’s requirements and specific problems as well as our own 10 years experience as manufacturer. Our dedication to customer satisfaction and quality is unsurpassed.
LEFU CUSTOMERS
LeFu Laminator is a leading manufacturer of Automatic Laminator, Roll Laminator, Hot Laminator, Warm Laminator, Cold Laminator, Wide Format Laminator, Flatbed Laminator in China from year of 2006.
PACKING AND DELIVERY
The Package Uses Wooden Box for Free Fumigation Packaged:
2270*870*920=1.816CBM
G.W.: 290kgs
G.W.: 290kgs
