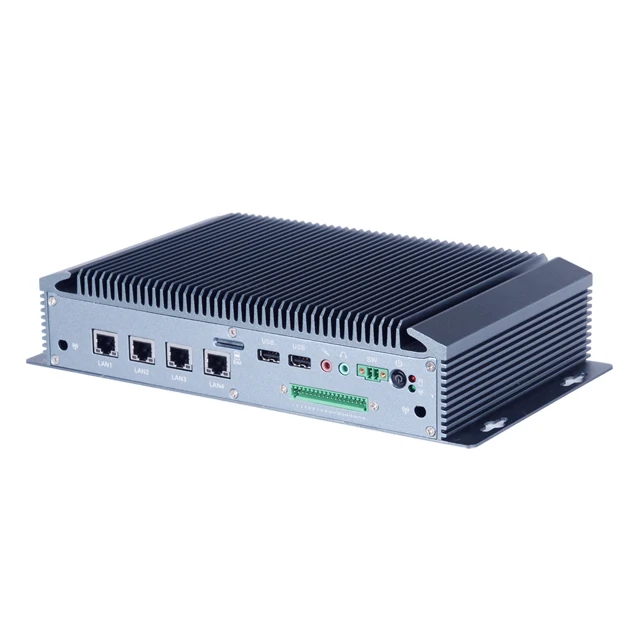

10th i5 10210U Comet lake U Series Onboard CPU embedded Industrial Computer 6*LAN
- Category: >>>
- Supplier: Shenzhen Hcsmart Technology Co. Ltd.
Share on (1600697868085):
Product Overview
Description

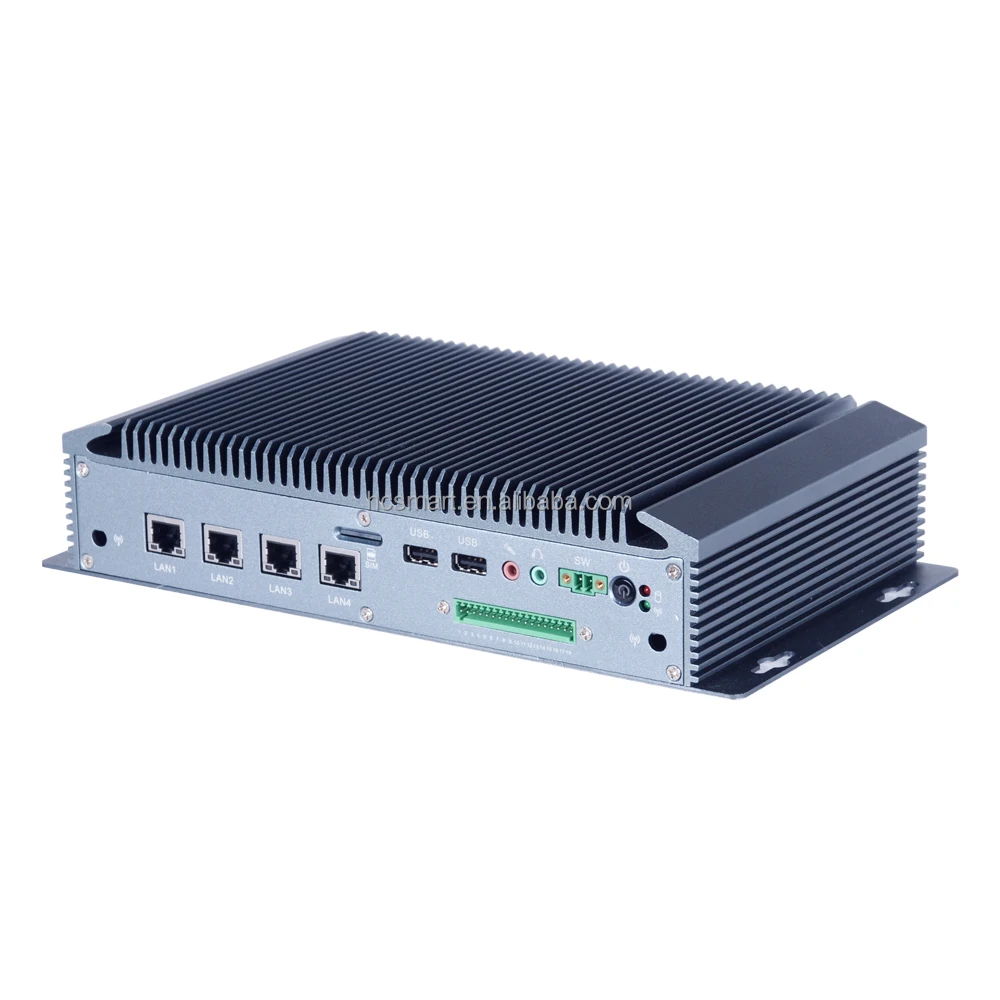

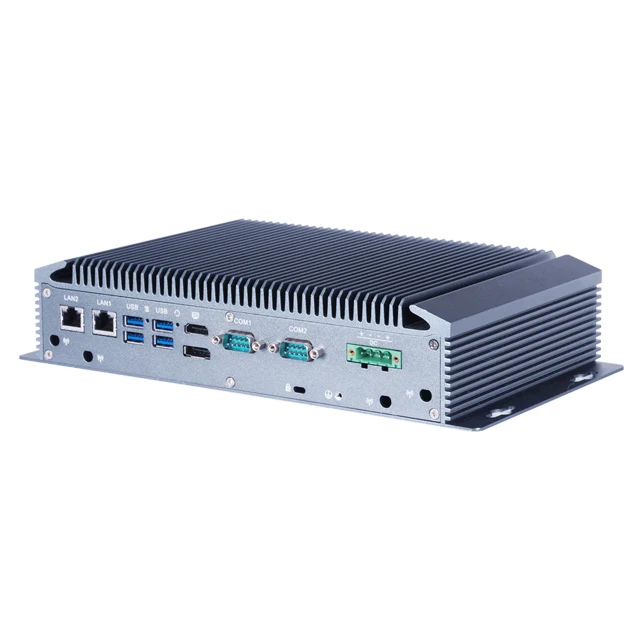

10th i5-10210U Comet lake-U Series Onboard CPU embedded Industrial Computer 6*LAN
Model:IPC-CML6L
1.Support intel 10th Comet Lake-U i3/i5/i7 CPU
2.2*DDR4 SO-DIMM ,max support 32G
3.Intel UHD Graphics
4.Intel i226A+i219L 6*LAN(4 Port PoE)
5.2.5inch 3.0 HDD or M.2 NVME SSD
7.DC 9-36V

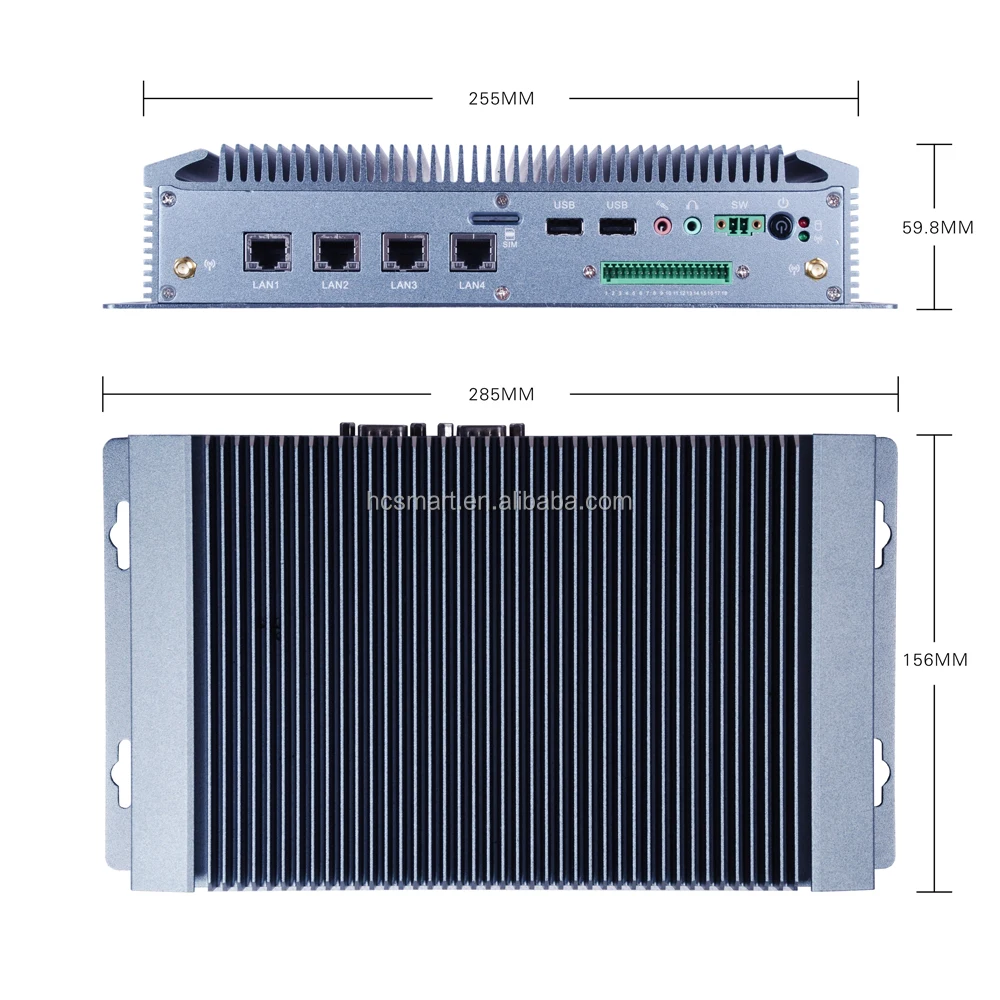

8.Size:285mm (L) x 156mm (W) x 60mm (H)
9.Fanless design, the aluminum alloy shell is used for heat dissipation, which is efficient and strong, and is effectively suitable.
10.Industrial-grade port protection blocks static and surges
11.Production line automation, machine vision, security monitoring, intelligent logistics sorting
Product Description
| Model | HC-IPC-CML6L | |
Processor System | CPU | 10th Comet Lake-U Series Core I5-10210U Processors |
| Max.speed | Quad core 8threads 1.6Ghz up to 4.2Ghz | |
| Chipset | SOC | |
| TDP | 15W | |
| Memory | Capacity | 2*SO-DIMM DDR4 2400MHz Memory,Max to 32G |
| Socket | 2*260-PIN SO-DIMM | |
| Storage | SATA | 1*M.2 NVME(128/256/512Goptional ) ;1* 2.5inch SATA_HDD |
| Expansion Slot | WIFI | 1*M.2 (For WIFI) |
| Graphics | GPU | UHD Graphics for 10th Generation Processors |
| VGA | 0 | |
| HDMI | 1*HD(Dual Display:synchronous/asynchronous display) | |
| eDP/LVDS | 0 | |
| DP | 1* DP (Dual Display:synchronous/asynchronous display) | |
| Ethernet | Controller | Intel I219-LM +I226-AT |
| Connector | 6*RJ45 | |
| Audio | Controller | HS-100B |
| Connector | 2*JACK(1*Line out,1*Mic in ) | |

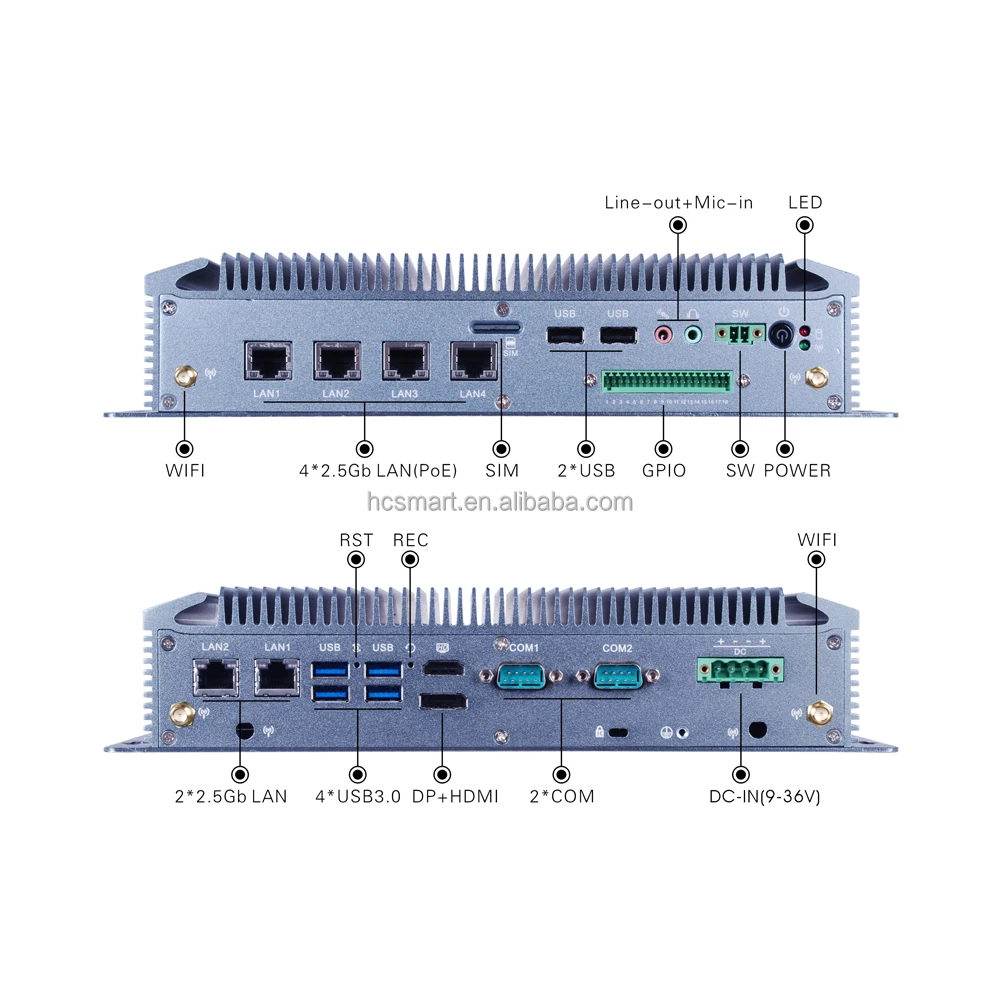

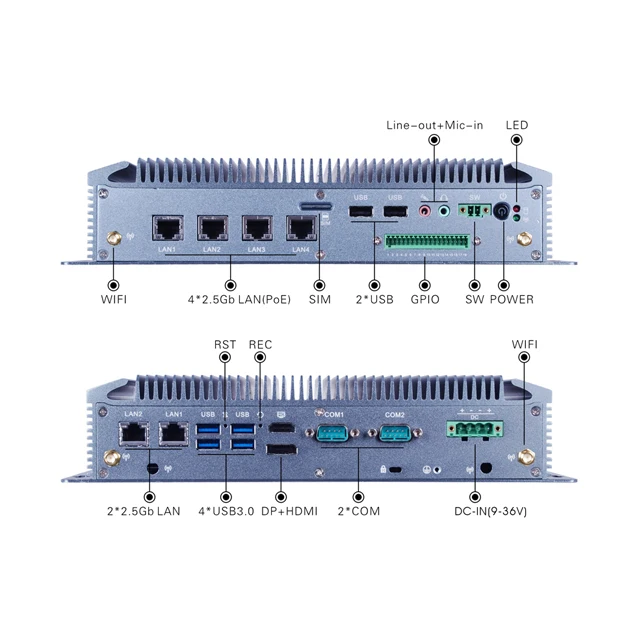

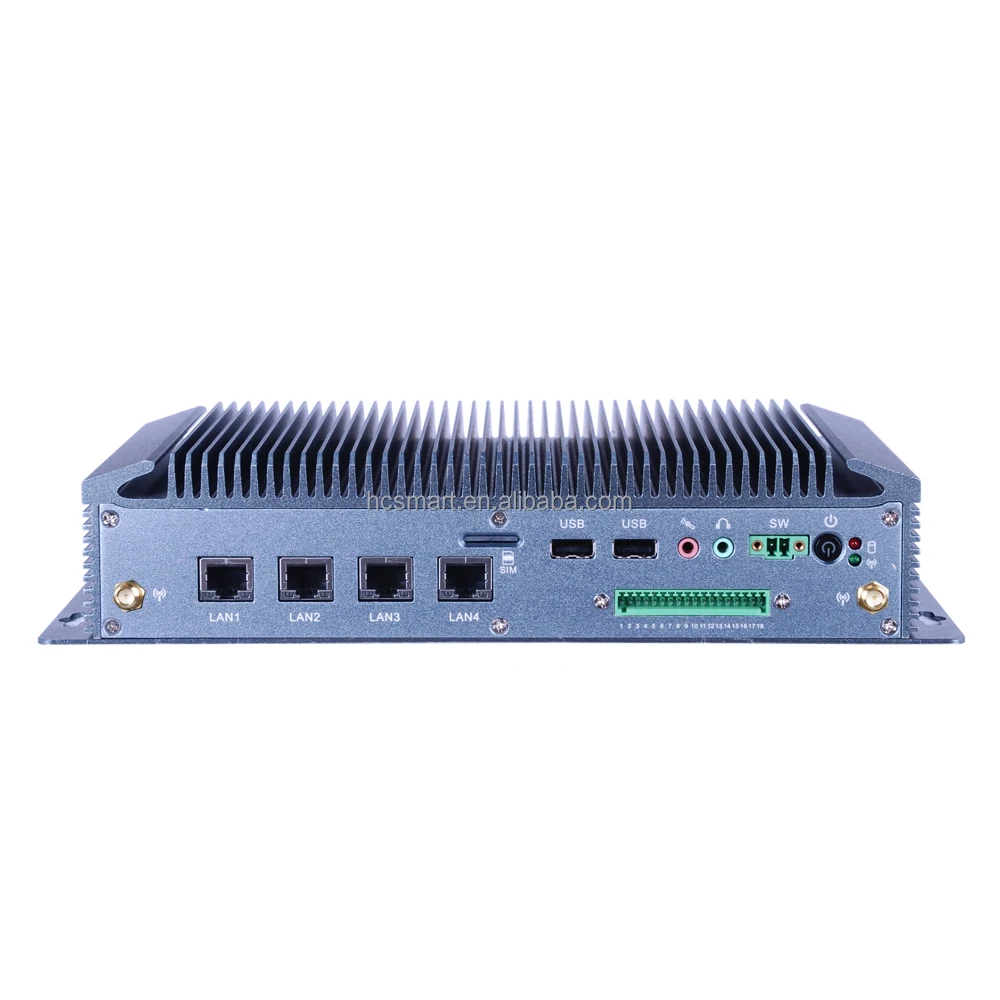

| Front I/O | 1*Power switch 1*SIM 1*SW 2PIN 2*WIFI 1*GPIO | |

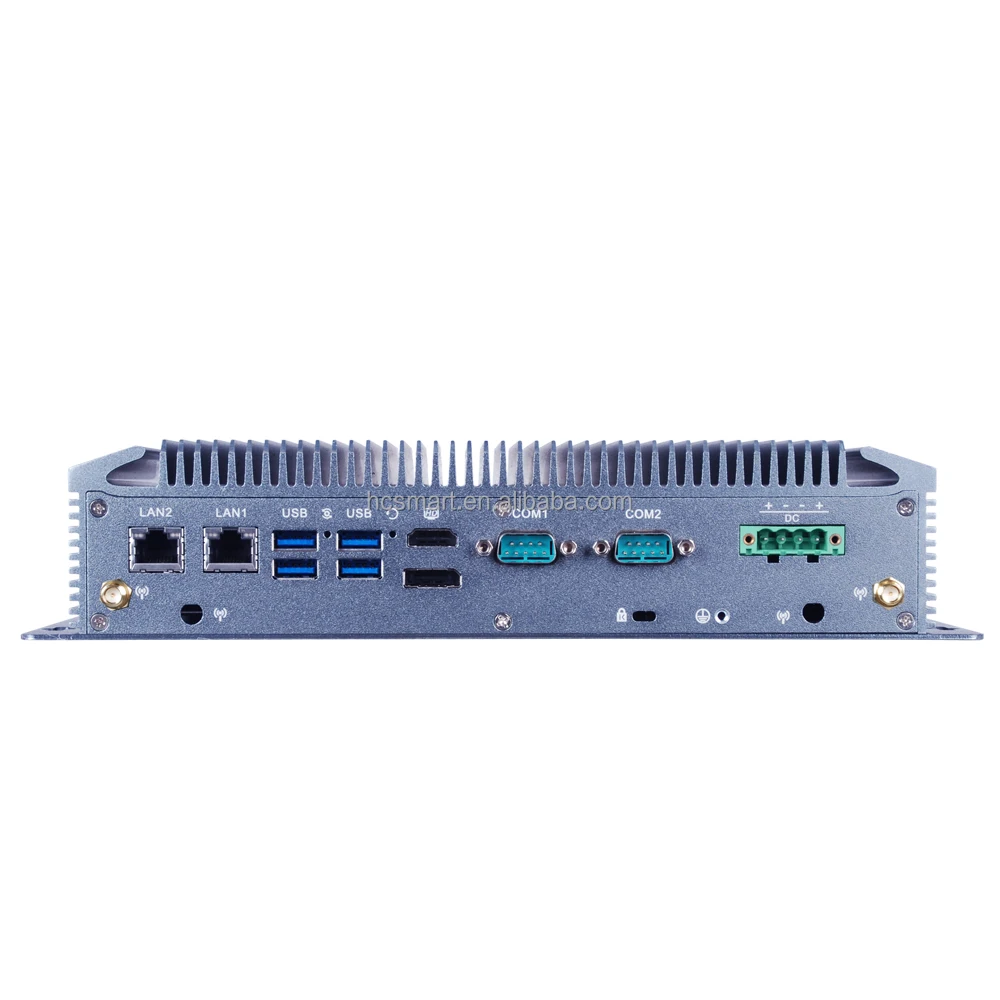

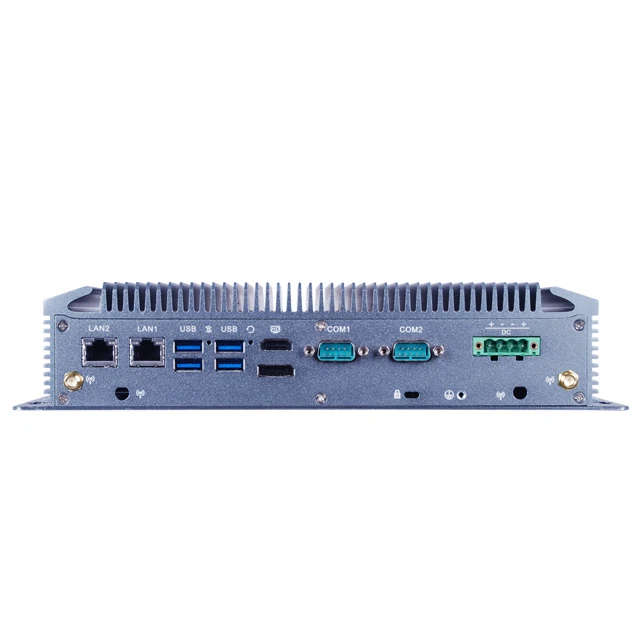

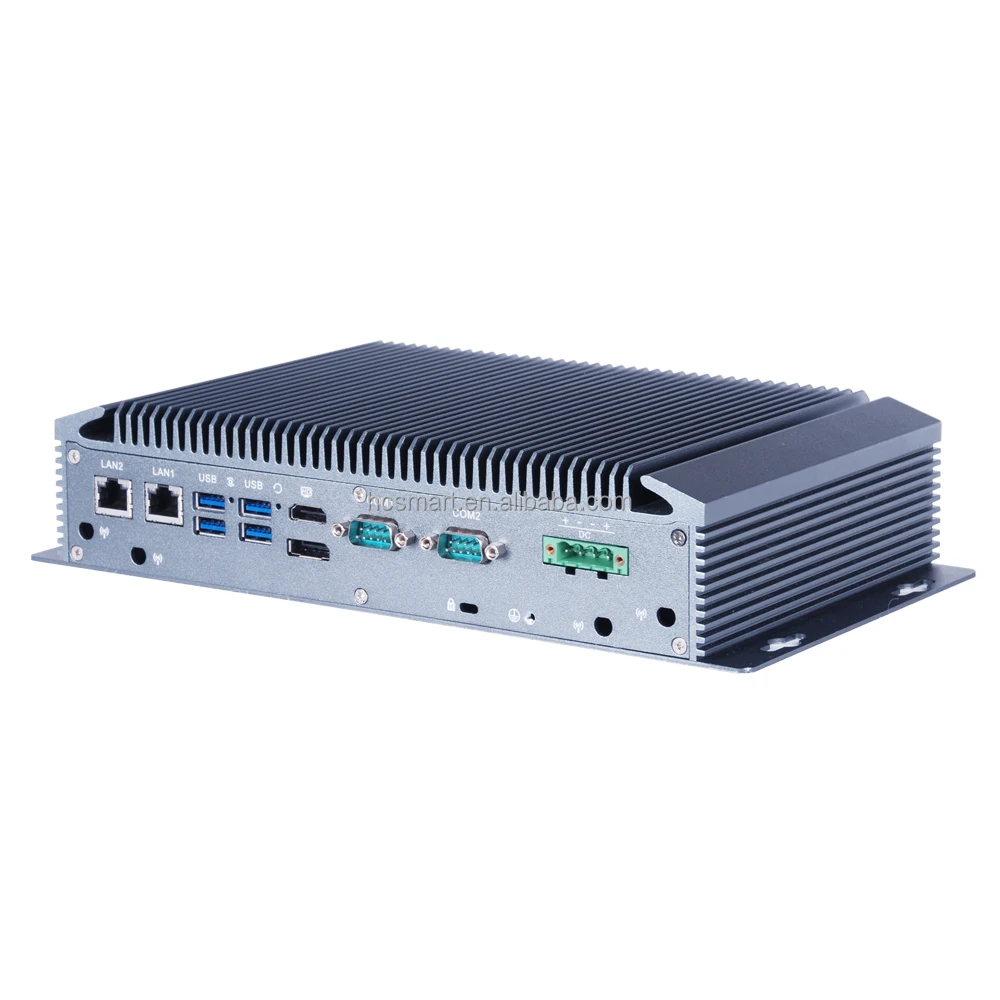

| Rear I/O | 2*LAN 4*USB3.1 1*HD 2*COM(RS232) 1*DC-IN 4PIN 1*M3 4*WIFI 1*RST Button 1*REC Button | |
| Power Requirements | Power | DC 9~36V Power Supply |
| BIOS | AMI (256M) | |
| OS | WIN7/10/Linux | |
| Environment | Temperature | -20~60℃ |
| Operating Humidity | 40% ~ 95% Relative Humidity,Non-condensing | |
| Form Factor | Size | 285*156*60MM |
| Color | grey | |
| Weight | ≤2.2KG | |
Packaging & Shipping
Carton bulk package
Our Services
1 year warranty
To assure the quality, we usually do full test before shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
Company Information
FAQ
1.What is your payment terms ?
T/T Paypal westunion money gram for sample or small order
Alibaba Trade Assurance
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized service?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM service are available
