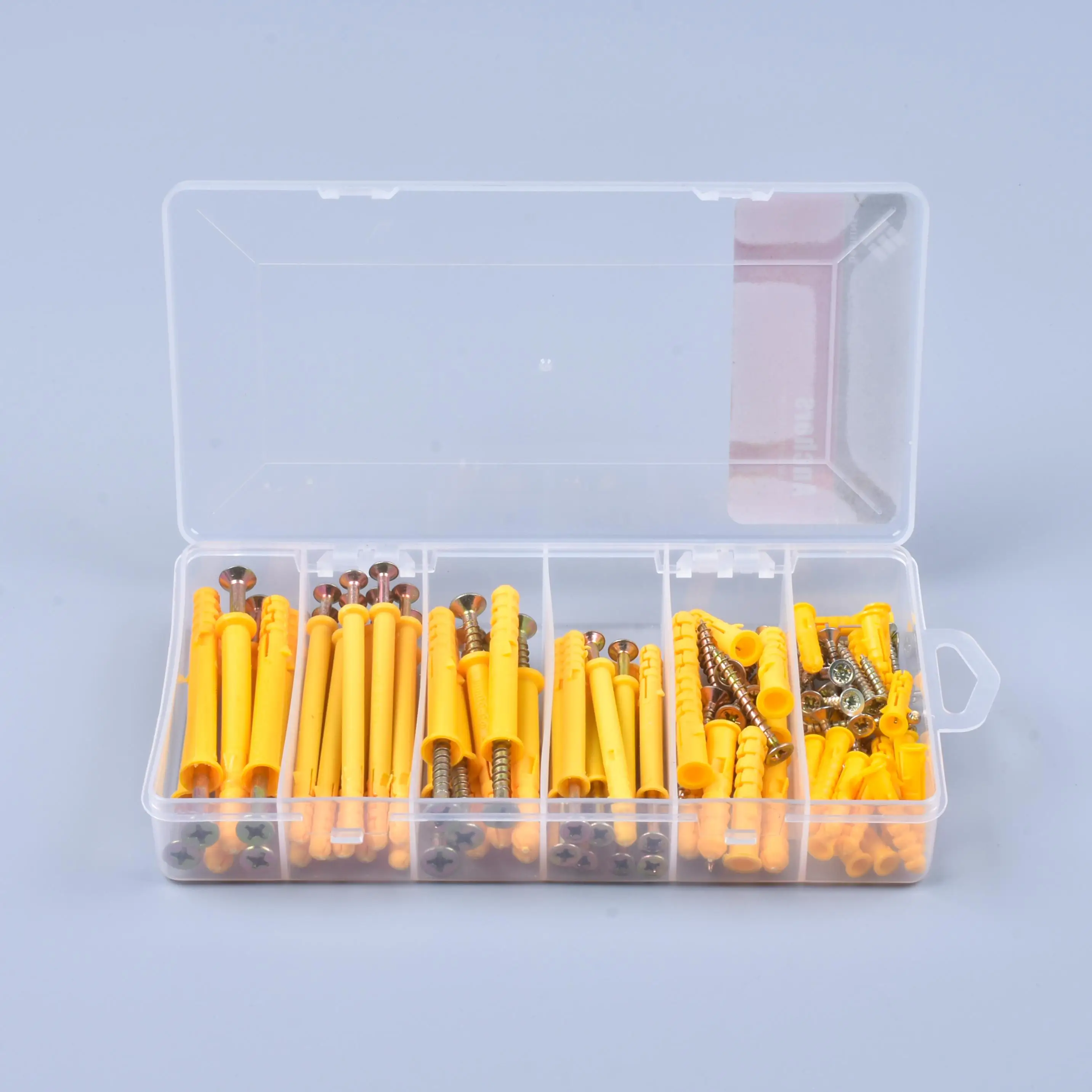

Dreieins 66 Pieces drywall wood screw anchor bolts

Product Overview

Description

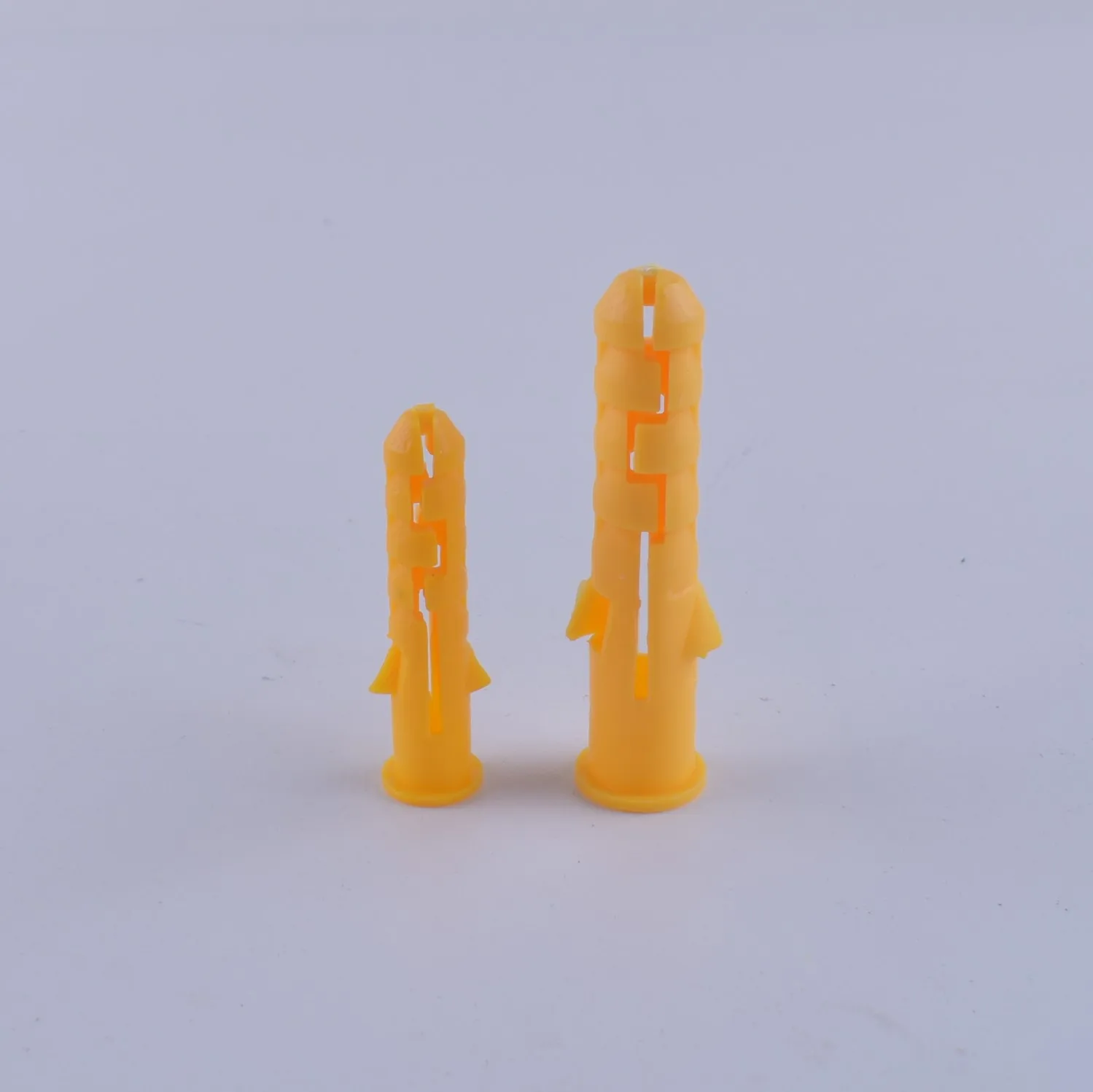

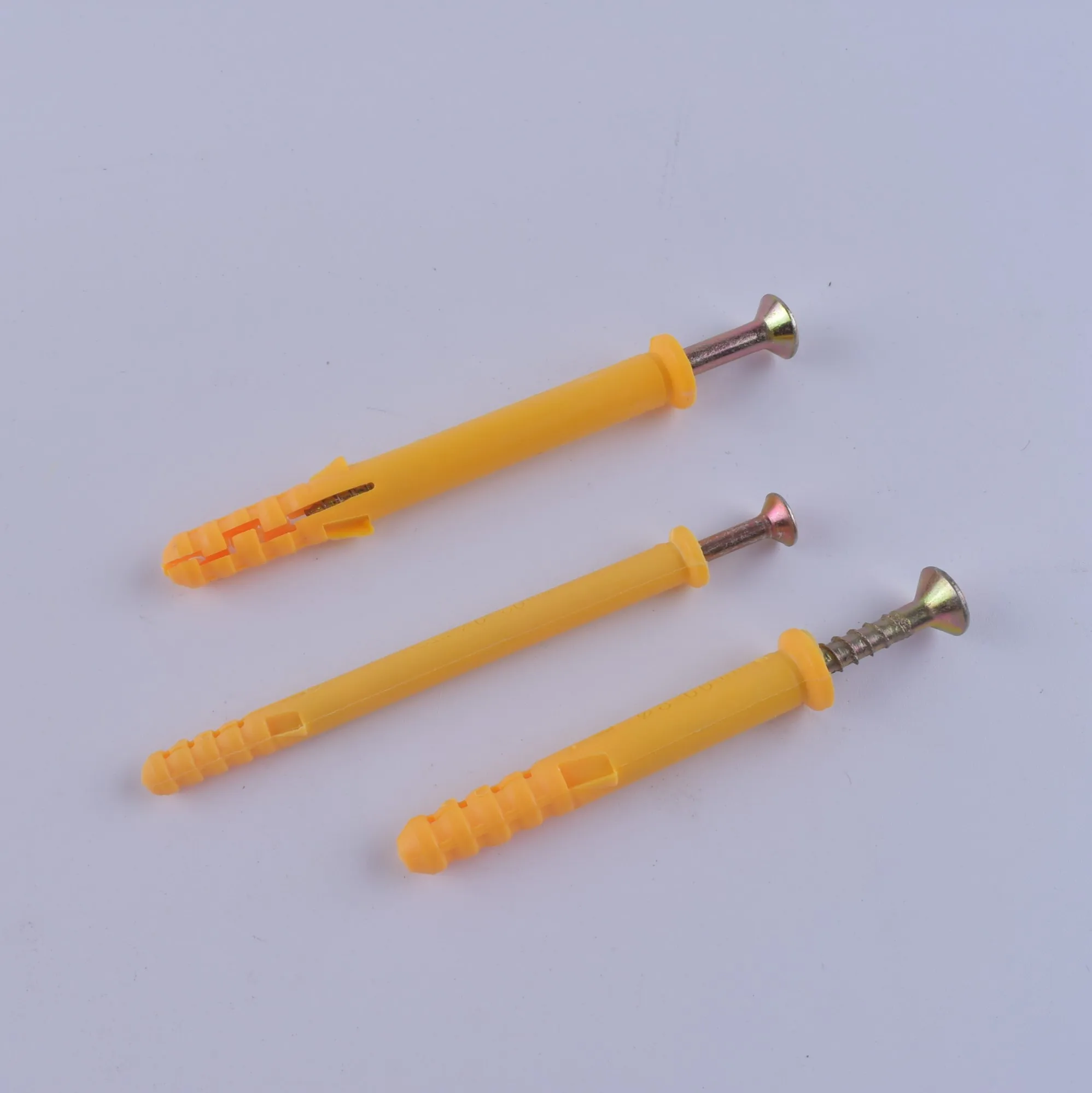

Dreieins 66 Pieces drywall wood screw anchor bolts



Item Name	anchor kit
Item No.	SF-31173

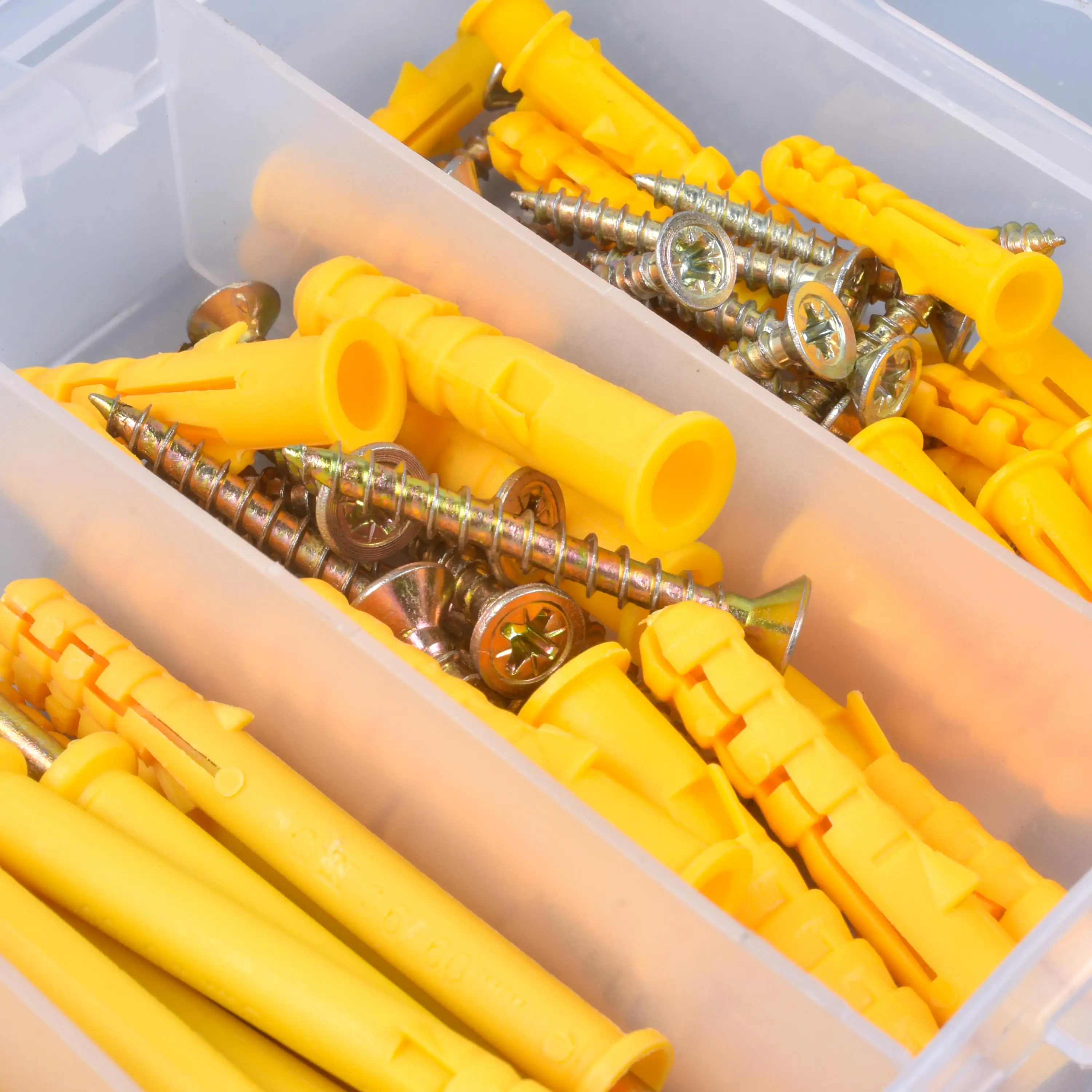

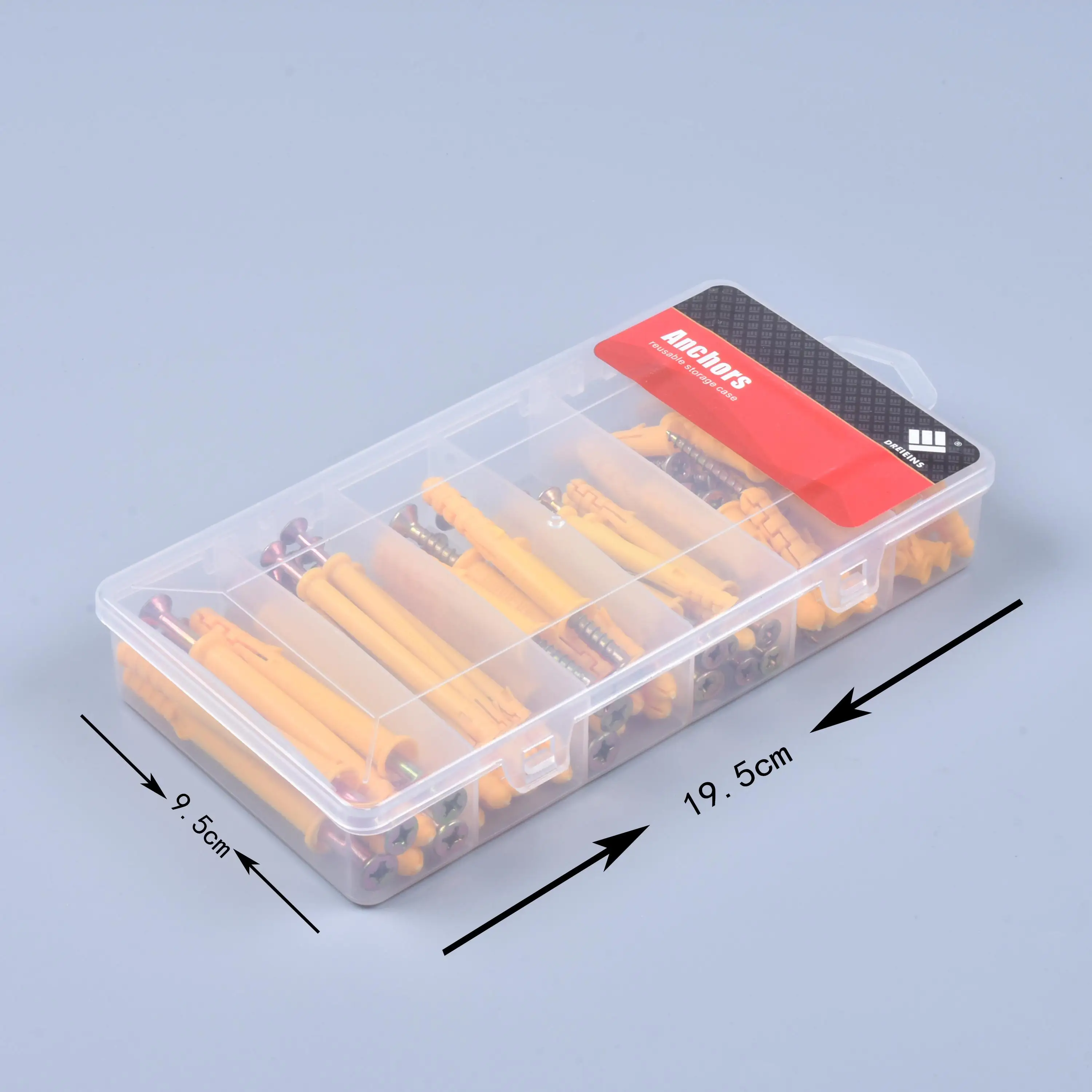

Contains	66 Pieces
Colors	yellow
MOQ	500 sets

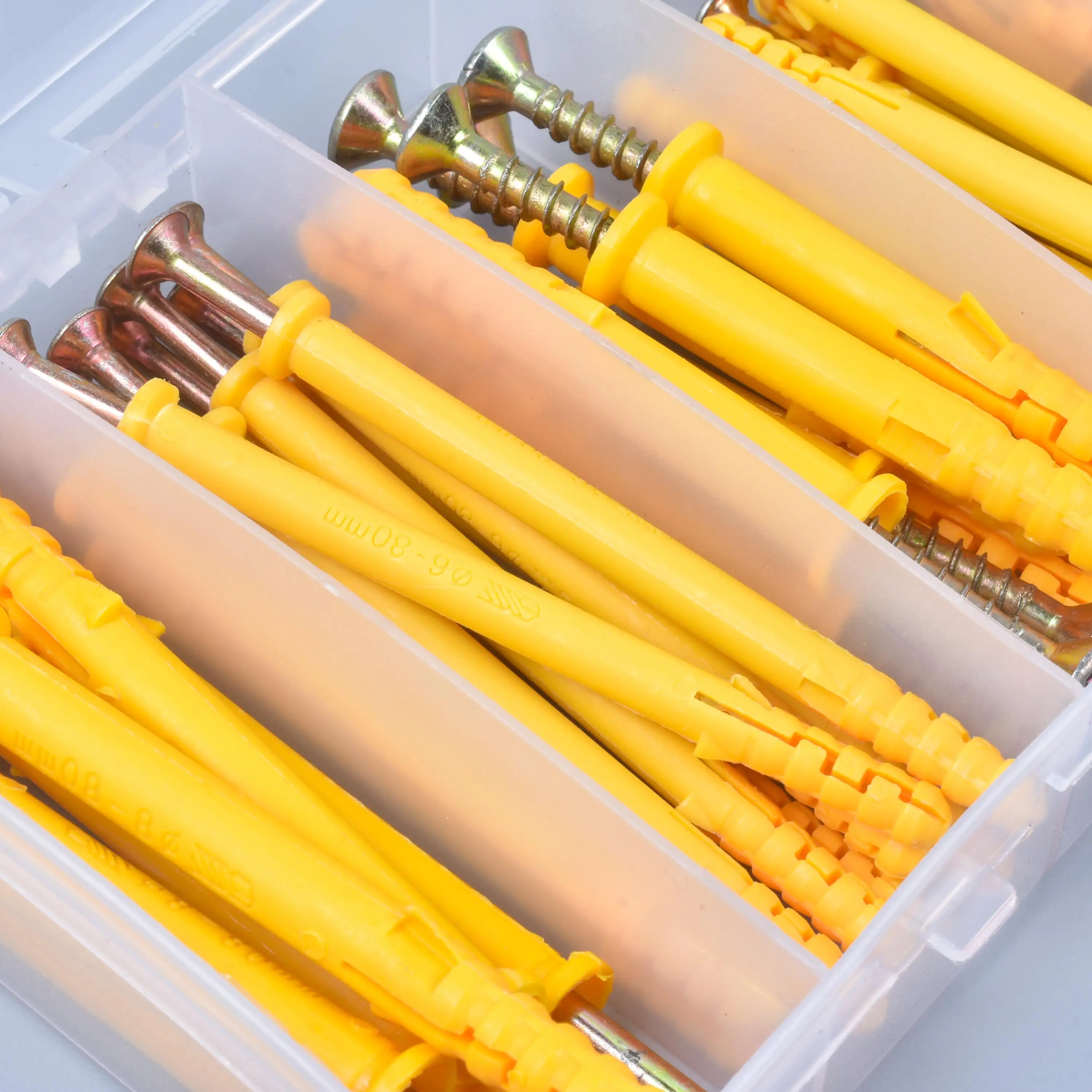

Packing	Set into plastic box as shown in the pictures or as customers' requirements
Port	Ningbo
Quality control	Strict quality control



Size(mm)	Hole Diameter(mm)	Hole Depth(mm)	Anchor Size(mm)

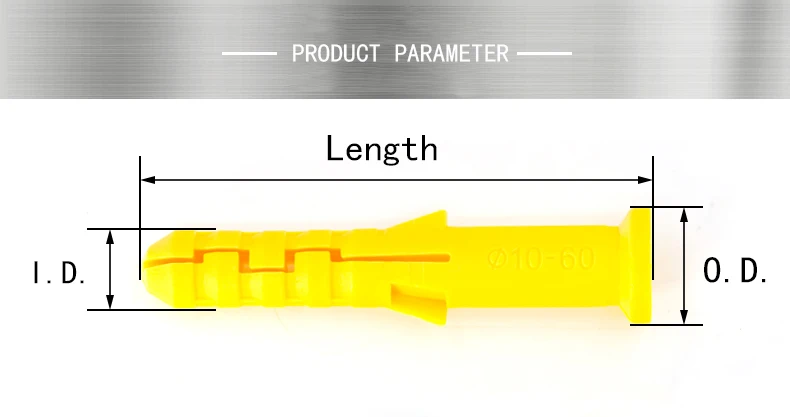

			I.D.	O.D.	Length
6*30	6	40	4.5	6	30
6*40		50			40
6*60		70			60
6*80		90			80
8*40	8	50	6	8	40
8*60		70			60
8*80		90			80
8*100		110			100
10*50	10	60	8	10	50
10*60		70			60
10*80		90			80
10*100		110			100















More Anchors Sugested:

Sugested:

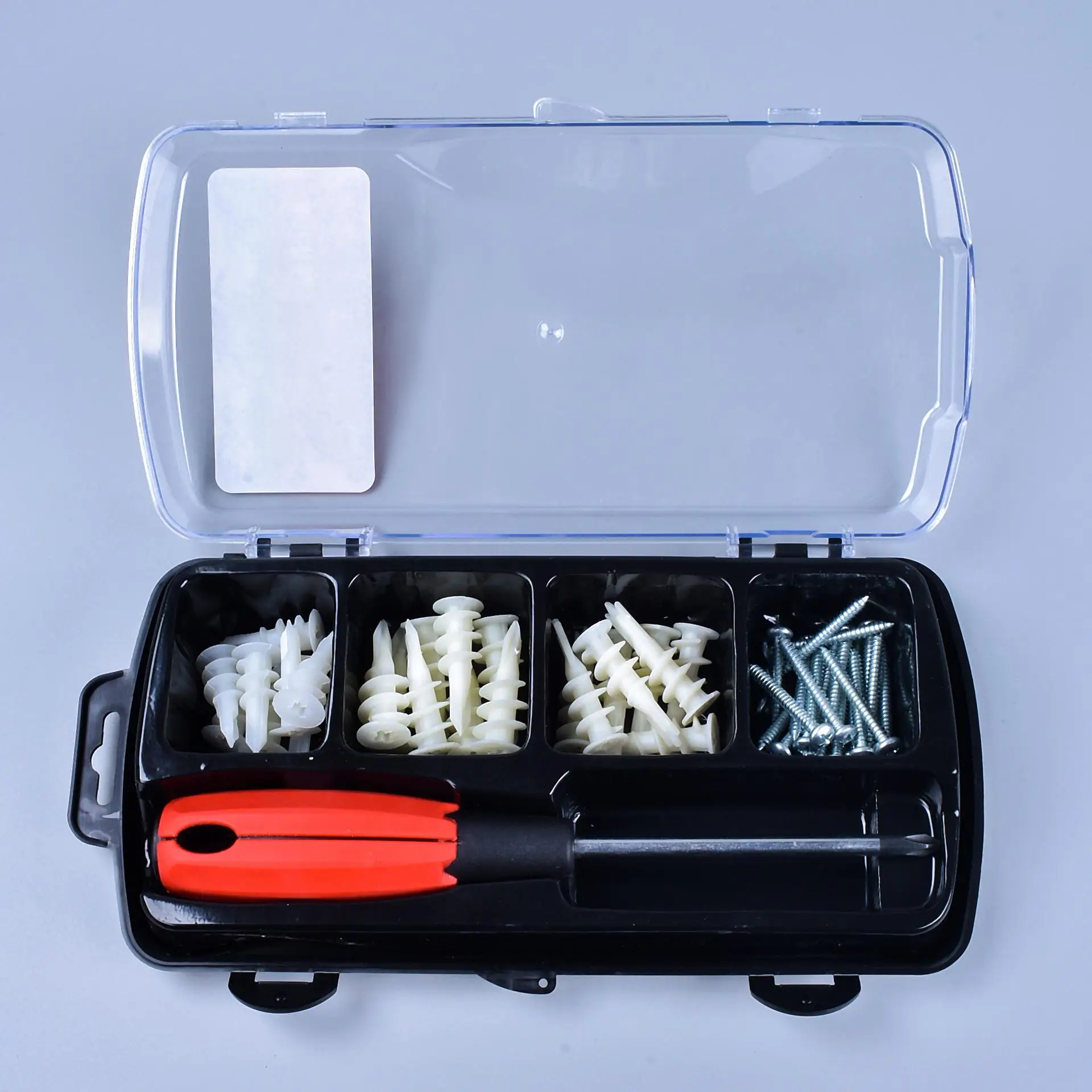

More anchors:





How to use the anchor:

drywall anchor

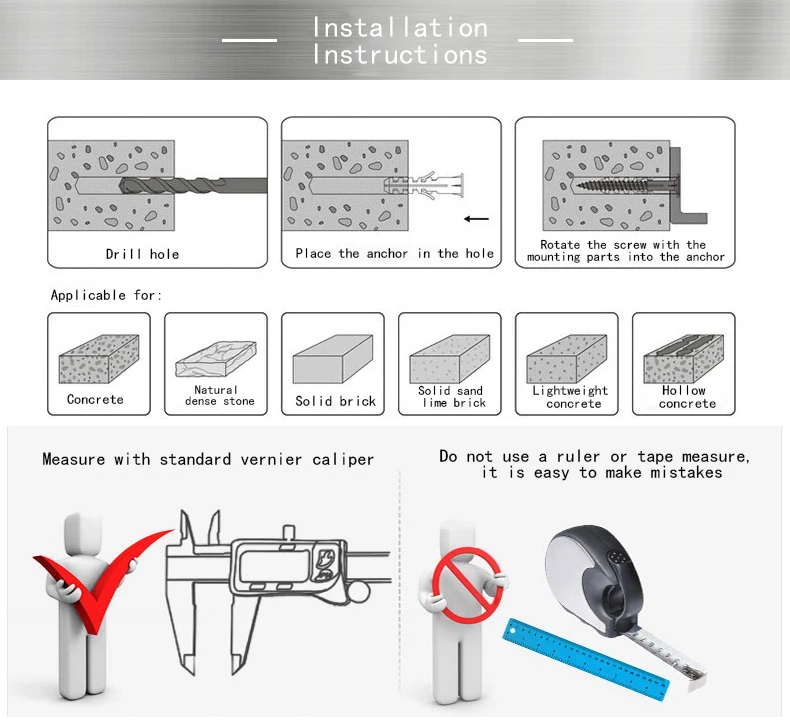

1, Drilling                                                                    2, put the anchor into the hole                       3, screw in



How to choose the right screw:



(D×L)mm	drilling hole	length	screw dia	min. screw length	min drilling depth
4*20	4	20	2.0-3.0	tfix+20+1×screw dia	30
5*25	5	25	2.6-4.0	tfix+25+1×screw dia	35
6*30	6	30	3.5-5.0	tfix+30+1×screw dia	40
7*35	7	35	4.0-5.5	tfix+35+1×screw dia	45
8*40	8	40	4.5-6.0	tfix+40+1×screw dia	50
10*50	10	50	6.0-8.0	tfix+50+1×screw dia	65
12*60	12	60	8.0-10.0	tfix+60+1×screw dia	80
14*75	14	75	10.0-12.0	tfix+75+1×screw dia	95
16*80	16	80	12.0-14.0	tfix+80+1×screw dia	100



Notes:

1. Due to the different screw structure, the anchoring capacity of nylon expansion pipe assembled with wood screws is 20%-30% higher than that of self-tapping screws or fiberboard screws with the same screw specifications.

2. In order to ensure reliable installation effect, please ensure that the length of the matching screw can penetrate the expansion tube and extend at least 1 screw diameter.

3, it should be ensured as below in wall corner and other similar occasions:

(1) the distance between the installation position of the nylon expansion and the corner shall be at least more than the expansion length (L) .

(2) the expansion direction (i.e., expansion direction) shall be parallel to the corner edge.

4. This product is not suitable for use in places continuously subjected to a single axial tension load (such as vertical hanging mounting parts). It should be at least 10°.



Capacity:



item	6*30	8*40	10*50
screw dia	5	6	8
safety load (KN) Concrete ≥ C25	0.5	0.8	1.4

Notes:

1. The data in the table are only applicable to wood screws with a given thread diameter. The reduction of safety load should be fully considered if wood screws with a smaller thread size or fiberboard screws with the same thread size are used.

2, 1 kn ≈ 100 KGS
