Beauty tools korea micro plasma lift pen beauty plasma pen ozone plasma pen flash penplamere jet
- Category: >>>
- Supplier: Shanghai Yimei Optoelectronic Technology Co. Ltd.
Share on (1600697991920):
Product Overview
Description
Product Description
Product parameters
Product Name : | NEOPLASMA™ |
Service: | OEM/ODM/24-hour online service |
Main Function : | Plasma is induced into tissues for heat, sterilization and lifting |
Output Frequency : | 40kHz |
Output Mode : | continuous, pulse |
Treatment Tips : | Acne Tip, Lifting Tip, Permeating Tip, Fractional Tip |
Function: | removal of mole, fleshy nevus, flat wart,spot, verruca,freckle, Pigment Removal, Dark Circles, igmentation Correctors, eyelid lift, Removal spot, granuloma, skin neoplasm, eyelid lift |
Power : | Internal Li-Polymer Rechargeable Battery 3.7V, 500mAh |
Charger : | Micro USB (+5V) |
Power Consumption : | Max. 2W |
Weight : | 100g |
Model Name : | GPM-2000 |
Output Level : | Steps 1~9 (Analog wheel type) |
Pulse Mode Frequency : | 500Hz |
Life Time : | Full charged, Max 3hours |
Material : | Body-PC/ABS Resin |
Size : | 165mmx38mmx23 mm |

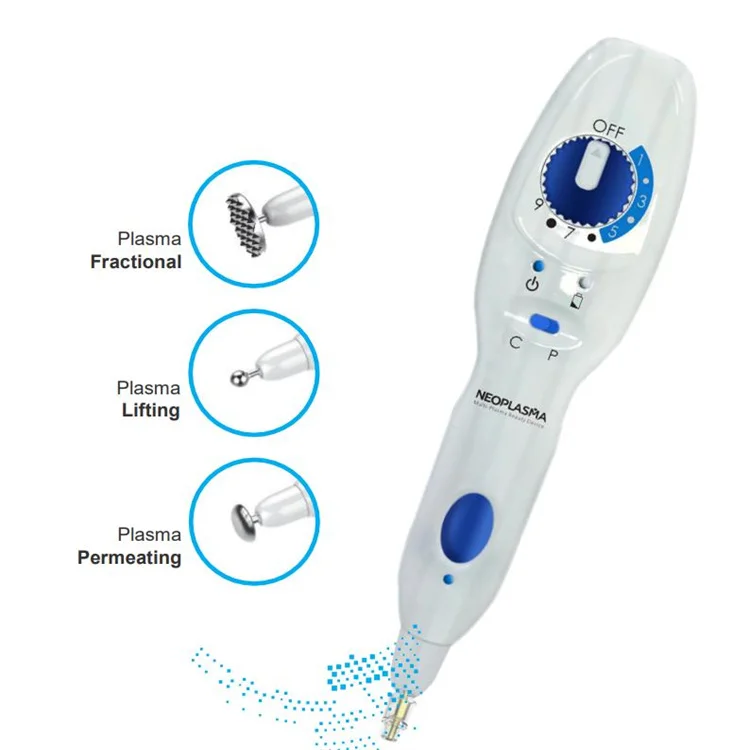

Use and function
Patent Plasma Acne Care Tips
* Plasma tips dedicated to acne that suppress excessive ozone and ultraviolet radiation and provide the right amount of radicals and UV for acne treatments.
* Safe use due to hygienic management and overheating effect by adopting exchangeable dedicated film.
* Plasma tips dedicated to acne that suppress excessive ozone and ultraviolet radiation and provide the right amount of radicals and UV for acne treatments.
* Safe use due to hygienic management and overheating effect by adopting exchangeable dedicated film.

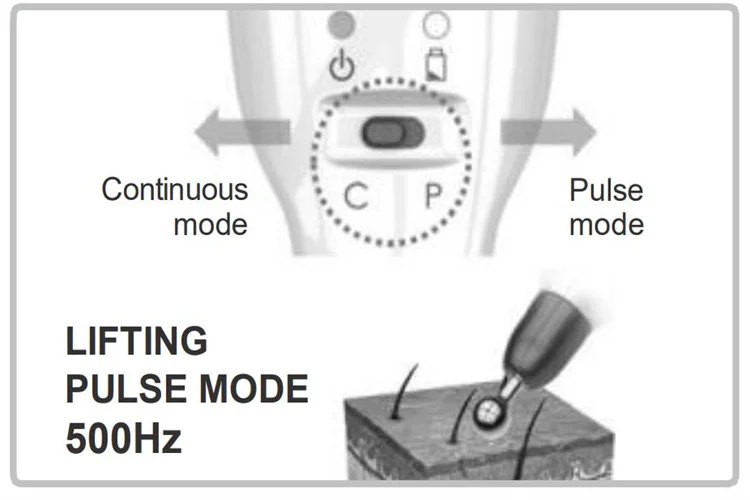

Pulse Mode Plasma Lifting
* Support pulse mode of 500Hz as well as continuous mode.
* Plasma treatment by pulse mode which optimized for lifting Plasma Acne Plasma Lifting Plasma Permeating promotes collagen synthesis and wrinkles.
* Support pulse mode of 500Hz as well as continuous mode.
* Plasma treatment by pulse mode which optimized for lifting Plasma Acne Plasma Lifting Plasma Permeating promotes collagen synthesis and wrinkles.

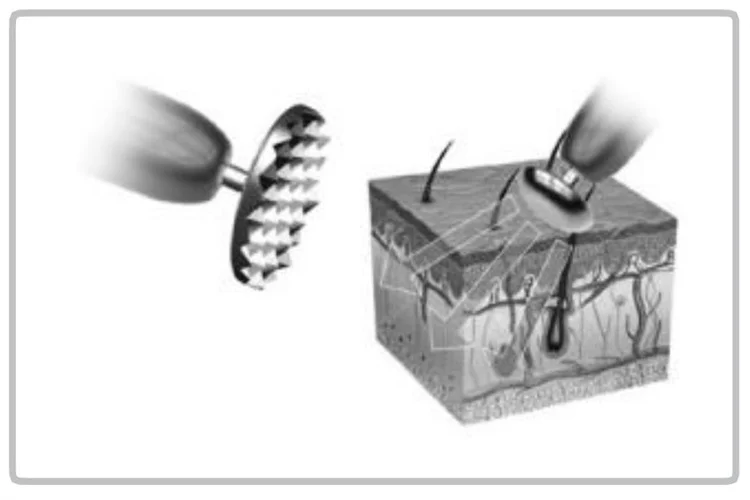

Base-offer plasma permeating tips and fractional tips for cosmetic applications
* 40kHz Continuous mode permeating tips with electroporation effect.
* Fractional tips which use together with Permeating tips to maximize permeating effect.
World'sFirstBatteryPackReplacementtypeof Plasma
* The detachable external battery pack (basically 2 provided)
* The battery pack has a built-in charger, so extra battery pack charger is not required.
* Replaced only the battery pack can be used for a long time without using time limit.
* The battery pack has a built-in charger, so extra battery pack charger is not required.
* Replaced only the battery pack can be used for a long time without using time limit.
PRODUCT COMPOSITIO

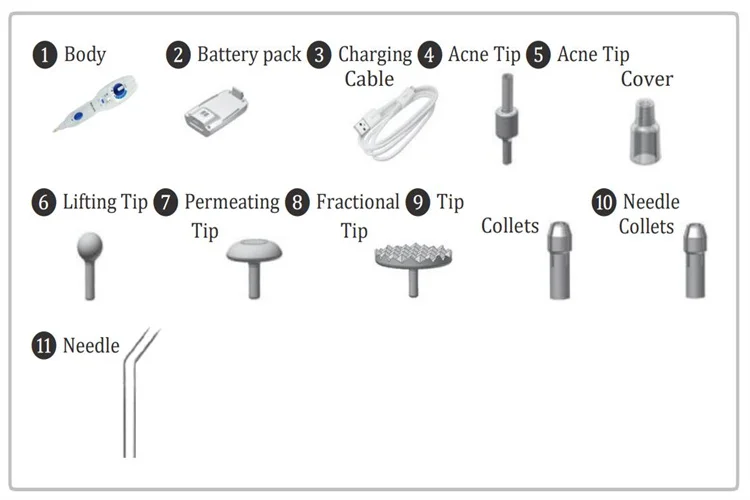

* Components name & Function
1.Body
Main body for Plasma Output. To applied various tips, the 3Ø standard collet has set
up as base.
One battery pack is installed as standard.
2.Battery Pack
This battery pack is provided separately from the battery pack attached to the body.
3.Charging Cable
Charging Lithium polymer battery by USB Charging cable.
4.Acne Tip
Tip for acne procedures.
5.Acne Tip Cover
This is a cover for attaching and fixing the special film to the acne tip.
6.Lifting Tip
Ball-shaped tip for lifting procedures.
7.Permeating Tip
Tip used to promote cosmetic absorption.
8.Fractional Tip
Tips used to supplementary for cosmetic absorption.
9.Tip Collets
Use to fix the tip.
10.Needle Collets
Use to fix the needle.
11.Needle
This needle is used for the treatment with Plasma Arc.
Main body for Plasma Output. To applied various tips, the 3Ø standard collet has set
up as base.
One battery pack is installed as standard.
2.Battery Pack
This battery pack is provided separately from the battery pack attached to the body.
3.Charging Cable
Charging Lithium polymer battery by USB Charging cable.
4.Acne Tip
Tip for acne procedures.
5.Acne Tip Cover
This is a cover for attaching and fixing the special film to the acne tip.
6.Lifting Tip
Ball-shaped tip for lifting procedures.
7.Permeating Tip
Tip used to promote cosmetic absorption.
8.Fractional Tip
Tips used to supplementary for cosmetic absorption.
9.Tip Collets
Use to fix the tip.
10.Needle Collets
Use to fix the needle.
11.Needle
This needle is used for the treatment with Plasma Arc.

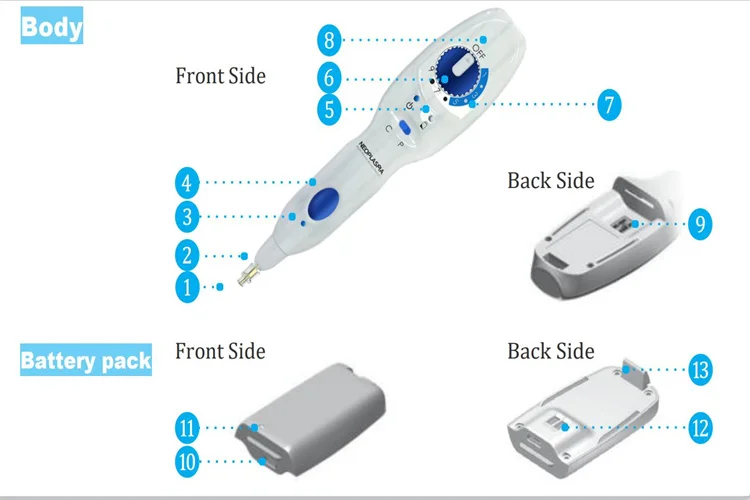

1.Collet
A part for inserting the needle tip as 3F standard size.
2.Head Cap
Cap for fixing needle tip.
3.Output Indicator
Indicates the state of plasma output.
4.Shot Button
Operating button for plasma output.
5.Mode Selection Switch
Continuous (C ) or Pulse (P) mode. If pulse mode selected, it will be output in pulse form of 500Hz.
When using the pulse mode, set the wheel switch 5 or less.
6.Power Indicator
Indicates Power ON/OFF status.
7.Battery Warning Light
Red is displayed when the remaining battery is low.
If the warring light comes on, stop using it and charge it before using it.
8.Wheel Switch
Turn ON/OFF the power or adjust the plasma output intensity.
9.Battery Terminal
This terminal is used to connect the battery pack.
Be careful not to get foreign objects, which may cause contact failure.
10.Charging Terminal
Terminal for connecting a micro USB type charger.
Pressing the shot button doesn’t work during charging.
11.Charging lamp
Indicates charging status (red: charging, green: charging completed).
12.Battery Contact
Provides power by contacting the battery terminals of the body.
Be careful not to get foreign objects, which may cause contact failure.
13.Hook
A device to insert the battery pack into the body and fix it.
A part for inserting the needle tip as 3F standard size.
2.Head Cap
Cap for fixing needle tip.
3.Output Indicator
Indicates the state of plasma output.
4.Shot Button
Operating button for plasma output.
5.Mode Selection Switch
Continuous (C ) or Pulse (P) mode. If pulse mode selected, it will be output in pulse form of 500Hz.
When using the pulse mode, set the wheel switch 5 or less.
6.Power Indicator
Indicates Power ON/OFF status.
7.Battery Warning Light
Red is displayed when the remaining battery is low.
If the warring light comes on, stop using it and charge it before using it.
8.Wheel Switch
Turn ON/OFF the power or adjust the plasma output intensity.
9.Battery Terminal
This terminal is used to connect the battery pack.
Be careful not to get foreign objects, which may cause contact failure.
10.Charging Terminal
Terminal for connecting a micro USB type charger.
Pressing the shot button doesn’t work during charging.
11.Charging lamp
Indicates charging status (red: charging, green: charging completed).
12.Battery Contact
Provides power by contacting the battery terminals of the body.
Be careful not to get foreign objects, which may cause contact failure.
13.Hook
A device to insert the battery pack into the body and fix it.
HOW TO USE PART 1:Acne Tip+Dedicated Film

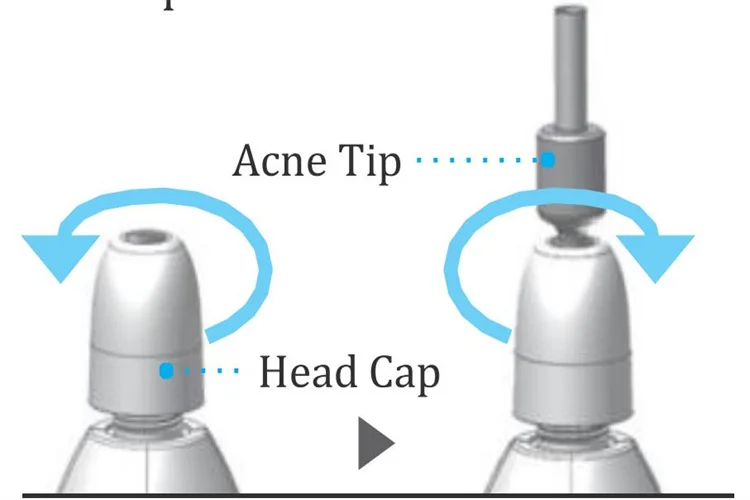

1.Tip Installation
Rotate the head cap counterclockwise to loosen it slightly, insert the acne tip into the collet, and turn the head cap clockwise to secure the tip to the collet.
2.Attaching the dedicated film and tip cover
Remove one film for acne tip, attach the adhesive side of the film to the top of the acne tip and cover the tip cover.
Rotate the head cap counterclockwise to loosen it slightly, insert the acne tip into the collet, and turn the head cap clockwise to secure the tip to the collet.
2.Attaching the dedicated film and tip cover
Remove one film for acne tip, attach the adhesive side of the film to the top of the acne tip and cover the tip cover.
When attaching the film and cover the tip cover, push it deep enough to expose the tip over the cover as shown below.

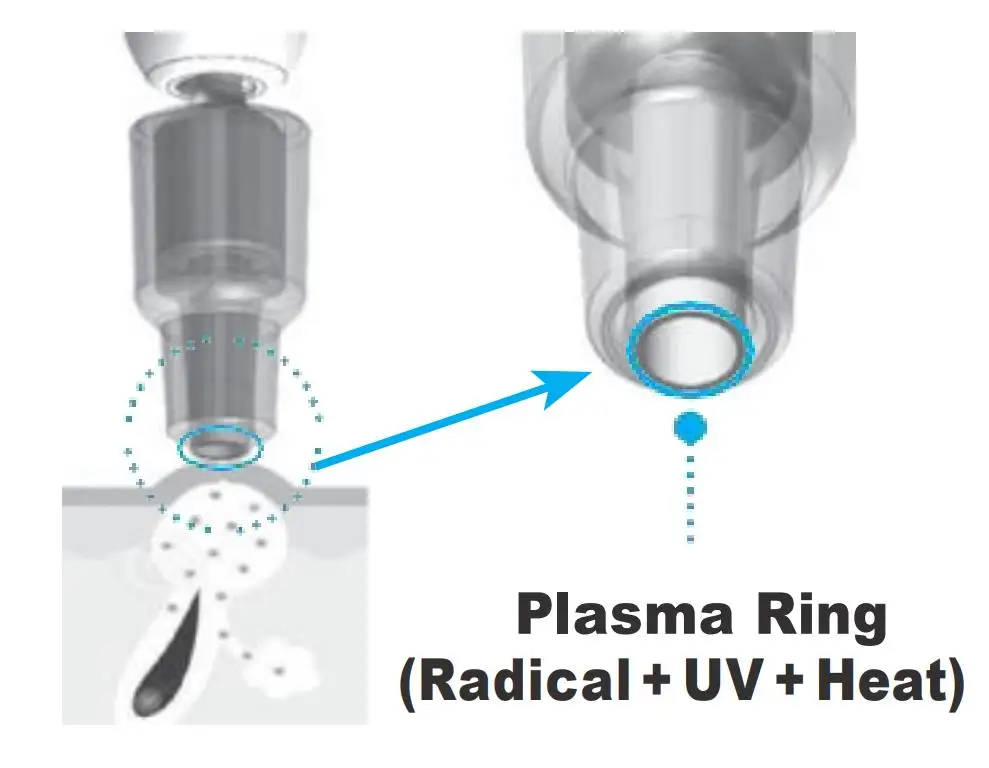

Plasma is generated when the ring part of the tip which attached film is in contact with the skin.
3.Procedure
Set the Continuous(C)mode and intensity to 7~9. Slowly move the tip as circle while press the shot button while touching the acne area.
When attach to the skin, a ring-shaped plasma forms at the tip of the film attached and releases adequate amount of radicals, ultraviolet(UV) and heat to help improve acne.
Using the dedicated film only, in the case the film will be destroyed and sparks will be directly transferred to the skin which can damage.
Dedicated fill is disposable use. Re-use may cause damage to the film.
When attach to the skin, a ring-shaped plasma forms at the tip of the film attached and releases adequate amount of radicals, ultraviolet(UV) and heat to help improve acne.
Using the dedicated film only, in the case the film will be destroyed and sparks will be directly transferred to the skin which can damage.
Dedicated fill is disposable use. Re-use may cause damage to the film.
HOW TO USE PART 2:Acne Tip +Acne Patch
1.Tip Installation
Rotate the head cap counterclockwise to loosen it slightly, insert the acne tip into the collet, and turn the head cap clockwise to secure the tip to the collet.
If acne patches are used, there is no dedicated film to generated plasma. Be sure to remove the film when the dedicated film is attached to the tip.
Rotate the head cap counterclockwise to loosen it slightly, insert the acne tip into the collet, and turn the head cap clockwise to secure the tip to the collet.
If acne patches are used, there is no dedicated film to generated plasma. Be sure to remove the film when the dedicated film is attached to the tip.
2.Attach the Acne Patch
Remove the patch and attach it to the area of the acne to perform.
Clean the skin before applying and No toner and lotion.
Do not use damaged patch.
Clean the skin before applying and No toner and lotion.
Do not use damaged patch.

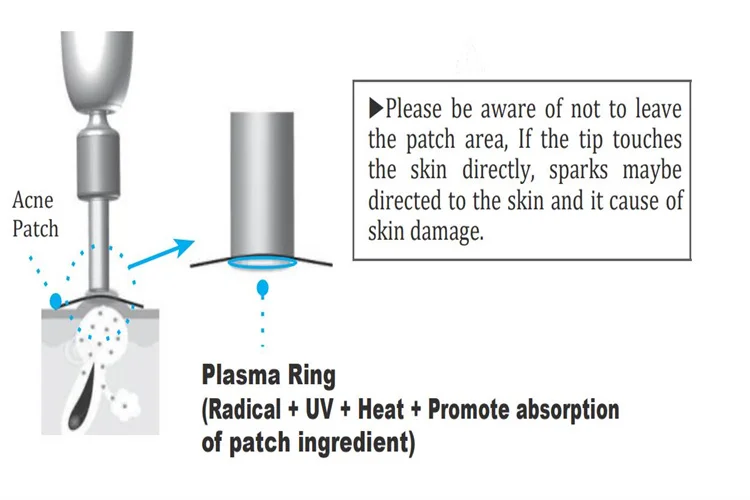

3.Attach the Acne Patch
Set the Continuous(C)mode and intensity to 7~9. Slowly move the tip as circle while press the shot button while touching the acne area.
When attach to the skin, a ring-shaped plasma forms at the tip of the film. attached and releases adequate amount of radicals, ultraviolet(UV) and heat to help improve acne.
Released plasma also has the effect of promoting skin absorption of the ingredients applied to the acne patch.
When attach to the skin, a ring-shaped plasma forms at the tip of the film. attached and releases adequate amount of radicals, ultraviolet(UV) and heat to help improve acne.
Released plasma also has the effect of promoting skin absorption of the ingredients applied to the acne patch.
HOW TO USE PART 3:Plasma Lifting for Wrinkle
Improvement and Collagen Regeneration
Improvement and Collagen Regeneration
1.Tip Installation
Rotate the head cap counterclockwise to loosen it slightly, insert the lifting tip into the collet, and turn the head cap
clockwise to secure the tip to the collet.
Rotate the head cap counterclockwise to loosen it slightly, insert the lifting tip into the collet, and turn the head cap
clockwise to secure the tip to the collet.
2.Procedure
Pressing the shot button doesn’t work during charging.
When using the pulse (P) mode, use the output intensity in the range of 1~5 and do not use more than 5. Pulse mode has a frequency output of 500Hz specially designed for lifting, so over 5 cycles can cause unnecessary skin irritation.
First, clean the skin before the procedure. During the plasma lifting procedure, there are nothing to applied to the skin. But if necessary, apply the appropriate primer, high-frequency cream, lifting cream, etc.
Using the tapping or brushing method, plasma discharge occurs at the moment of contact with the skin. Therefore, the appropriate output level is set according to the application site and purpose to prevent unnecessary discharge.
When using the pulse (P) mode, use the output intensity in the range of 1~5 and do not use more than 5. Pulse mode has a frequency output of 500Hz specially designed for lifting, so over 5 cycles can cause unnecessary skin irritation.
First, clean the skin before the procedure. During the plasma lifting procedure, there are nothing to applied to the skin. But if necessary, apply the appropriate primer, high-frequency cream, lifting cream, etc.
Using the tapping or brushing method, plasma discharge occurs at the moment of contact with the skin. Therefore, the appropriate output level is set according to the application site and purpose to prevent unnecessary discharge.
Dragging Slowly massage the wrinkles along the line. | Tapping Move vertically and tap Your skin like a dot. | Brushing Touch the skin surface like a brushing. |
HOW TO USE PART 4:
Permeating Tip for Cosmeti Absorbent+
Fractional Tip
Permeating Tip for Cosmeti Absorbent+
Fractional Tip
Tip installation is same as Lifting tip installation. The procedure, it takes 15minutes as shown below.
1.Tapping by Fractional Tip – 5min
After installing the fractional tip first, clean the treatment are and remove the water, Set the continuous(C) mode and the output intensity to 3~5, then move the tip and tapping lightly.
Plasma is generated at the multipoint part of the fractional tip and the skin layer is opened to prepare the cosmetics to absorb.
1.Tapping by Fractional Tip – 5min
After installing the fractional tip first, clean the treatment are and remove the water, Set the continuous(C) mode and the output intensity to 3~5, then move the tip and tapping lightly.
Plasma is generated at the multipoint part of the fractional tip and the skin layer is opened to prepare the cosmetics to absorb.
2.Apply cosmetics
Apply cosmetics evenly.
Apply cosmetics evenly.
3.Absorbentmassageby Permeating Tip–5min
After replace with a permeating tip, Continuous(C) mode and the output strength 5~7, then move the tip and gently massage.
Plasma is generated between the permeating tip and the skin surface and the electroporation effect, cosmetic will be penetrated into the deep skin.
After replace with a permeating tip, Continuous(C) mode and the output strength 5~7, then move the tip and gently massage.
Plasma is generated between the permeating tip and the skin surface and the electroporation effect, cosmetic will be penetrated into the deep skin.
4.Absorbentmassage by Permeating Tip–5min
After replace with a Fractional Tip, Pulse (P) mode and output strength 3~5, then move the tip and tapping lightly.
Plasma is generated at the multipoint part of the fractional tip and promote the absorption of residual active ingredients remaining after using the permeating tip and this is a final stage to performs skin tissue lifting by pulse.
Plasma is generated at the multipoint part of the fractional tip and promote the absorption of residual active ingredients remaining after using the permeating tip and this is a final stage to performs skin tissue lifting by pulse.
HOW TO USE PART 5:PlasmaArc + Needle

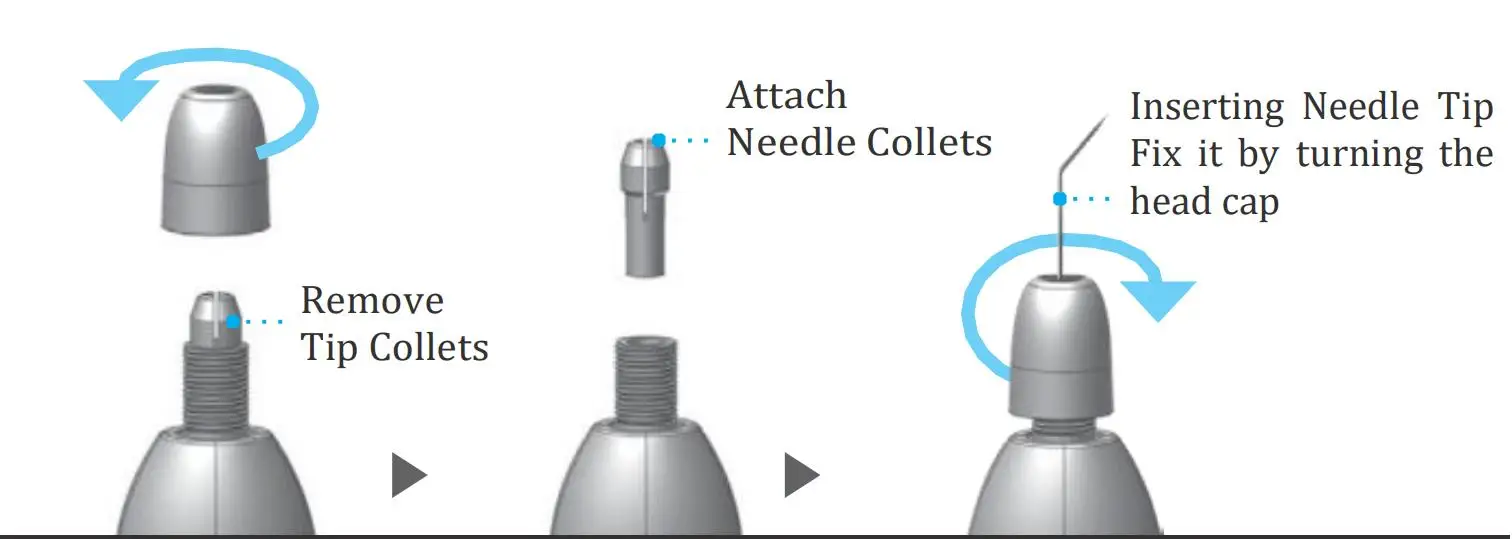

1.Needle Tip Installation
Remove the head cap by turning it counterclockwise as shown in the picture. Then attach the needle collets after remove the tip collets. Inserting Needle tip into the Needle collets and fix it by turning the head cap clockwise again.
Remove the head cap by turning it counterclockwise as shown in the picture. Then attach the needle collets after remove the tip collets. Inserting Needle tip into the Needle collets and fix it by turning the head cap clockwise again.

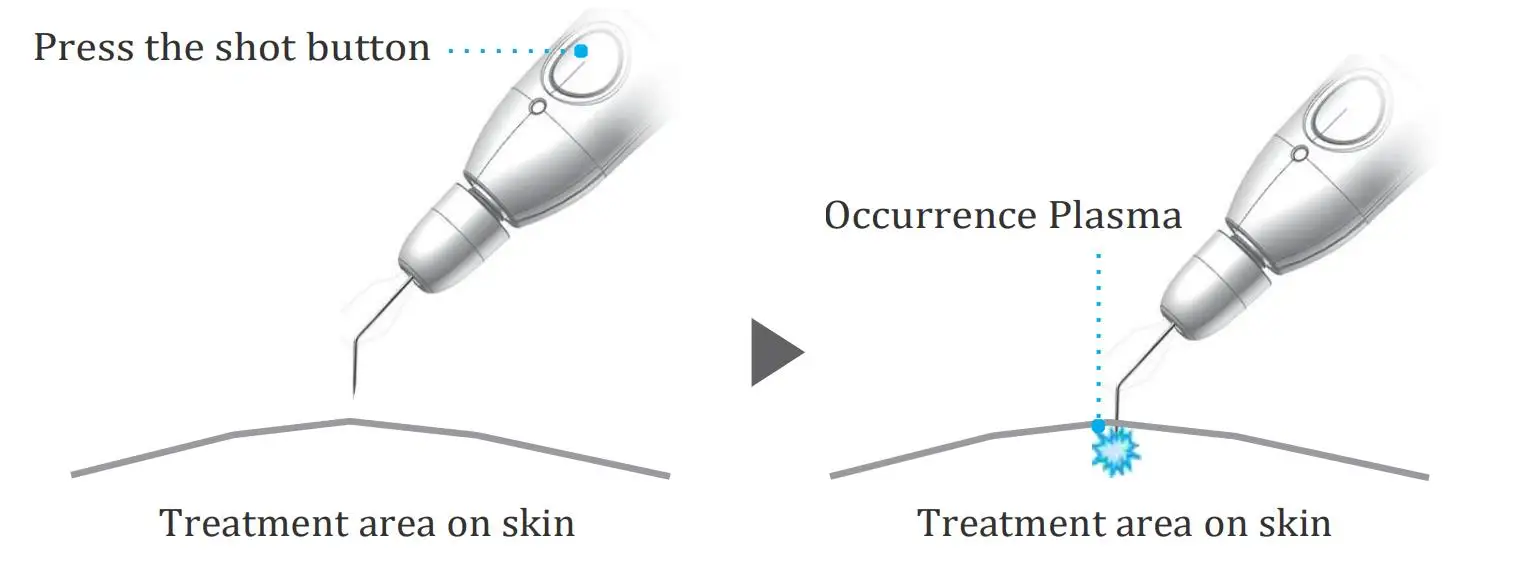

2.Operation after choosing Power Level
Select the Continuous (C) Mode and Output Level 3~7, When the shot button is depressed, place the needle tip within 1mm of the treatment site and plasma will be output to the target site.
* Don’t use only one place for several seconds or more. It is in danger of skin damage if the energy is focused on a place excessively.
* When using plasma arc, be sure to set to C(Continuous) Mode. If you use it P(Pulse) Mode, you may feel stinging.
* When using plasma arc, be sure to set to C(Continuous) Mode. If you use it P(Pulse) Mode, you may feel stinging.
Certificate
Packing & Delivery
FAQ
1.Can Common Skin Problems Like Acne Spots Be Treated?
yes.
2.Is the battery removable?
Yes, there is a charger attached inside to support usb charging.
3.How long can a full charge last?
Full charged, Max 3hours.
4.How long is the battery life?
General life of recharging battery is 500 times of recharging and Discharging but it is possible to decreased depending to
operation condition temperature or moisture etc. Don’t leave it for long hours without using. If you let it discharged
completely, battery life will be shorten. At your first trial, After Use it full charging.
5. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(50.00%),Western Europe(13.00%),Northern Europe(10.00%),Southern Europe(10.00%),South Asia(10.00%),Oceania(6.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
6. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7.what can you buy from us?
Laser hair removal machine,Plasma pen,derma pen,home use beauty device,skin care cream
8. why should you buy from us not from other suppliers?
Shanghai Medi Laser (Chinese Name Yimei) located in Shanghai China. Professional in OEM&ODM medical & beauty equipment for Europe, United States and other international Distributors and Salons, and provide 24-hour on line professional after-sales service.
9. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Spanish,Portuguese,French,Russian
yes.
2.Is the battery removable?
Yes, there is a charger attached inside to support usb charging.
3.How long can a full charge last?
Full charged, Max 3hours.
4.How long is the battery life?
General life of recharging battery is 500 times of recharging and Discharging but it is possible to decreased depending to
operation condition temperature or moisture etc. Don’t leave it for long hours without using. If you let it discharged
completely, battery life will be shorten. At your first trial, After Use it full charging.
5. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(50.00%),Western Europe(13.00%),Northern Europe(10.00%),Southern Europe(10.00%),South Asia(10.00%),Oceania(6.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
6. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7.what can you buy from us?
Laser hair removal machine,Plasma pen,derma pen,home use beauty device,skin care cream
8. why should you buy from us not from other suppliers?
Shanghai Medi Laser (Chinese Name Yimei) located in Shanghai China. Professional in OEM&ODM medical & beauty equipment for Europe, United States and other international Distributors and Salons, and provide 24-hour on line professional after-sales service.
9. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Spanish,Portuguese,French,Russian
Contact us
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
