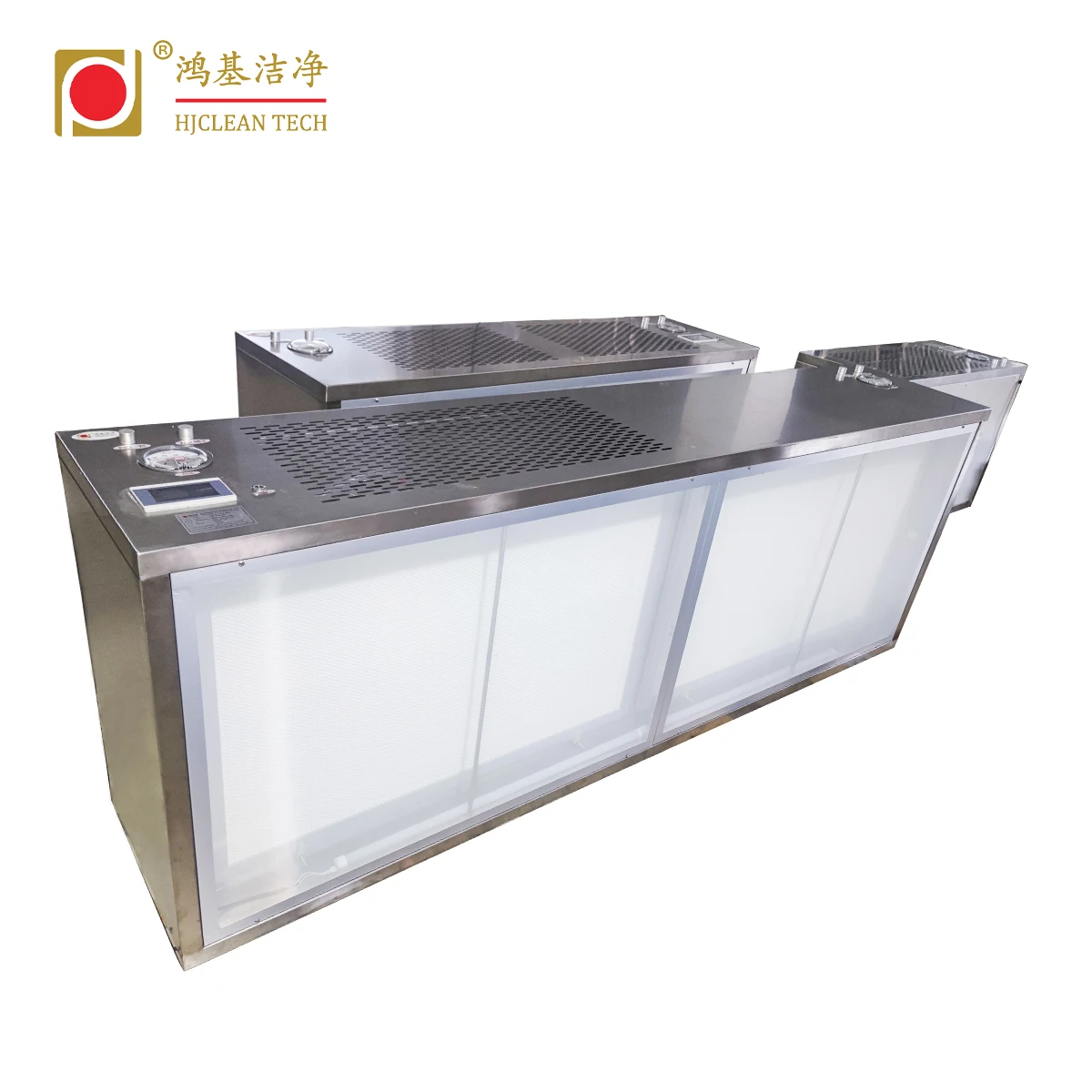

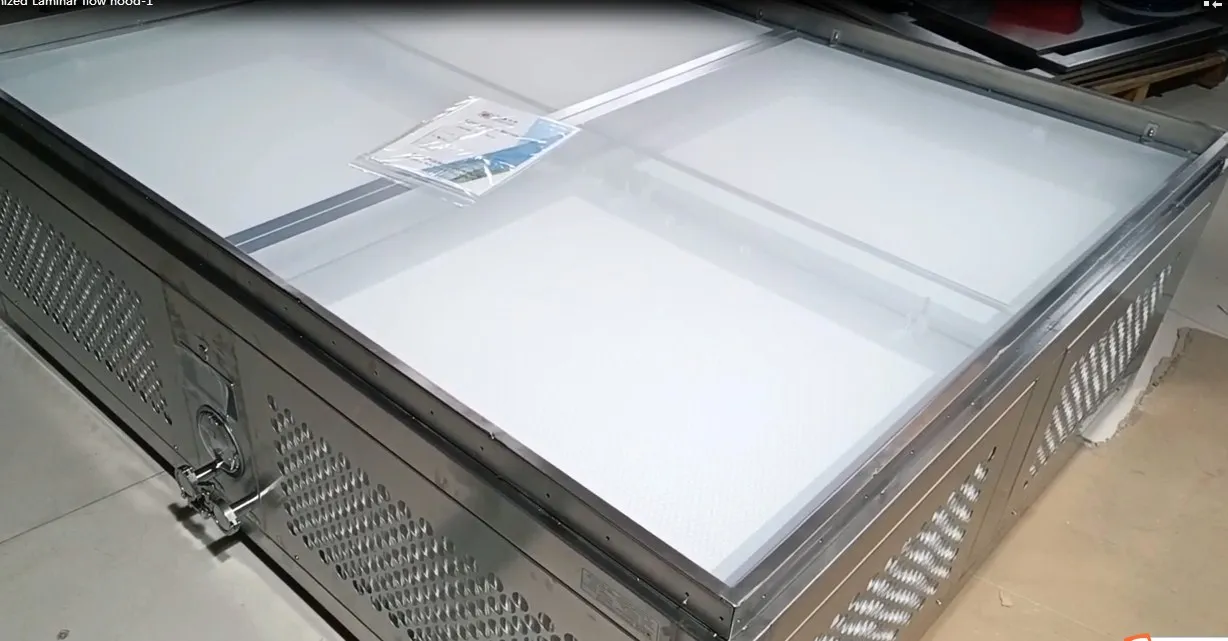

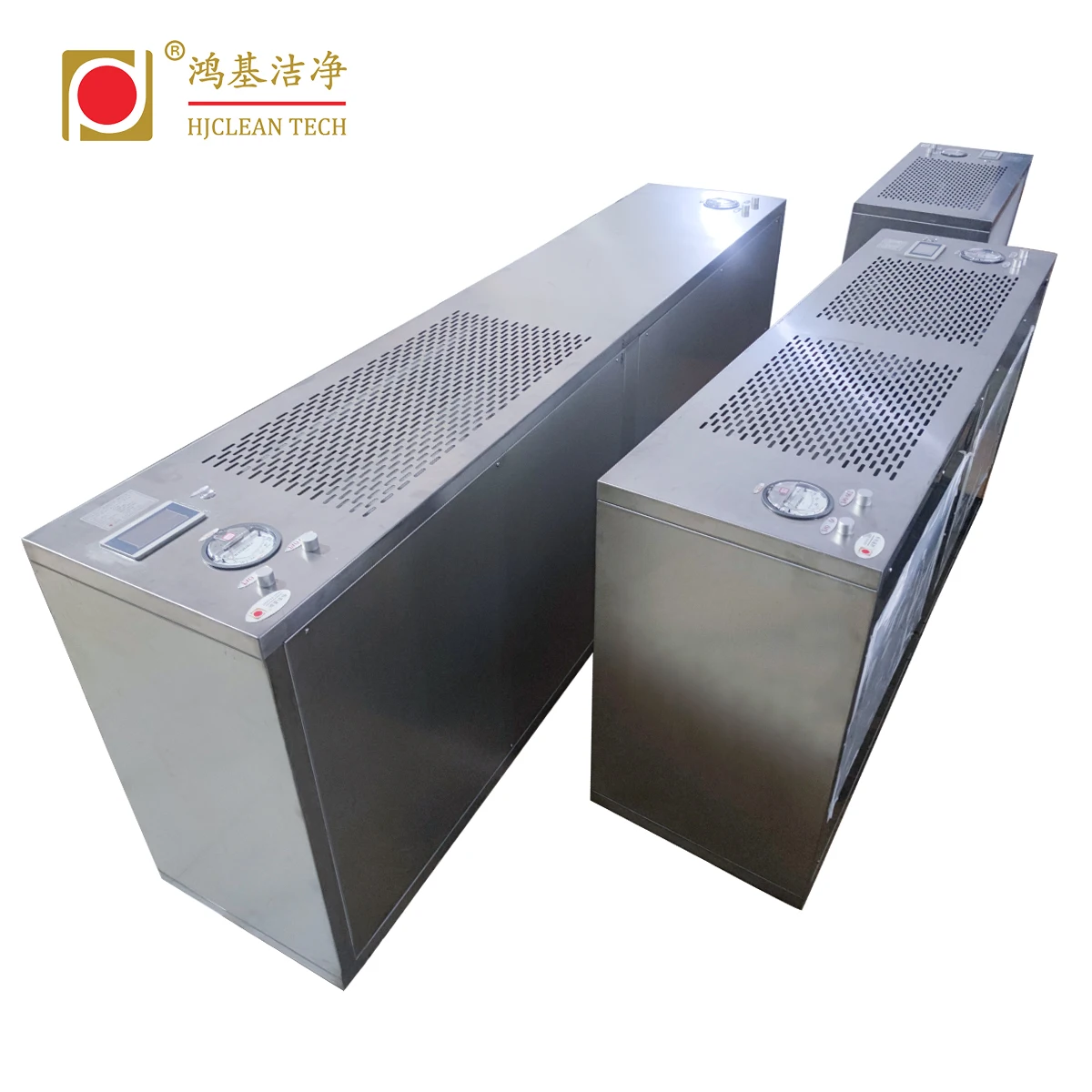

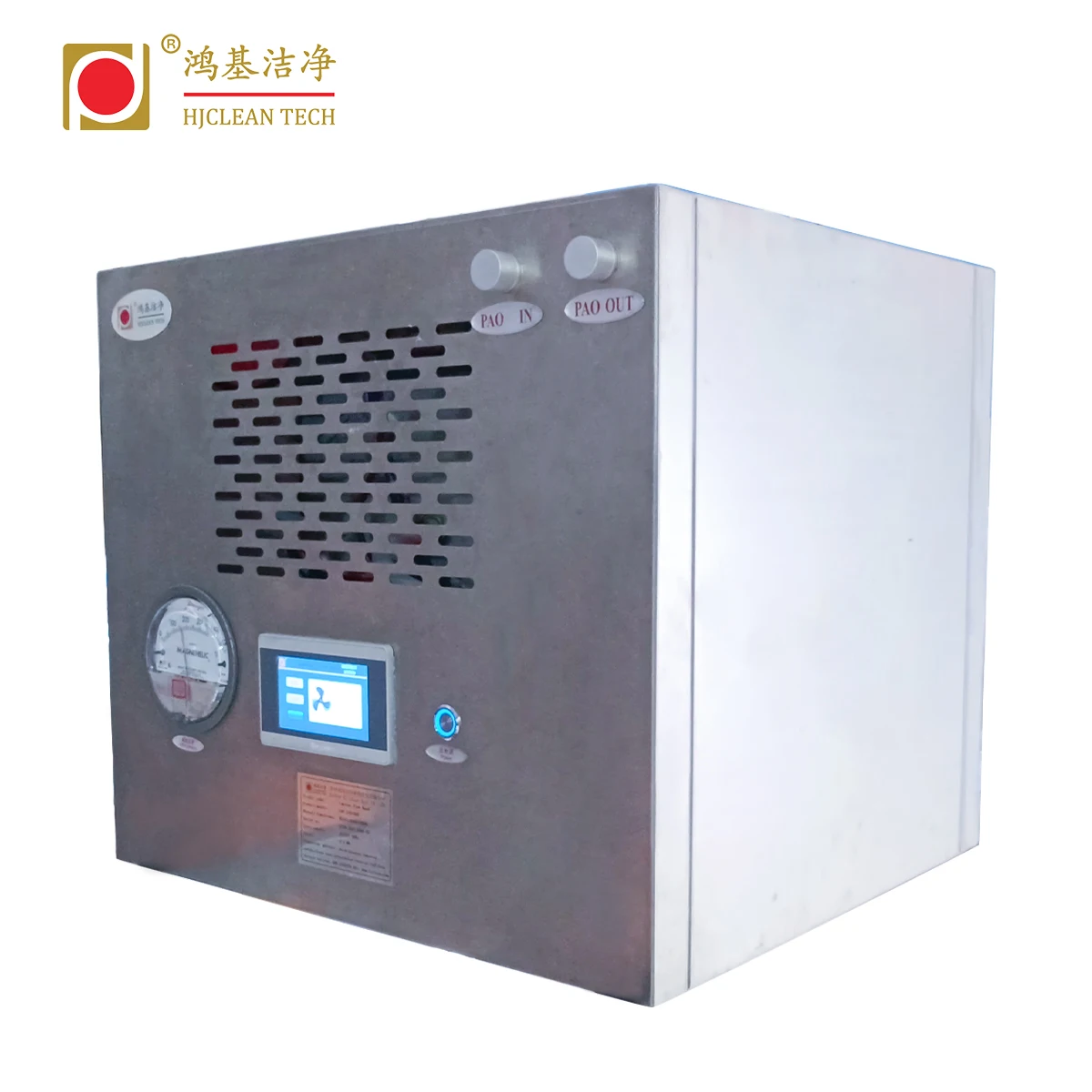

GMP ISO standard LAF laminar air flow hood cabinet
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1600698108944):
Product Overview
Description
Product Description
Introduction
Laminar Air Flow is a containment equipment module utilized to provide a zoned laminar down-flow air flow.
The purpose of this equipment is to provide laminar airflow to a working area for product protection.
The purpose of this equipment is to provide laminar airflow to a working area for product protection.
Laminar Airflows are customizable units that are :
-Utilized as open restricted access barriers over filling and capping machines.
-Stand alone units mounted via eye bolts and drop rods over specific applications
-Utilized as open restricted access barriers over filling and capping machines.
-Stand alone units mounted via eye bolts and drop rods over specific applications
Key Features
-Easy to clean.
-HEPA/ULPA Gel-sealed design better than conventional gasket sealed.
-Control panel with audio/visual alarms for downflow velocity.
-Zoned magnehelic gauges for filter loading
-Energy efficient teardrop lightings away from downflow.
-Emergency stop
-HEPA/ULPA Gel-sealed design better than conventional gasket sealed.
-Control panel with audio/visual alarms for downflow velocity.
-Zoned magnehelic gauges for filter loading
-Energy efficient teardrop lightings away from downflow.
-Emergency stop
Optional Features
-Remote mounted main control panel
-Splashproof electrical outlets
-PVC curtains
-Splashproof electrical outlets
-PVC curtains
Specification: | ||||||||
1 | Basic Requirement | Laminar Air Flow should be Ceiling Mounted with 99.999% HEPA Filter (0.3 micron) efficiency according to cGMP to avoid particulate & microbial contamination during filling process. It should comply DOP test and air velocity criteria as per WHO/MHRA guideline. | ||||||
2 | Dimensions | Customized | ||||||
3 | Type | Floor Mounted(With Stand fram) | ||||||
4 | MOC | SS304 | ||||||
5 | Noise Level | 60 to 65 db from 1 meter distance | ||||||
6 | Blower Assembly | Statically & Dynamically balanced with suitable rating & size | ||||||
7 | Air Velocity | 0.45 +/- 20% m/sec under HEPA Filter | ||||||
8 | DOP Port | DOP/PAO port should be provided | ||||||
9 | Class | Class-100 | ||||||

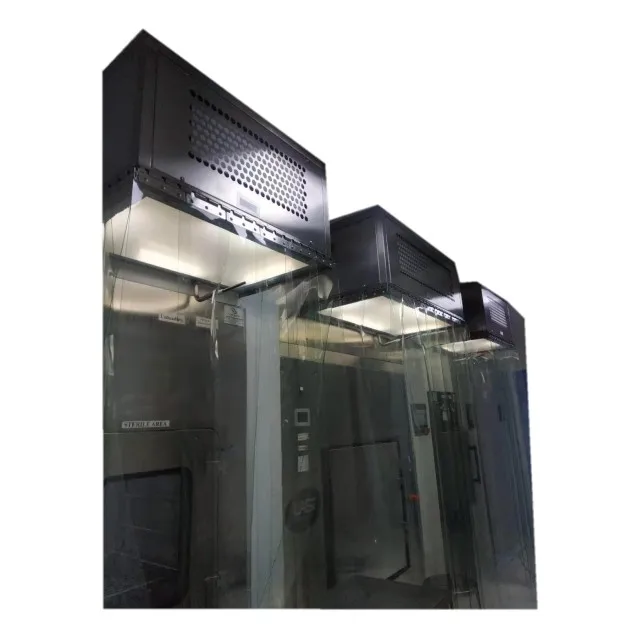

10 | PVC Curtain | Three side pvc curtain,one side open, curtain length 1850 mm down from the LAF | ||||||
11 | Air Flow Pattern | Vertical down flow | ||||||
12 | Documentation | Operation & Maintenance manual should be provided. Drawing of the equipment showing front elevation, side elevation & plan view should be provided. IQ and OQ dully prepared and supplied. | ||||||
13 | Warranty | one year waranty from the date of commissioning. | ||||||
Certifications
Customer Photos
Packing & Delivery
Company Profile
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacture.Our company specialized in clean room and related accessories, eg. Air shower, pass box, clean bench, ozone generator, clean room panel etc.
Q2: How long is your delivery time?
A: Generally it is 25 working days after receive deposit
Q3:Can we customize the products?
A:Yes. We could customized the products according to customer’s requirement.
Q4:What is the form of payment?
A:T/T, L/C
Q5:What’s the packing?
A:Wooden case
Q6:What’s the product made of?
A:Stainless steel, coated steel…
A: We are manufacture.Our company specialized in clean room and related accessories, eg. Air shower, pass box, clean bench, ozone generator, clean room panel etc.
Q2: How long is your delivery time?
A: Generally it is 25 working days after receive deposit
Q3:Can we customize the products?
A:Yes. We could customized the products according to customer’s requirement.
Q4:What is the form of payment?
A:T/T, L/C
Q5:What’s the packing?
A:Wooden case
Q6:What’s the product made of?
A:Stainless steel, coated steel…
