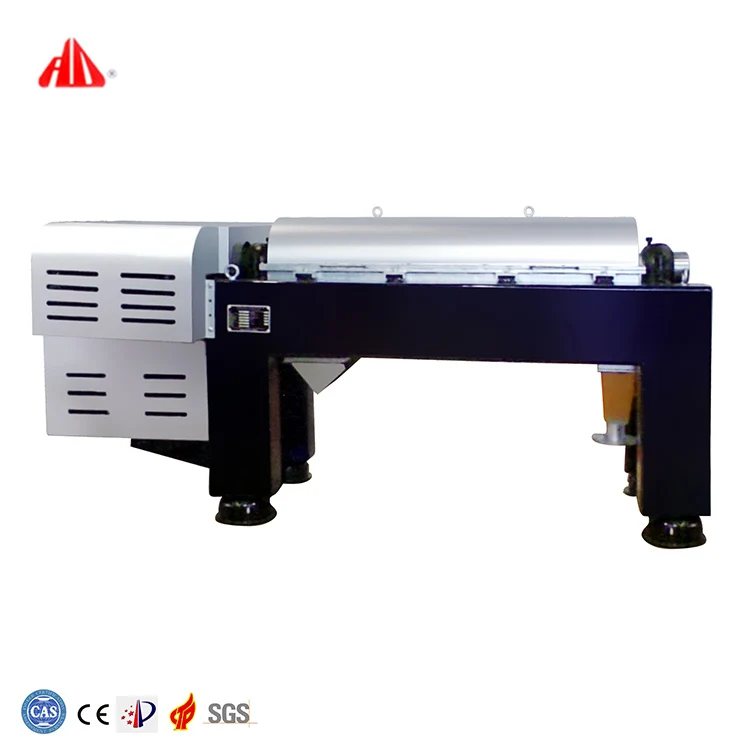

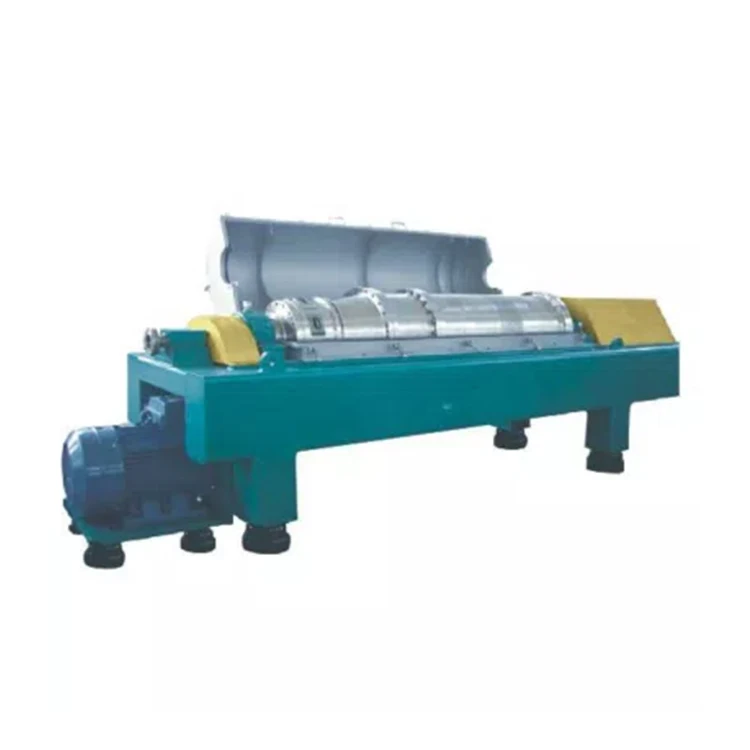

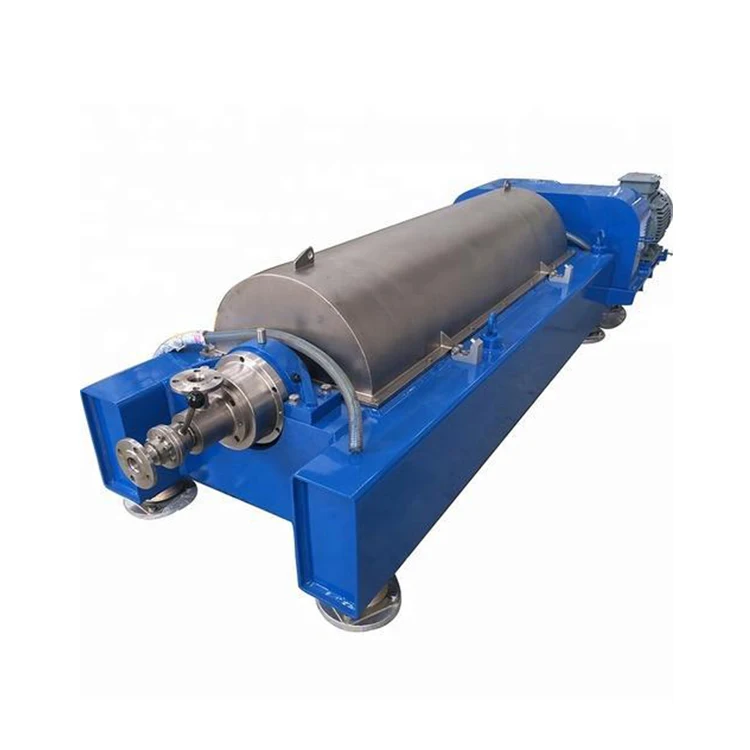

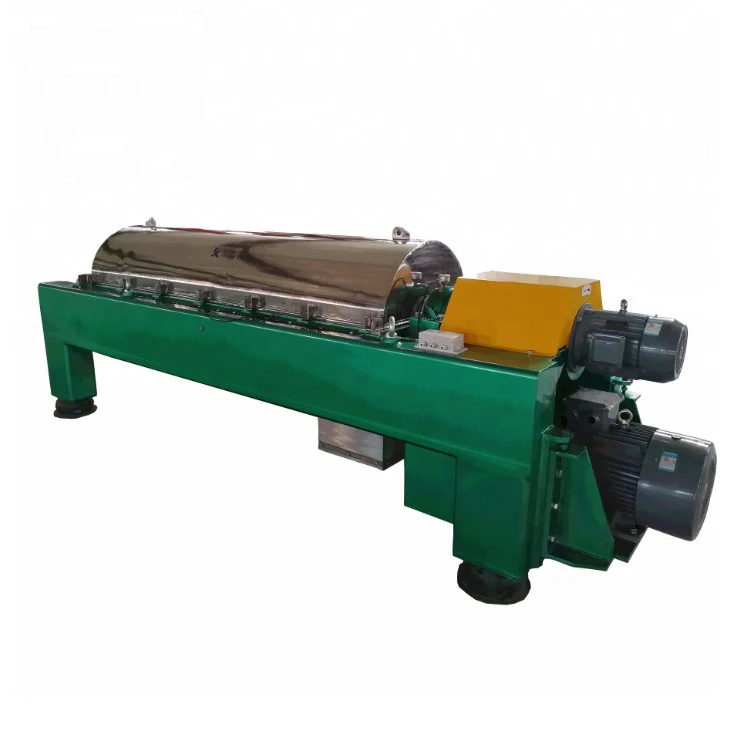

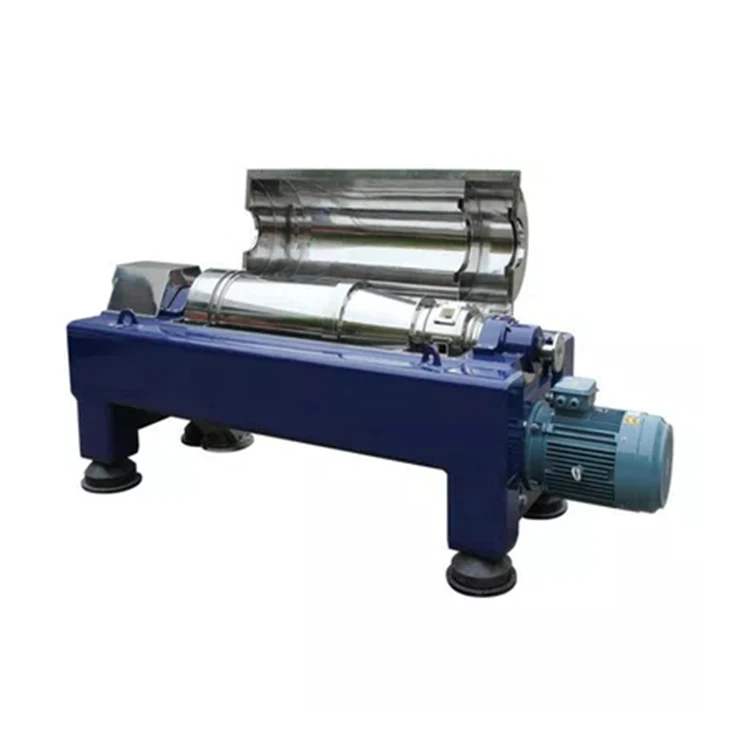

Jieda Lw350 Perforated Flottweg Decanter Centrifuge With Good Price
- Category: >>>
- Supplier: Jiangsu Jieda Centrifuge Manufacture Co. Ltd.
Share on (1600698145201):
Product Overview
Description
Product Description
Main Features of Jieda LW350 Model Horizontal Decanter Centrifuge:
The LW350 model Decanter Centrifuge is a piece of sedimentation equipment with horizontal screw discharge and continuous operation. The bowl and screw make high-speed rotation with a certain differential speed between them. The materials are continuously introduced from the feeding pipe to the spiral pusher. After acceleration, they enter the bowl. Under the action of centrifugal force, the heavier liquids or solids will deposit on the bowl walls. The spiral pusher will push the deposited liquids or solids continuously to the taper end of the bowl, and they will be discharged outside the machine through the residue discharging port.The lighter liquids will continuously overflow out of the bowl from the overflow port at the bigger end of the bowl, and will be discharged out of the machine through the liquid discharging port. The centrifuge can carry out feeding, separating, washing, discharging, etc. continuously when it is running at full speed. With such features as compact structure, continuous operation, stable running, strong adaptability, high production capacity, convenient maintenance and etc., it is suitable for separation of suspensions containing solids with granularity of 0.005mm and concentration of 2-40%. It is widely applied in chemical industry, light industry, pharmacy, food, environmental protection and other industries.
Main Use of Jieda LW350 Model Horizontal Decanter Centrifuge:
It is suitable for separation of suspensions containing solids with granularity higher than 0.005mm and concentration of 2-40%. It is widely applied in chemical industry, light industry, pharmacy, food, environmental protection and other industries. For example: oxalic acid, alum, aluminum hydroxide, ammonium bicarbonate, ammonium chloride, ammonium nitrate, ammonium sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzoic acid, blood products, blue vitriol, borax, boric acid, lees, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methyl cellulose, coal flotation waste, corundum, lint, corn germ, edible oil, fish processing, Glauber's salt, glutamic acid, hops, insecticides, kieselguhr, herbicides, tartaric acid, sodium sulfate, carbon black, etc.
Notice beofre Ording Jieda LW350 Model Horizontal Decanter Centrifuge:
1.Materials: Parts that contact materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.
2.Driving mode: driving of solenoid speed control motor, frequency conversion driving of ordinary motor or explosion-proof motor, etc.
3.Differential speed selection range: 10-60r/min
4.Length-diameter ratio selection range: 2-4.4
5.Screw number: single-head or double-head
6.Design and manufacturing can be made according to the GMP standard.
2.Driving mode: driving of solenoid speed control motor, frequency conversion driving of ordinary motor or explosion-proof motor, etc.
3.Differential speed selection range: 10-60r/min
4.Length-diameter ratio selection range: 2-4.4
5.Screw number: single-head or double-head
6.Design and manufacturing can be made according to the GMP standard.
Specification
Model | LW245*980 | LW350*1550 | LW450*1950 | LW520*2080 | LW720*2160 |
Drum Diameter(mm) | 245 | 350 | 450 | 520 | 720 |
Drum Speed(rpm) | 5400 | 3700 | 3000 | 3000 | 2100 |
Drum Length(mm) | 980 | 1550 | 1950 | 2080 | 2160 |
Aspect ratio | 4 | 4.4 | 4.3 | 4.0 | 3.0 |
Separation Factor(ω²r/g) | 4001 | 2683 | 2268 | 2621 | 1778 |
Production Capacity(m³/h) | 0.5-4 | 3-10 | 6-20 | 10-35 | 40-55 |
Maximum Capacity of Slag(m³/h) | 0.5 | 1.2 | 2.5 | 5.5 | 12.0 |
Main Motor Power(KW) | 11 | 15-22 | 22-37 | 37-55 | 75-132 |
Weight(KG) | 1000 | 2400 | 3400 | 4500 | 8500 |
Dimensions(L*W*H)(mm) | 2650*650*1120 | 3188*1083*1480 | 3831*1214*1480 | 3930*1600*1500 | 5000*2500*1500 |
Company Profile
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating
solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Our Workshop
Warehouse
Certifications
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation andcommissioning? Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors? Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality? My factory is a state owned enterprise with more than 20 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous
brand. Series of test and inspection are done in the whole producing stage.
brand. Series of test and inspection are done in the whole producing stage.
