DOREXS Manufacturer High Performance EMI RFI Power Line Filter for Household Appliance
- Category: Filters old >>>
- Supplier: Chengdu,Mengsheng,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
1、DOREXS offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of
electrical and electronic equipment.
2、Deeply cultivated in the EMI filter industry for 14 years, our products have obtained cUL, CQC, CE, ROSH, ISO certification.
3、We have a professional design team and testing instruments, and provide EMC testing for free.
4、The production workshop covers an area of 2,000 square meters, with large-scale production, favorable price, good service and fast delivery.
5、DOREXS provides free EMI filter samples and a half-year replacement and lifetime warranty.
3、We have a professional design team and testing instruments, and provide EMC testing for free.
4、The production workshop covers an area of 2,000 square meters, with large-scale production, favorable price, good service and fast delivery.
5、DOREXS provides free EMI filter samples and a half-year replacement and lifetime warranty.
Products Description
Product name: | EMI Filter For Eashing Machine |
Rated voltage: | 110/250VAC |
Line Frequency: | 50/60Hz |
Test Voltage: | 1500VDC (line/line) |
2150VAC (line/ground) | |
Insulation Resistance: | >50MΩ@500VDC |
Climatic category: | 25/085/21 |
This parameter is only a specification product, we support parameter customization

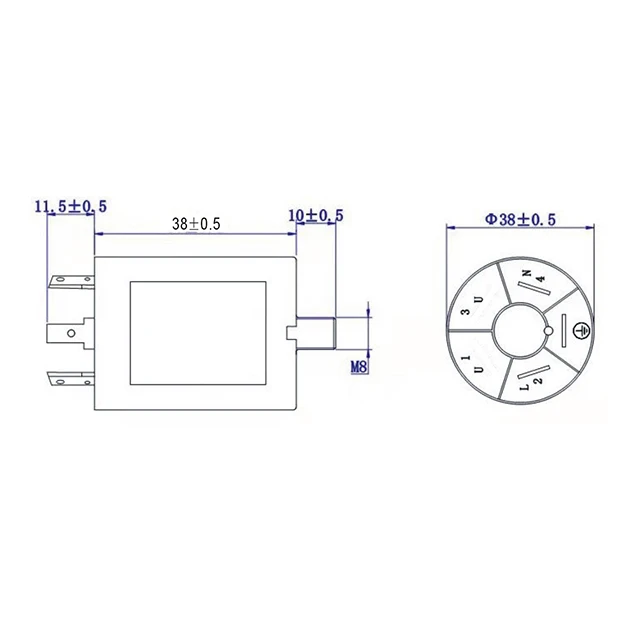

Outline Drawing and Dinemsions（mm）

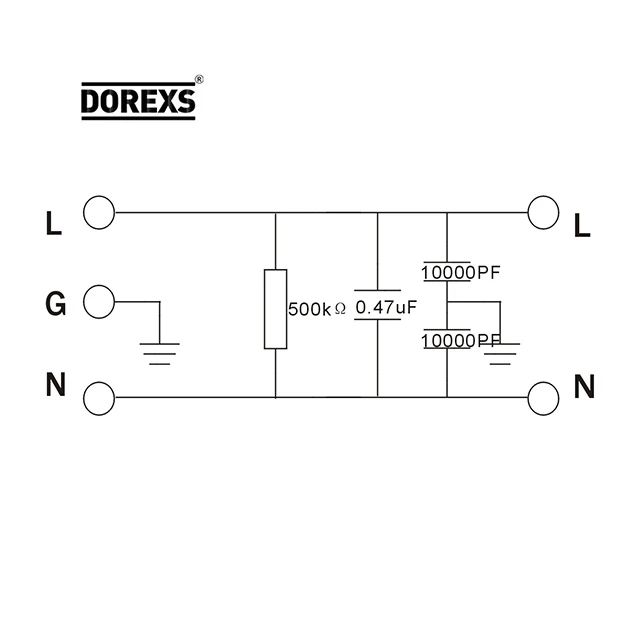

Electrical Schematic

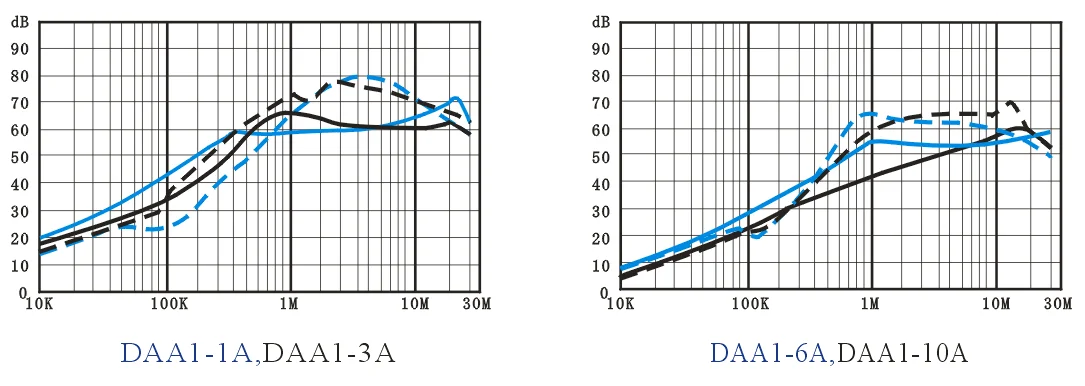

Insertion Loss
Other series of filters
Our Advantages
Company Profile
Chengdu Mengsheng Electronic Co., Ltd.
Our modern society is becoming increasingly digital and electrified. Everything—from the smallest device to the largest system—relies on smart technology to operate reliably and efficiently.All these technologies and solutions are the brainchild of innovative minds. But these inventions are subject to electromagnetic interference.At DOREXS, we are at the forefront of EMI solutions. Our talented and knowledgeable staff work passionately to solve these challenges and drive technological change in our society.As electromagnetic experts, we provide reliable solutions to reduce the complexities faced by customers.DOREXS escorts your EMC test.
was founded in 2006.is a electromagnetic compatibility(EMC),EMI filter,pulse group suppression,surge suppression and other products r&d,production,sales,service as one of the most powerful companies in china
Exhibition
The quality rate of 100%
Transport mode: Free sample is available once you accept the freight collect
Payment term: 100% T/T, L/C at sight
Payment term: 100% T/T, L/C at sight
FAQ
1. What is your biggest advantage?
We have a professional filter R&D and production team, which has been focusing on filters for 14 years.
2. Can you do OEM?
Yes, if your demand can reach the minimum order quantity of OEM.
3. How long will your product be delivered?
It's about 15-25 days.
4.Can I go to see your factory or company?
You are always welcome to visit our factory.
5.How about the after sale support?
We supply three months free replacement,one years free maintenance, life-long maintenance.
We have a professional filter R&D and production team, which has been focusing on filters for 14 years.
2. Can you do OEM?
Yes, if your demand can reach the minimum order quantity of OEM.
3. How long will your product be delivered?
It's about 15-25 days.
4.Can I go to see your factory or company?
You are always welcome to visit our factory.
5.How about the after sale support?
We supply three months free replacement,one years free maintenance, life-long maintenance.
