1325 atc four process cnc route for machine woodworking
- Category: >>>
- Supplier: Jinan Youteng Numerical Control Equipment Co. Ltd.
Share on (1600698165459):
Product Overview
Description

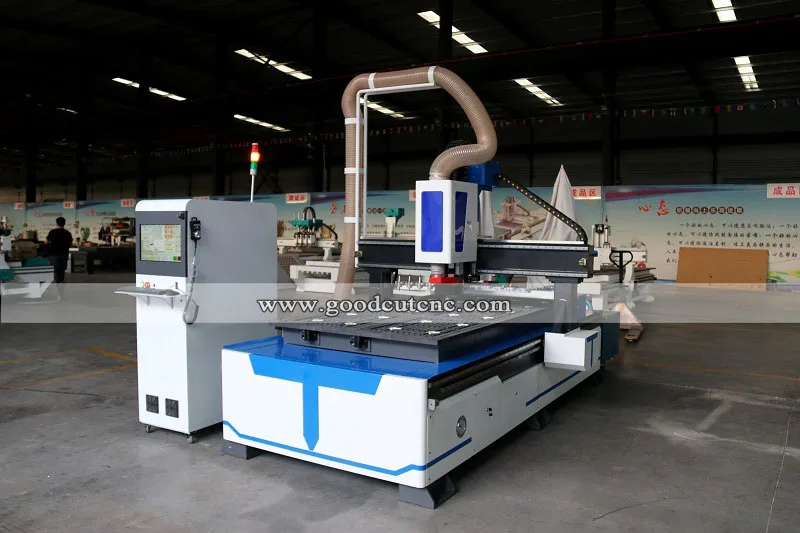

1325 atc four process cnc route for machine woodworking
Description | Parameter |
Tool magazine | Round or Carrousel type auto tool changer with 12 tools storage |
X,Y,Z Working Area | 1500x3000x400mm |
Table Size | 1500×3000mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot working table, 6 zones; 2 pieces roller in the front of table |
Structure | Industrial class square tube strong structure, heavy duty 8-10mm |
X, Y Structure | Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail; Dust cover for Y axis |
Z Structure | Sweden ABBA #30 Linear Square Rail and TBI Ball Screw |
Spindle | Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90° ISO30 tool holder |
Spindle Speed | 0-24000RPM |
Drive Motors | 850wJapan YASKAWA servo motors and 1kw drivers |
Inverter | 11kw Taiwan DELTA inverter |
Working Voltage | 220v, 3phase, 60HZ (or customized) |
Command Language | G Code |
Operating System | Taiwan SYNTEC 21MA 4 axis control System with handle |
Computer Interface | USB |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software | UG |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Lubrication system | Automatic lubrication system |
Tool sensor | Automatic tool sensor calibration |
Position cylinder | Auto Position cylinder |
Optional | Japan Shimpo reducer; 4kw vacuum pump; Automatic oil sprayer cooling system; new type 1.5kw double pocket dust collector; |
Product Description
Model | GC-1325 ATC cnc router |
Working Area | 1300*2500mm |
Z-axis working area | 300mm |
Resolution | +/- 0.01mm |
Max. Cutting Speed | 70m/min |
X- and Y- axis transmission | Germany Herion 1.5MRack and Pinion |
Z-axis transmission | Germany TBI Ball Screw |
Guide rail | Taiwan Hiwin 25mm Linear rail |
Spindle | 9.0KW, air-cooling,HSD/HQD |
Working Mode | Japan yaskawa 750W Servo motor |
XY Transmission | Imported Rack |
Z transmission | Taiwan TBI Ball screw |
Reudcer | Japan Shimpo |
Product Features
1) Weihong control system: Popular and easy operation, with USB port to transfer program;
2) China Local Brands air-cooling ATC spindle HQD: Long working life, easy maintenance;
3) Taiwan Delta Servo Driving System: With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide 30mm and Block: Guaranteed genuine rail with good quality,realizing smooth movement;
5) Taiwan TBI ball screw: linear motion with high precision and and in high speed
6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;
8) Linear tool magazine, with Tool holders x 8pcs and Toolholder fork x 12 pcs, effectively improve working efficiency.
9). Optional: Loading and unloading platform, Scanning gun, Dust collector.
Details
Spindle

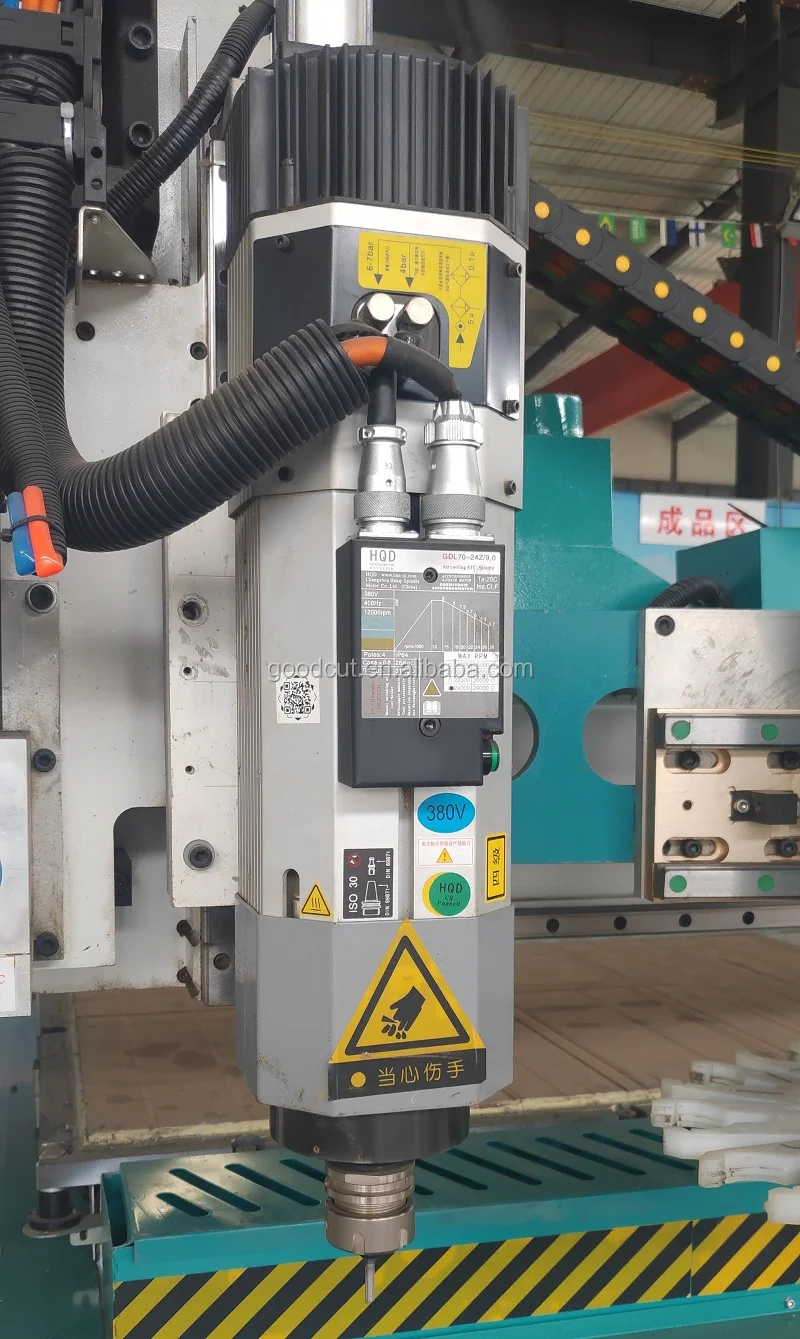

HQD,HSD.Long lifespan, low noise, free maintenance.
Drive motor
Yaskawa Motor Driver
Inverter
Taiwan Delta Inverter / Fuling Inverter
Guide Rails
HIWIN Guide Rail.Fast running speed and strong bearing capacity.
CNC Frame
Heavy duty frame.

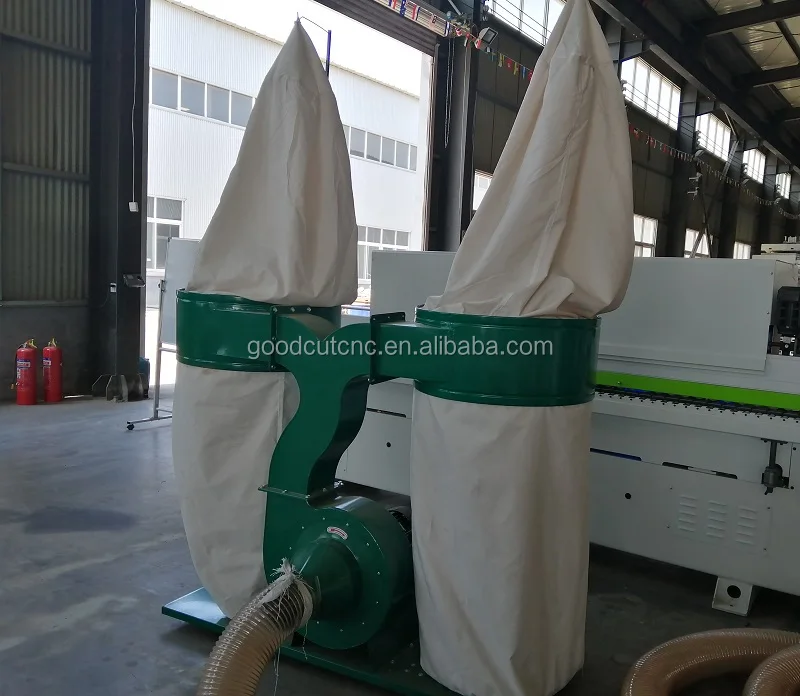

Dust collector:
Advantages
1. High accuracy, long service time, steady movement
2. Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.
4. 9KW air cooling power change knife spindle to ensure the machine can be vigorous cutting
5. Breakpoint power function for carving
6. Auto lubricating system, one touch can finish periodic maintenance easily.
7. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa. Intelligent processing
8. Cross-border protection, prevent to design board face more than processing wide of the mechanical collision caused phenomenon
9. Auto-tool Changer system, Tool magazine capacity of 8-12 tools
Applications
1)Mould: wood,wax, wood, gypsum,foams
2)Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3)The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4)Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5)Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
