Hot Sale Genuine Custom Range Micro Flatbed Pressure Load Cell For Clamping Force Measurement
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1600698220195):
Product Overview
Description
Specifications | Technique |
Capacity | 10,20,50,100,200,500kg |
Rated output | 1.0±10%mV/V |
Zero balance | ± 0.03mV/V |
Non-linearity | 0.5%F.S. |
Hysteresis | 0.20%F.S. |
Repeatability | 0.20%F.S. |
Temp.effect on output | 0.1%F.S./10℃ |
Temp.effect on zero | 0.1%F.S./10℃ |
Input impedance | 700±20Ω |
Output impedance | 700±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~15V |
Maximum excitation | 20V |
Compensated temp range | -10~60℃ |
Operation temp range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ3×3000mm |
Material | Stainless Steel |
If you need different capacity, please contact us to get info and price, support customization
Features

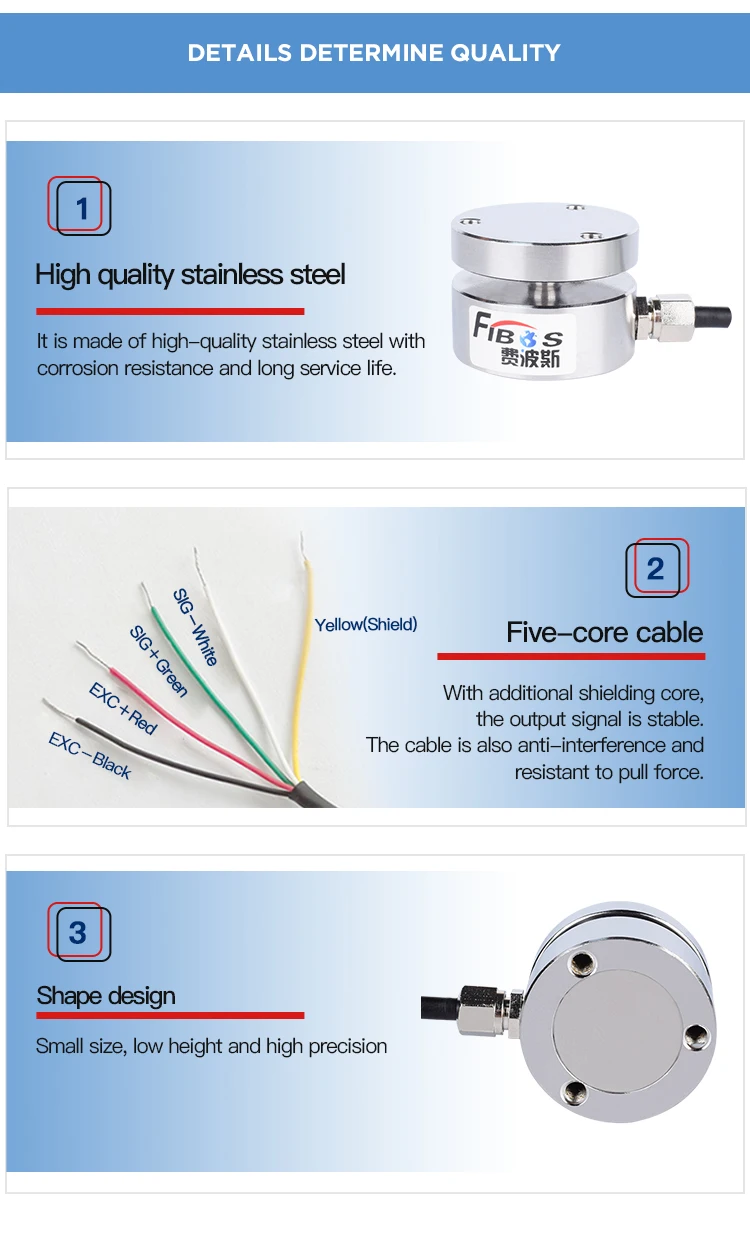

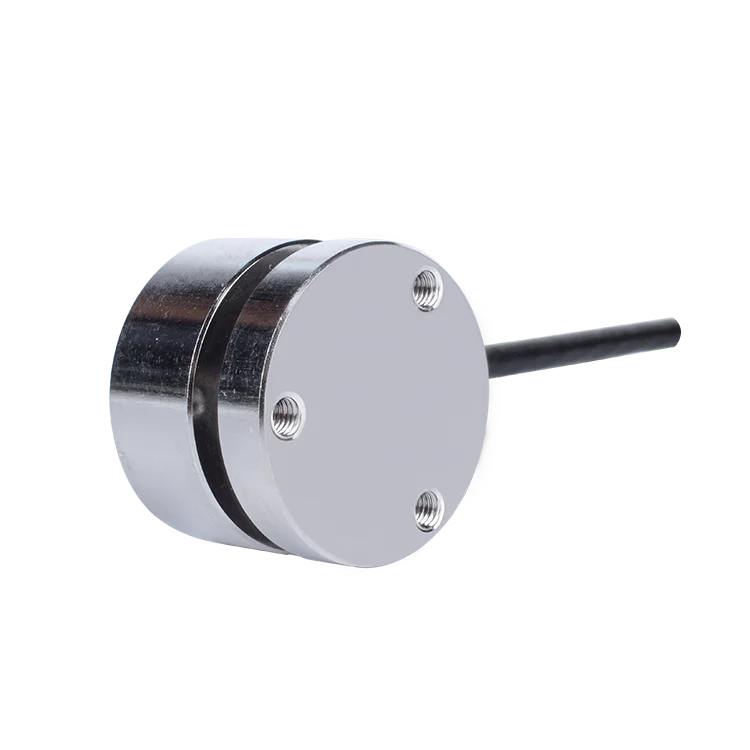

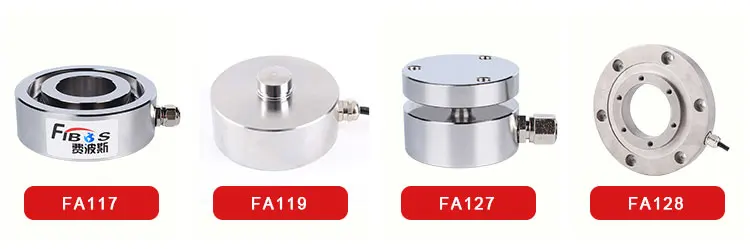

Micro flatbed pressure load cell FA127 is made of stainless steel. The subminiature load cell has six measuring ranges, respectively 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG. The subminiature flange force sensor can be used in many applications.
* Mini size
* Small deformation
* High precision
Applications
* 3C product testing
* Robotics
* Clamping force measurement
Micro flatbed pressure load cell FA127 is made of stainless steel. The subminiature load cell has six measuring ranges, respectively 0-10KG,0-20KG,0-50KG,0-100KG,0-200KG,0-500KG. The subminiature flange force sensor can be used in many applications.
* Mini size
* Small deformation
* High precision
Applications
* 3C product testing
* Robotics
* Clamping force measurement

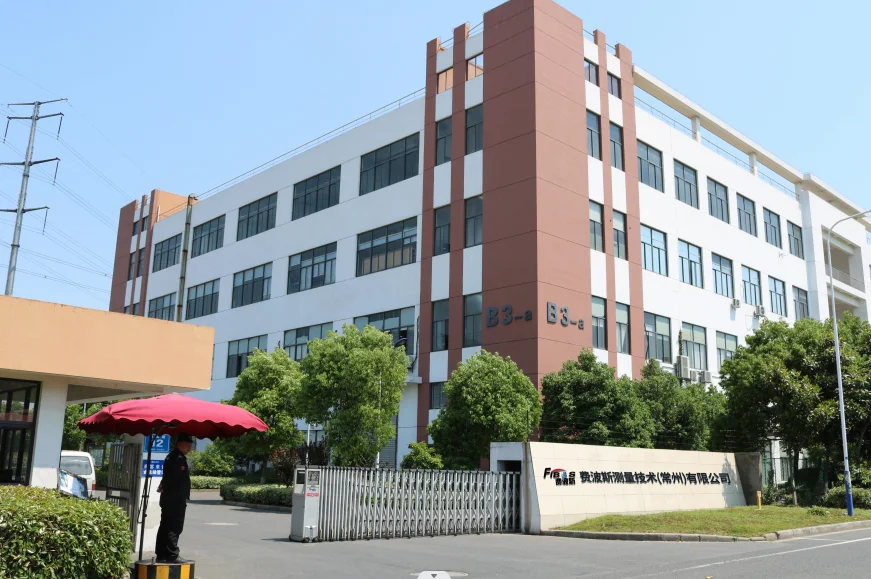

Company Profile
