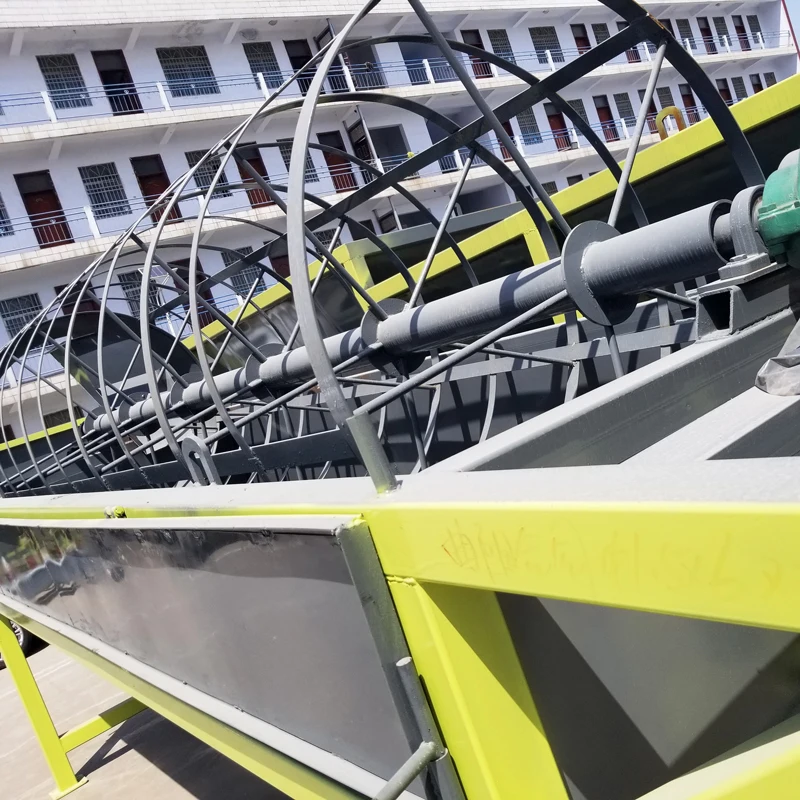

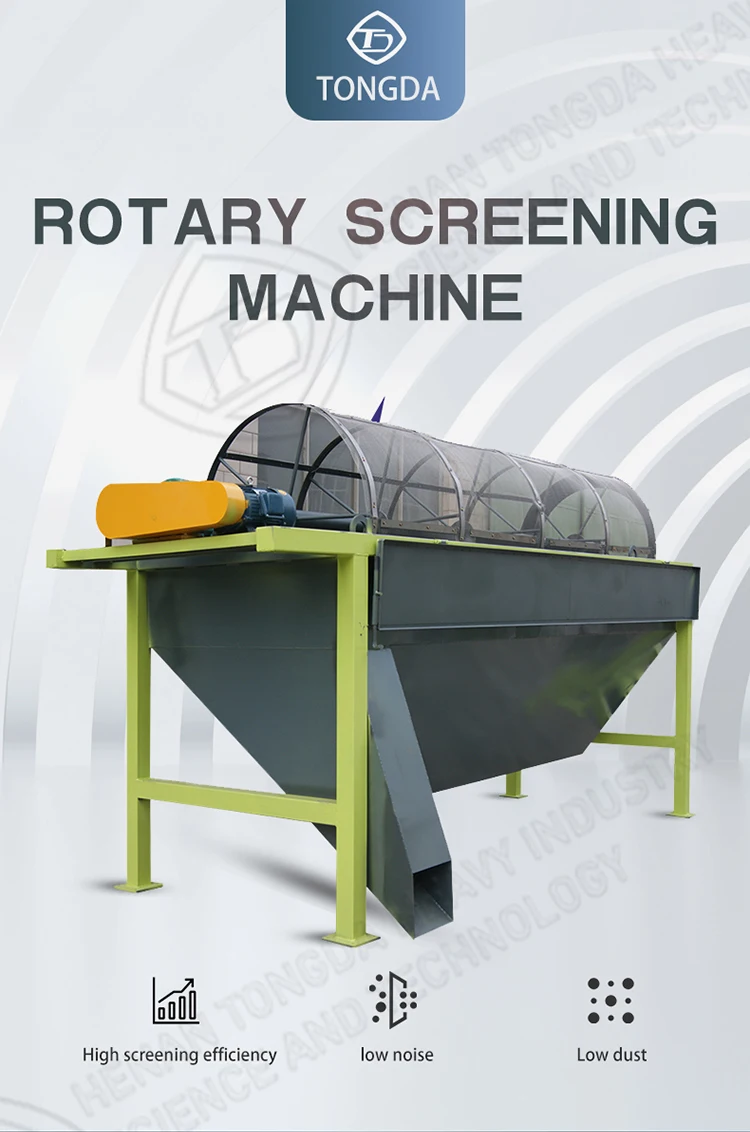

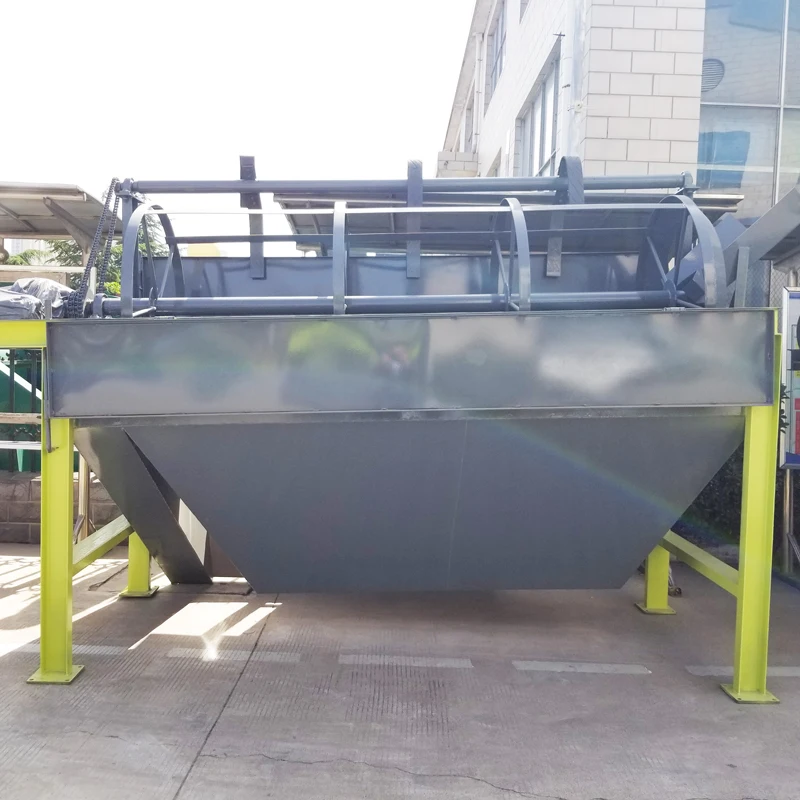

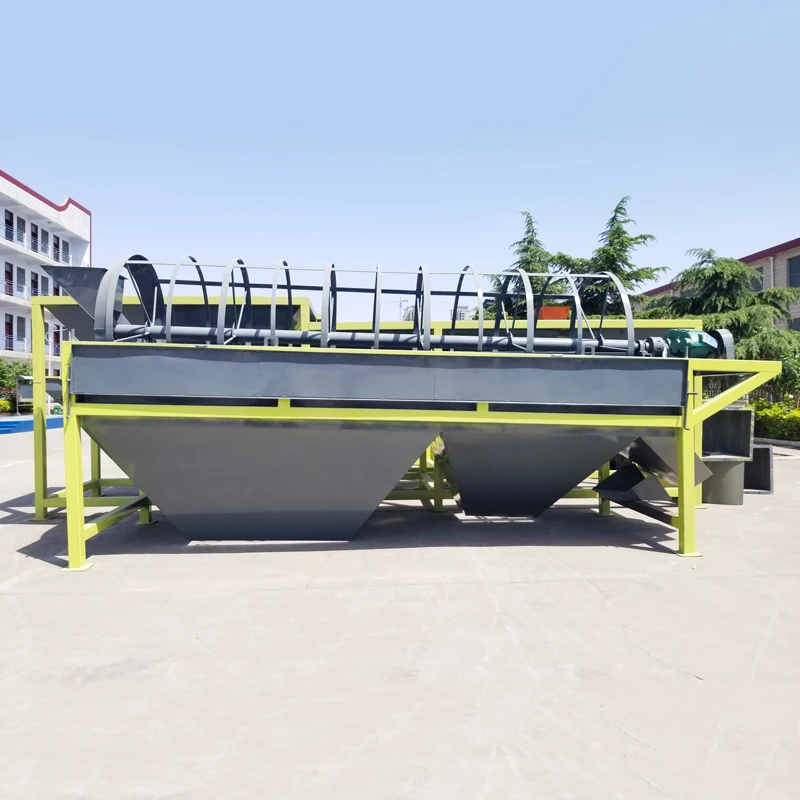

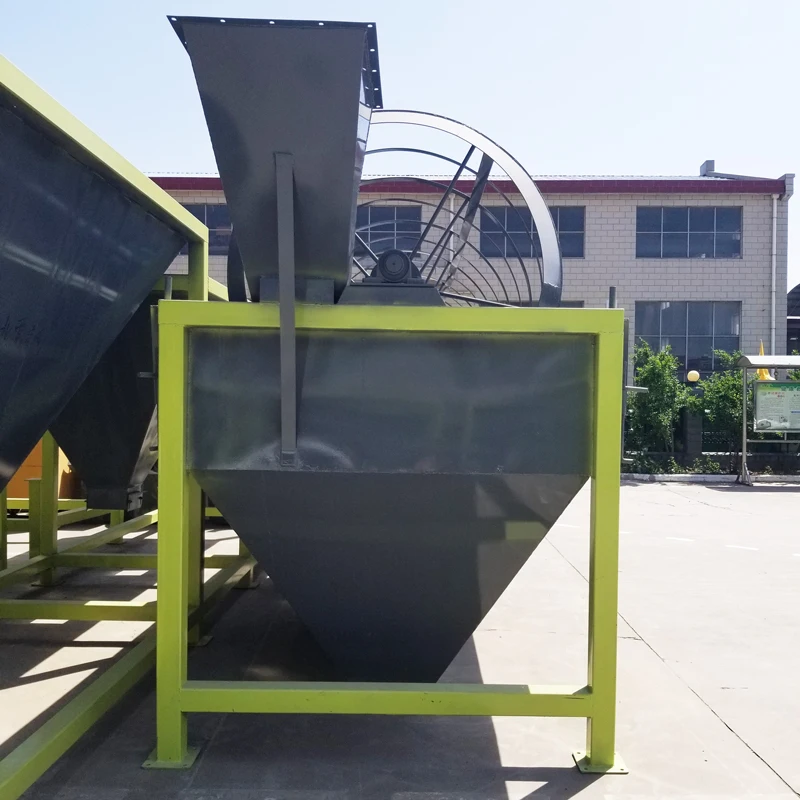

Rotary Screen Machine Compost Organic and Compound Fertilizer Screening

Product introduction

The rotary screening machine is a new type of self-cleaning screen special equipment after the electric vibrating screener and the ordinary network type roller screen produced by the domestic companies.It is widely applicable to sieving of various solid materials with particle size less than 300mm.It has many characteristics such as high screening efficiency,low noise,small amount of dust,long service life,less maintenance,and its screening capacity is 1t/h-20t/h.

Performance characteristics

1.High screening efficiency.Because the equipment has a plate cleaning mechanism, it can never block the screen, thus improving the screening efficiency of the equipment.

2.Good working environment.The entire screening mechanism is designed in the sealed dust cover, completely eliminating the dust flying phenomenon in the screening and improving the working environment.

3.Low noise of the equipment.During operation, the noise generated by the material and the rotating screen is completely isolated by the sealed dust cover, which reduces equipment noise.

4.Convenient maintenance.The equipment seals the equipment observation window on both sides of the dust cover, and the staff can observe the operation of the equipment at any time during work.

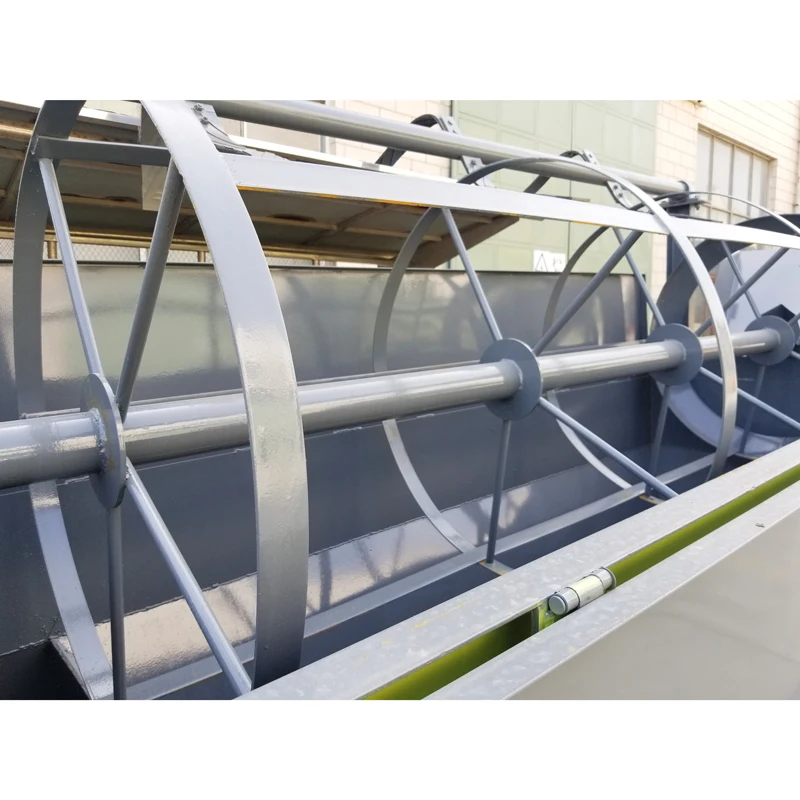

5.Long service life.The equipment screen is composed of several annular flat steels, and its cross-sectional area is much larger than the screen cross-sectional area of other separation equipment screens.

Working principle

The self-clearing cage drum screening machine performs reasonable rotation of the equipment center separation cylinder through the gearbox type deceleration system. The center separation cylinder is a screen composed of several annular flat steel rings. The center separation cylinder is installed with the ground plane. In the inclined state, the material enters the cylinder net from the upper end of the central separation cylinder during the working process. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of the annular flat steel, and the coarse material is separated from the lower end of the separation cylinder. Drain into the pulverizer. The device is provided with a plate type automatic cleaning mechanism. During the separation process, the screen body is continuously "combed" by the cleaning mechanism through the relative movement of the cleaning mechanism and the sieve body, so that the sieve body is always cleaned throughout the working process. It will not affect the screening efficiency due to the clogging of the screen.

Main Technical Parameters:

Notice:

And we also have other fertilizer processing equipments,like compost turner,crushing equipments,mixing equipments,drying and cooling machines and auxiliary equipments.

The different BB fertilizer,organic fertilizer and compound fertilizer production line and water-soluble fertilizer fermentation equipment can be provided too.

Pre-sale Service:

1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.

After-sales Service:
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

Notice:
1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.

1. What is your minimum order quantity, can you send me samples?
The minimum order quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples; however, online brochure is available under request and we warmly welcome you to visit our company.
2.How about price?
We can give you the lowest price than market one, of course, the discount is based on the quantity.
3. How can I get to your factory?
Our factory is near Zhengzhou Xinzheng Airport, we can pick you up from the airport.
4. Can the machine be customized according to our needs, such as put on our logo?
Surely the machine can be customized accoridng to your specific requirements, putting your logo on is also available and region agents are welcomed.
5.About the aftersale service, how can you solve the problems occurred of your overseas customer in time?
The machine warranty is 12 months, we have engineers available to help you solve your problems during that period.
