RJX custom cnc carbon fibre parts carbon fiber sheet products
US $10.26-$13.55
300D 600D 1000D 1500D aramid fiber fabric cloth
- Category: Fabric >>>
- Supplier: Yixing,Huaheng,High,Performance,Fiber,Textile,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Aramid fiber fabric
The full name of aramid is called PPTA. It is a new synthetic fiber with high strength and modulus.Its weight is 1/5 of steel,strength is 5-6 times of it, modulus is 2-3 times of steel,tenacity is 2 times of it.
It is weaved mainly by para-aramid fiber 200D 400D 600D 800D 1000D 1500D 3000D. Weave pattern including plain,twill,satin.This is made by 1000D with plain weave.
Aramid fiber fabric
Features
1. Good performance of insulation,heat resistance,aging resistance, flame retardant, spinnability.
2. High strength,high modulus.
3. Strong toughness,corrosion resistance,Good knitting.
Application
Its application mainly including aerospace, bulletproof vest, electromechanic equipment, building reinforcement, auto and sports equipment.
Warmly note:Aramid fiber fabric should be stored in dry and well-ventilated place and protect from sunlight.
Product Name | Aramid/ kevlar woven fabric |
Material | kevlar 29 aramid fiber DuPont yarn |
Color | Yellow |
Weave pattern | Twill |
Fiber count(10mm) | 9*9 |
Warp yarn | 1000D |
Weft yarn | 1000D |
Width(mm) | 1000 |
Weight(g/m2) | 200 |
Thickness(mm) | 0.26 |
Length(m) | 100m per roll |
Surface | Smooth |

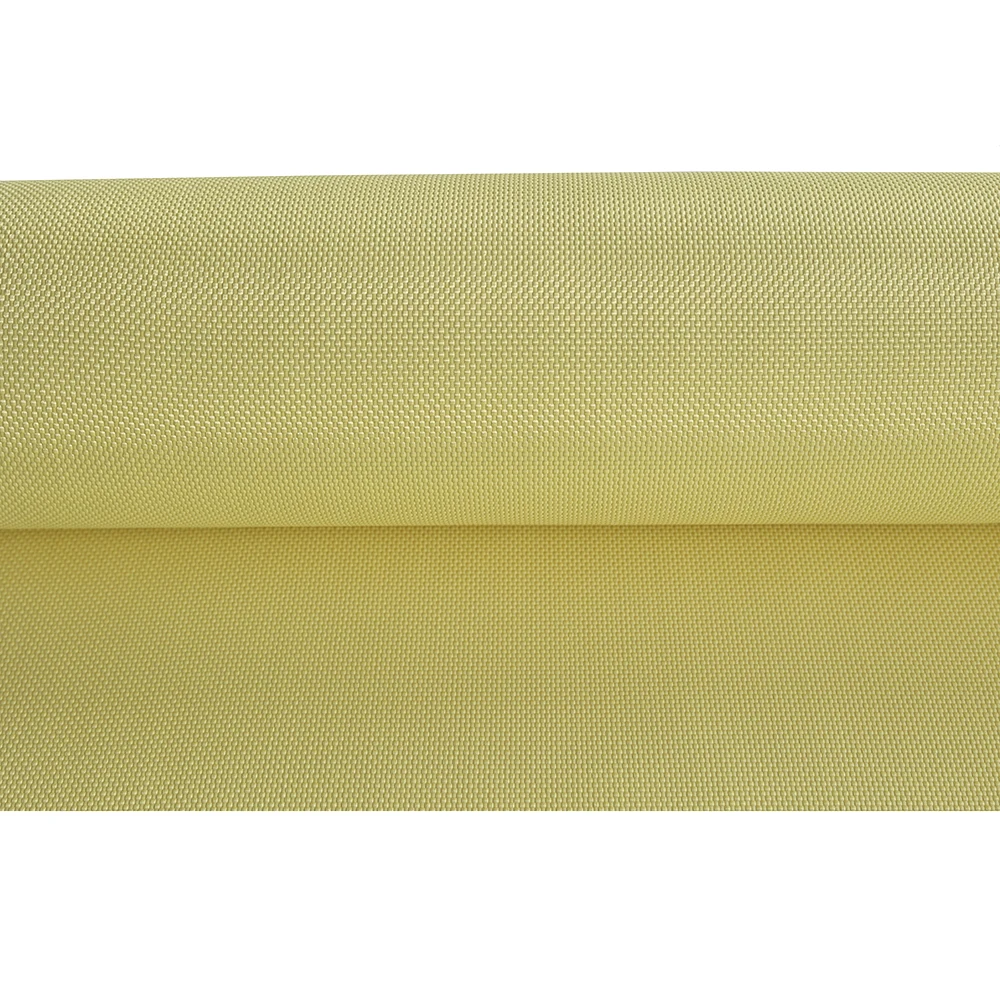

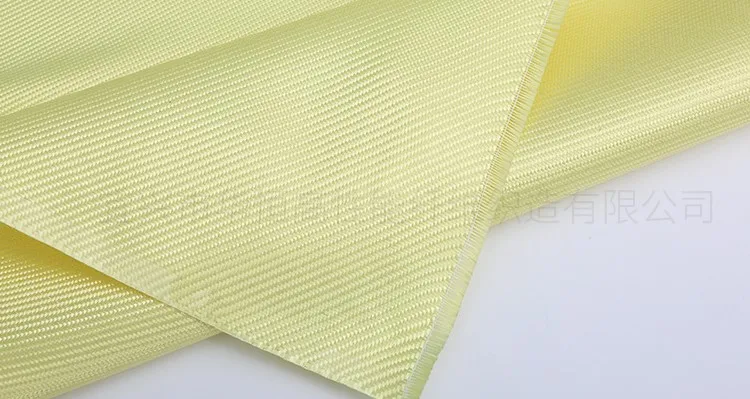

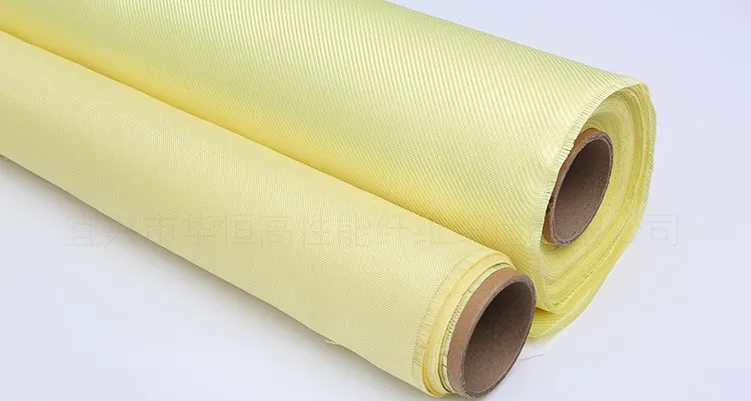

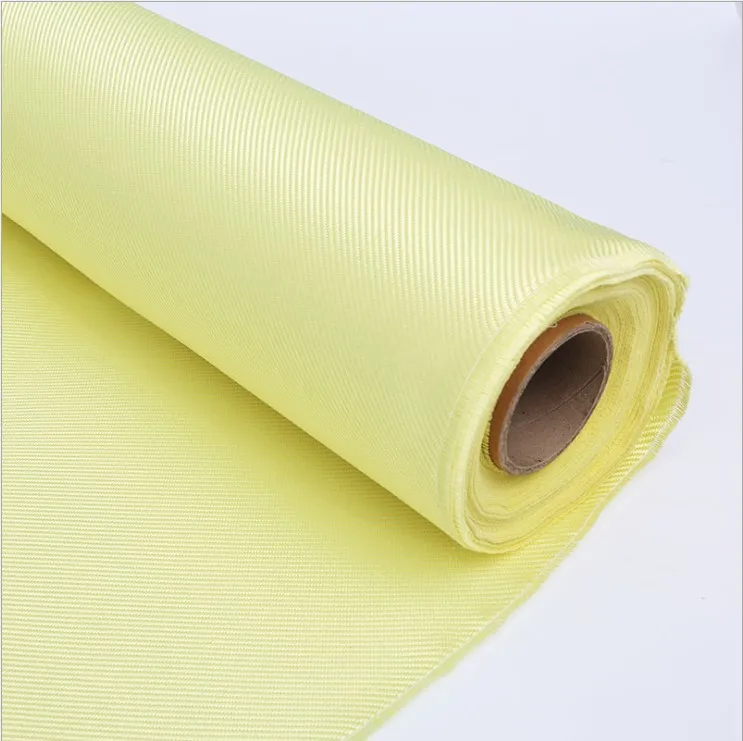

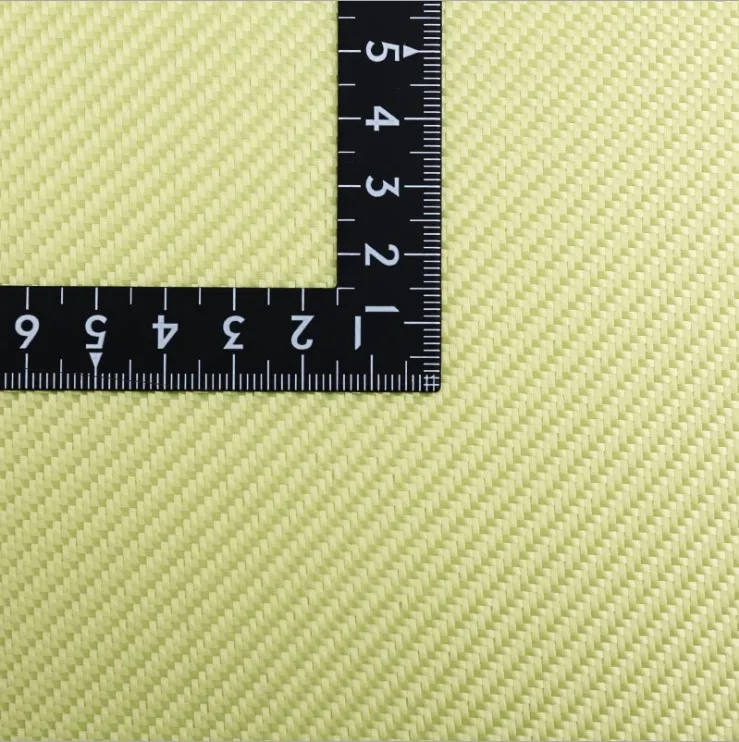

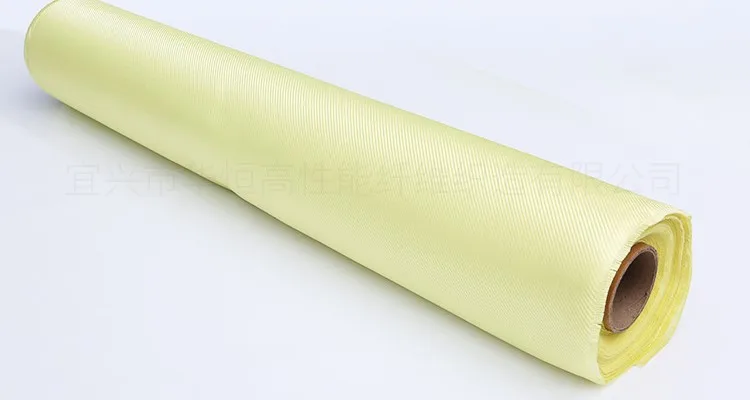

Detailed Images
Related Products

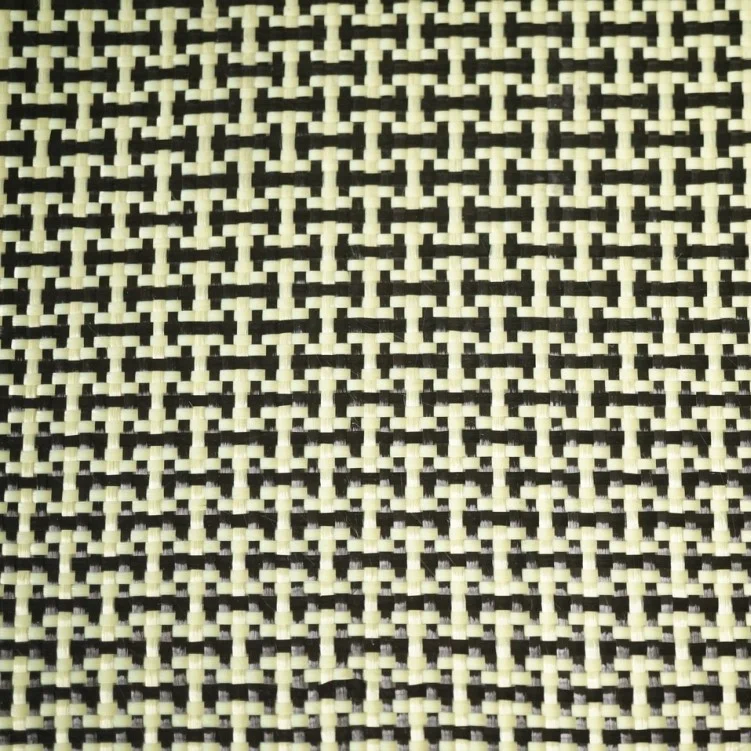

Carbon aramid fiber hybrid jacquard fabric
Carbon aramid fiber hybrid fabric
Carbon aramid fiber hybrid fabric
Carbon aramid breided sleeve
Aramid braided sleeve
Carbon aramid fiber hybrid fabric
Derivative products
Aramid Jacquard fabric,Hybrid fabric-with other high performance fibers (carbon,UHMWPE,basalt,fiberglass...),Unidirectional fabric,Textile tape,Textile sleeve/braid,Chopped filoer,3D textile.
Packing & Delivery
Packing: export standard packing or customized as your requirement.
Delivery: by sea/by air/by DHL/Fedex/UPS/TNT/EMS or other way you prefer.
Our Company
YIXING HUAHENG HIGH PERFORMANCE FIBER TEXTILE CO.,LTD
Our company founded in 2001,is professionally engaged in weaving, researching and developing each kind of fiber with high performance. The company mainly take the high strength composite material as the raw material, such as carbon fiber, aramid fiber,basalt fiber,glass fiber.HSHMPE fiber,PBO and so on to weave the composite product.
At the same time,the company has applied for 3 patents for the aboved research and also has past the reliable quality guarantee system,such as ISO9001,2000quality systems authentication.
Since 2009 the company developed five major categories of fiber-reinforced composite products:
1.COMPSPEED Kevlar fabric ,basalt fiber fabric,high strength and high modulus polyethylence fiber fabric.
2.COMPSPEED carbon fiber fabric prepreg,glass fiber fabric prepreg
3.COMPSPEED carbon fiber bicycle parts,carbon fiber motorcycle parts,carbon fiber car parts,carbon fiber sword,carbon fiber composite core,carbon fiber molded products,carbon fiber laptop case,carbon fiber laptop cooling pad
4.COMPSPEED FRP fiberglass,CFRP carbon fiber tubes,carbon fiber kite skeleton,carbon fiber mosquito nets rod,carbon fiber composite core,carbon fiber hamess frames,blinds fiberglass,carbon fiber rod.
5.COMPSPEED carbon fiber composite guide rollers,carbon fiber high-speed printing rollers, golf clubs,carbon fiber trekking poles,carbon fiber ski poles,carbon fiber walking poles (WALKING STICK)
In june 2010,we made cooperation with national technology and research organization, developed the 3D textiles till now we have authorized 2 invention patents and 16 new Utility Patents.
We have professional factories and equipment.There is a certain amount of inventory in warehouse, so we can guarantee fast delivery.
+ Several years production and processing experiences
+ Precision machining tolerances
+ Delivery Date Guarantee
+ 100% factory price
Certifications
Business license
ISO9001
Foreign trade license
Our patent certificates
Our Exhibition
China Composite Expo
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on carton?
A: Yes. Please inform us formally before our production and confirm the design.
Q6: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
