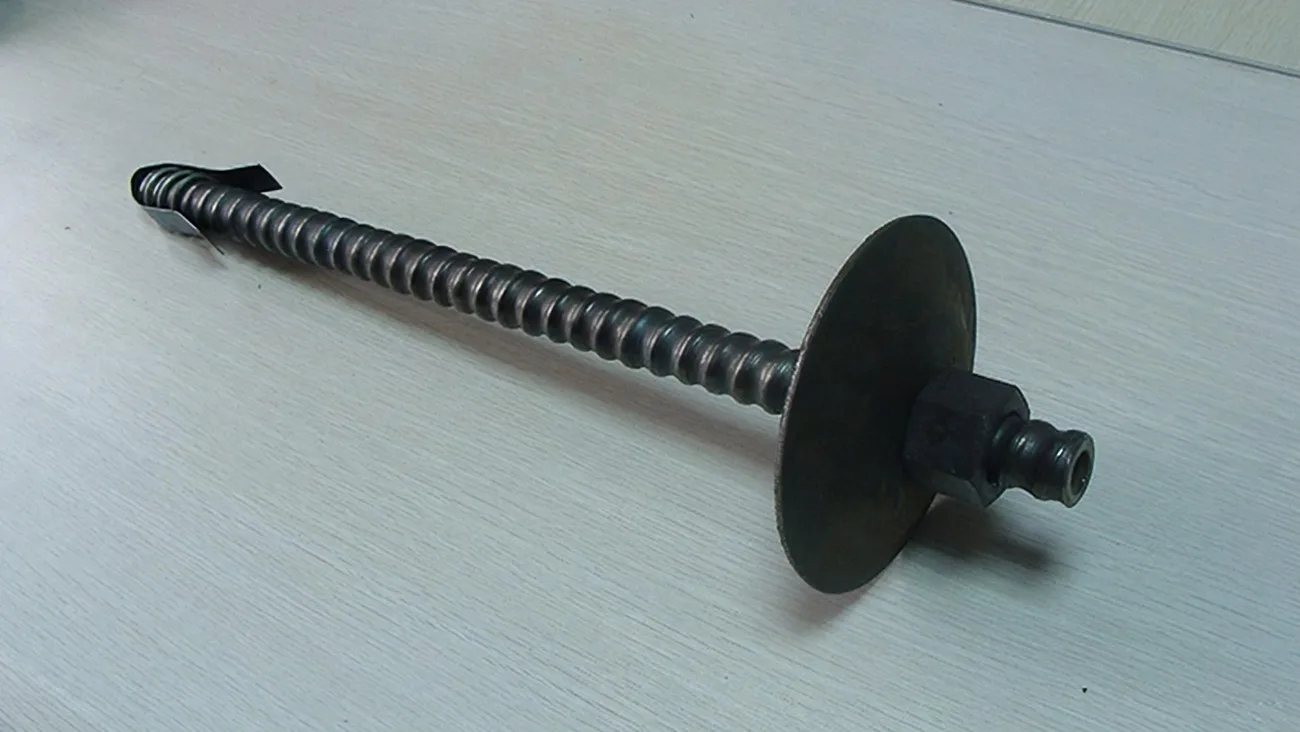

HENGDA ISO Standard R32 Tunnel Forepoling SDA Rock Reinforcement Support Bolts
- Category: >>>
- Supplier: Shandong Hengda Engineering Materials Co. Ltd.
Share on (1600698281122):
Product Overview
Description
Product Description

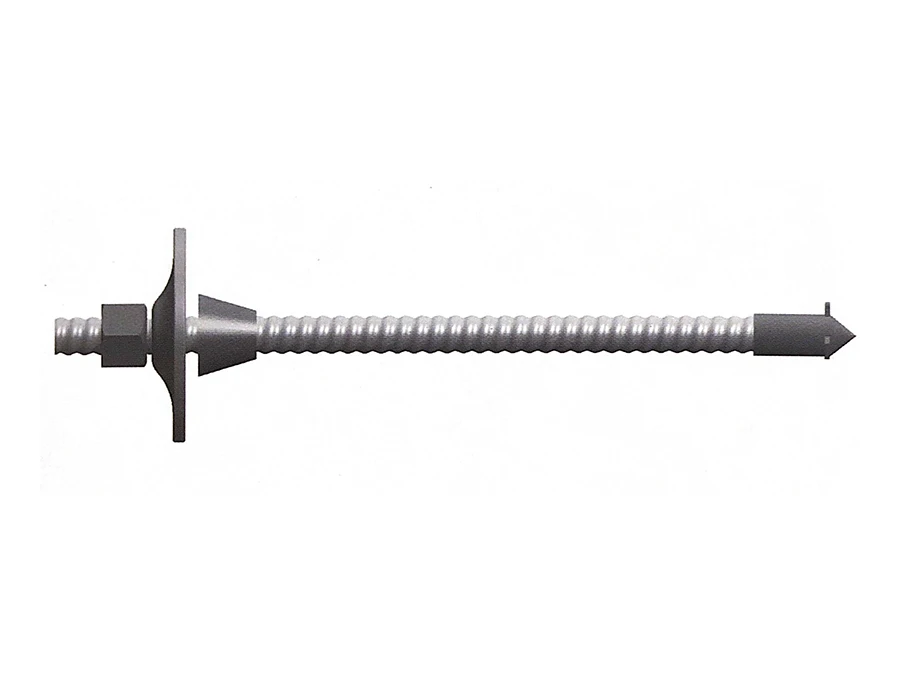

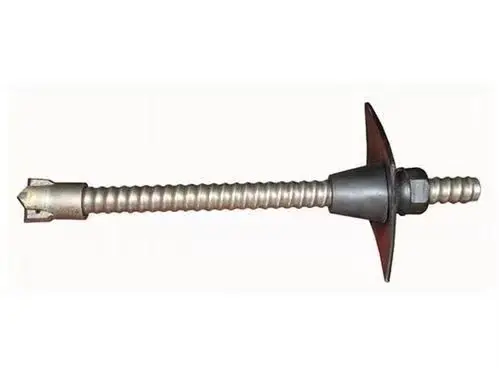

Full threaded steel self drilling rock bolt / Hollow anchor bar / Anchor rods

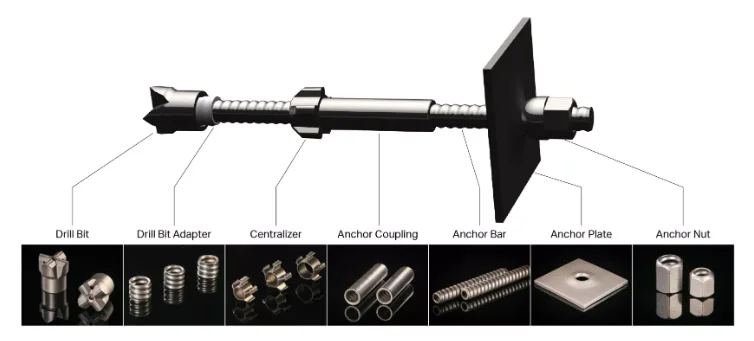

The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs
drilling,anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization,
tunneling pre-support, foundations with micro piles etc projects.
Advantages and Characteristics as below:
1. No casings required, because anchor bars can be drilled into loose soils without needing casings to support the boreholes.
2. Fast drilling and installation, because drilling, installation and grouting are in a single operation.
3. Both rope threads and trapezoid threads are robust and ideal for rotary-percussive drilling and ensuring a high level of
bondwith the borehole gout.
4. The hollow core not only serves for flushing during drilling, but also for grouting after drilling.
5. Continuous threads ensure the bars can be cut and coupled at any point, or extended.

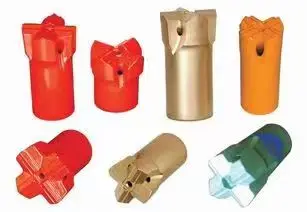

6. Different anchor bits are available for different ground conditions.
The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs
drilling,anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization,
tunneling pre-support, foundations with micro piles etc projects.
Advantages and Characteristics as below:
1. No casings required, because anchor bars can be drilled into loose soils without needing casings to support the boreholes.
2. Fast drilling and installation, because drilling, installation and grouting are in a single operation.
3. Both rope threads and trapezoid threads are robust and ideal for rotary-percussive drilling and ensuring a high level of
bondwith the borehole gout.
4. The hollow core not only serves for flushing during drilling, but also for grouting after drilling.
5. Continuous threads ensure the bars can be cut and coupled at any point, or extended.
6. Different anchor bits are available for different ground conditions.
R-Thread Hollow anchor Bar | ||||||||
Size | Outer Dia.(mm) | Ultimate Lad(kN) | Yield Load(kN) | Weight(kg/m) | ||||
R25N | 25 | 200 | 150 | 2.35 | ||||
R32L | 32 | 210 | 160 | 2.8 | ||||
R38N | 38 | 500 | 400 | 5.45 | ||||
R51N | 51 | 800 | 630 | 8.15 | ||||
T-Thread Hollow anchor Bar | ||||||||
T30L | 30 | 220 | 180 | 2.9 | ||||
T40S | 40 | 660 | 525 | 6.8 | ||||
T52N | 52 | 929 | 730 | 10.2 | ||||
T73L | 73 | 1160 | 970 | 13.2 | ||||
T76S | 76 | 1900 | 1500 | 19.7 | ||||
T103N | 103 | 2270 | 1800 | 23.5 | ||||
T111N | 111 | 3650 | 2750 | 34.5 | ||||
T127L | 127 | 2400 | 1810 | 30.5 | ||||
T130S | 130 | 7940 | 5250 | 78 | ||||
T150S | 150 | 8400 | 5600 | 108 | ||||
T200S | 200 | 14230 | 9500 | 183 | ||||

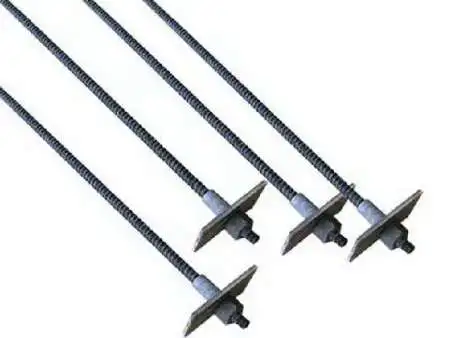

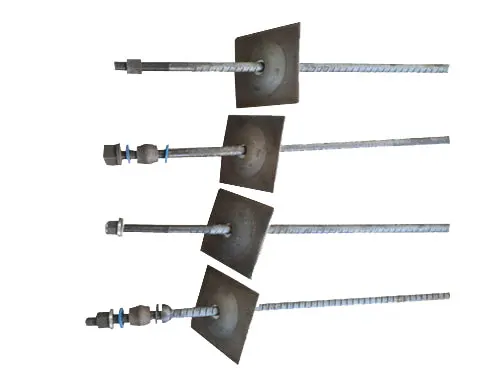

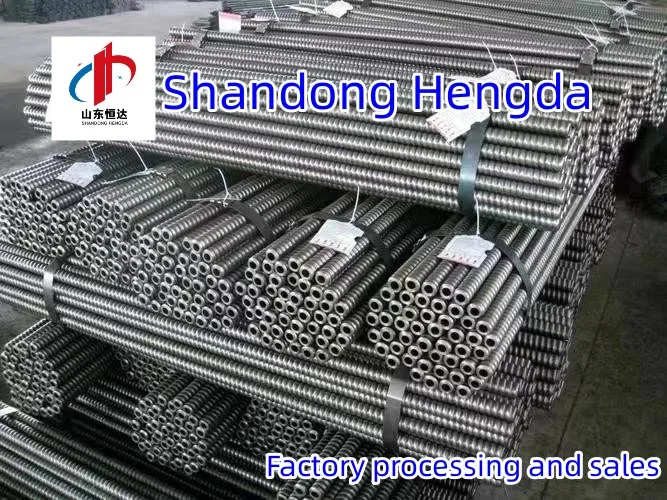

Product display

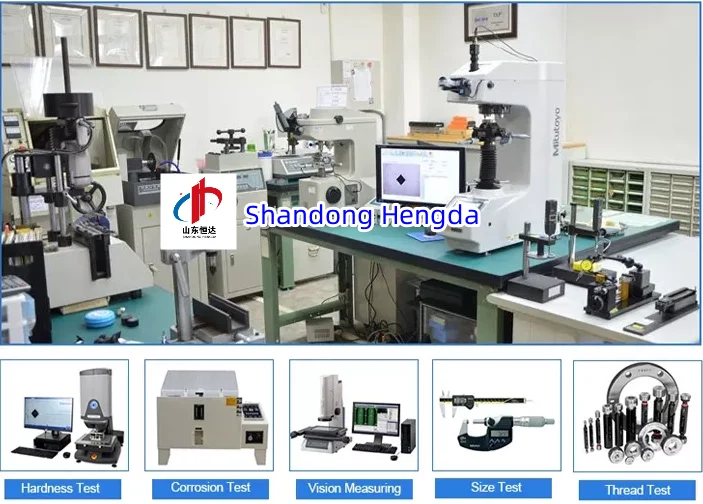

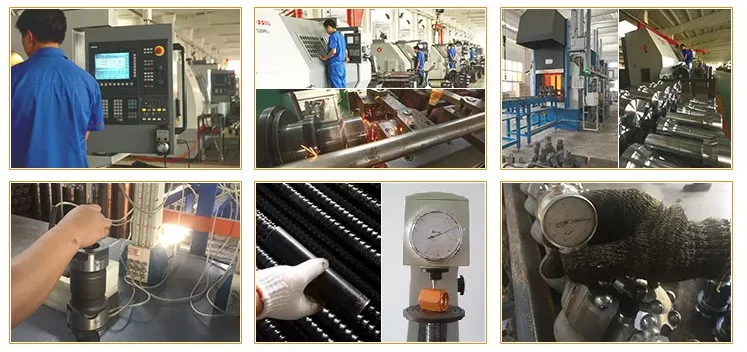

Manufacturing Technique

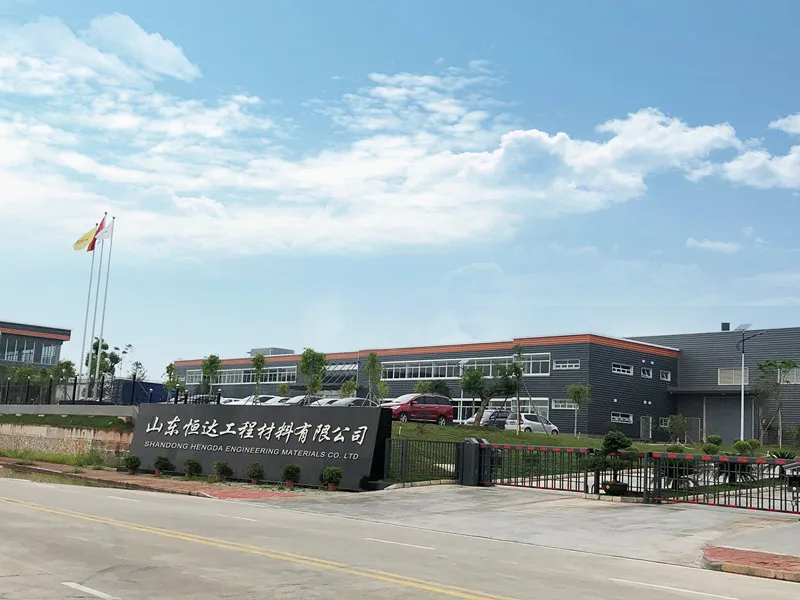

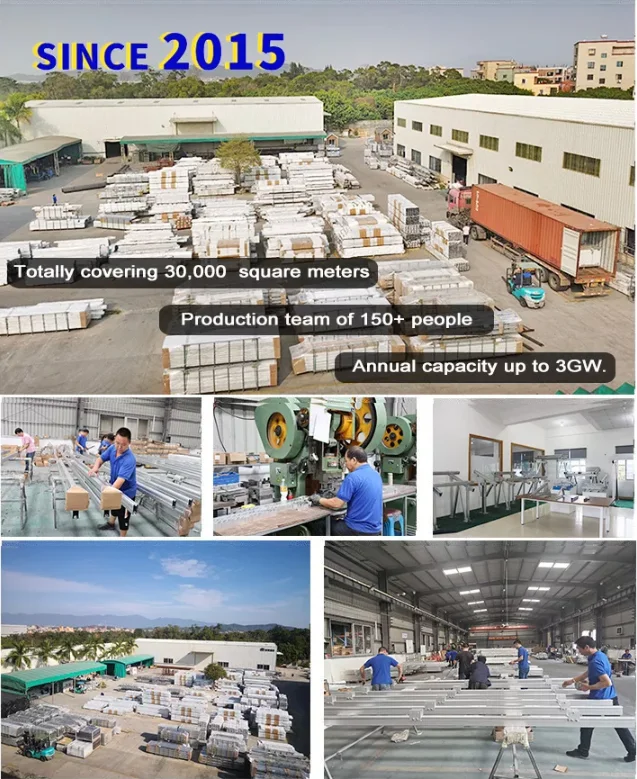

Why Choose Us
Shandong Hengda Engineering Materials Co., Ltd. is an enterprise integrating production, manufacturing and sales of all kinds of steel products. With 20 years of export experience, it is sold to major foreign cities. Adhering to the principle of quality first and service foremost, we hope to establish long-term cooperation with foreign friends. We welcome major purchasers to come and inquire!
Packaging & Transport
FAQ
Q. Are you a factory or a pure trading company?
A: We are a factory.
Q. Are your prices competitive?
A: for the same quality, our price is lower, for the same price, our quality is the best better.
Q. What are your company's strengths?
A: Factory spot, competitive prices, excellent quality, support factory inspection, video call at any time, technical support in
24/7. Simultaneously, we have participated in many international projects.
Q. Whether to support OEM or ODM?
A: We welcome customers to cooperate with us by OEM or ODM. We have a professional technical team, can be customized according to
drawings or requirements.
Q. What trade terms do you usually use?
A: We use FOB, CIF, C&R, DDU, DDP.
Q. What is your usual delivery time?
A: From the execution date of the PI, spot products will be delivered within 3 days, and customized products within 15 days.
Special circumstances, please communicate again. All our products have strict quality inspection before they leave the factory, to
ensure that you receive the goods with excellent quality.
Q. What are your terms of payment?
A: We use TT and LC, or any other payment method available.
A: We are a factory.
Q. Are your prices competitive?
A: for the same quality, our price is lower, for the same price, our quality is the best better.
Q. What are your company's strengths?
A: Factory spot, competitive prices, excellent quality, support factory inspection, video call at any time, technical support in
24/7. Simultaneously, we have participated in many international projects.
Q. Whether to support OEM or ODM?
A: We welcome customers to cooperate with us by OEM or ODM. We have a professional technical team, can be customized according to
drawings or requirements.
Q. What trade terms do you usually use?
A: We use FOB, CIF, C&R, DDU, DDP.
Q. What is your usual delivery time?
A: From the execution date of the PI, spot products will be delivered within 3 days, and customized products within 15 days.
Special circumstances, please communicate again. All our products have strict quality inspection before they leave the factory, to
ensure that you receive the goods with excellent quality.
Q. What are your terms of payment?
A: We use TT and LC, or any other payment method available.
