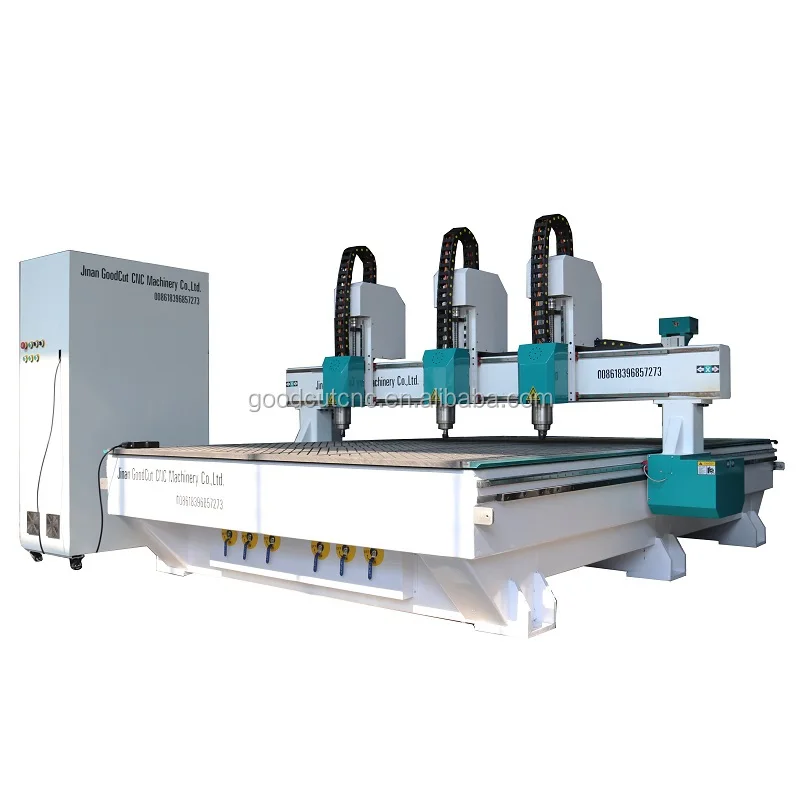

3 axis kits cnc wood router multipurpose woodworking machine
- Category: >>>
- Supplier: Jinan Youteng Numerical Control Equipment Co. Ltd.
Share on (1600698281183):
Product Overview
Description
3 axis cnc wood router multipurpose woodworking machine with automatic tool changer spindle motor
X,Y,Z Working Area | 1300x2500x200mm | |
X, Y, Z Traveling Positioning Accuracy | ±0.03/300mm | |
X, Y, Z Repositioning Accuracy | ±0.03mm | |
Table Surface | T-slot working table | |
Frame | Welded Structure | |
X, Y Structure | helical rack, PMI Rail Linear Bearings | |
Z Structure | PMI Rail Linear Bearings and TBI Ball Screw | |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw | |
Max. Rapid Travel Rate | 33000mm/min | |
Max. Working Speed | 25000mm/min | |
Spindle Power | 3.2 KW water cooling spindle | |
Spindle Speed | 0-24000RPM | |
Drive Motors | Stepper System | |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) | |
Command Language | G Code | |
Operating System | Mach3 for 3 axis | |
Computer Interface | USB | |
Flash Memory | 128M(U Disk) | |
Collet | ER25 | |
X,Y Resolution | <0.01mm | |
Software Compatibility | Ucancame/ Artcam | |
Running Environment Temperature | 0 - 45 Centigrade | |
Relative Humidity | 30% - 75% |
Product Description
Item | Discription |
X,Y,Z Working Area | 2000x3000x200mm other size can be customized |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum adsorb table , Aluminum table |
Frame | cast by iron |
X, Y, Z Structure | Hiwin Rail Linear Guide and TBI ball screw |
Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 2kw~3Kw |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 18000mm/min |
Spindle Power | 3.2KW water cooling spindle* |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper Motor, servo motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Inverter | Fuling,Delta,BEST |
Electrical components | Schneider |
Limit switch | OMRON |
Product Features
1)Welded steel pipe lathe bed, strong and never out of shape.
2)Double motors and drivers of Y axis which can ensure steady movement.
3)Rack gear transmission ensures fast speed and high accuracy.
4)Imported square rail ensures high accuracy and heavy workload.
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials.
6)Vacuum table with 6 vacuum zones, which can absorb different size materials. With 5.5kw vacuum pump, high suction, more convenient, stable capability.
7)Imported square rail ensures high accuracy and heavy workload.
8)Humanistic design,the machine can be disassembled,so it is easily transported.
9)Optional: Rotary device etc.

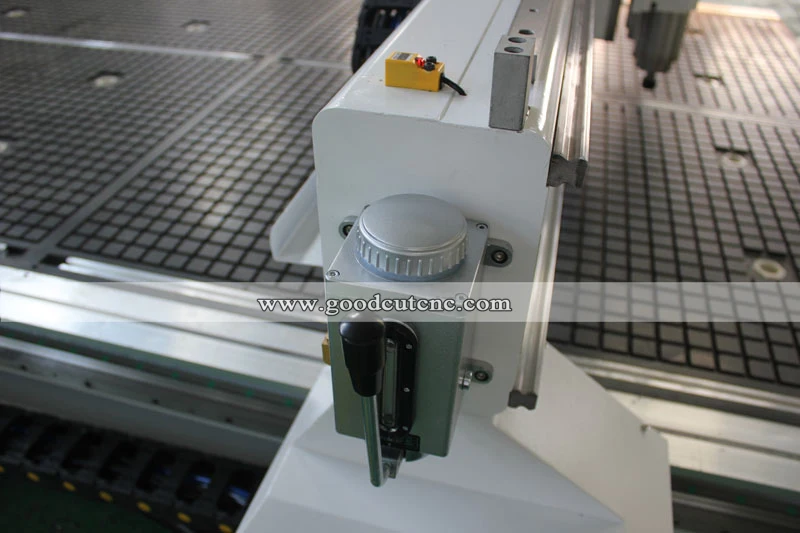

Details

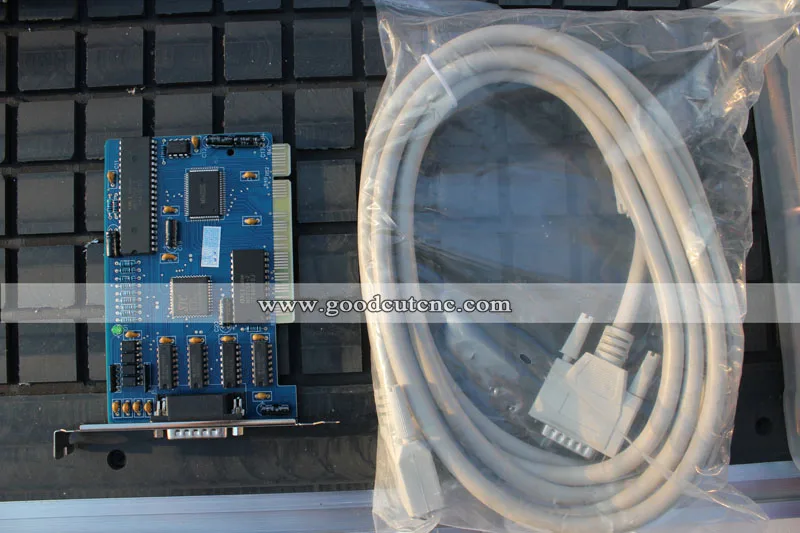

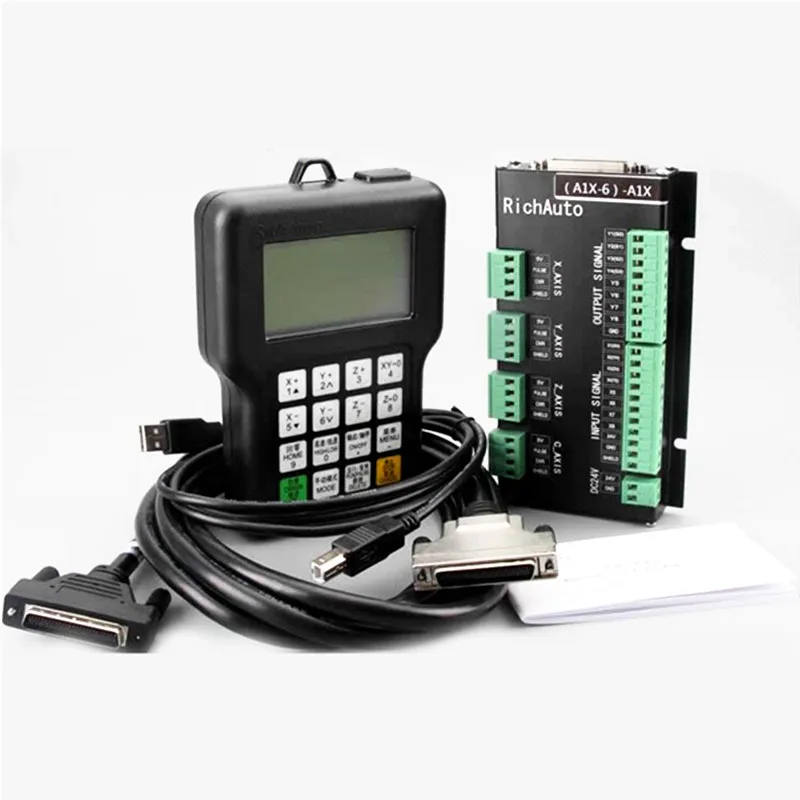

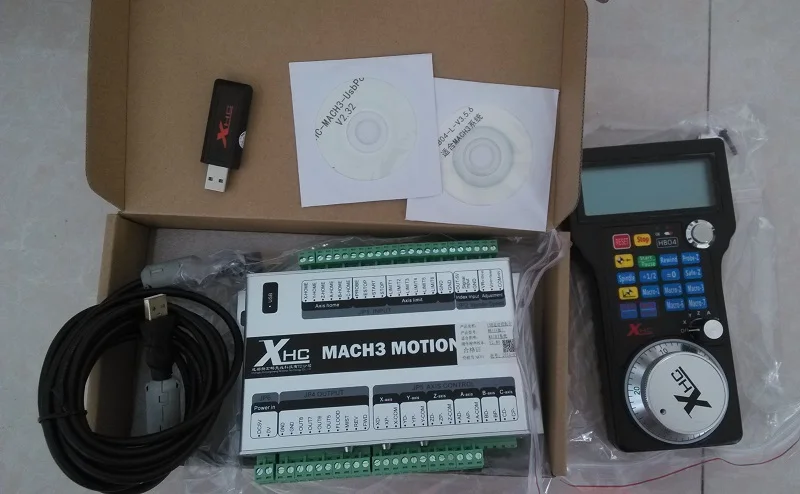

Controller
DSP, Mach 3, Nc studio, Weihong controller etc.

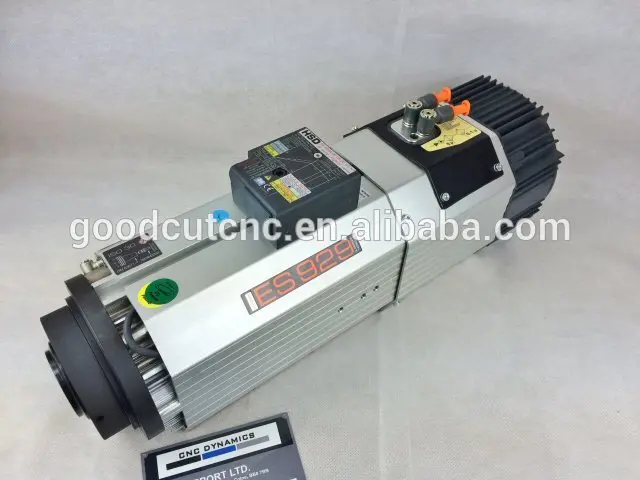

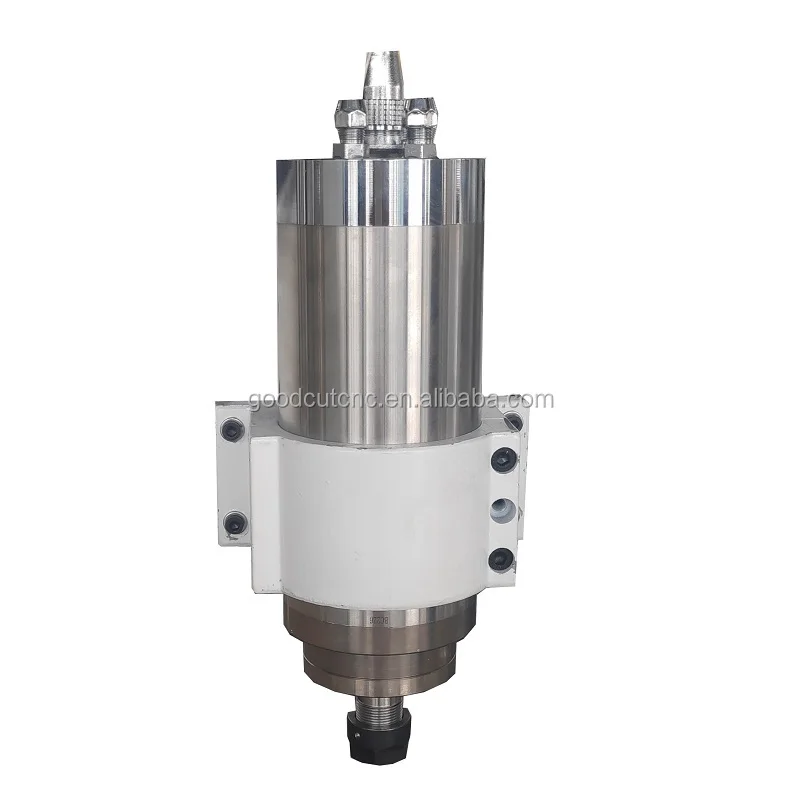

Spindle
HQD,HSD.
long lifespan, low noise, free maintenance.

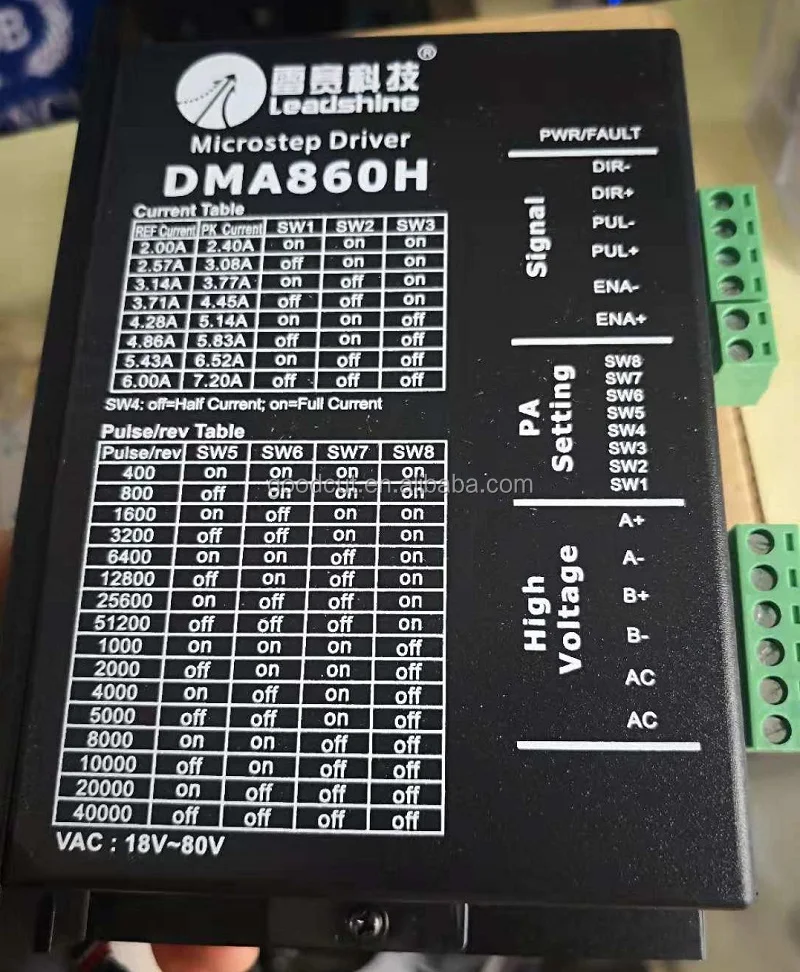

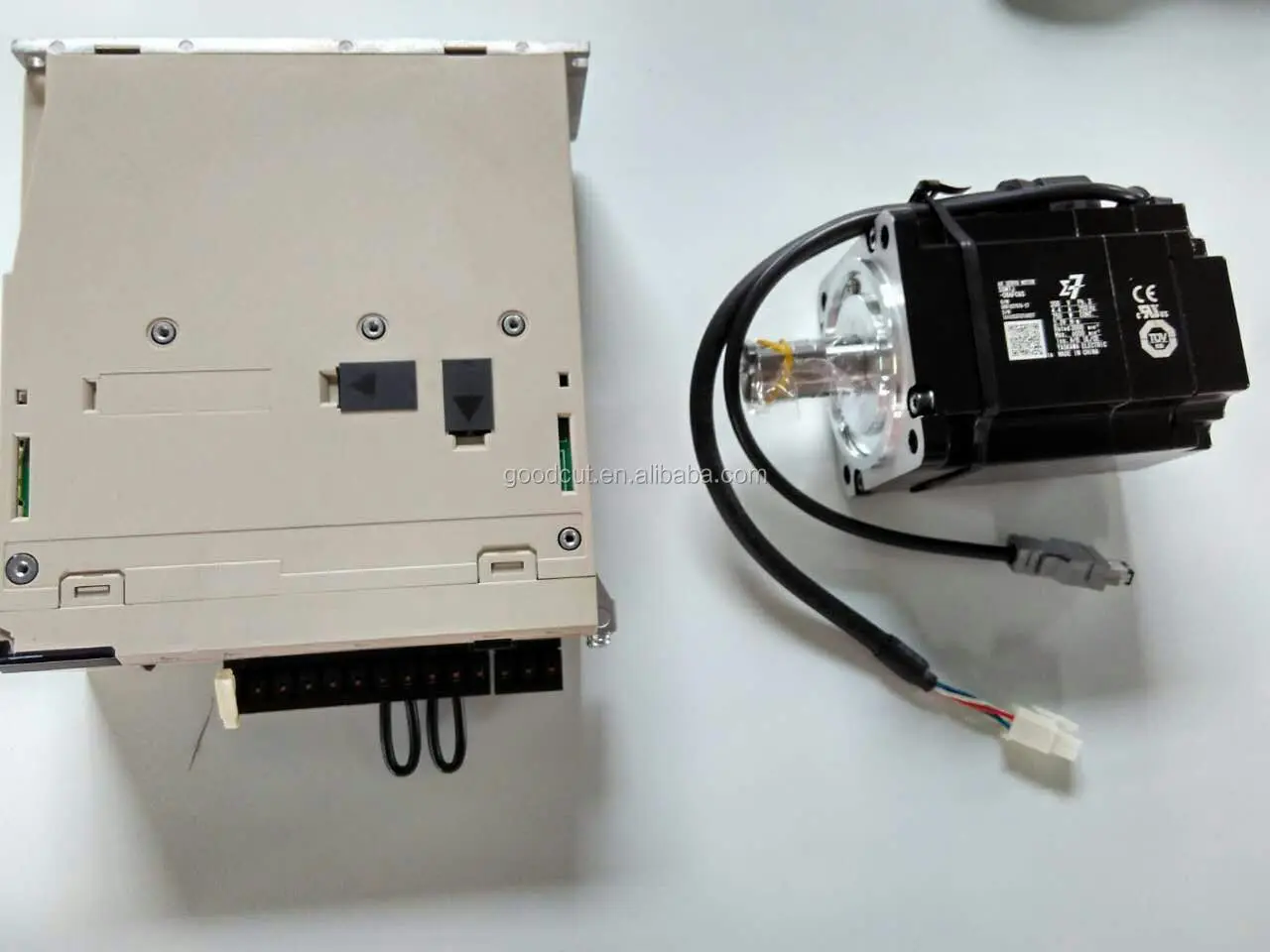

Motor and driver
Yaskawa / Delta / Leadshine Motor and driver etc

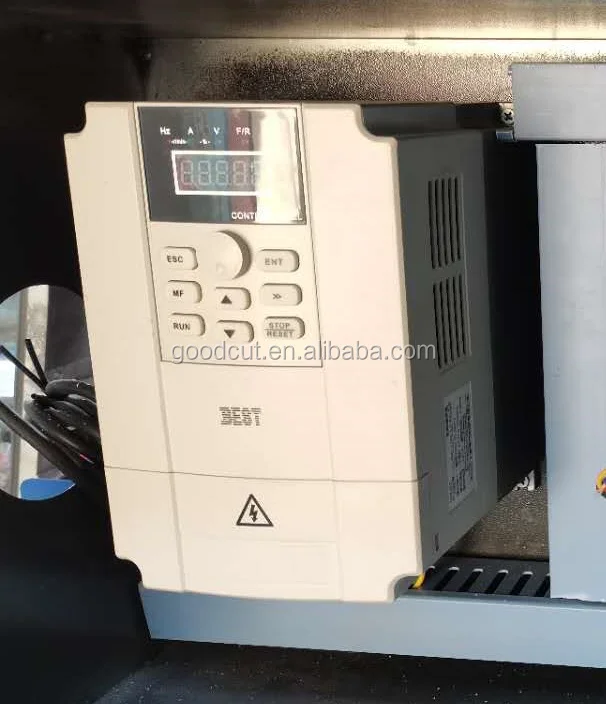

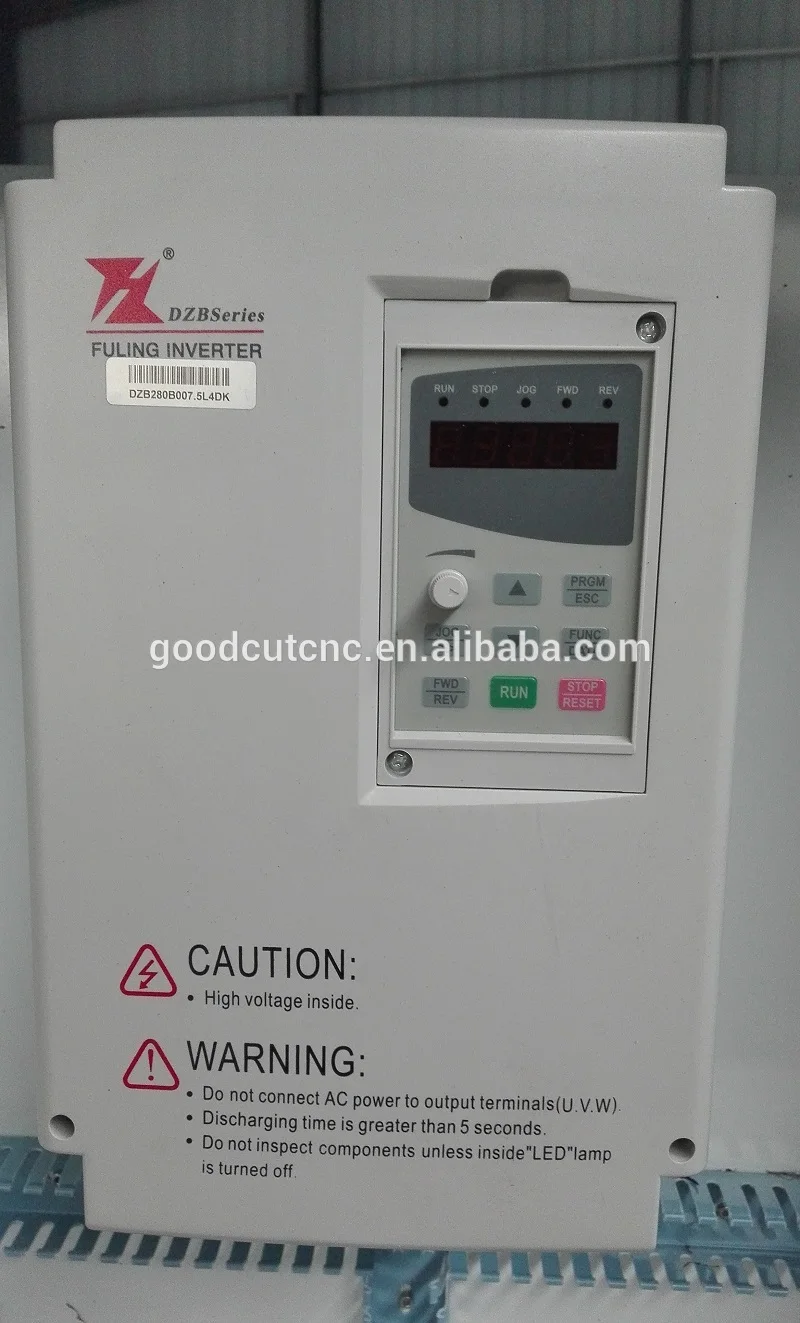

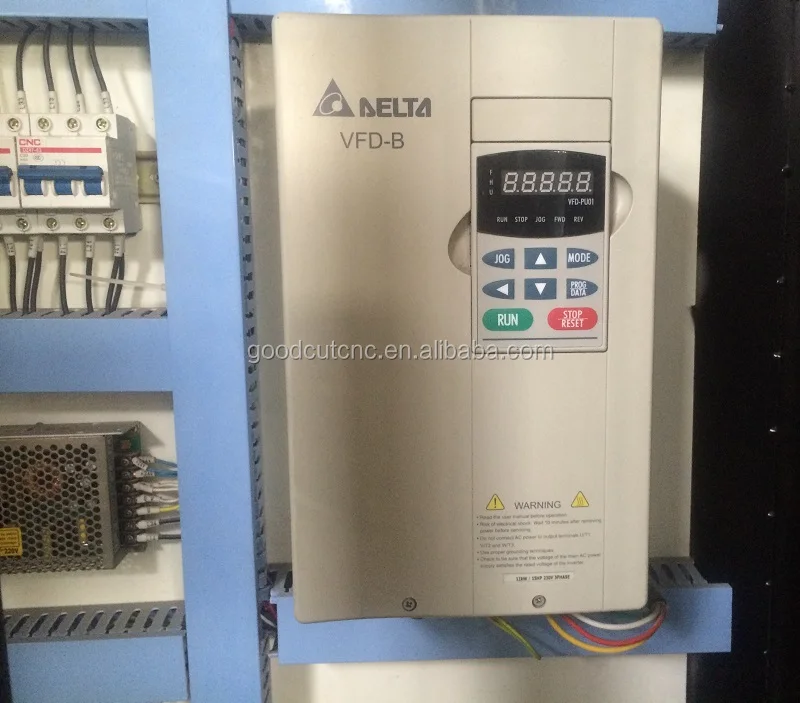

Inverter
Taiwan Delta Inverter / Best Inverster / Fuling Inverter
Guide Rails
HIWIN Guide Rail.
Fast running speed and strong bearing capacity.
Advantages
1. Solid machine bed, high steel stability,high precision. long using life.
2. Y axis is with double motor driving, best configurations, stable process.
3. Adopting high precision rack transmission, high precision &speed.
4. CNC computer controlling, high efficiency auto process.saving too much time&cost, improving production efficiency
Applications
1. Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum-plastic board engraving and cutting, all kinds of signs, badges, signage, copper, fonts, all kinds of signs, trademarks and other materials.
2. Crafts industry: artificial stone crafts, souvenirs on the various types of text, graphics.
3. Mold processing: architectural model, physical model, bronzing mold, high frequency mode, micro injection mold, shoe mold, badge, embossing mold, biscuit, chocolate, candy mold.
4. Seal industry: Easily engraving on horns, plastics, organic boards, wood, storage mats, etc.
5.Woodworking industry: furniture decoration, musical instrument industry, wooden handicraft industry, large-area plate flat engraving, solid wood furniture, solid wood art murals, MDF paint-free doors, composite doors, cabinet doors, screen engravings, etc.
6.Mold industry: can engrave different molds, wood molds, aviation wood molds, propellers, automotive foam molds and so on.

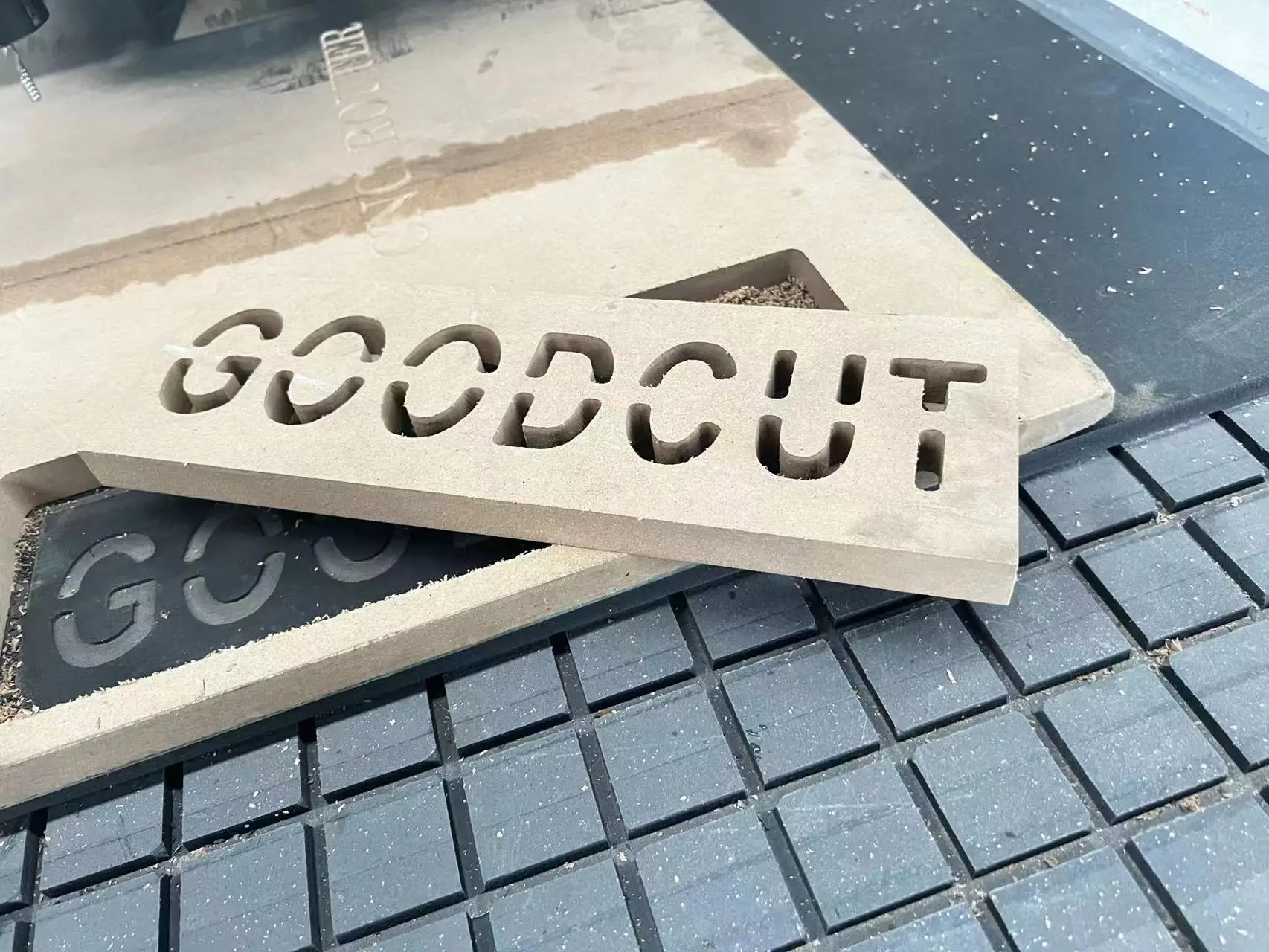

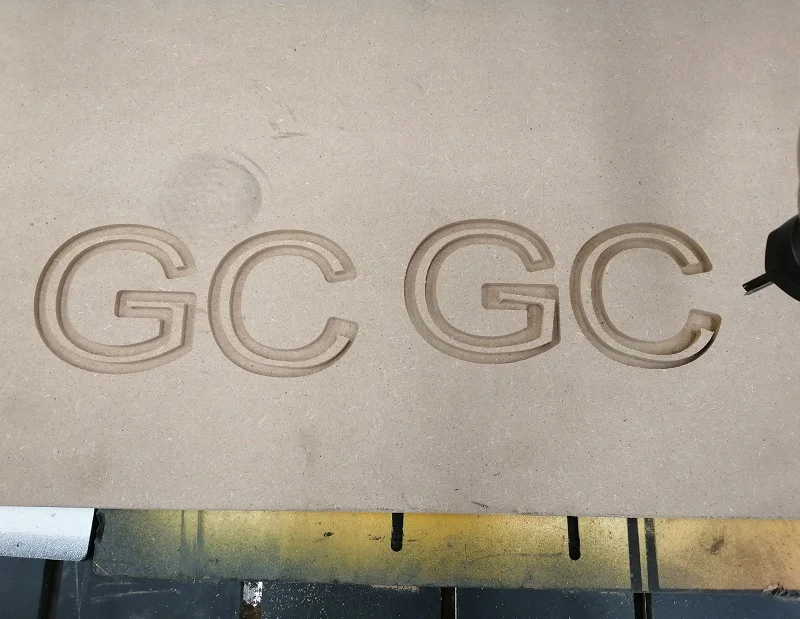

Samples Show
Packaging & Shipping
Company Infomation
Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine, wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.
