250V 10A HDD Series Wire Connector Female Inserts 24 Poles Industrial Heavy Duty Pin Connector 09160243101
- Category: >>>
- Supplier: Zhejiang,Haoke,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

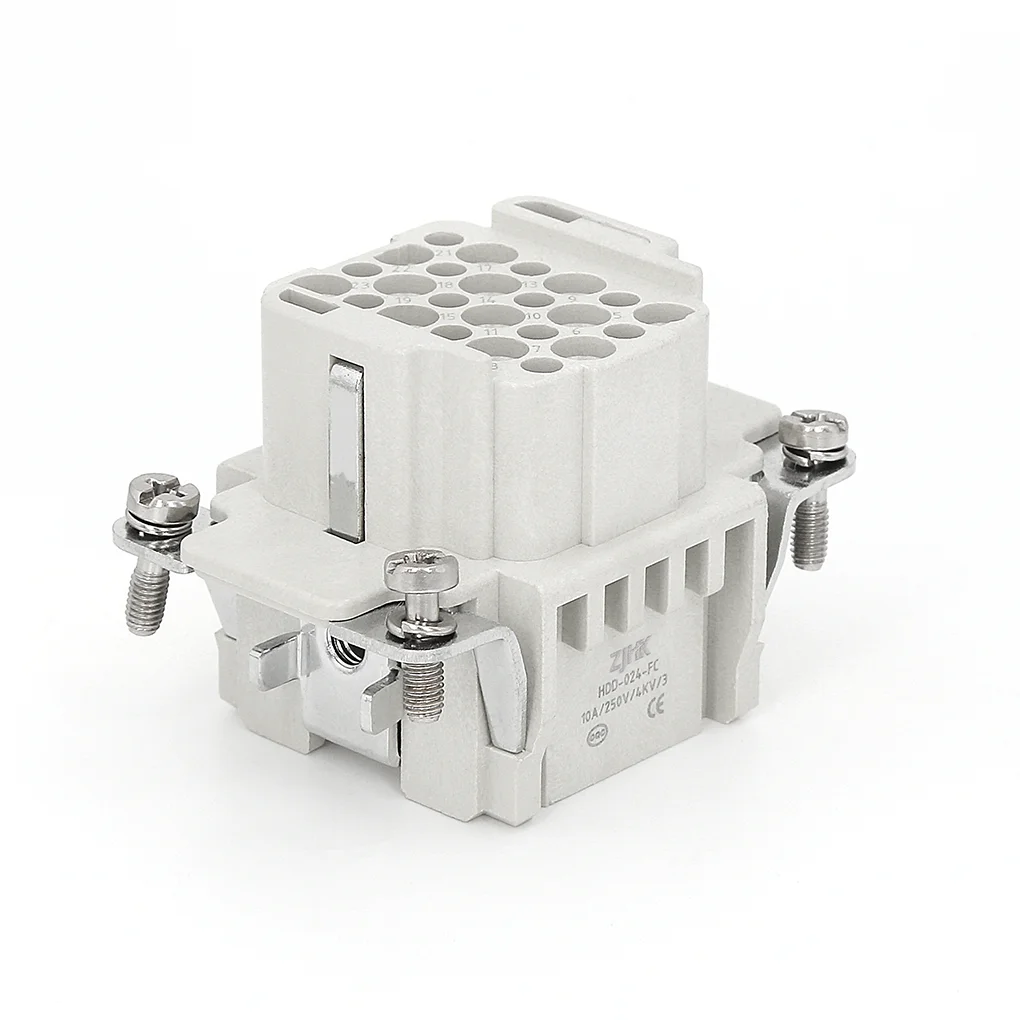

HDD-024-FC 09160243101 crimp terminal inserts for Industrial heavy duty Connectors
Features
(1) 100% QC checked before selling
(1) 100% QC checked before selling
(2) CE, RoHS, CQC, CCC, UL certified

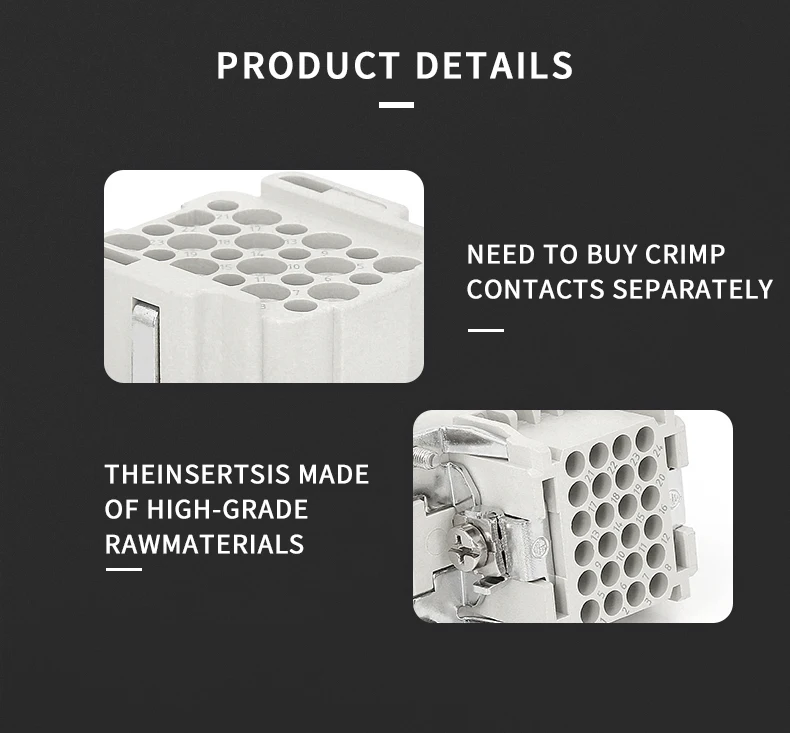

(3) Need to buy 10A contacts separately

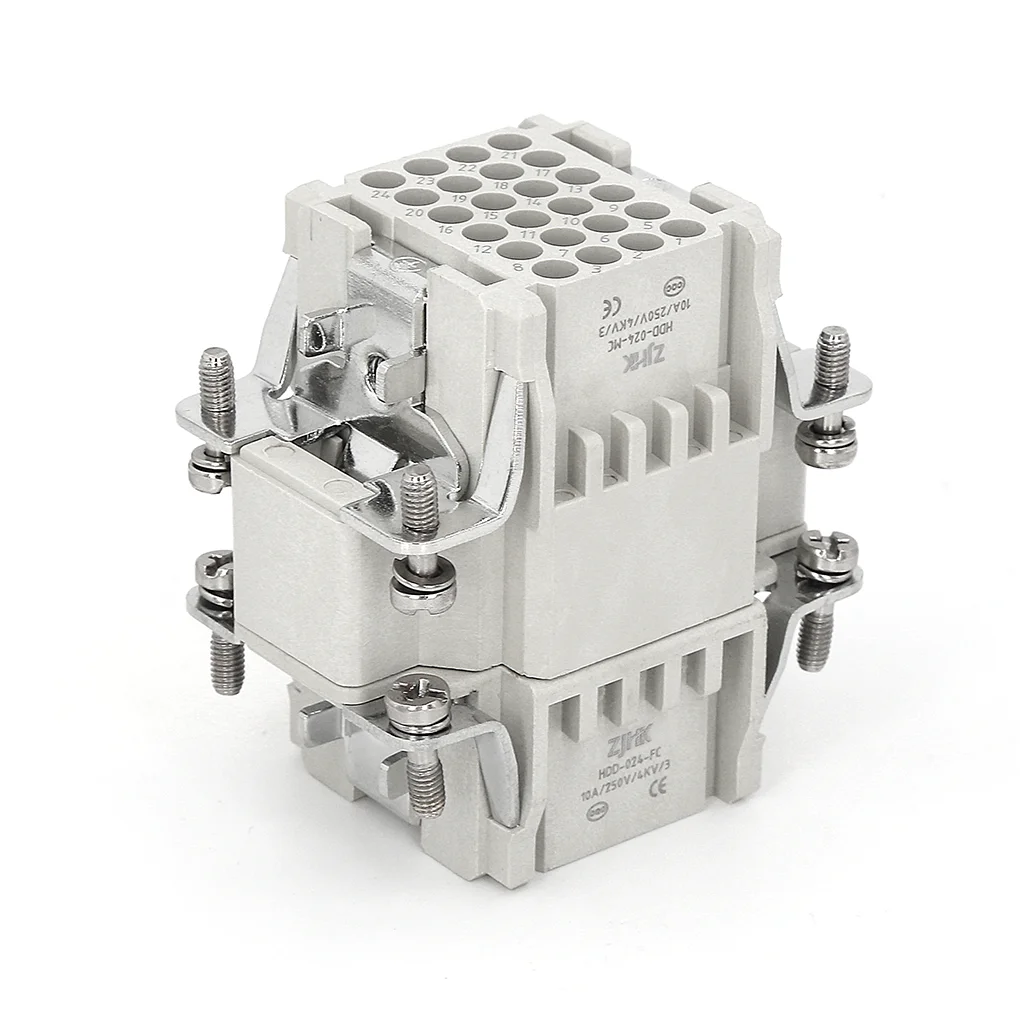

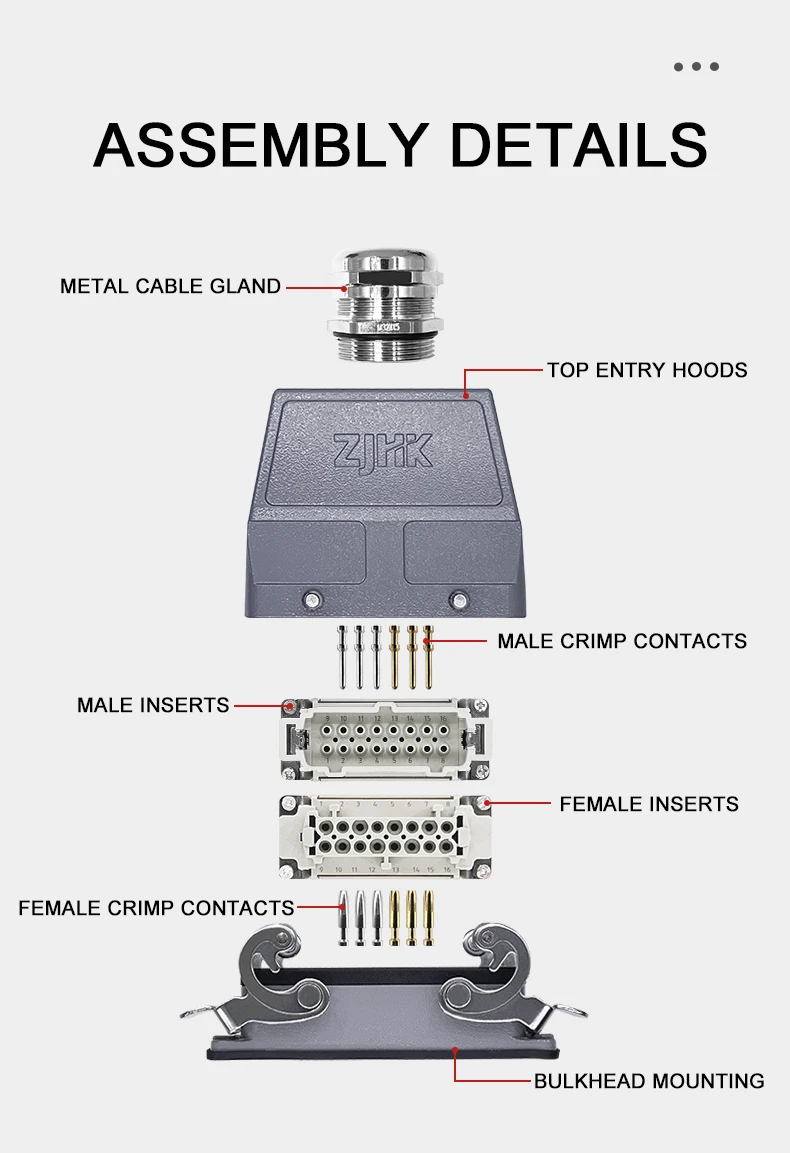

(4) Can be used with 6B hood and housing
(5) 10 years of professional heavy duty connector experience
(3) Need to buy 10A contacts separately
(4) Can be used with 6B hood and housing
(5) 10 years of professional heavy duty connector experience
Type | HDD SERIES | Rated Pulse Voltage | 6kV |
Termination Method | Crimp Terminal | Rated voltage Acc. to UL | 600V |
Gender | Female | Insulation Resistance | ≥1010Ω |
Number Of Contacts | 24+PE | Contact Resistance | ≤ 3mΩ |
Technical Features | Pairing Cycles | ≥500 | |
Wire Gauge | 0.14…2.5mm² | Material (insert) | Polycarbonate |
AWG | 26-14 | Color (insert) | RAL 7032 (pebble grey) |
Stripping Length | 8 mm | Material (contacts) | Copper alloy |
Estimated Current | 10A | Surface (contacts) | Silver plated and Gold plated |
Rated Voltage | 250 V | Flammability Class Material Acc. to UL 94 | V0 |
ZheJiang Haoke Electrical Co., LTD. This is a company focusing on heavy connectors and manufacturers.Since the establishment of the company, we have continuously cultivated talents of various positions and added more precise equipment to use.

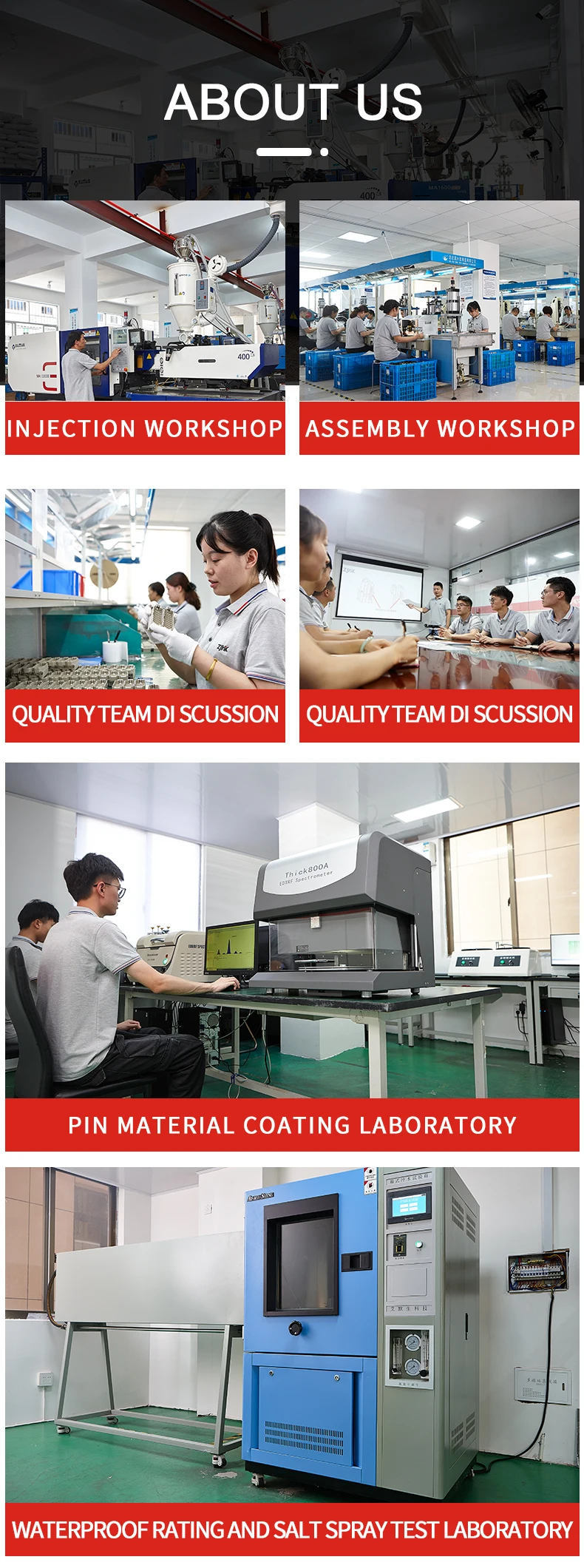

Haoke's high -quality requirements for products. There are currently multiple automatic production lines and independent product performance test laboratories.
So far, we have developed a series of models of almost all heavy -duty connectors, including HA, HE, HEE,HD, HDD, HK,HQ,HSB,HM module product series, and provide hundreds of them Combination to provide hundreds of different combinations. Need to meet different areas of electrical or signal connections.
Packing & Delivery
FAQ
1. How's the delivery time ?
a. Usually it will take about two weeks for the order of 5,000 pcs, If order quantity is small, we can finish within 3 days.
2. Tell me the standard of package?
a. For inner box and big carton are made as per international standards, and we can make special design for you if it is need.
3.Will be any warranty for your item ?
a. We offer one year warranty for our products. Please feel assured.
4.Would you accept to use our logo ?
a.We offer OEM ODM customization services if quantity is more than 100 pcs each model.
5. How can I get sample?
a. We are glad to send free samples for your quality check. Our customer only need to pay for shipping cost.
a. Usually it will take about two weeks for the order of 5,000 pcs, If order quantity is small, we can finish within 3 days.
2. Tell me the standard of package?
a. For inner box and big carton are made as per international standards, and we can make special design for you if it is need.
3.Will be any warranty for your item ?
a. We offer one year warranty for our products. Please feel assured.
4.Would you accept to use our logo ?
a.We offer OEM ODM customization services if quantity is more than 100 pcs each model.
5. How can I get sample?
a. We are glad to send free samples for your quality check. Our customer only need to pay for shipping cost.
