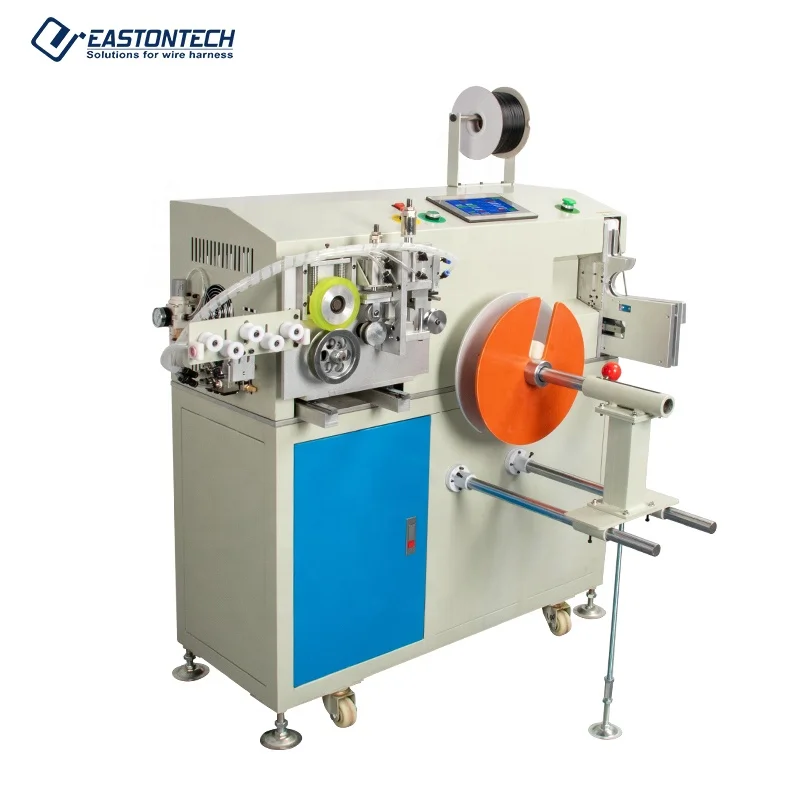

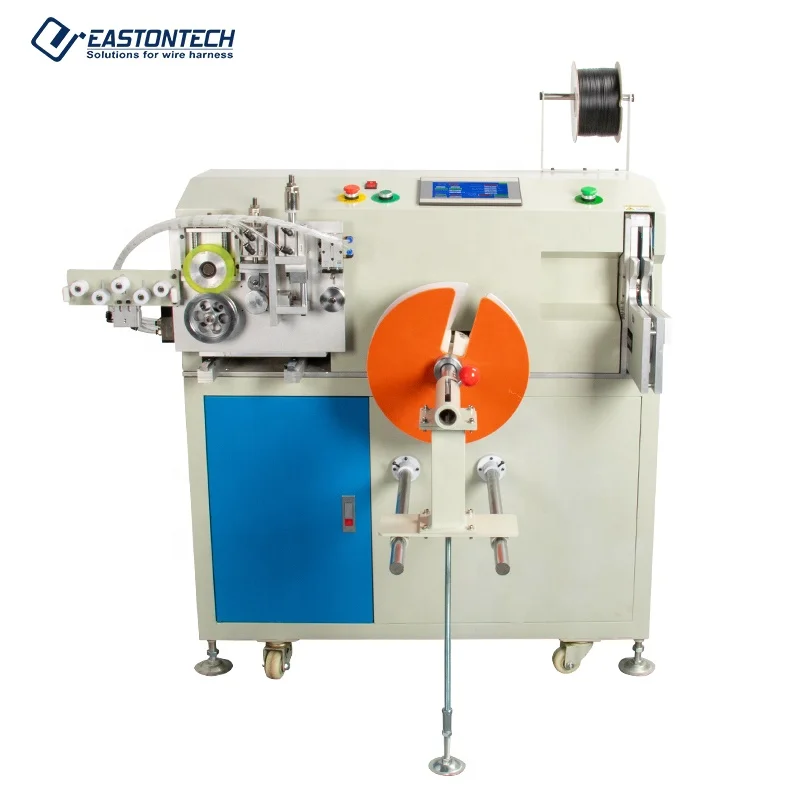

EW 20S 3 electric wire coil winding length counting cable cutting and tying machine wire re winder 1 20mm

Product Overview

Description

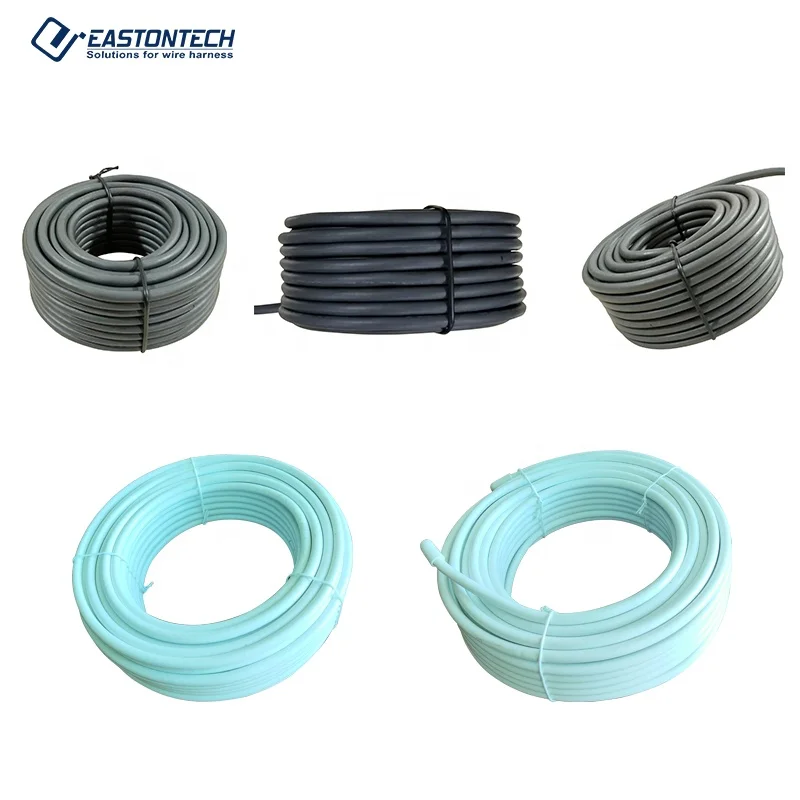

The EW-20S-3 is a semi-automatic wind & tie machine with count meter wheel to produce wire coils according to customers’ ideal ID and width (height).

1. The machine is suitable for max. 15 kg finished coils.

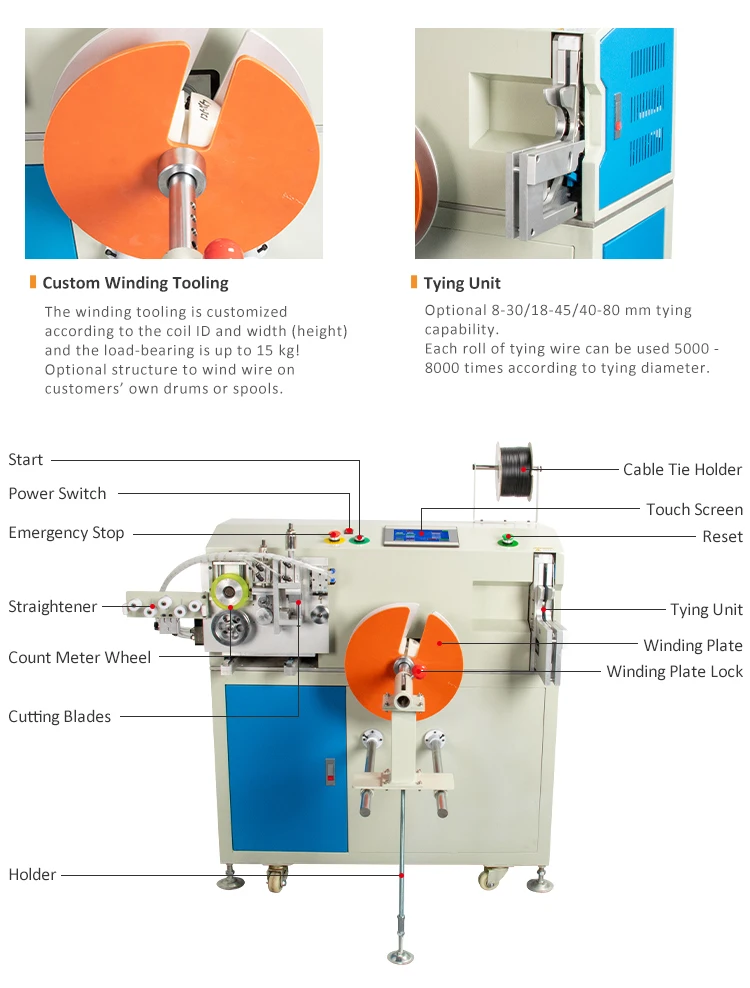

2. Custom winding plate and tooling set according to coil ID and width.

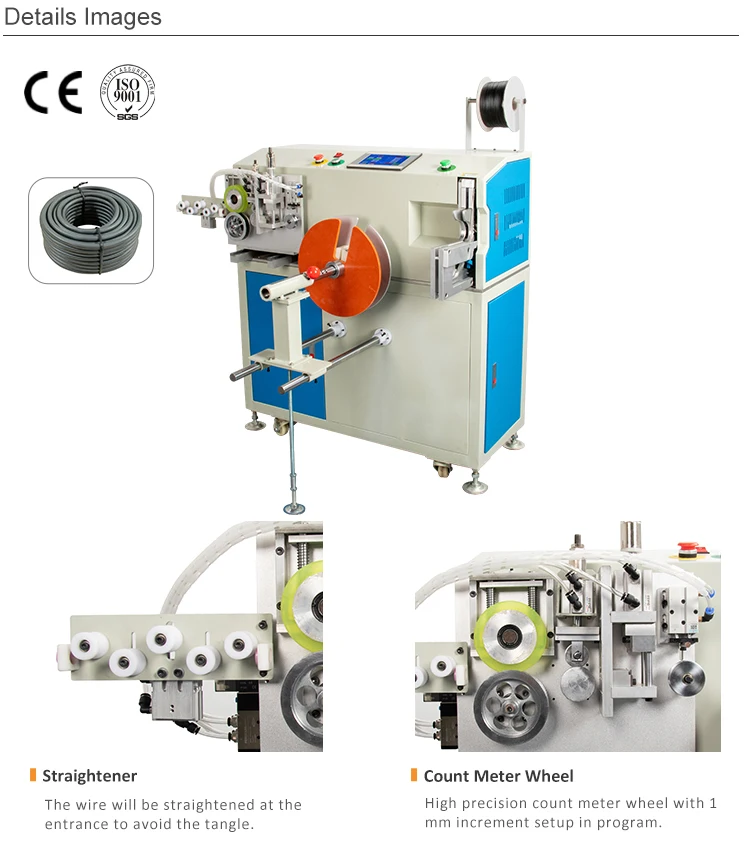

3. High precision count meter wheel with 1 mm increment setup in program

4. Optional structure to directly wind wires on customers’ own drums or spools.

5. Optional tying unit for 8-30/18-45/40-80 mm OD.

6. Each roll of tying wire can be used 5000 - 8000 times according to tying diameter.

7. Fast winding speed up to 8 circles/s.

8. Fast tying speed of 0.7 s/time.

Model	EW-20S-3	EW-20S-3A
Tying function	N/A	Applicable
Tying diameter	N/A	8 - 30 / 18 - 45 / 40 - 80 mm
Wire diameter	1 - 20 mm	1 - 20 mm
Finished coil ID	50 - 300 mm	50 - 300 mm
Finished coil OD	< 400 mm	< 400 mm
Finished coil height	< 120 mm (customizable)	< 120 mm (customizable)
Finished coil weight	< 15 kg	< 15 kg
Winding speed	1 - 8 circles/s	1 - 8 circles/s
Tying speed	0.7 s/time	0.7 s/time
Power supply	110, 220 V (50 - 60 Hz)	110, 220 V (50 - 60 Hz)
Power	800 W	850 W
