us3000c us5000 Battery Replacement 24v 48v 100ah 200ah solar energy storage battery
- Category: >>>
- Supplier: Shenzhen Sai Jiao Yang Energy & Science Technology Co. Ltd.
Share on (1600698454129):
Product Overview
Description
Specification
Model No | SJY-Solar2400 | SJY-Solar4800 | SJY-Solar9600 | SJY-Solar14400 | |||
Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |||
Capacity | 50Ah | 100Ah | 200Ah | 300Ah | |||
Energy | 2.56KWH | 5.12KWH | 10.24KWH | 15.36KWH | |||
Operation voltage | 35.25-54.75 V | 37.6-58.4V | 37.6-58.4V | 37.6-58.4V | |||
Max.charging volt | 54.75 V | 58.4V | 58.4V | 58.4V | |||
Max.charging and discharging current | 40A | 80A | 100A | 100A | |||
Life time(25°C) | 10 years | ||||||
Life cycles(25°C) | 6000 Cycles | ||||||
Storage time / temp. | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||||||
Operation temp. | -20°C to 60°C @60+/-25% Relative Humidity | ||||||
Storage temp. | 0°C to 45°C @60+/-25% Relative Humidity | ||||||
Battery Standard | IEC62619, UN38.3, ROHS,CE-EMC | ||||||
Enclosure protection rating | IP65 | ||||||
Dimensions (L×W×H)mm | 480*442*85 | 490*442*155 | 490*442*223 | 490*442*298 | |||
Weight | 26KG | 45KG | 83.5KG | 125KG | |||
Our Advantages

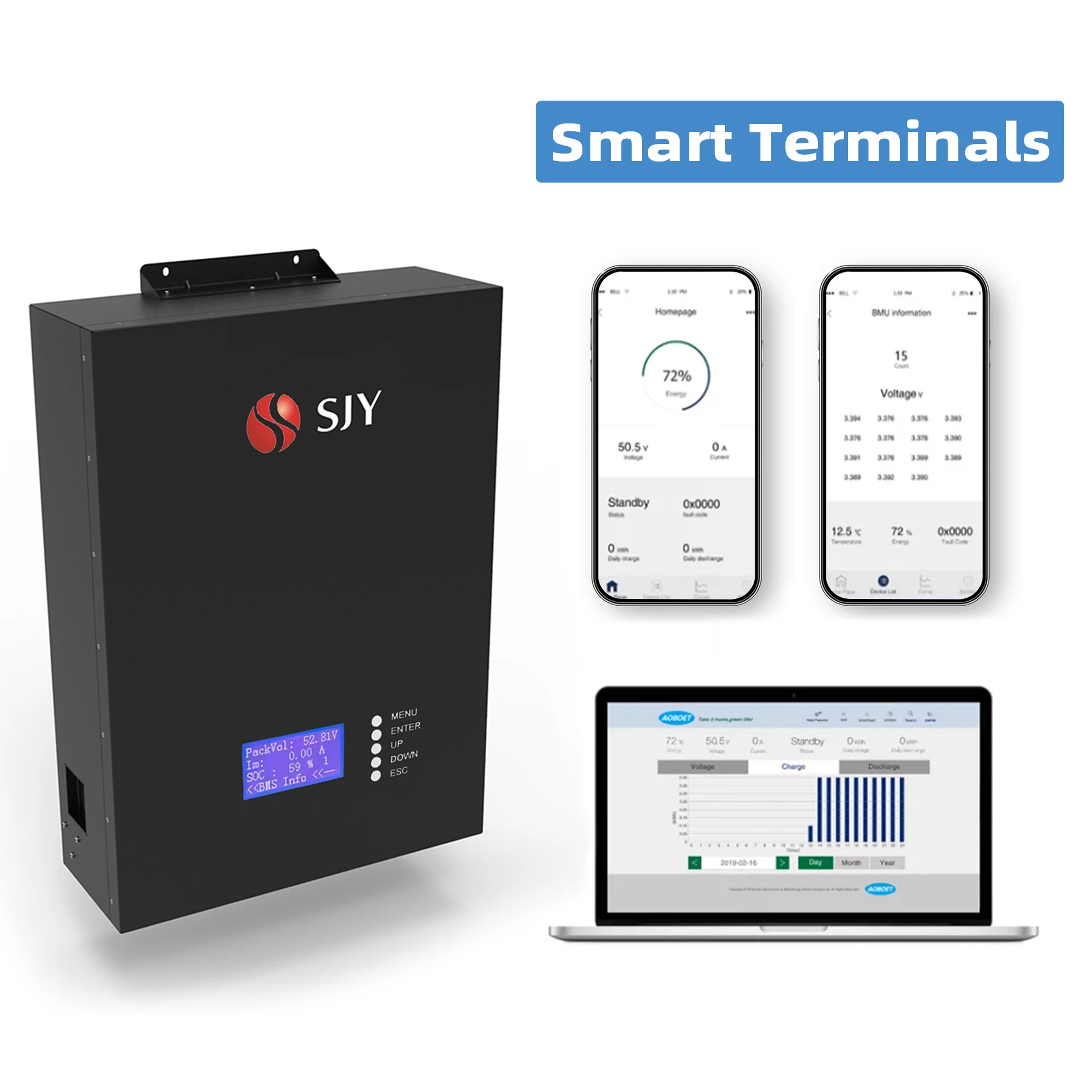

Monitoring Solution
Battery can custom with digital display and smart terminal which allow users to monitor voltage of each serial of cells, battery’s rated voltage and capacity, temperatures and BMS parameters etc.

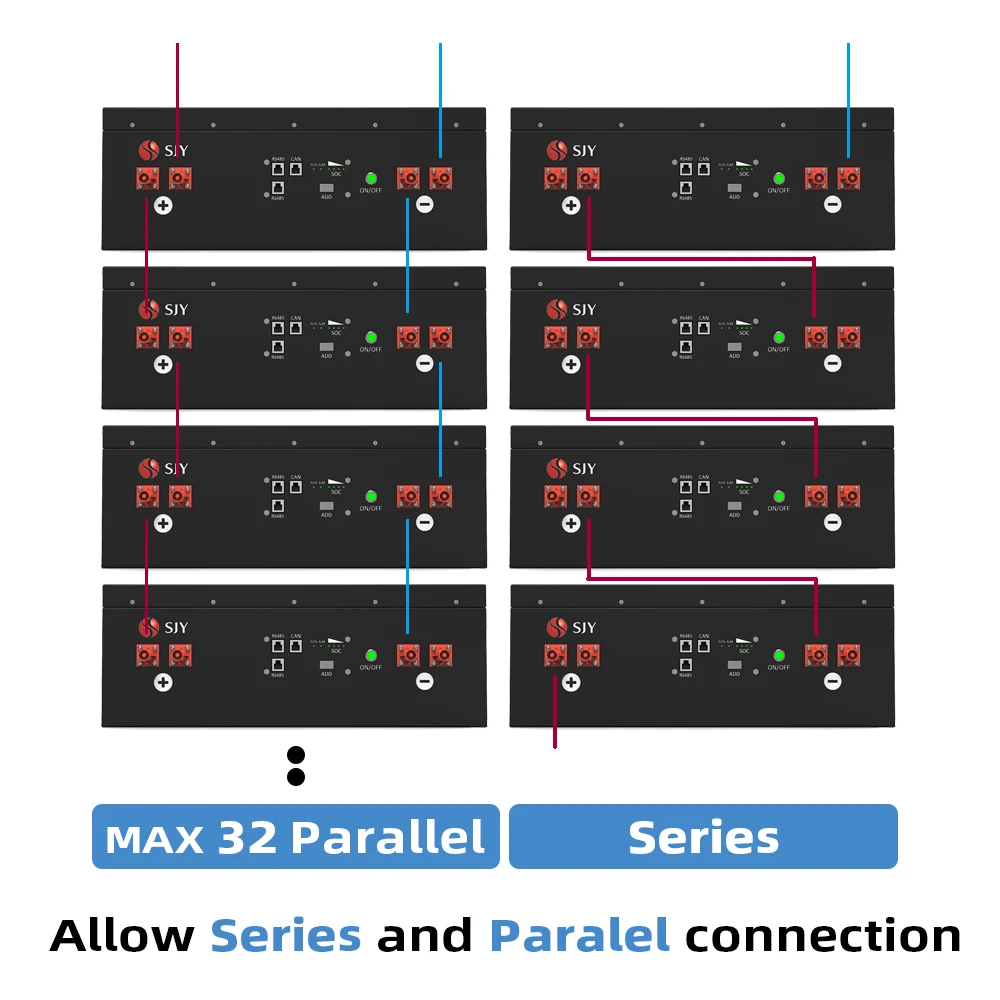

Multiple series-parallel connection
* High Inverter Compatibility
* Reliable LFP Cells
* CANbus Standard Connection
* Natural Cooling System
* Assemblly freely in series/parallel up to 448V326kWh
* Reliable LFP Cells
* CANbus Standard Connection
* Natural Cooling System
* Assemblly freely in series/parallel up to 448V326kWh

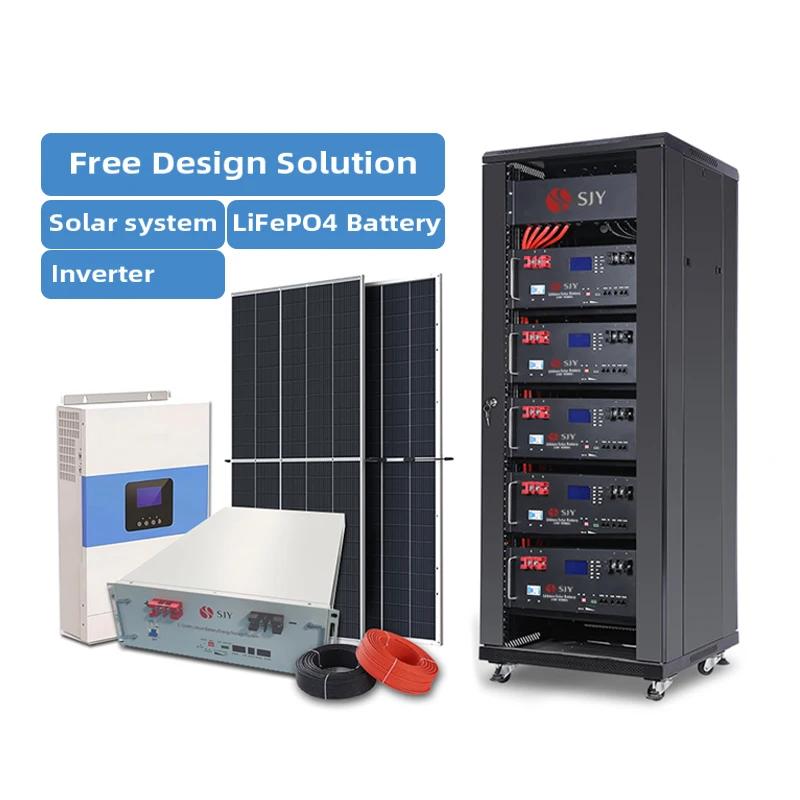

All in one Purchase of Solar Energy System
* Off-grid/Hybrid 3kw ~ 20kw system
* Provide overall design and installation plan
* Including photovoltaic panels, controllers, inverters, batteries, brackets, cable and other materials.
* Provide single-phase/three-phase all in one inverters
* Provide single silicon / all black / a double sided double glass photovoltaic panel
More Products
Product Description

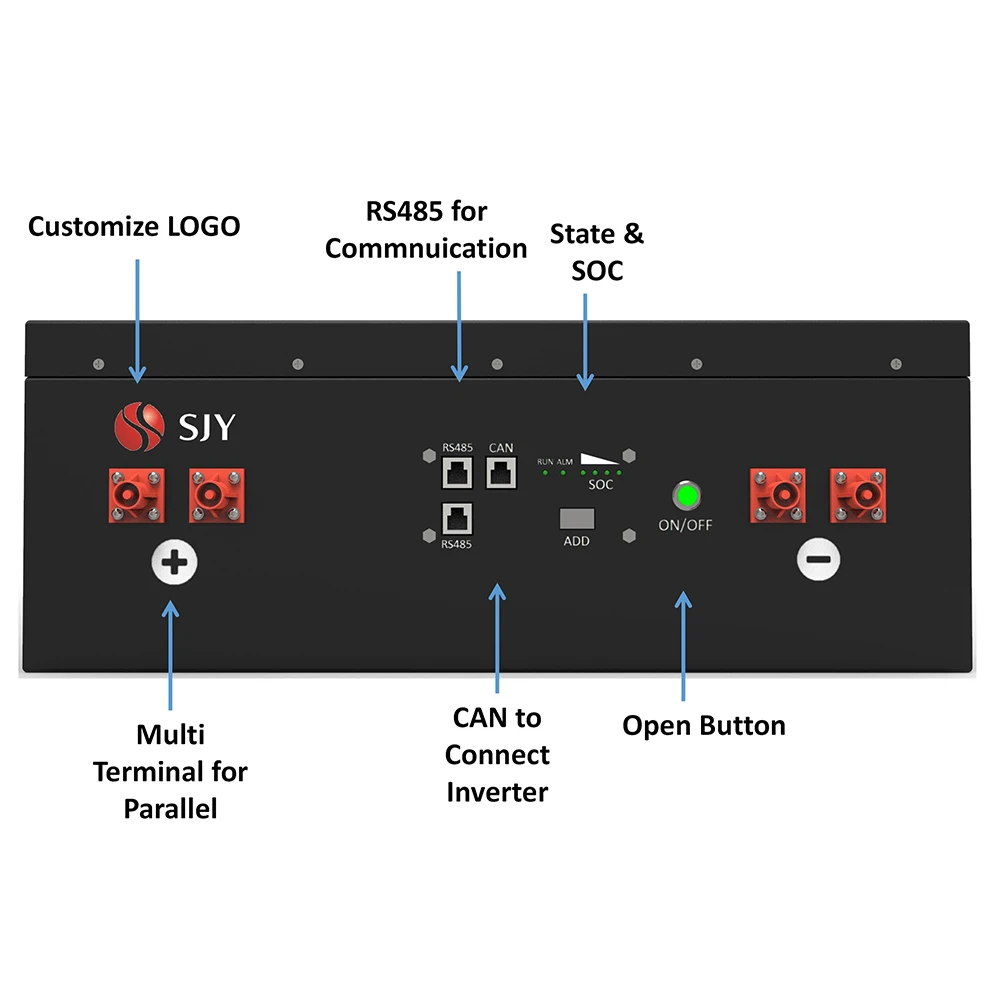

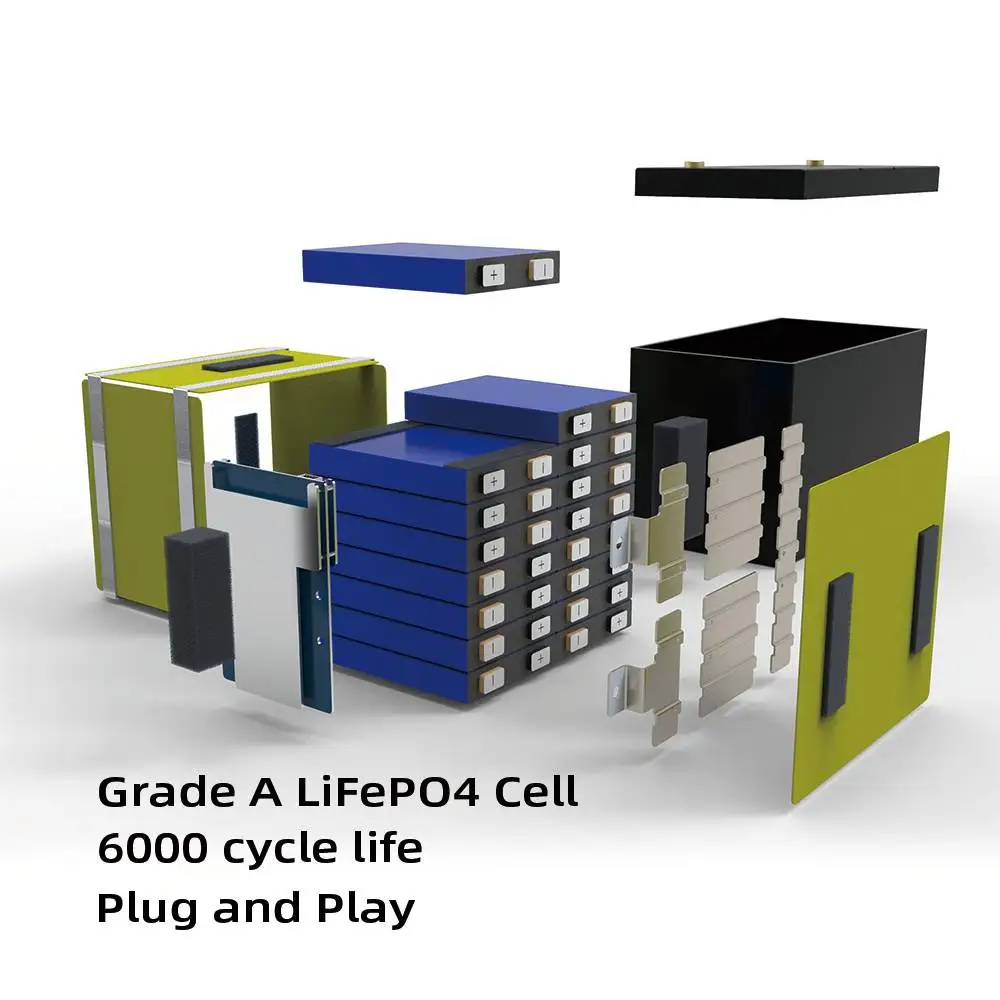

The structural size and panel appearance
of the lithium battery

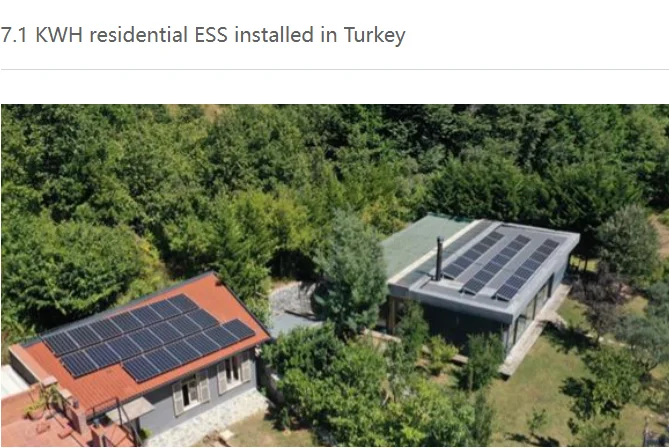

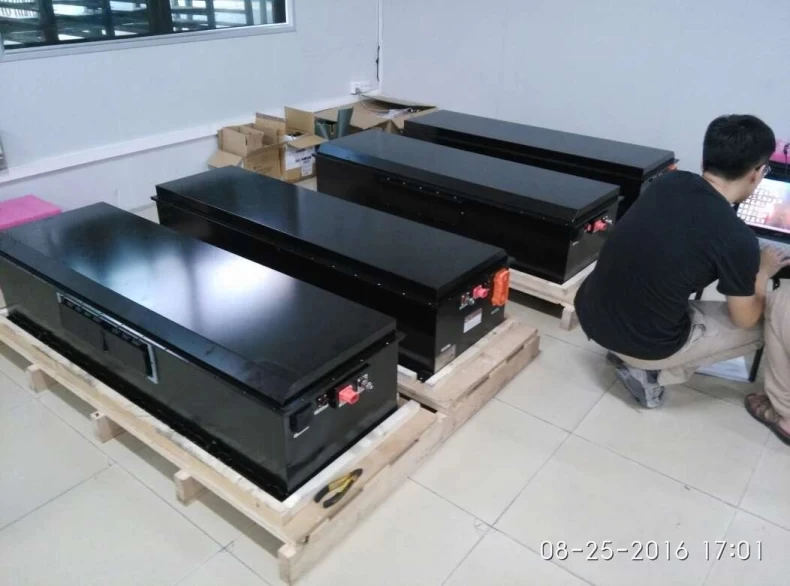

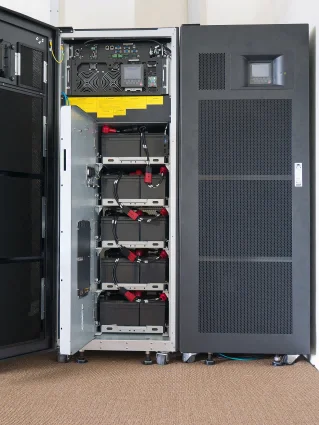

Customer case of 51.2V200Ah solar energy storage battery (Logo customizable)

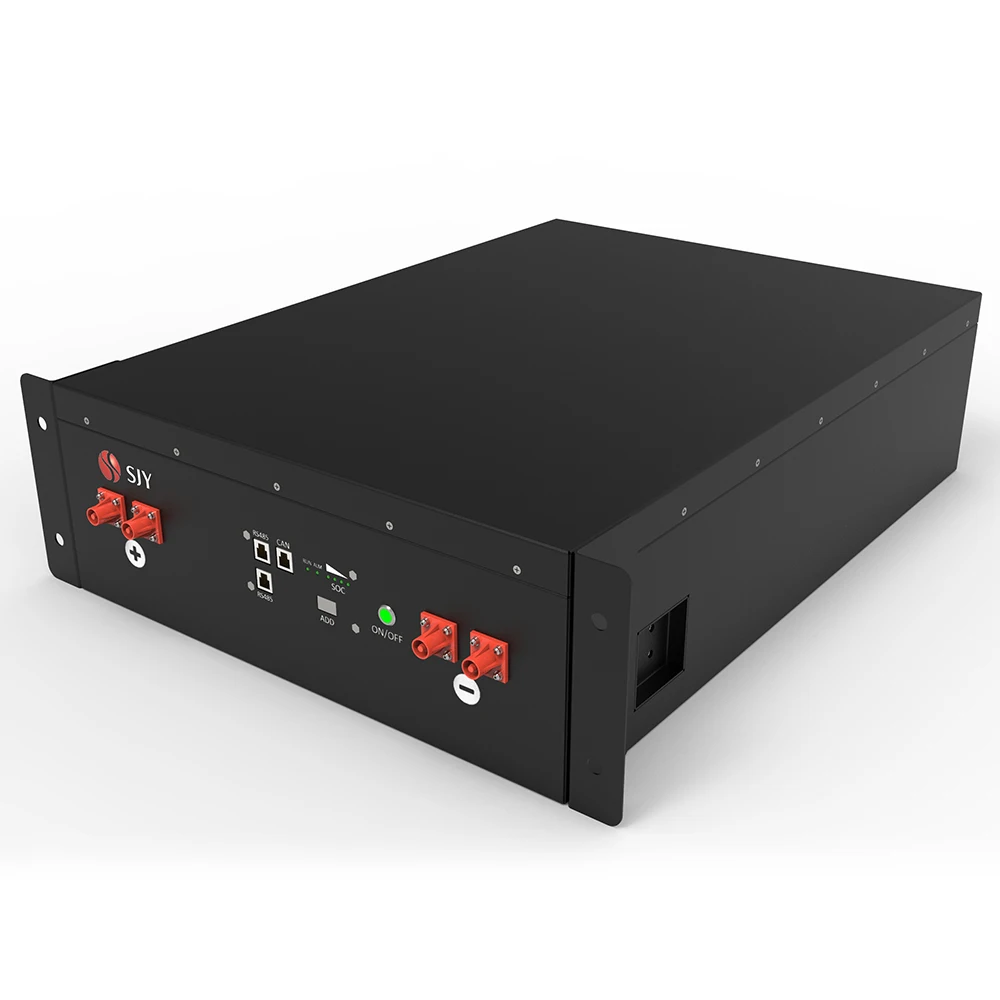

Detail Exhibition

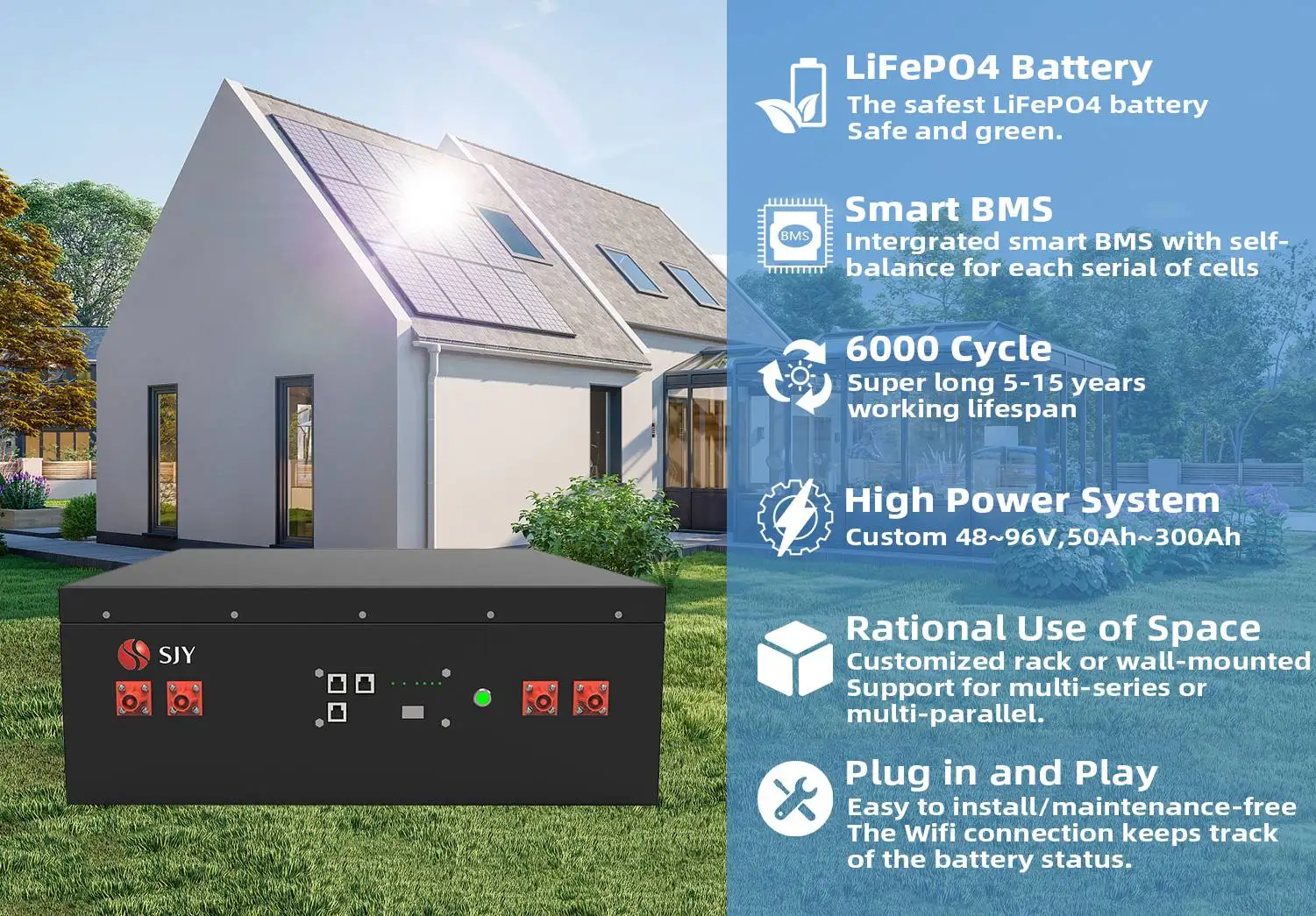

* LiFePO4 Lithium Ion Battery Type
* Custom 48~96V, 50~300Ah
* Custom 48~96V, 50~300Ah
* Custom 6000 times
* Custom 10 years warranty, 20 years service life
* Custom rack or wall-mounted battery
* Customize LOGO and communication protocols.
Adapt to a variety of inverters
Growatt, Pylontech, Goodwe, Deye, Luxpower, Soroups, Megarevo, Invt, Pchen and so on.

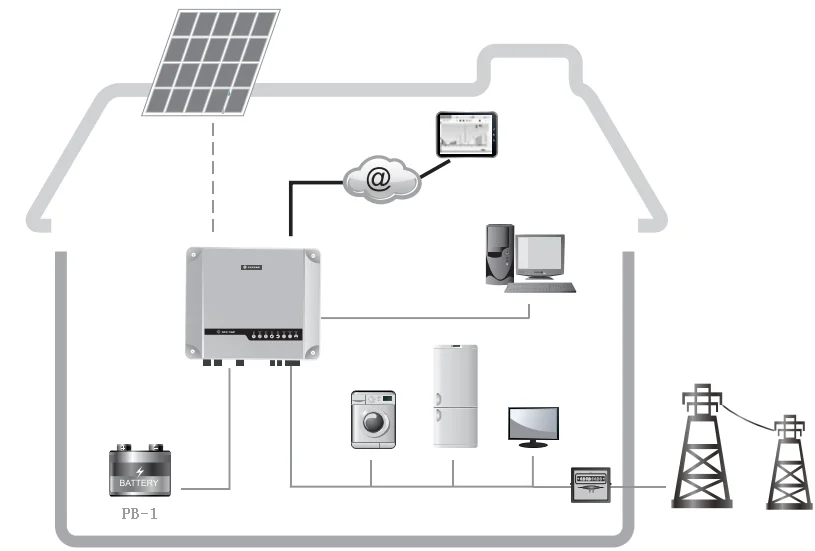

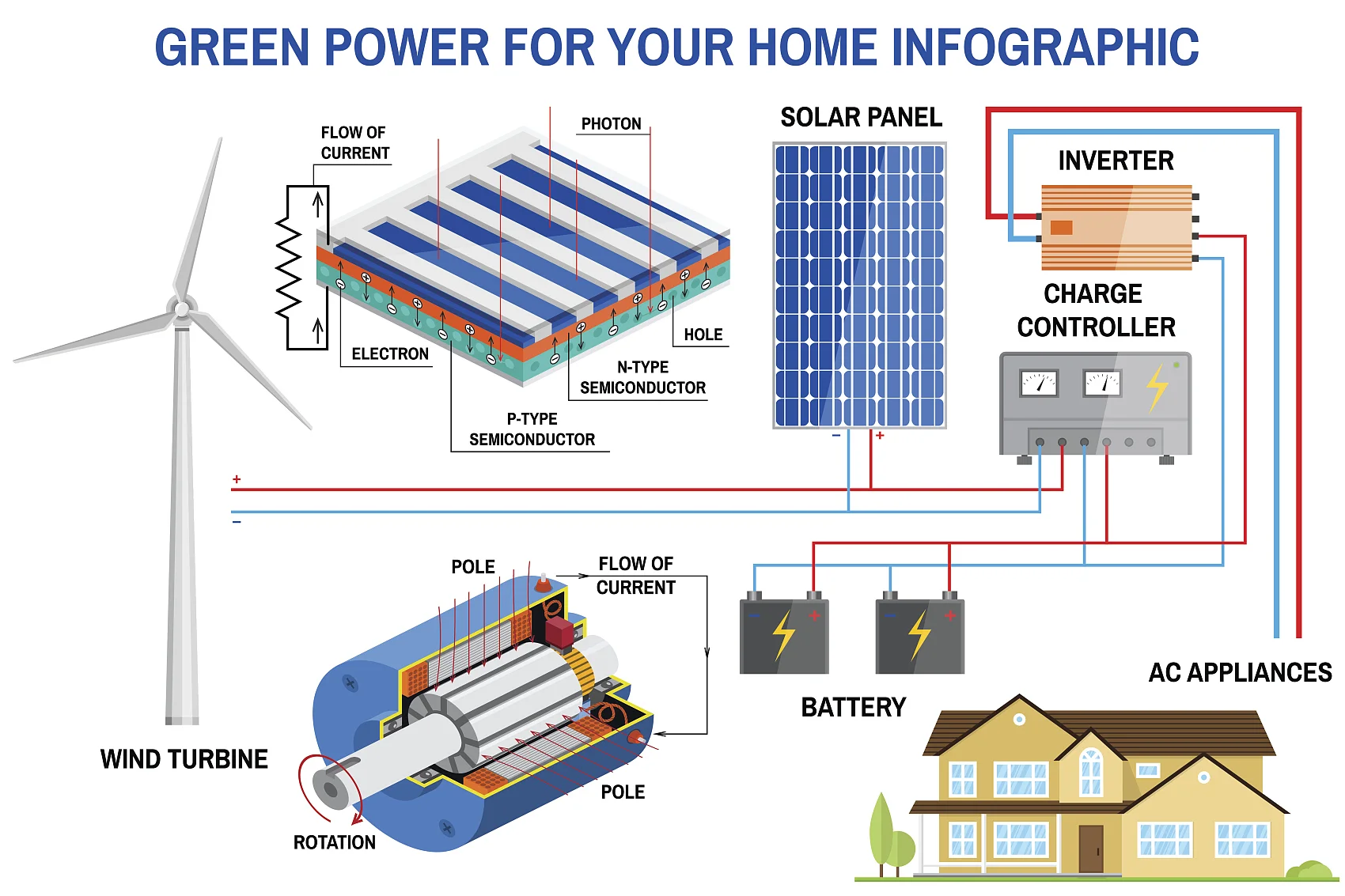

PB-1 Typical applications of
home energy storage systems
* Provide you with the design of solar energy storage system for free.
* Provide you with the installation program of solar energy storage system for free.
* Provide you with a transportation solution of solar energy storage system for free.
Certifications

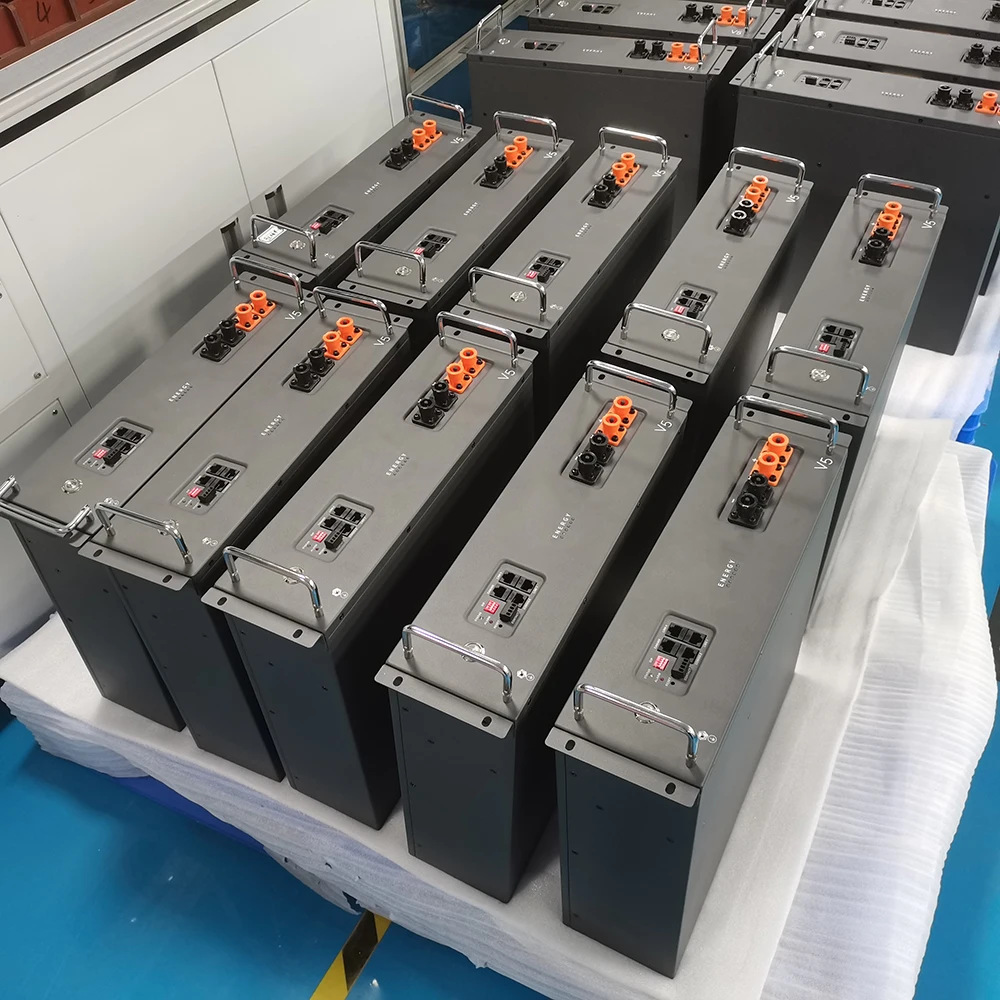

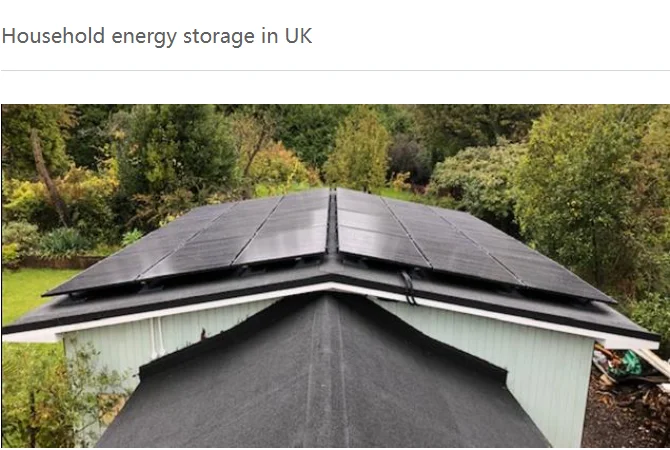

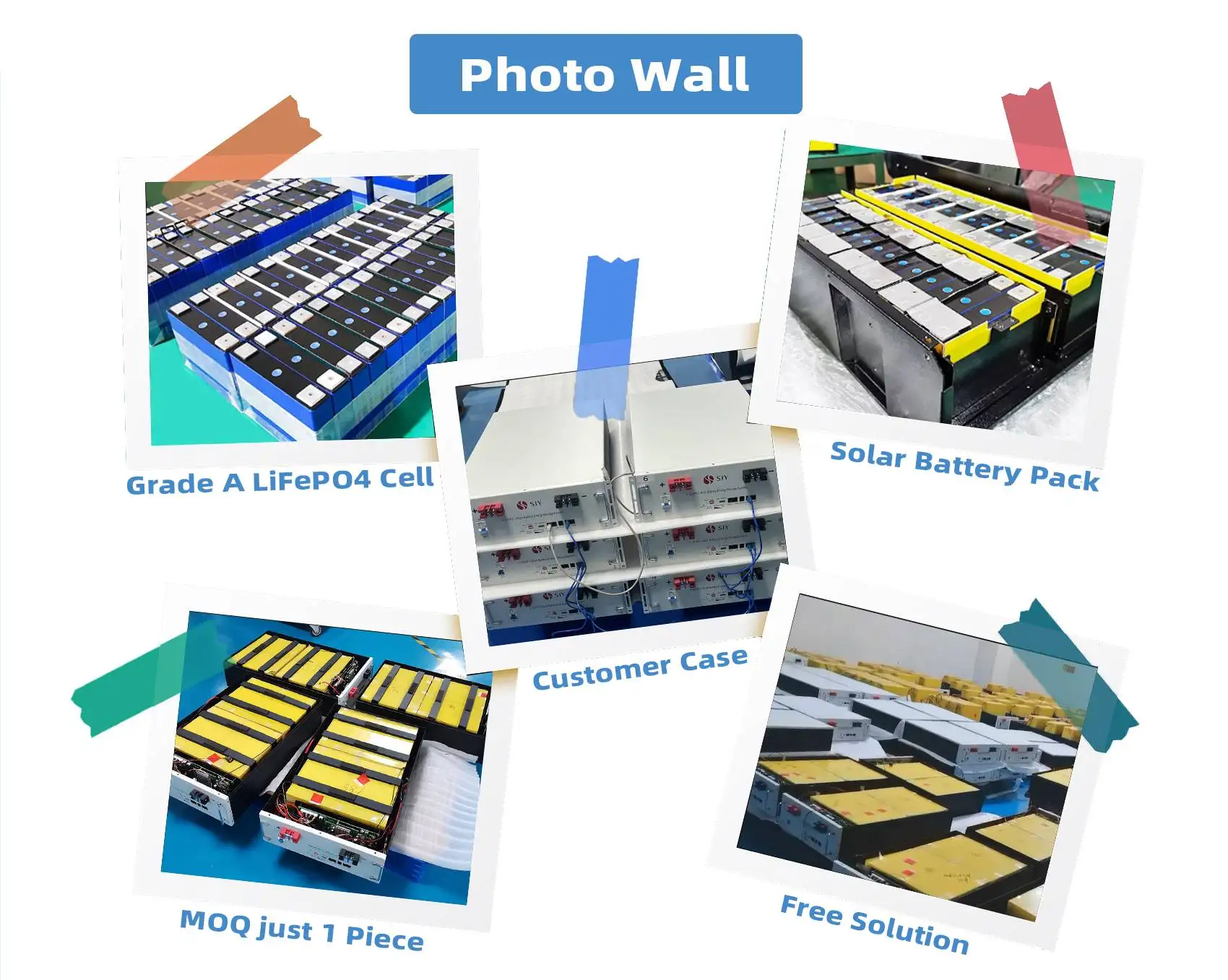

Customer Photos
Company Profile

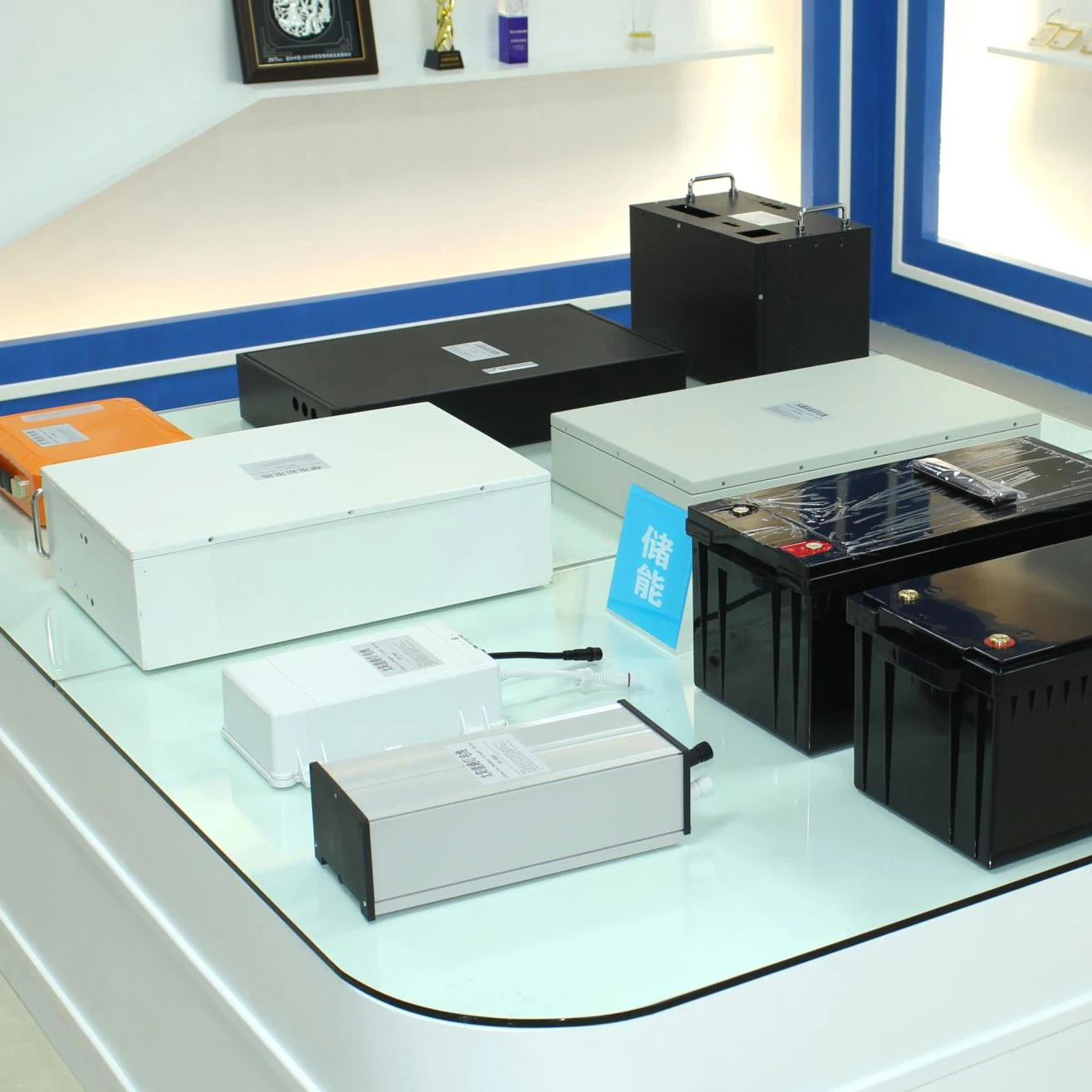

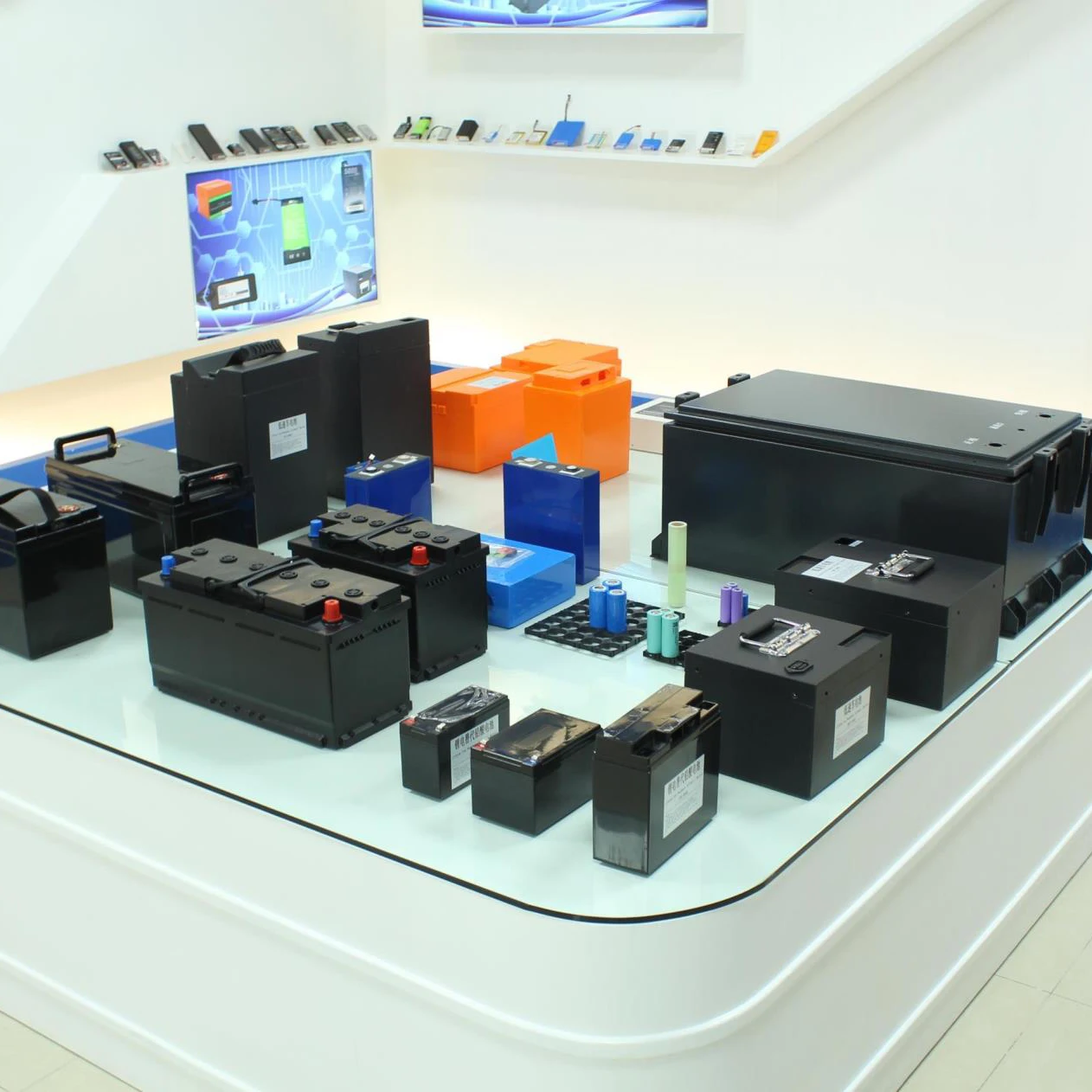

Showroom
