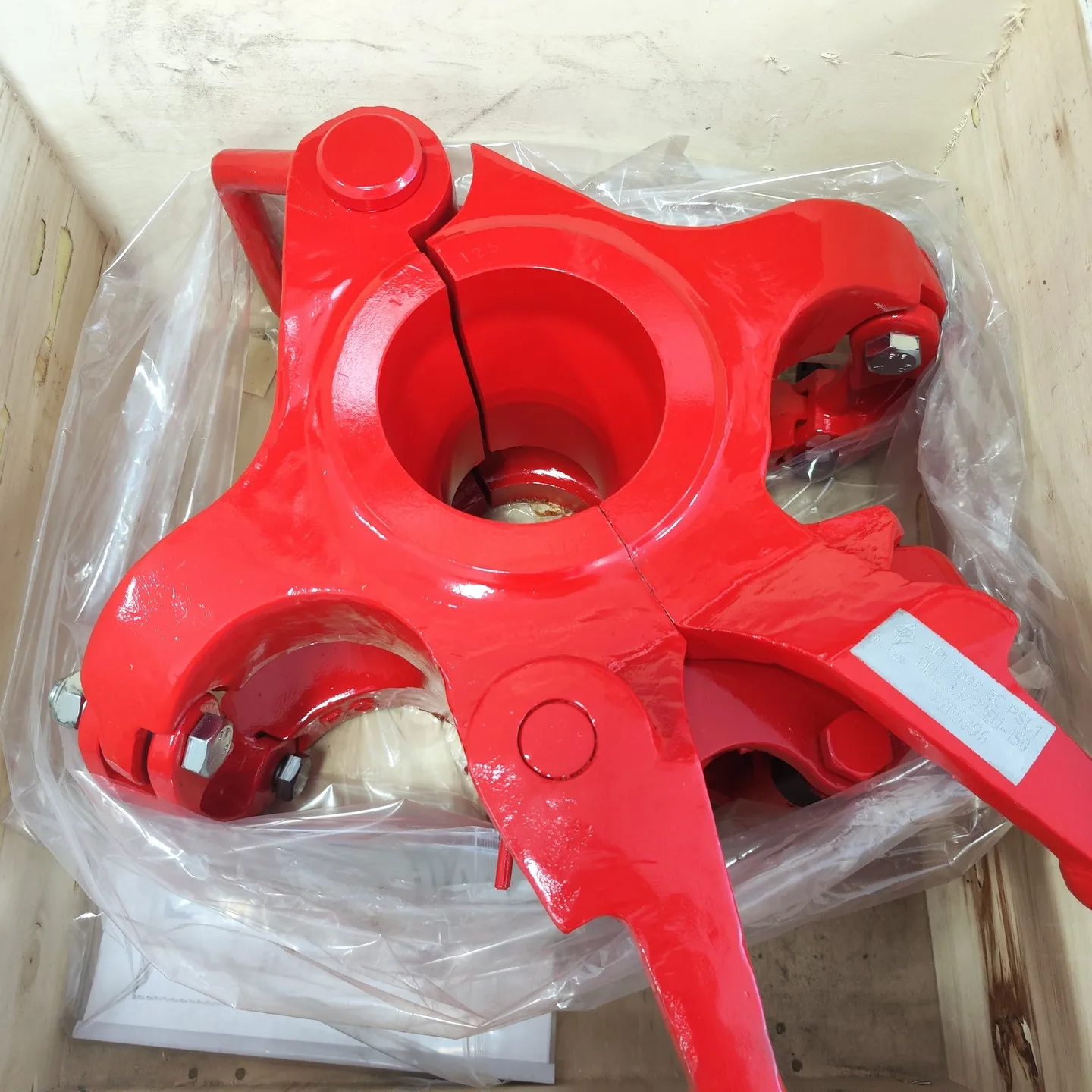

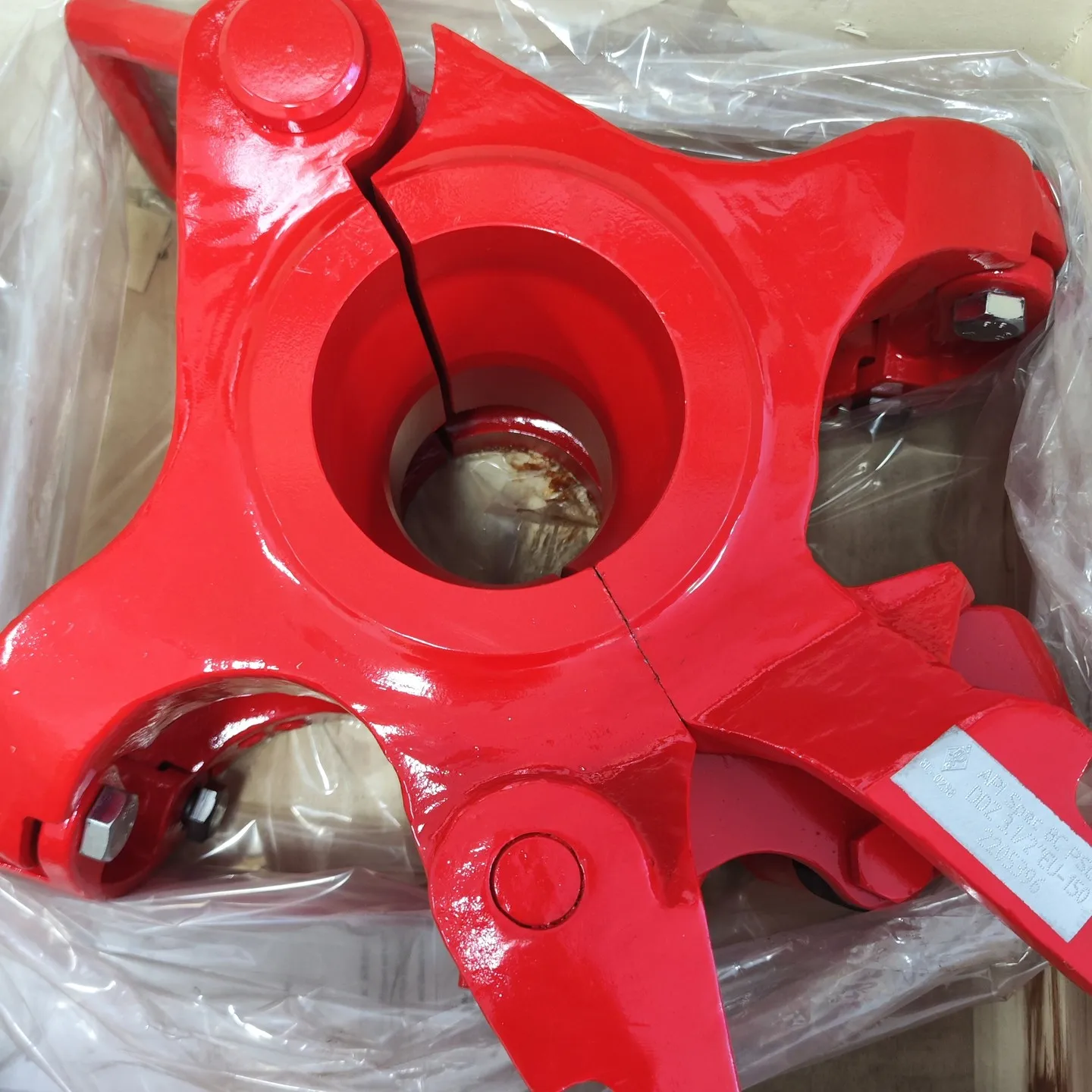

API Pipe casing elevator wellhead tools for oil drilling
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1600698459289):
Product Overview
Description
Product Parameters
DDZ Elevators :

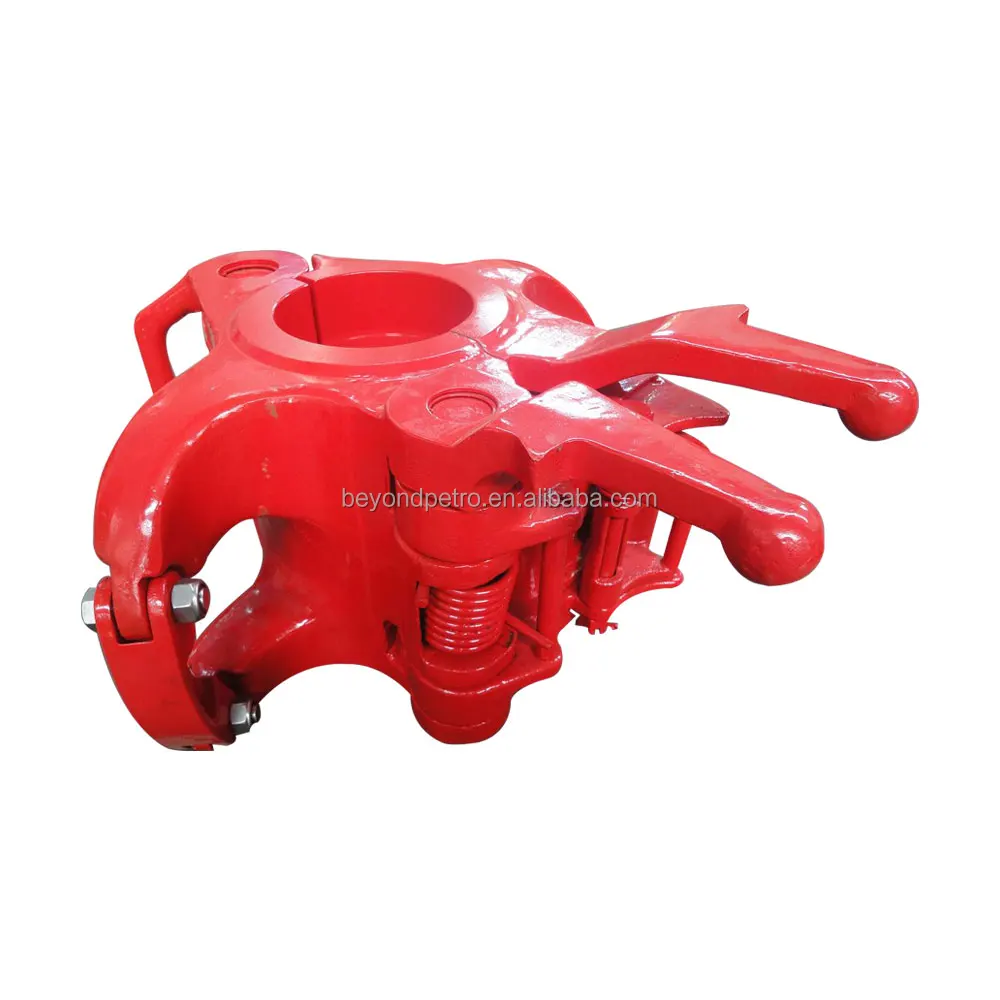

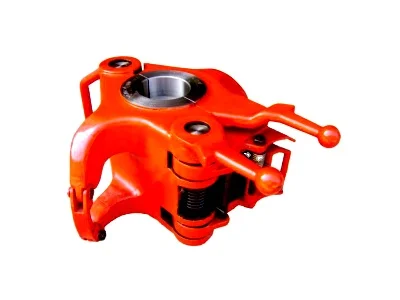

Model DDZ Center Latch Elevators are suitable for handling 18 taper shoulder drill pipe, drilling tools and etc. The Elevators are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment. DDZ TD means Top Drive Elevator.
Model DDZ Center Latch Elevators are suitable for handling 18 taper shoulder drill pipe, drilling tools and etc. The Elevators are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment. DDZ TD means Top Drive Elevator.
Model | Drill Pipe Size and Style | Diameter of Elevator Bores | Elevator Sign | Max. Load Tons(KN) |
DDZ67 | 23/8EU | 67 | 23/8EU | DDZ 150 (1350) 250 (2250) 350 (3150) 500(4500) DDZ TD 350 (3150) 500(4500) |
DDZ83 | 27/8EU | 83 | 27/8EU | |
DDZ101 | 31/2EU | 101 | 31/2EU | |
DDZ109 | 4IU | 109 | 4IU | |
DDZ121 | 4EU | 121 | 4EU | |
41/2IU | 41/2IU | |||
41/2IEU | 41/2IEU | |||
DDZ133 | 41/2EU | 133 | 41/2EU | |
5IEU | 5IEU | |||
DDZ148 | 51/2IEU | 148 | 51/2IEU | |
DDZ 159 | 5 7/8IEU | 159 | 5 7/8IEU | |
DDZ179 | 6 5/8IEU | 179 | 6 5/8IEU |
Our Professional Team
Certifications

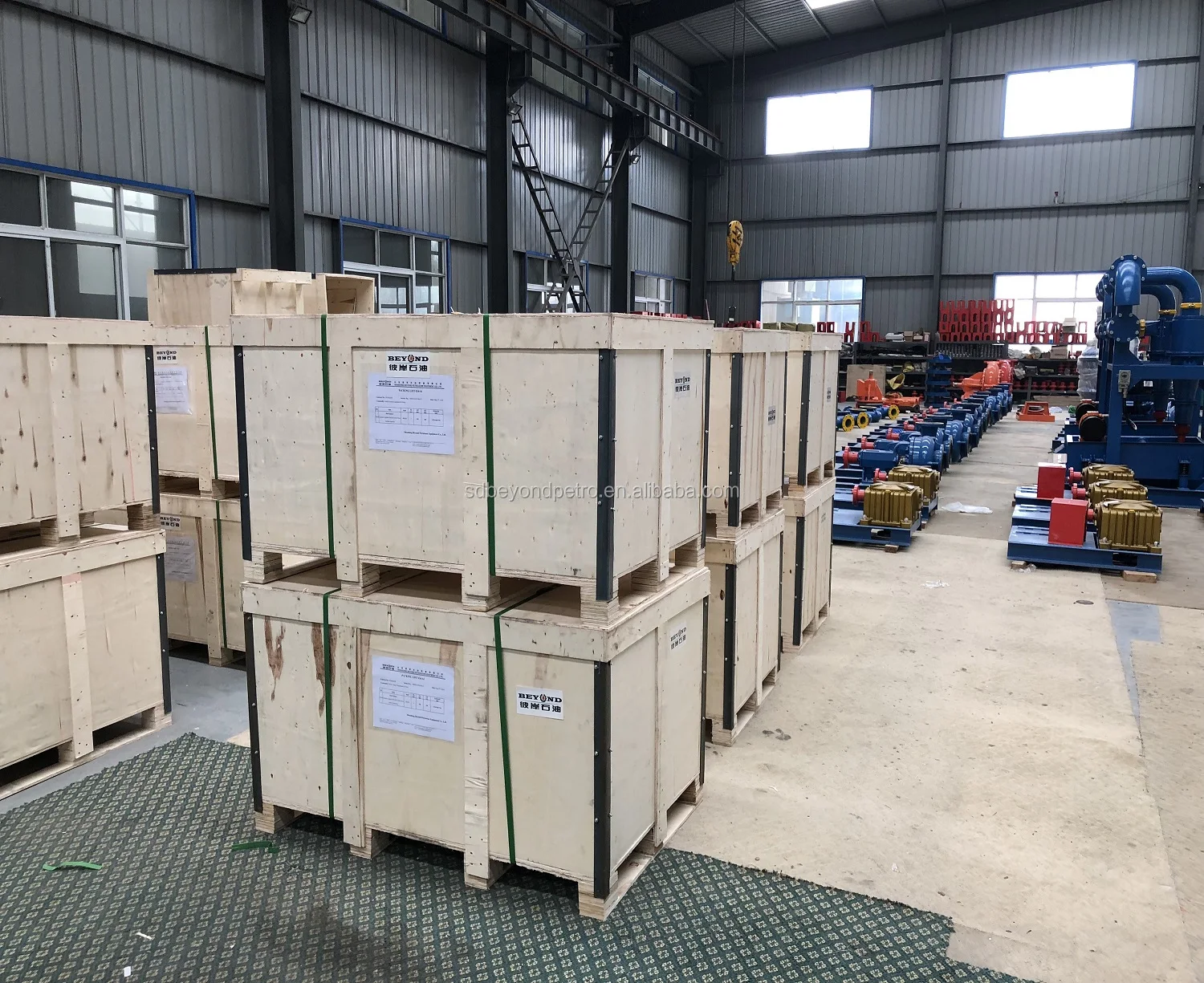

Product packaging
