Mechanical leveling feet Stainless steel 304 heavy duty equipment adjustable leveling feet M20 with base dia 80mm
Product Paramenters

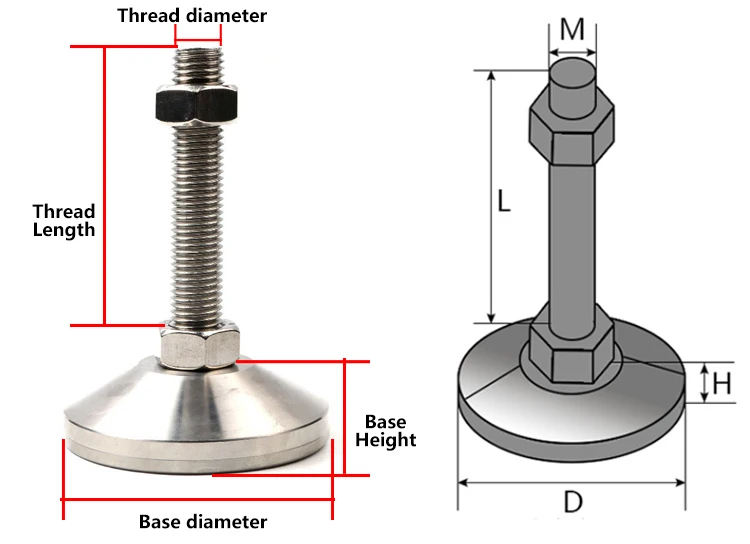

Model | Base Diameter (mm) A | Thread Diameter (mm) M | Thread Length (mm) L | Base plus nut height (mm) | Max Load KG |
D30*M6 | 30 | M6 | 50/100 | 24 | 400-2500KG |
D30*M10 | 30 | M10 | 50/100 | 24 | |
D30*M12 | 30 | M12 | 50/100 | 24 | |
D40*M8 | 40 | M8 | 50 | 26 | |
D40*M10 | 40 | M10 | 50/100 | 26 | |
D40*M12 | 40 | M12 | 50/100 | 26 | |
D50*M10 | 50 | M10 | 50/100 | 26 | |
D50*M12 | 50 | M12 | 50/100 | 26 | |
D60*M12 | 60 | M12 | 50/100 | 30 | |
D60*M16 | 60 | M16 | 100/150 | 30 | |
D60*M20 | 60 | M20 | 100/150/200 | 30 | |
D80*M12 | 80 | M12 | 50/100/150 | 30 | |
D80*M14 | 80 | M14 | 100/150 | 30 | |
D80*M16 | 80 | M16 | 50/80/100/120/150/200 | 30 | |
D80*M20 | 80 | M20 | 100/120/150/200/250 | 30 | |
D80*M24 | 80 | M24 | 100/150 | 30 |
Products Description
Product Name | Material | Surface Treatment | Product Features | Base |
Heavy-duty Leveling Feet | stainless steel | polishing | Fixed | Solid |

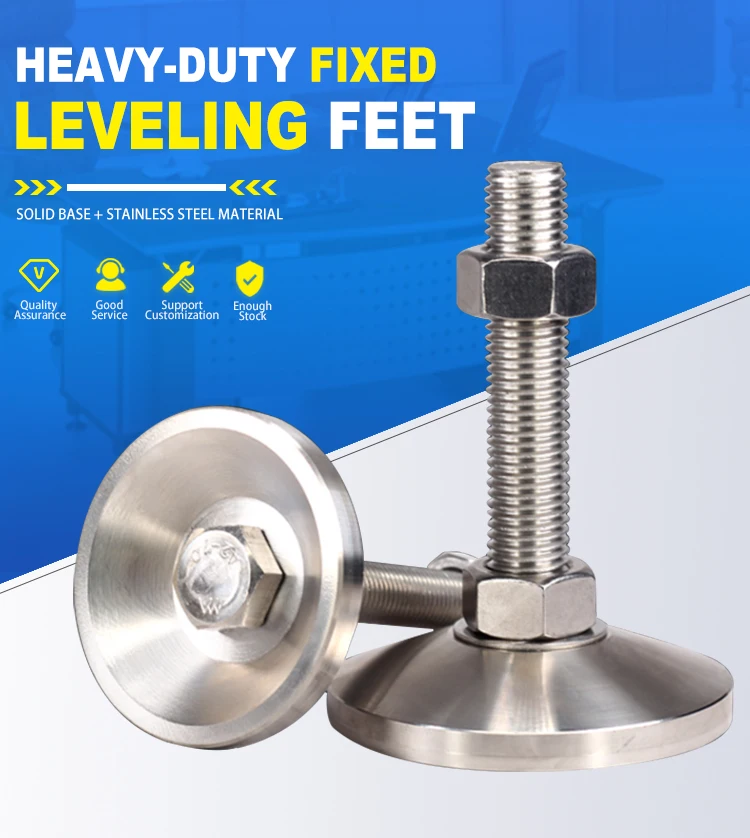

Heavy-duty Leveling Feet

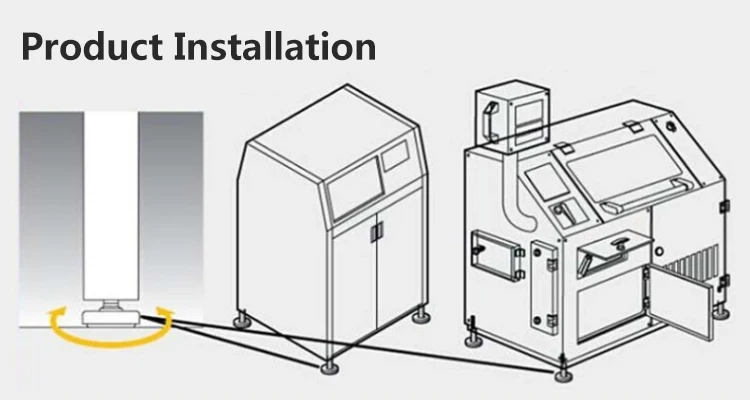

Foot cup, also known as a flat bottom machine foot or leveling feet is a component that uses threads for height adjustment. It is used to adjust the height, level and tilt of the equipment.

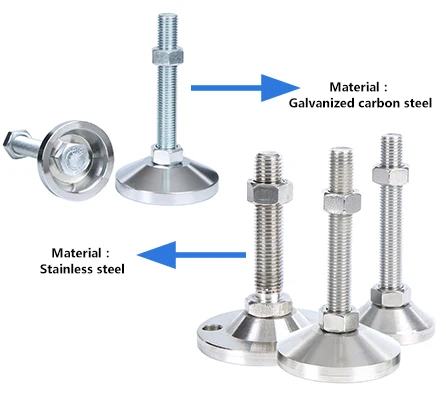

In addition, the foot cups also include galvanized foot plates,stainless steel adjustment feet, nylon foot cups, shock absorbing feet, etc.
Material: base selected thickness solid base, screw selected stainless steel 304/316/201, screw surface treatment Polishing

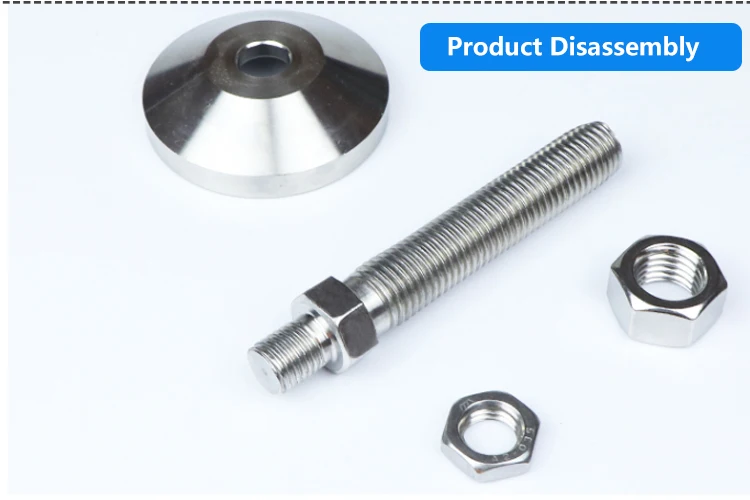

one-piece screw+High quality stainless steel

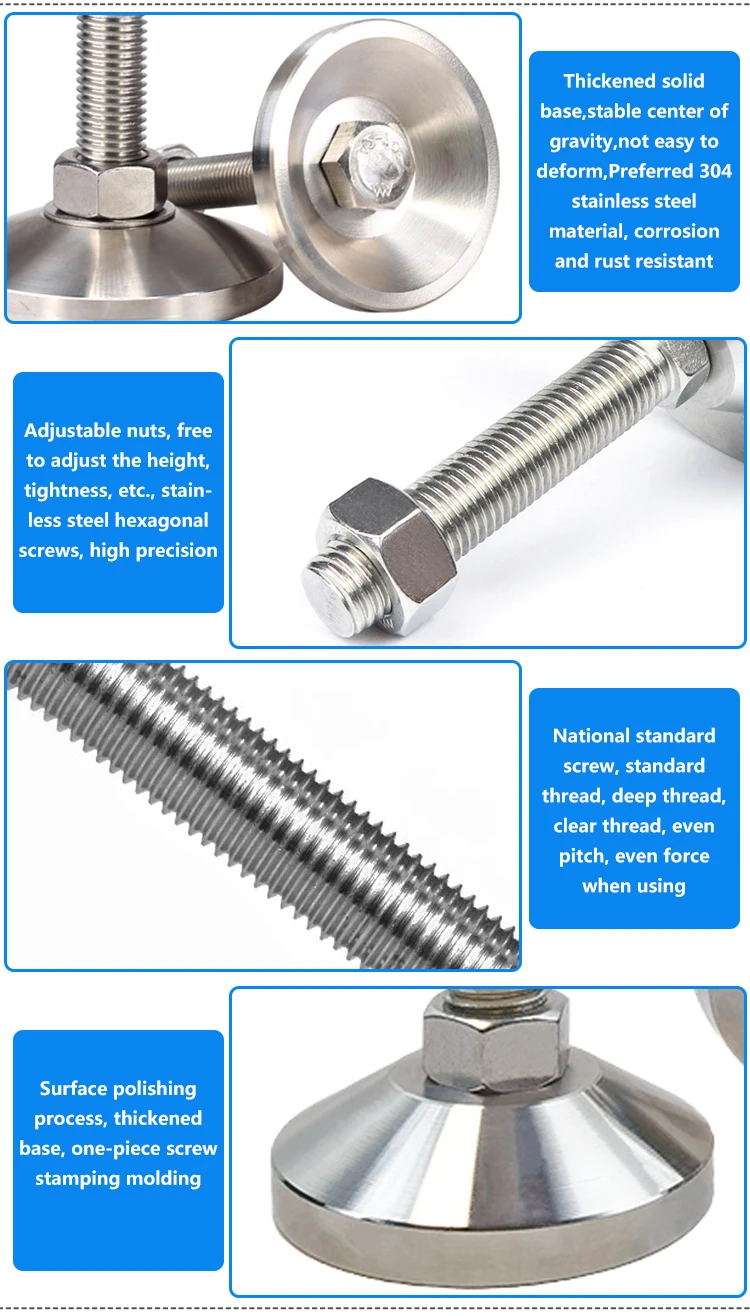

Stainless steel Heavy-duty Fixed Leveling Feet
1.screw material:stainless steel 304/316l, corrosion and wear resistance
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard
4.The product load-bearing capacity is not only by the screw or chassis, but two components grouped together
5.Solid base, strong load-bearing force
6.National standard screw, uniform tooth pitch, even force when using
7.The nut can be freely adjusted, the snap is not easy to fall off

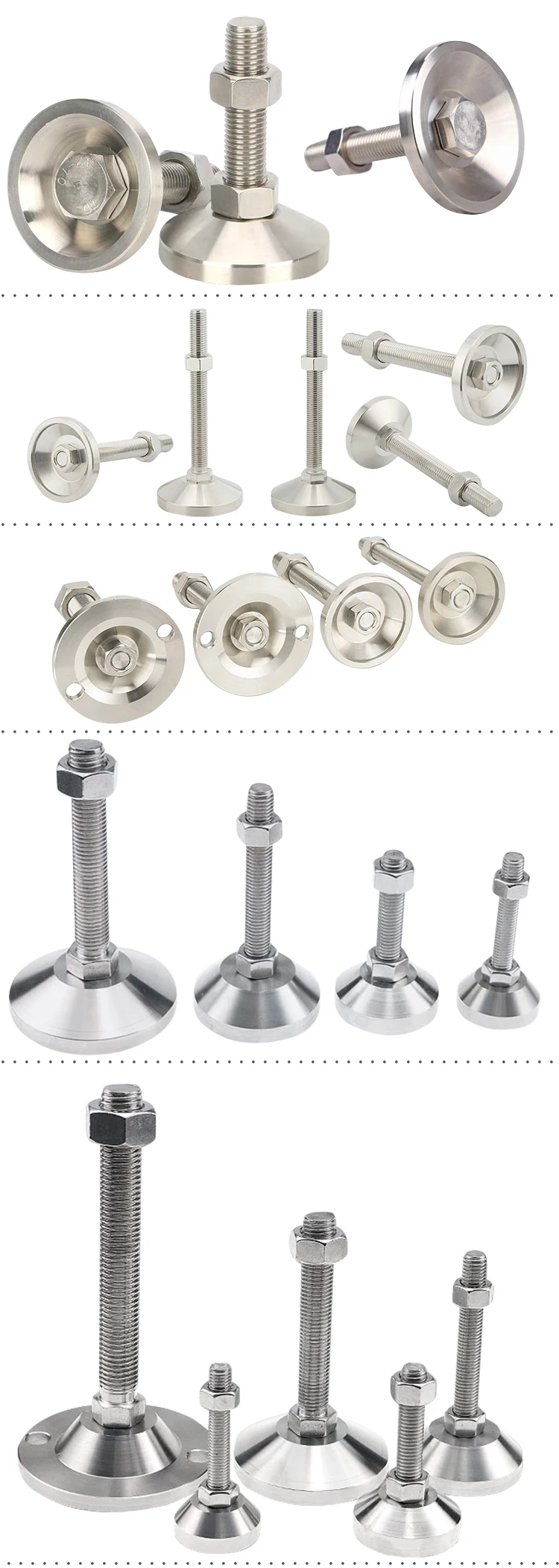

Details Images

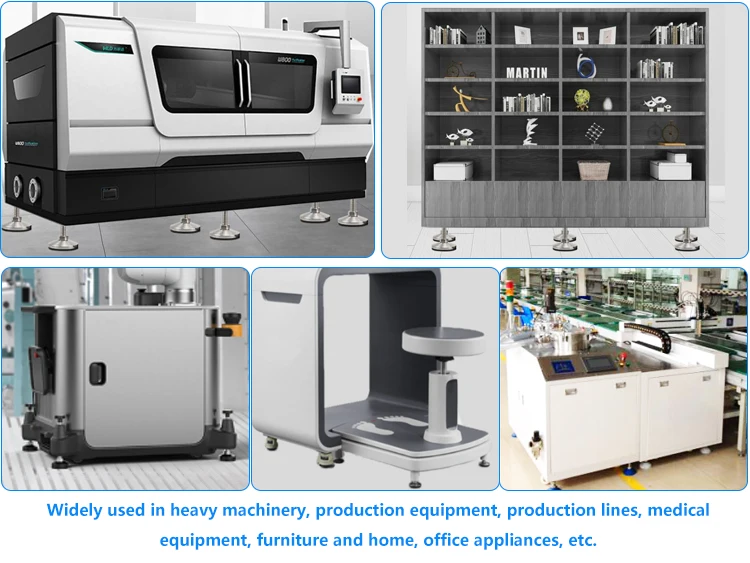

Applications

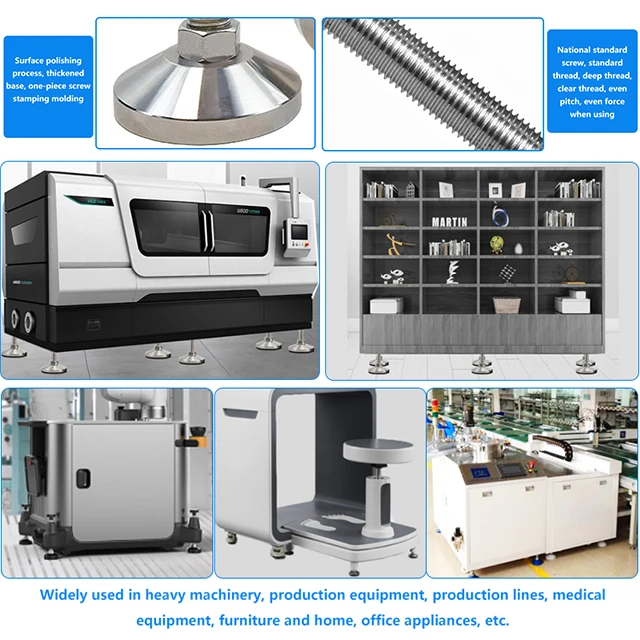

Field of application of Heavy-duty leveling feet
Our company products are widely used in general /Machine tool equipment/Furniture home / warehouse shelves / medical equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.

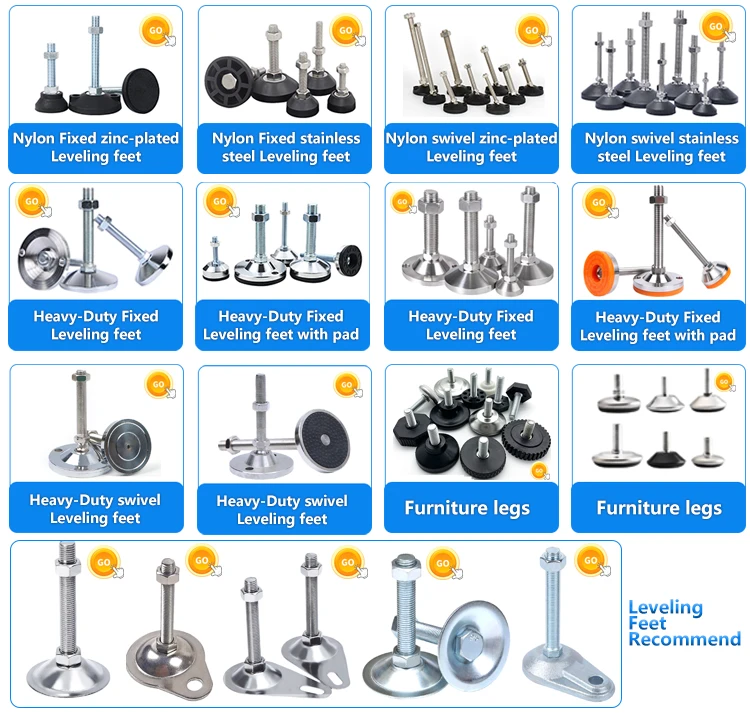

Recommend Products
