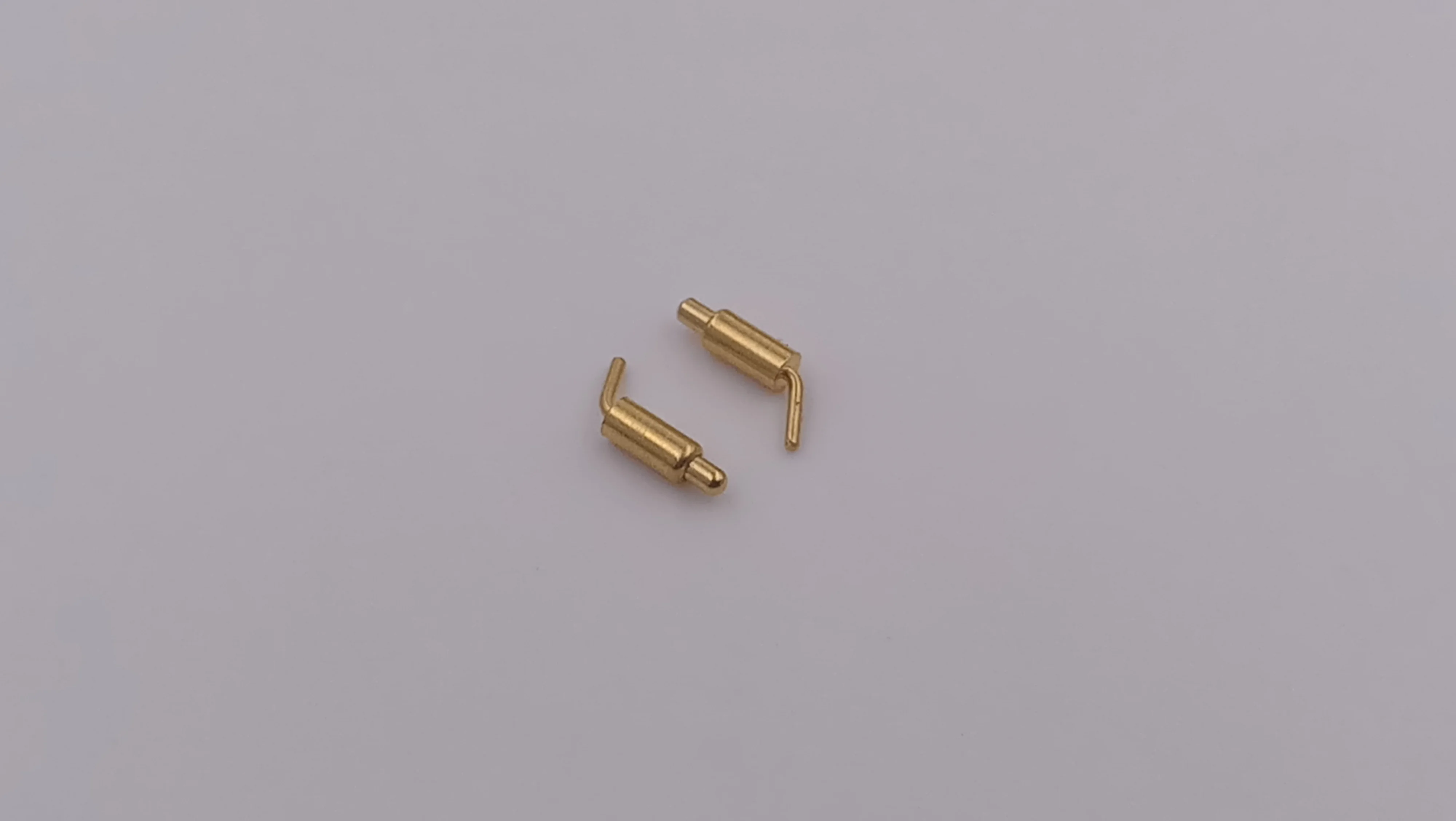

High Current gold plated 20000 life cycle Right angle spring loaded pogo pin connector
- Category: >>>
- Supplier: Shenzhen Sinrui Technology Co. Ltd
Share on (1600698551008):
Product Overview
Description
Product Description

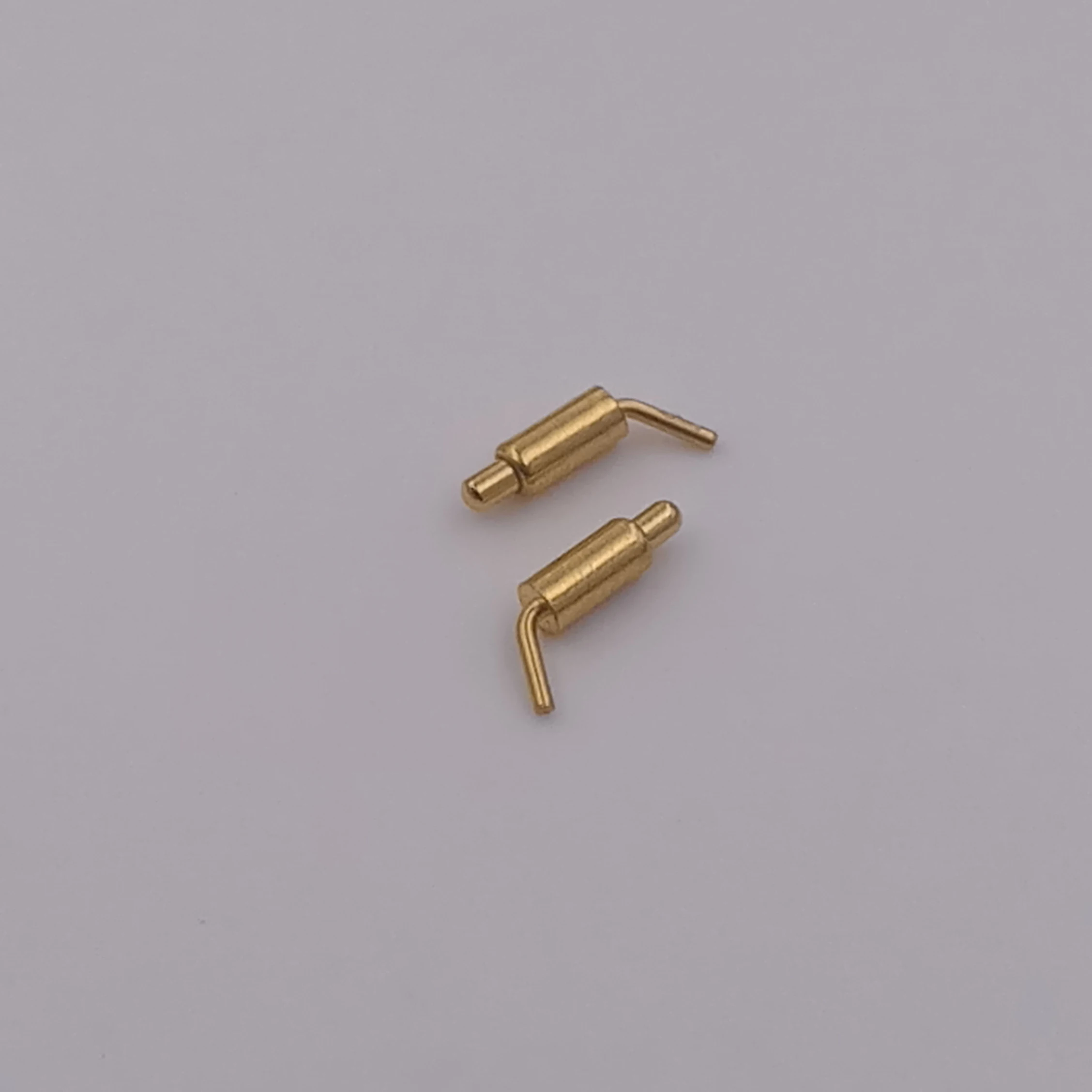

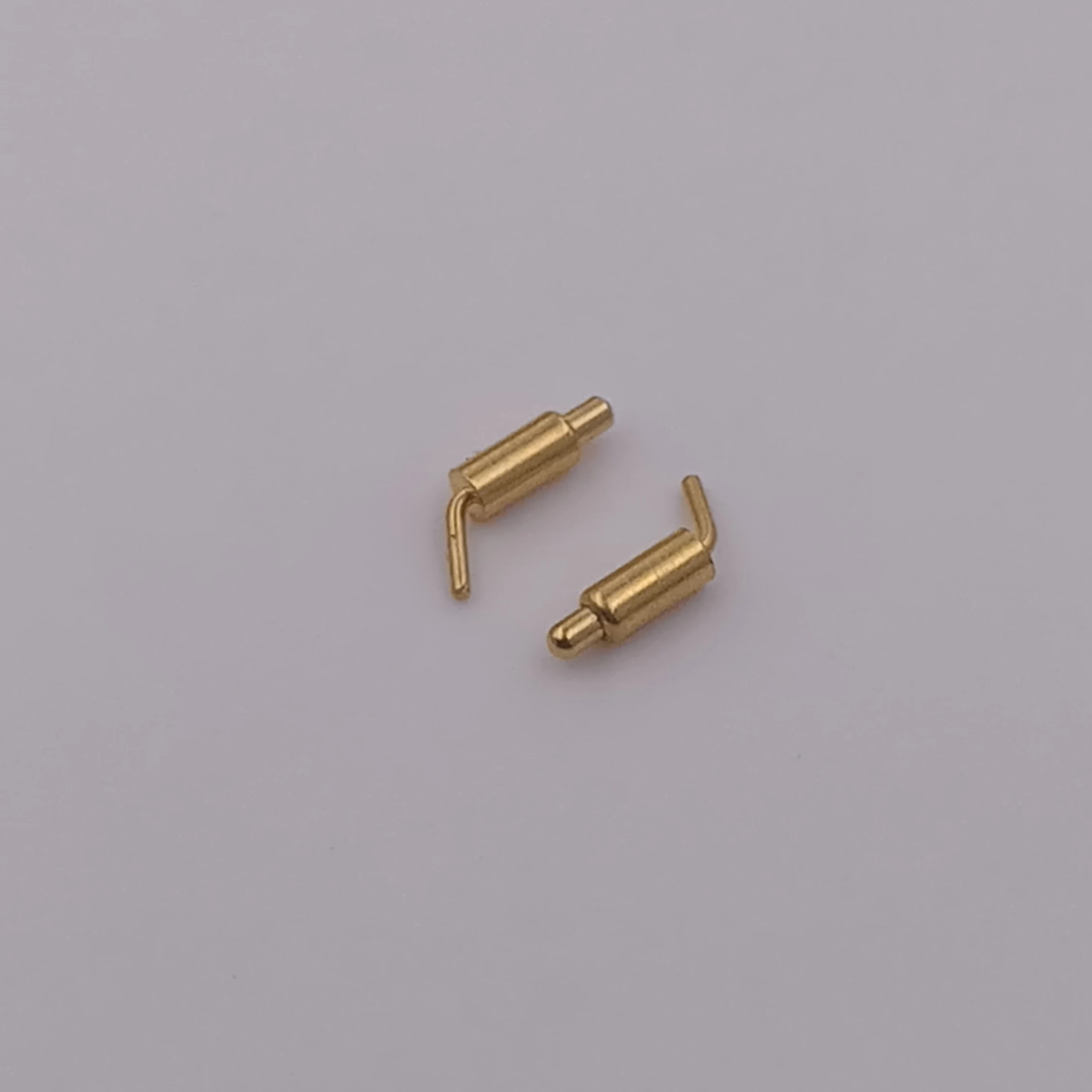

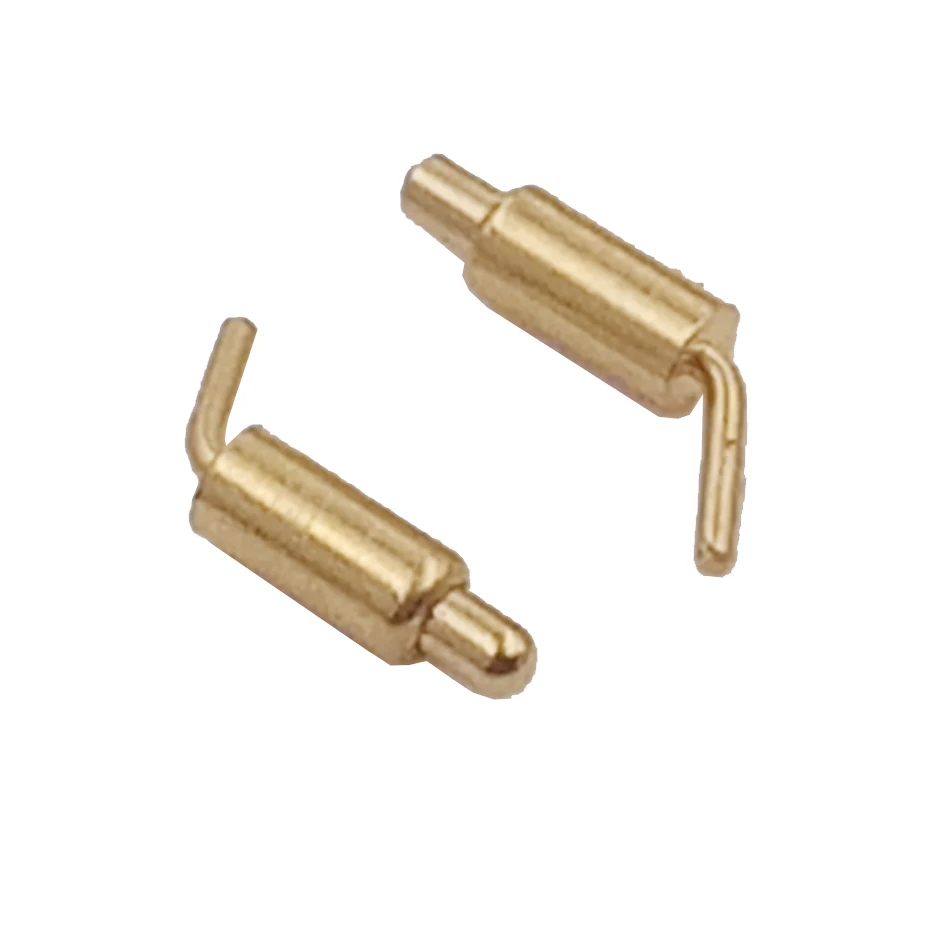

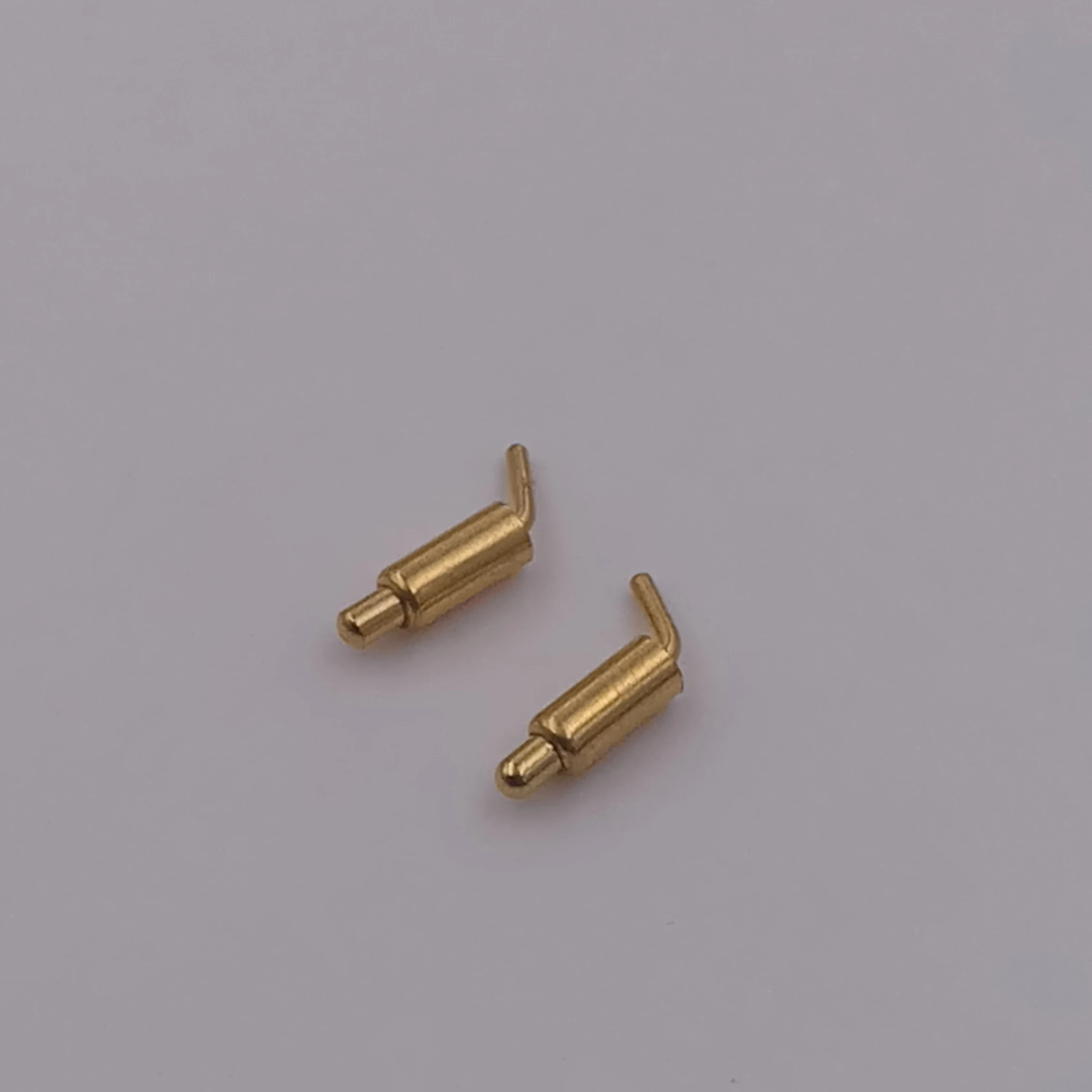

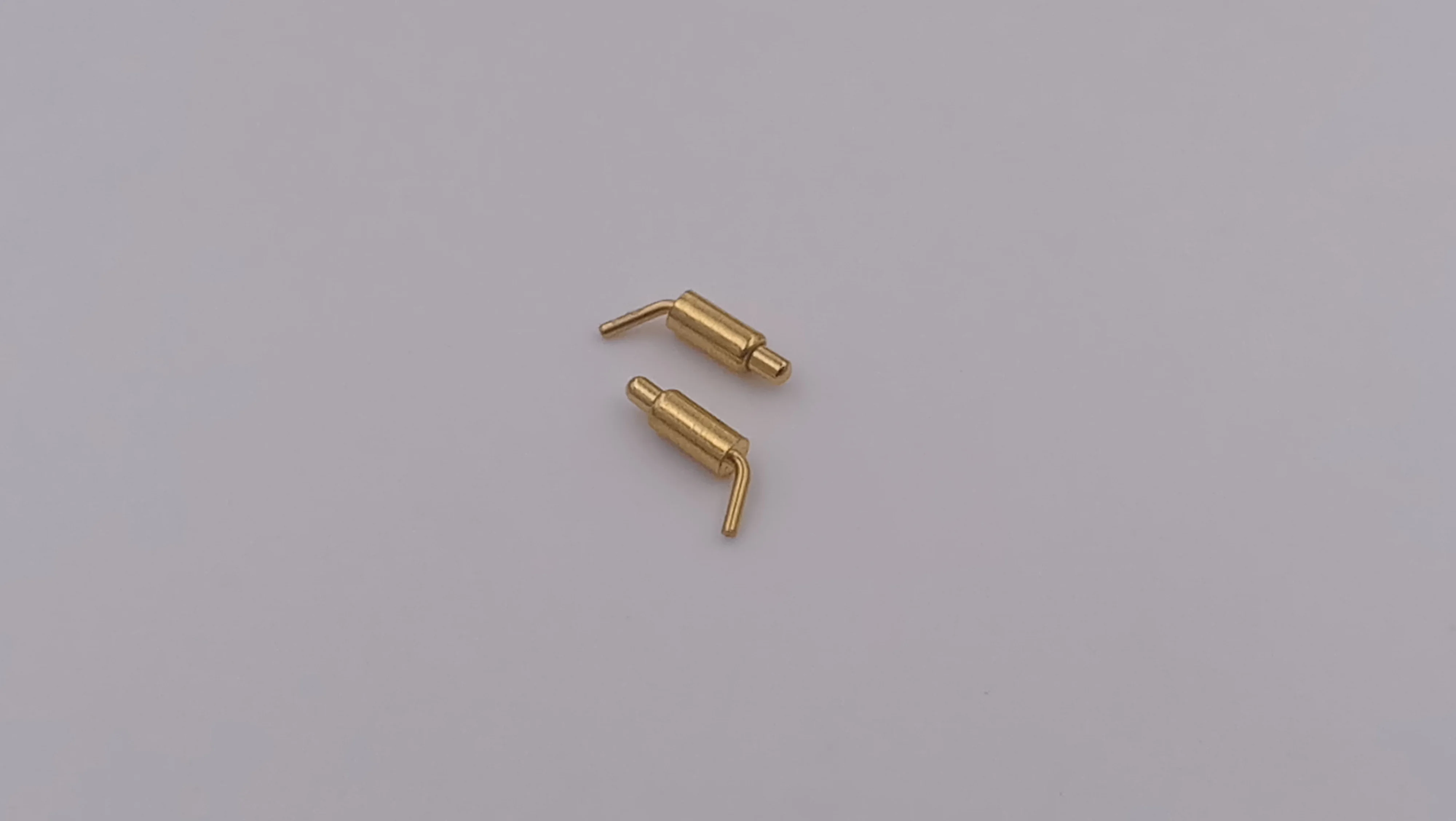

Right angle spring loaded pogo pin connector
Pogo pin is precise connectors as an electric connection in electronics products;
Its has customized appearance according to customer's application, and pogo has a spring structure inside.
Normally all parts of pogo are to be gold plated.
Its electric characteristic will automatic find the Min. resistance to transfer current;
Most of the current transmission is through by the spring and pogo head, so the spring and pogo head must be produced by a high high-precision machines.

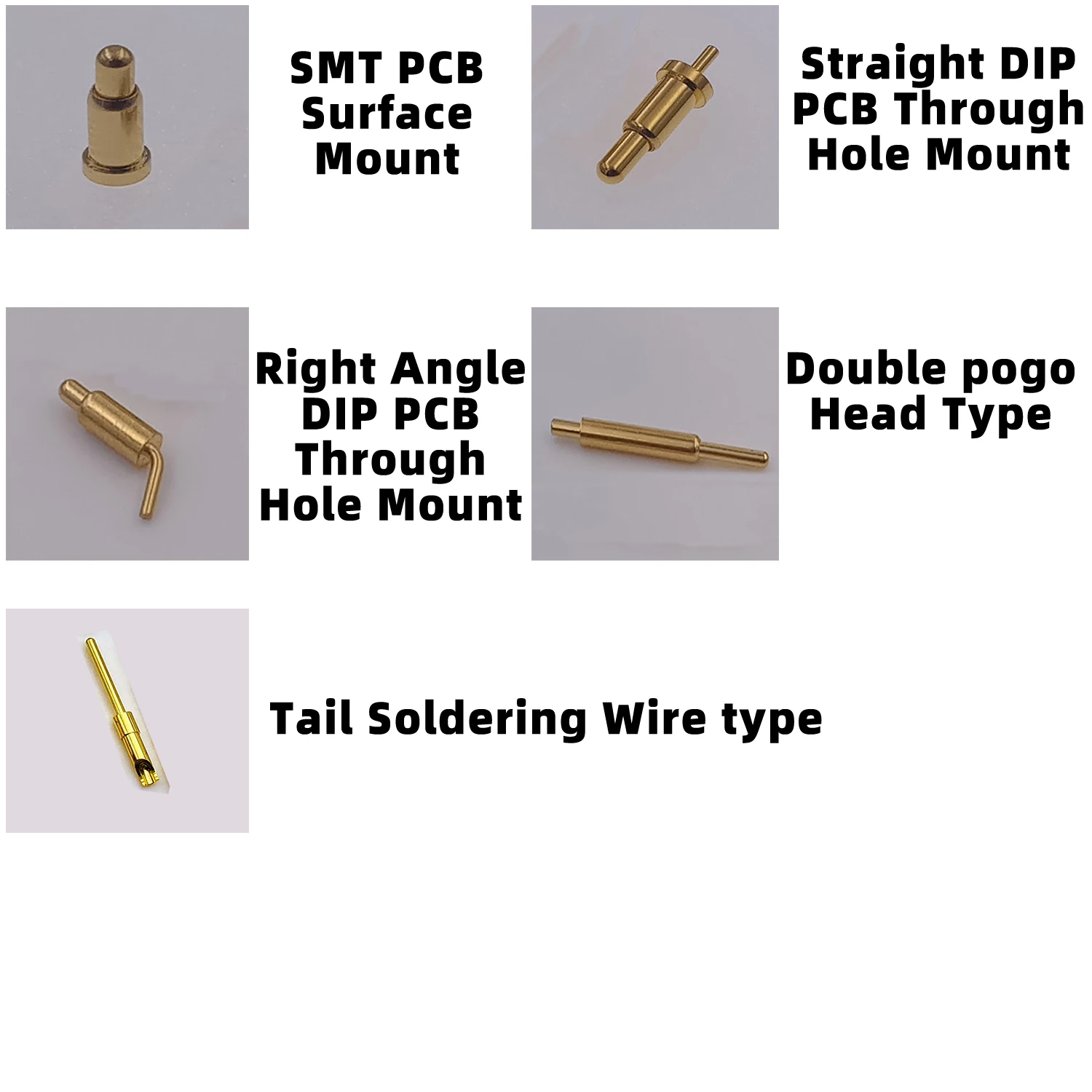

Pogo pin was formed by pogo head, spring, body tube normally, it is widely used in mobile, portable electric devices, Telecommunication, Auto, Medical device, Aviation of electronics parts; Products can has a smaller size by using pogo pin as pogo pin is tiny and light, as well as beautiful appearance.
Per different application of current request, the pogo pin can have a different diameter of body and different conduct area, which can satisfy customer's current request.
Its has customized appearance according to customer's application, and pogo has a spring structure inside.
Normally all parts of pogo are to be gold plated.
Its electric characteristic will automatic find the Min. resistance to transfer current;
Most of the current transmission is through by the spring and pogo head, so the spring and pogo head must be produced by a high high-precision machines.

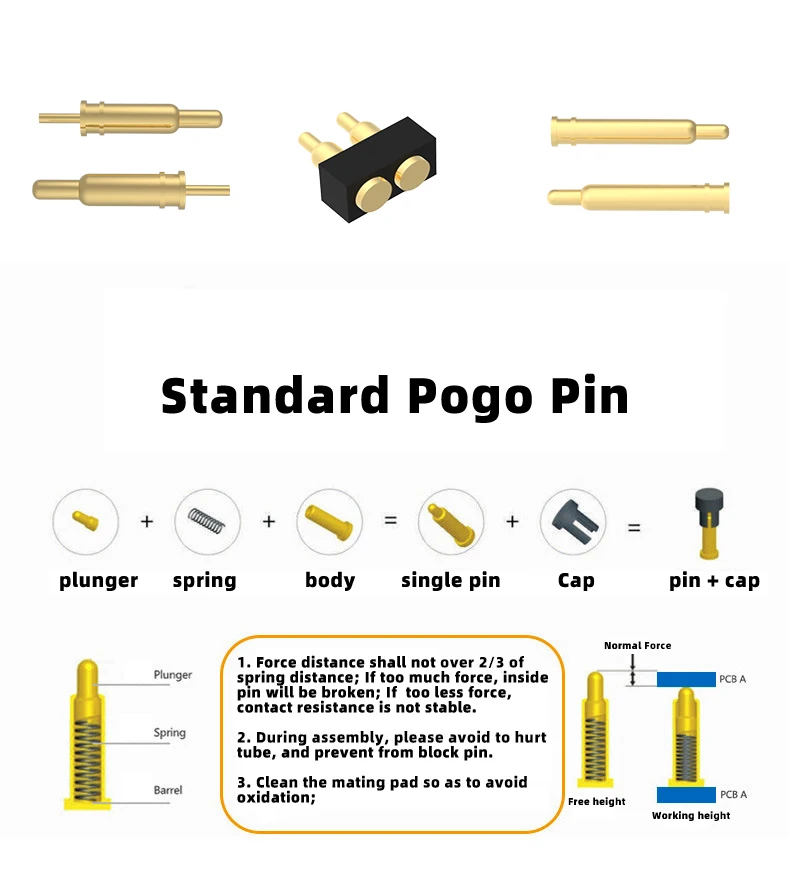

Pogo pin was formed by pogo head, spring, body tube normally, it is widely used in mobile, portable electric devices, Telecommunication, Auto, Medical device, Aviation of electronics parts; Products can has a smaller size by using pogo pin as pogo pin is tiny and light, as well as beautiful appearance.
Per different application of current request, the pogo pin can have a different diameter of body and different conduct area, which can satisfy customer's current request.
Total Height | Working Height | Head Outer Diameter | Body Outer Diameter | Stroke Distance | ||||
2.1 | 1.75 | 0.9 | 1.5 | 0.4 | ||||
2.3 | 1.85 | 0.9 | 1.5 | 0.5 | ||||
2.9 | 2.25 | 0.8 | 1.2 | 0.7 | ||||
3 | 2.5 | 0.9 | 1.5 | 0.55 | ||||
Contact us for more size or customized size | ||||||||
Total Height | Working Height | Head Outer Diameter | Body Outer Diameter | Stroke Distance | ||||
1.9 | 1.2 | 0.9 | 1.5 | 0.85 | ||||
2.3 | 1.8 | 0.9 | 1.5 | 0.7 | ||||
2.8 | 2.2 | 0.9 | 1.5 | 0.8 | ||||
3 | 2.3 | 0.8 | 1.25 | 0.9 | ||||
Contact us for more size or customized size | ||||||||
Total Height | Working Height | Head Outer Diameter | Body Outer Diameter | Stroke Distance | ||||
4.5 | 3.3 | 0.9 | 1.5 | 1.4 | ||||
5.5 | 4.5 | 0.9 | 1.5 | 0.9 | ||||
6.0 | 4.5 | 0.9 | 1.5 | 0.75 &0.95 | ||||
8.0 | 6.6 | 0.9 | 1.5 | 0.7 &1.0 | ||||
Contact us for more size or customized size | ||||||||
Material & Finish :
1）Pin Head：Brass, Au Plated After Ni
2）Pin Body：Brass, Au plated after Ni
3）Spring：SUS304
Electrical Performance
1）Rated Current:1A/ 2A , or custom;
2）Rated Voltage: 12V, or custom;
3）Contact Resistance: 30m ohm Max.
3.Machanical Perforamnce
1）Spring Force：See below Table
2）Life Cycle: 10,000 Min.
2）Pin Body：Brass, Au plated after Ni
3）Spring：SUS304
Electrical Performance
1）Rated Current:1A/ 2A , or custom;
2）Rated Voltage: 12V, or custom;
3）Contact Resistance: 30m ohm Max.
3.Machanical Perforamnce
1）Spring Force：See below Table
2）Life Cycle: 10,000 Min.
Recommend Products
Factory Advantages

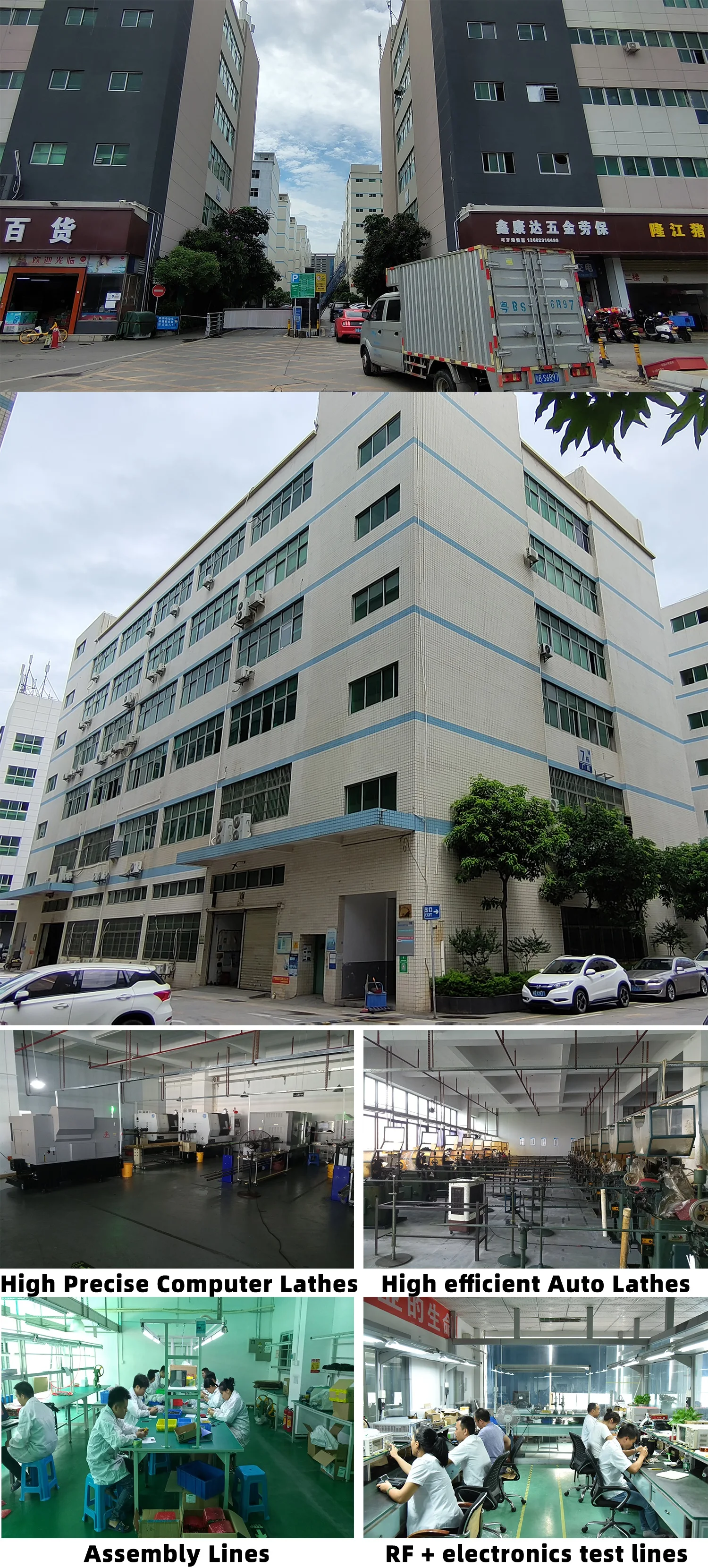

Factory advantage:SHENZHEN SINRUI TECHNOLOGY CO.,LTD.
Head Factory is located in Huafeng Science and Technology Park in Shenzhen City, China since 2005.
And a Branch factory located in Jiangxi Province LongTang Twon Liansuo industrial Park.
With more than 16 years experience development, factory has over 300 employees and facility is over 10000 sqmm.
We own ISO9001:2015 Quality Management Standard to implement our quality.
We can provide service from OEM Design, Molds production, Prototyping, Sampling Test, Mass production, with a short leadtime.
Factory is equipped with full set of advanced production devices, like Auto Lathes,CNC, CNC engraving machine, High Speed auto
stamping bunch, auto assembling machines, auto wire & terminal machines, High Frequency Soldering machines, etc.
Also we equipped with complete inspection tester, like Network Analyzers, resistance tester, DC&AC Tester, High Voltage Tester,
Tensile tester, RoSH tester, 2.5D projector tester, Salt Spray test, etc.
Head Factory is located in Huafeng Science and Technology Park in Shenzhen City, China since 2005.
And a Branch factory located in Jiangxi Province LongTang Twon Liansuo industrial Park.
With more than 16 years experience development, factory has over 300 employees and facility is over 10000 sqmm.
We own ISO9001:2015 Quality Management Standard to implement our quality.
We can provide service from OEM Design, Molds production, Prototyping, Sampling Test, Mass production, with a short leadtime.
Factory is equipped with full set of advanced production devices, like Auto Lathes,CNC, CNC engraving machine, High Speed auto
stamping bunch, auto assembling machines, auto wire & terminal machines, High Frequency Soldering machines, etc.
Also we equipped with complete inspection tester, like Network Analyzers, resistance tester, DC&AC Tester, High Voltage Tester,
Tensile tester, RoSH tester, 2.5D projector tester, Salt Spray test, etc.
All products 100% inspection before shipment!
Our factory is equipped with complete tester.
Below are parts of our testers:
2.5 Dimension Projector tester help us to test every dimension accurately
all of our metal pins will be tested by salt spray tester before production.
each production line equips with network analyzers to test before shipment.
and R&D platform afford 40G test
ODM & OEM
We own an professional R&D team that we can provide customers custom made and custom design of products;
And we can also provide customers data sheet and solution within 48 hours;
We own testing room including Dark room and Network analyzer for RF Signal.
Also has 2.5D profile projector tester, High & Low TEMP shock tester, High withstanding voltage tester, DC current tester, resistance tester, etc, a complete set of testers for products;
Certificate
FAQ
Q:what's your company MOQ?
A: For Standard products, we donot have MOQ requirement, you can order even 1pcs;
for customized or new produced of products, we normally require MOQ about 500 / 1000 pcs;
A: For Standard products, we donot have MOQ requirement, you can order even 1pcs;
for customized or new produced of products, we normally require MOQ about 500 / 1000 pcs;
.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
For standard products, we lead-time is 2~4 weeks.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.
For standard products, we lead-time is 2~4 weeks.
For Custom made products, lead-time is 4~5 weeks.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. for standard products, we will provide free samples at quantity 2pcs, normally, or discuss with our sales;
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: Can you send a sample for us to develop?
A: Yes, we can. for standard products, we will provide free samples at quantity 2pcs, normally, or discuss with our sales;
For new produced, we will charge a sampling fee, and this fee can be returned when you order a high quantity of order in future;
For customized products, we will charge a sampling fee;
