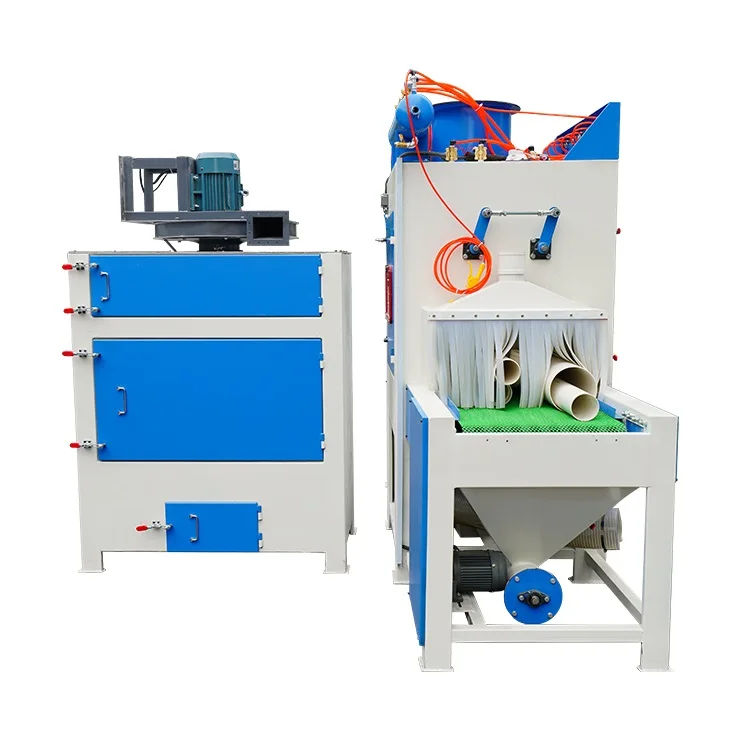

Automatic sandblasting equipment conveyor belt type sandblaster machine
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600698595078):
Product Overview
Description
Products Description

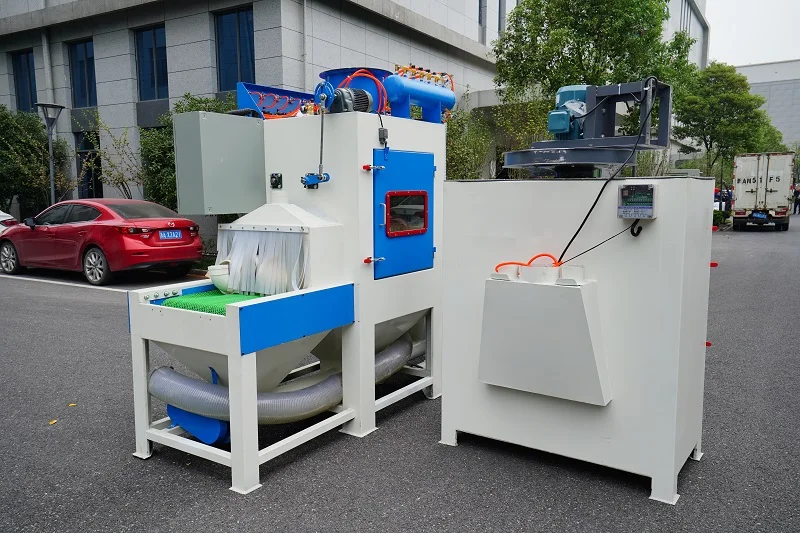

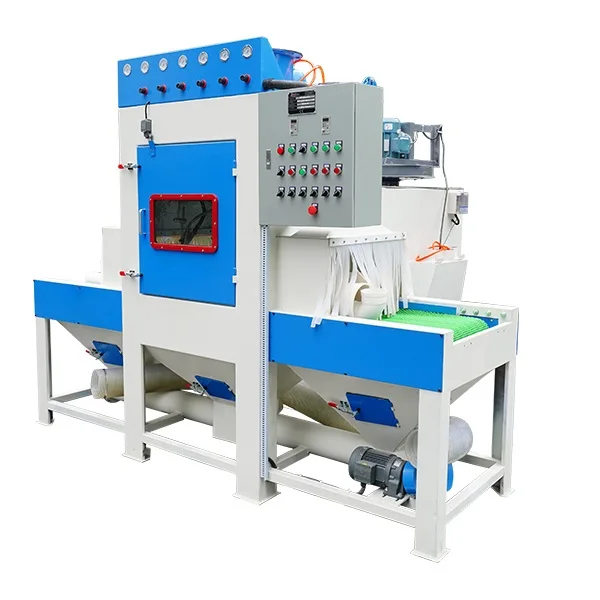

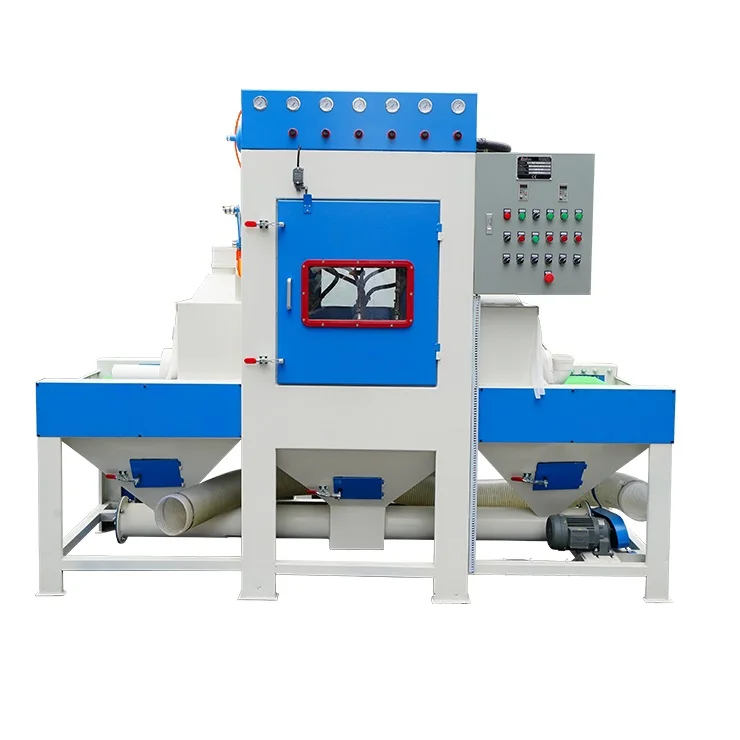

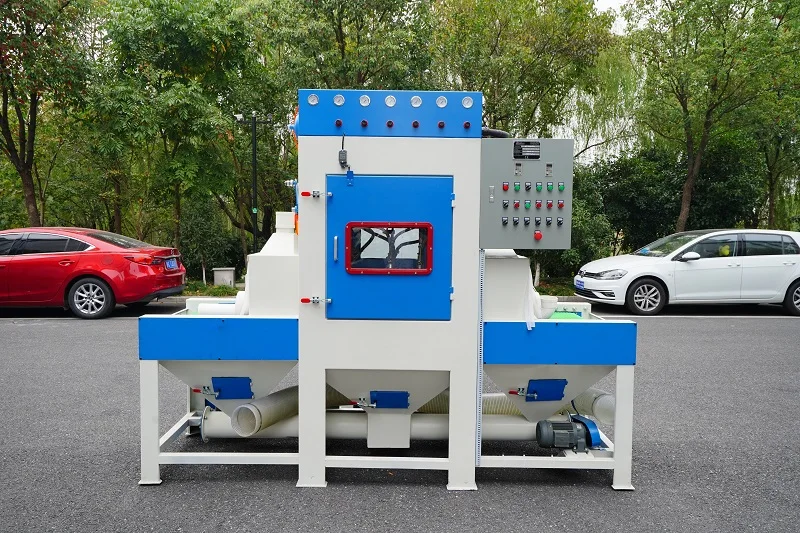

Automatic sandblasting equipment conveyor belt type sandblaster machine

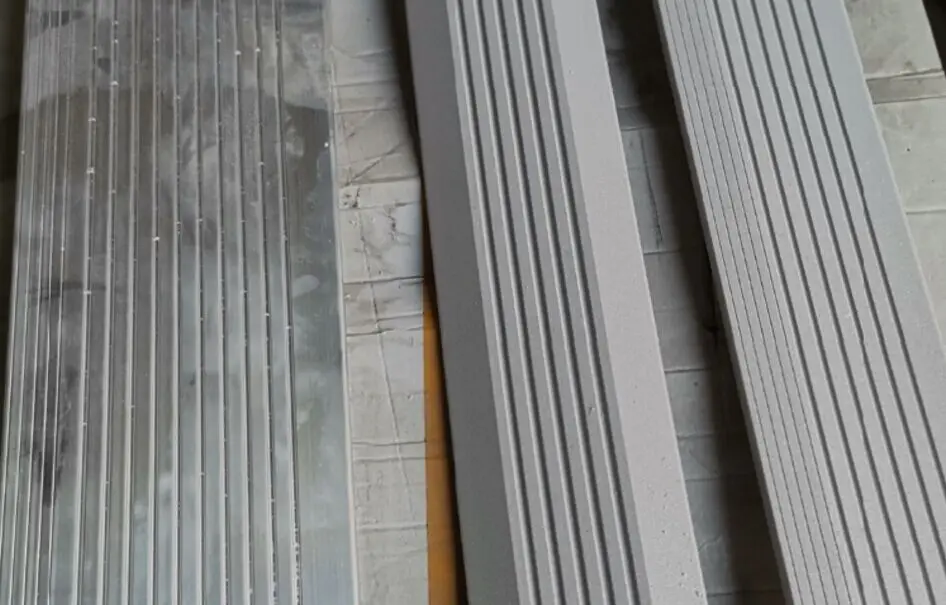

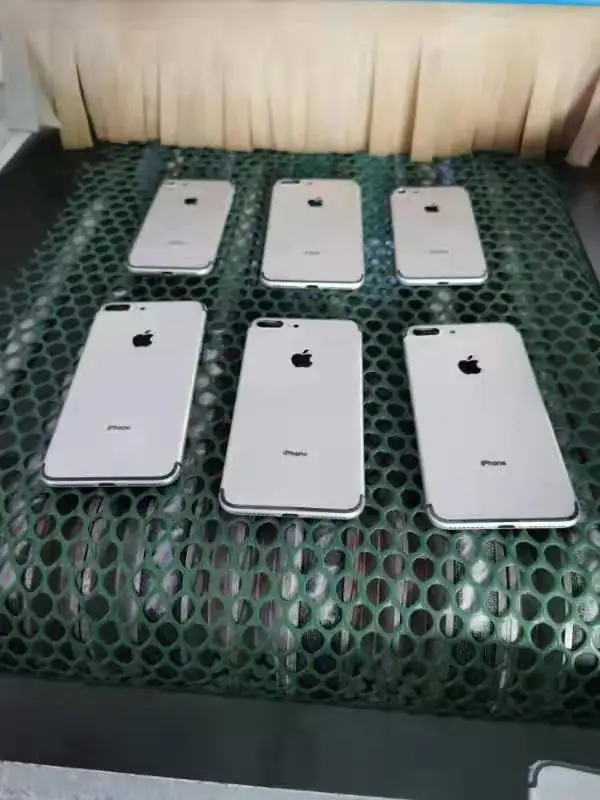

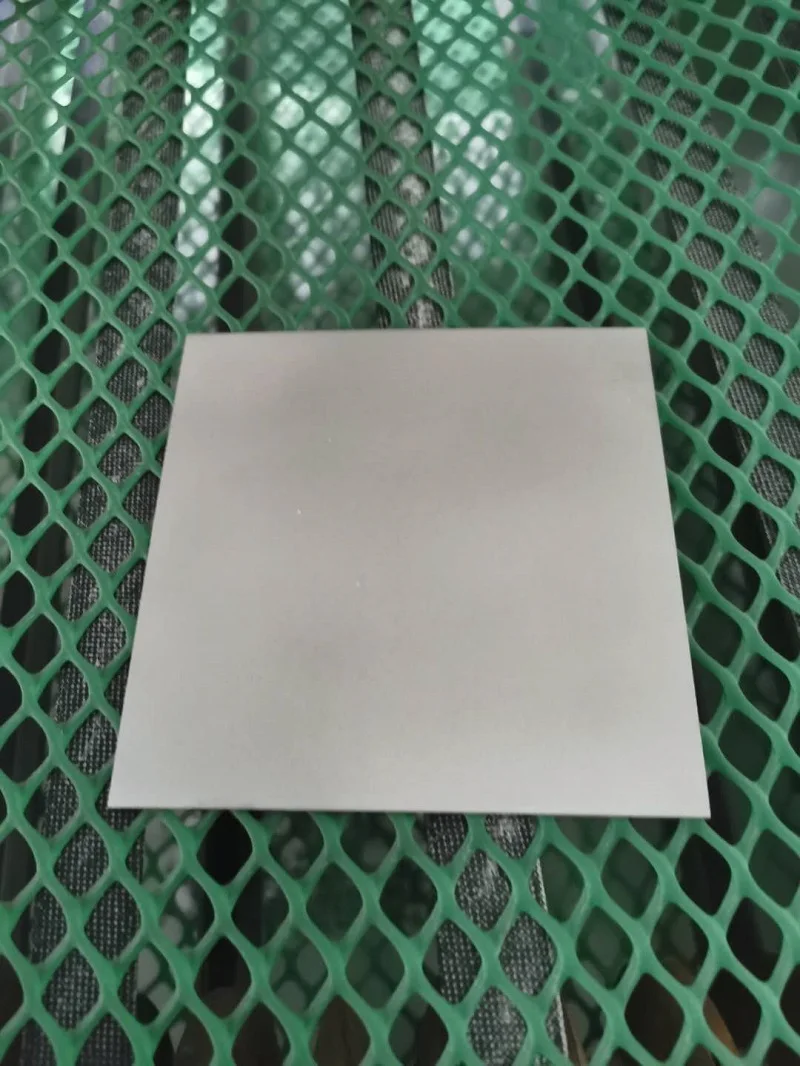

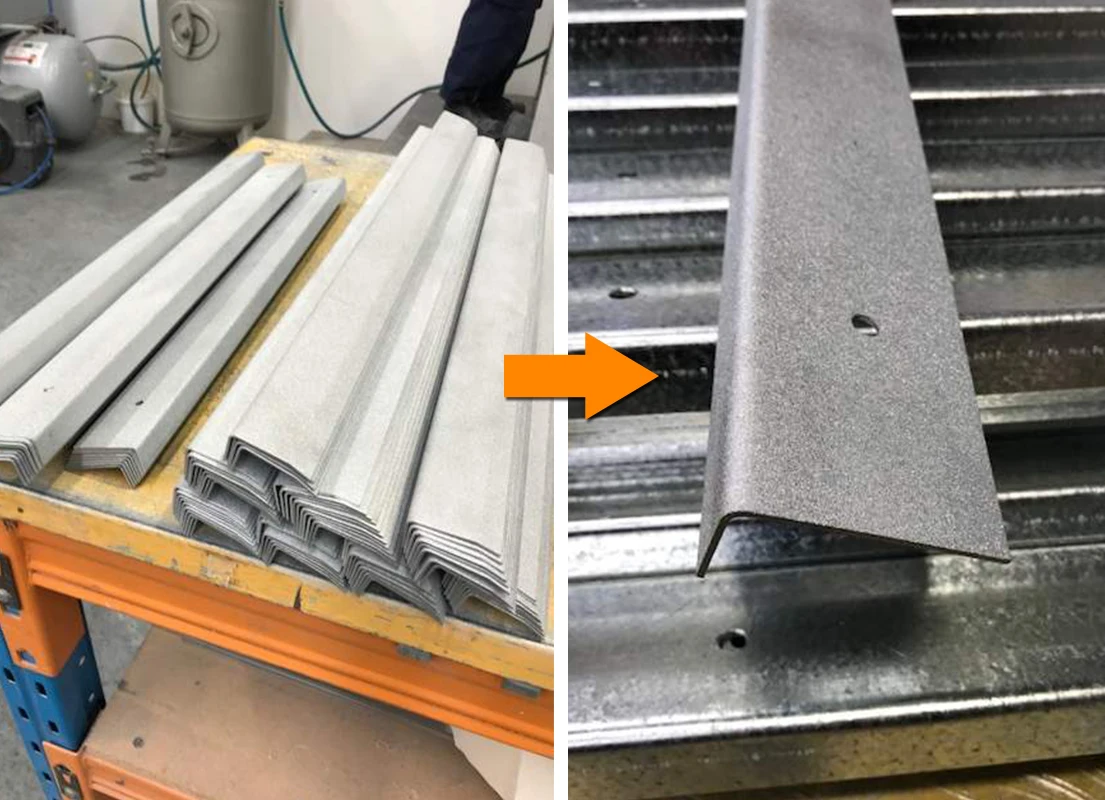

This automatic conveyor sand blasting machine is recommended for batch processing flat shape workpieces like steel plate, glass plate, phone shell, notebook mainboard, decorative pieces, aluminum profiles, etc.
Detail image
Automatic Conveyor Sandblasting Equipment Features:
1. The automatic sandblaster applies advanced electric and pneumatic control system, with a high degree of flexibility and
stability.
2. The angle of each gun rack can be freely adjusted to achieve automatic swing or point blasting.
3. The conveyor motor is controlled by frequency converter, whose speed can be steplessly regulated by inverter within the range of 0 ~ 2m/min.
4. Designed with cyclone separator for effectively separation of abrasives from dusts.
5. Independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation. Environmental
friendly.
6. Four abrasive funnels at the bottom of the automatic blaster, ensures all used abrasives are recycled, reduce consumption and save cost.
stability.
2. The angle of each gun rack can be freely adjusted to achieve automatic swing or point blasting.
3. The conveyor motor is controlled by frequency converter, whose speed can be steplessly regulated by inverter within the range of 0 ~ 2m/min.
4. Designed with cyclone separator for effectively separation of abrasives from dusts.
5. Independent cartridge filter dust removal system with excellent effect of dust extraction and ventilation. Environmental
friendly.
6. Four abrasive funnels at the bottom of the automatic blaster, ensures all used abrasives are recycled, reduce consumption and save cost.

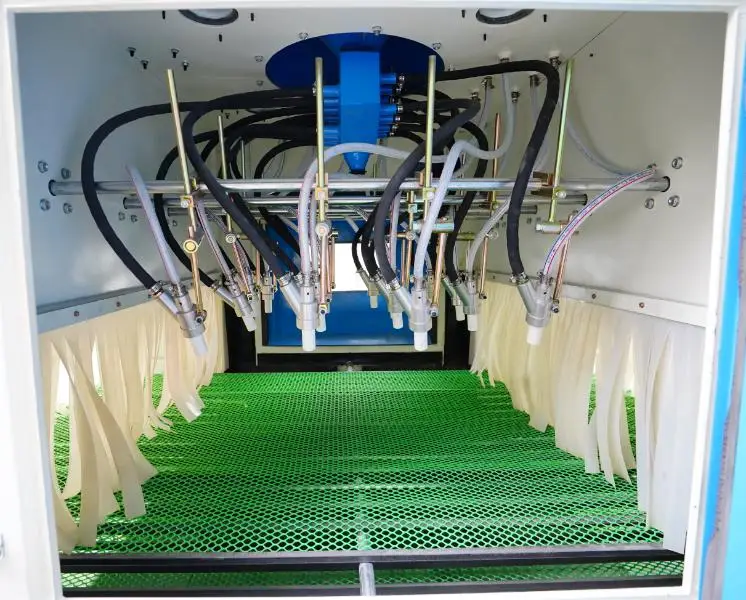

Automatic Blasting Gun
Conveyor Belt
Control Valve
PLC Control
Air Collector
Sand Container
Filter Dust Collector
Electric Controller
Product Paramenters
Model | KF-3515-16A |
Working Size | 1200*1400*1100mm |
Pass Thru Size | 1000*350mm |
Overall Size | 3500*2500*1500mm |
Total Weight | 1500kgs |
Total Power | 7.8kw |
Dust Collector Fan Motor | 7.5kw |
Loading of Conveyor | 300kgs |
Conveyor Speed | 0-5m/min, adjustable |
Drive of Conveyor | 0.4kw speed adjustable |
Gun Clamp | Automatic swing, speed adjustable Power 400W |
Gun QTY | 16pcs |
Abrasive Funnel | 4 units |
Compressed air Requirements | 35CFM/Per Gun 3-8bar(kg/cm2) |
Conveyor Speed | 0-5m/min, adjustable |
Body Material | T3mm-6mm Cold rolled steel plate |
Recommend Products
Product packaging
Company Information
Kafan, is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
