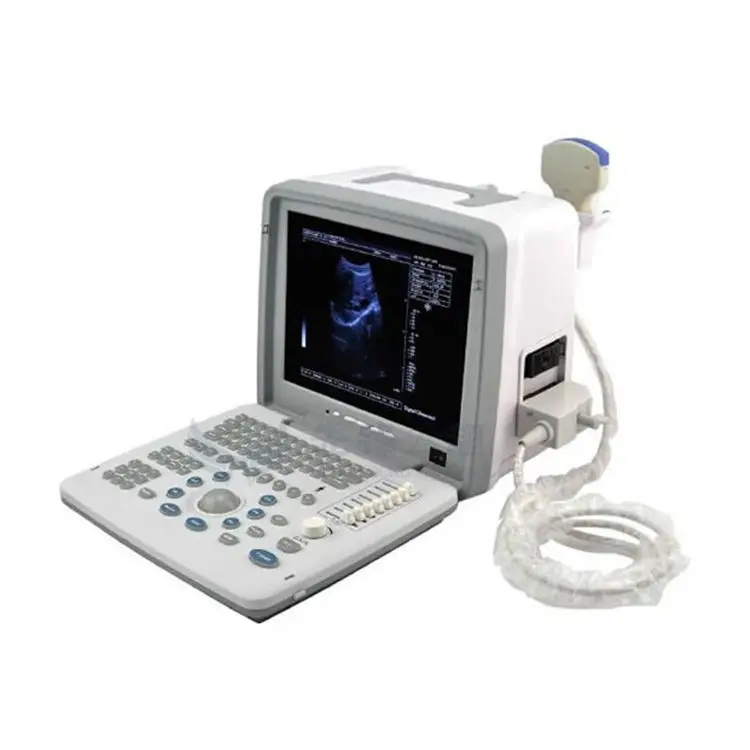

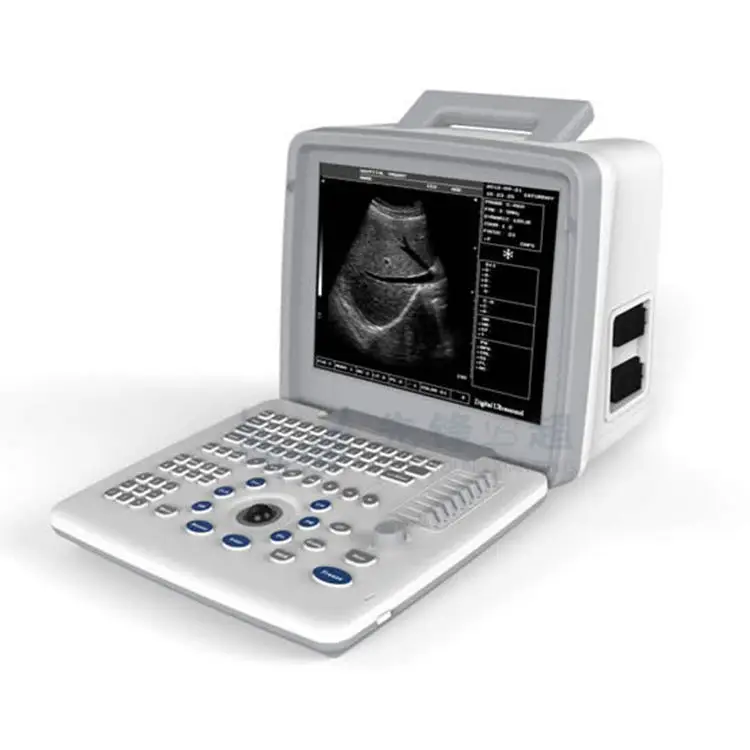

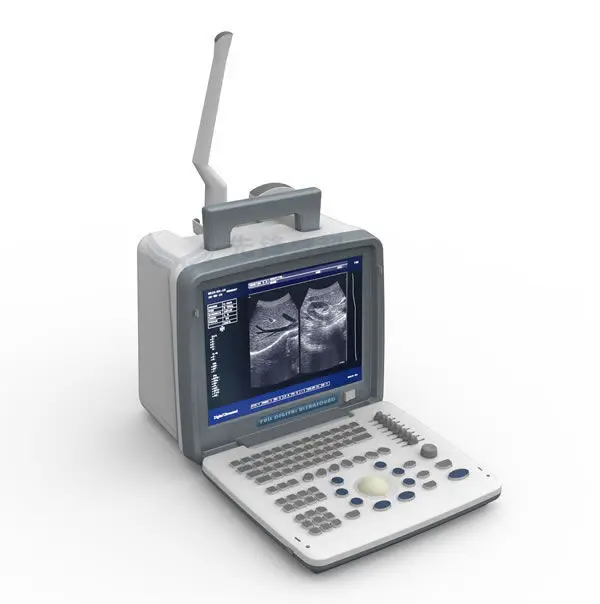

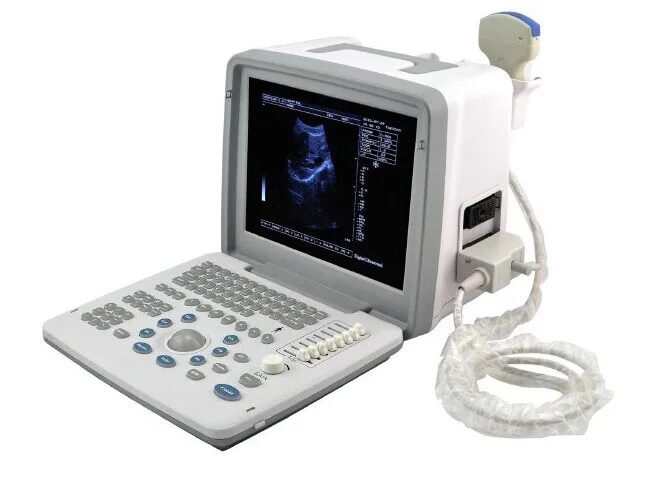

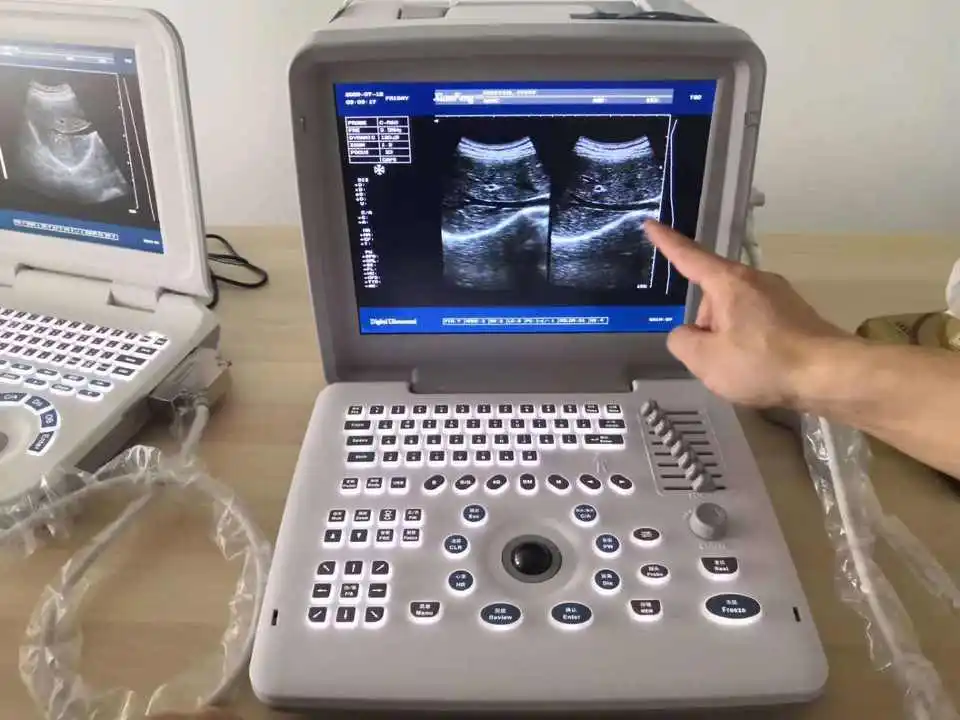

cheap medical B&w b ultrasound machine price with 3mhz probe

1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;

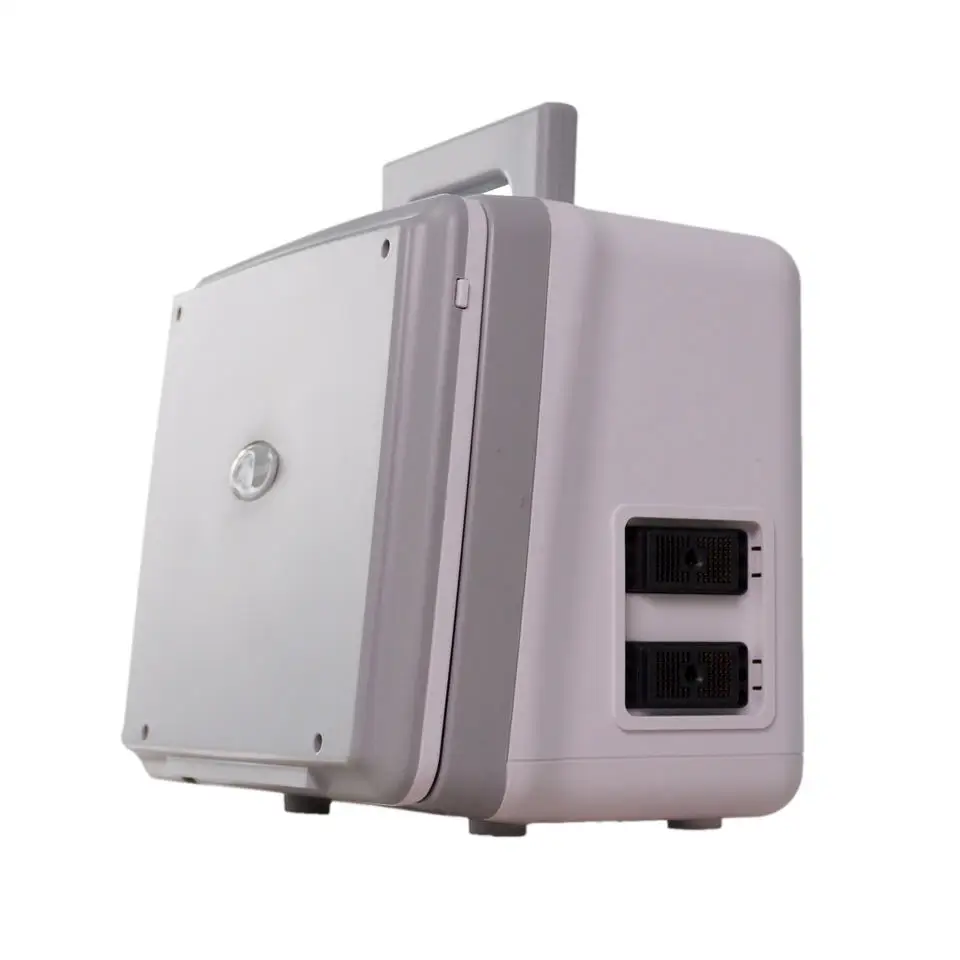

6. 2 probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.

Display Modes

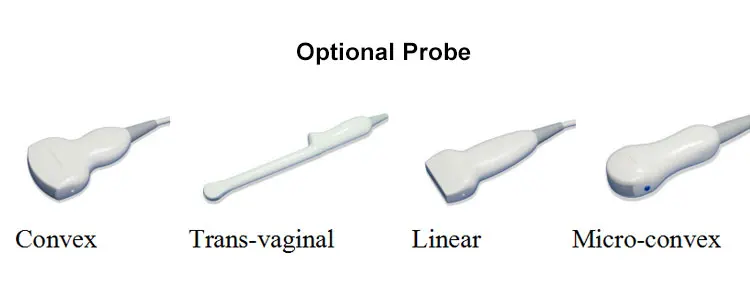

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M
5 MHz/R20 Dimpling array probe:B
6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B

Image Mutiplying Factor

3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)

E-zoom

magnify 2 times of real time image

Dynamic Range

0~120dB ajustable

Focus Position

1,2,3 and 4-segments dynamic electron focusing

Image Processing:

γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color
processing, etc.

According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.

Frequency Conversion:

2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe

Measuring Function

Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks
(BPD,GS,CRL,FL,HL,OFD,TTD,AC ), expected date of confinement and fetus weight, etc.

Annotation Function

hospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display

Puncture Guide

3.5MHz convex array probe can display puncture guide line in B mode

Gain Control

8 segments TGC and overall gain can be adjusted respectively

Image Polarity

left and right flip, black and white flip, up and down flip

Capacity Cine Loop

real time display 256 consecutive images which are memorized successively

Image Playback

series playback or check one by one

Permanent Storage:

128 images

Output Interface

VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc

USB Port

Offers storing images in USB flash disk
