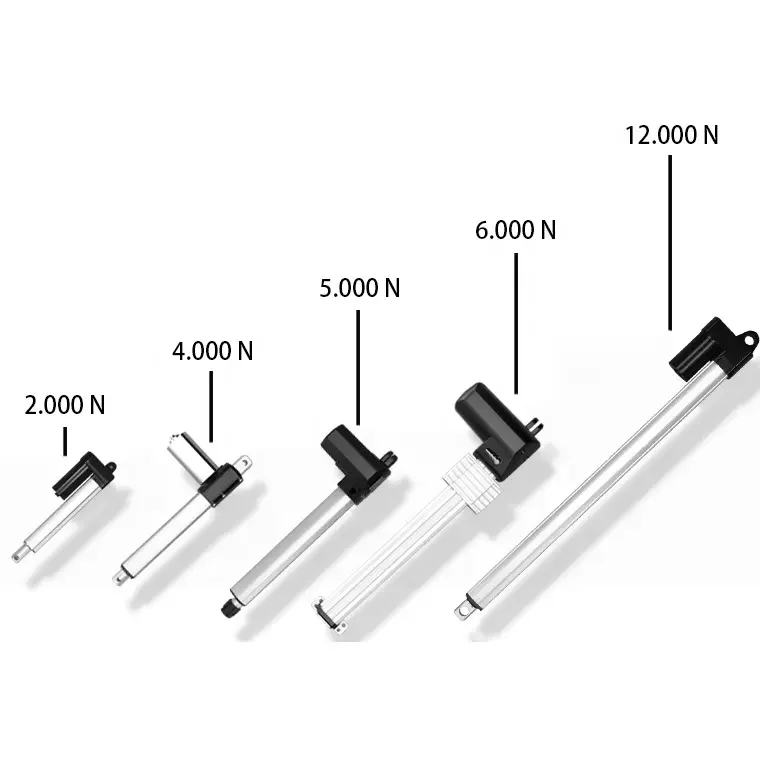

Heavy Duty industrial 2,000N push/pull capability low noise linear actuator
- Category: >>>
- Supplier: Changsha Chushitian Precision Machinery Co. Ltd.
Share on (1600698729192):
Product Overview
Description
Installation Instructions

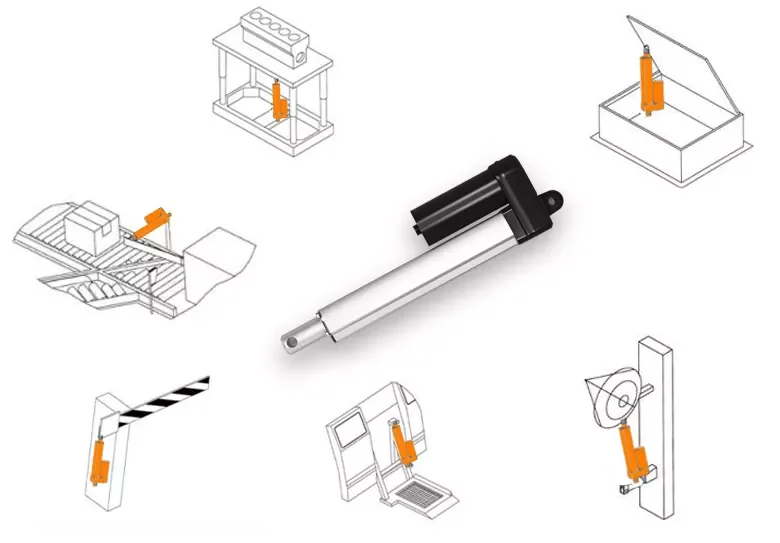

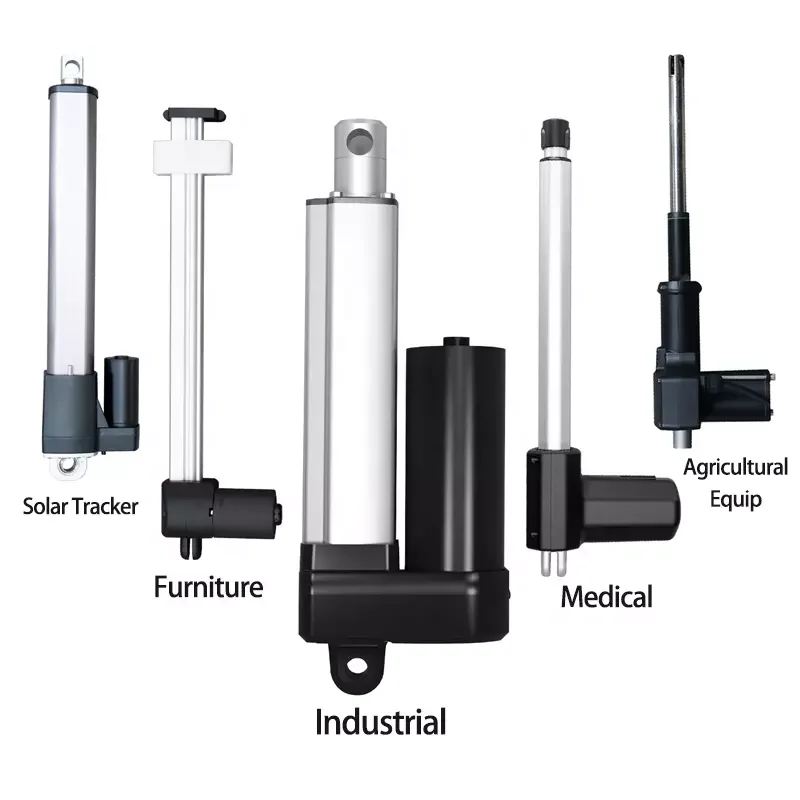

Electric actuator Application Photovoltaic, Military Medical Smart Home
Please confirm the product details with customer service before placing an order for all products in this store!

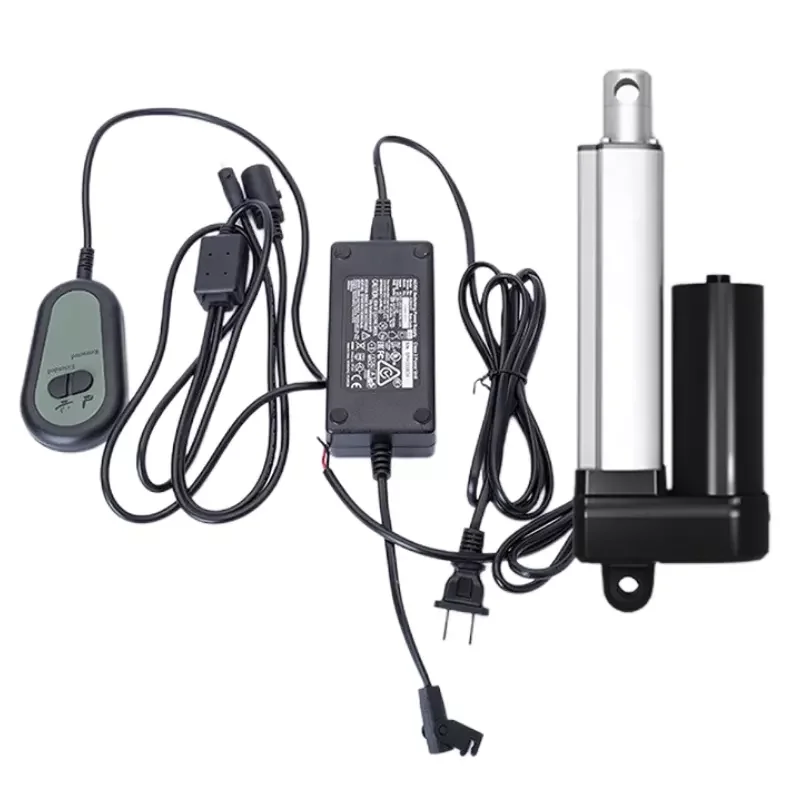

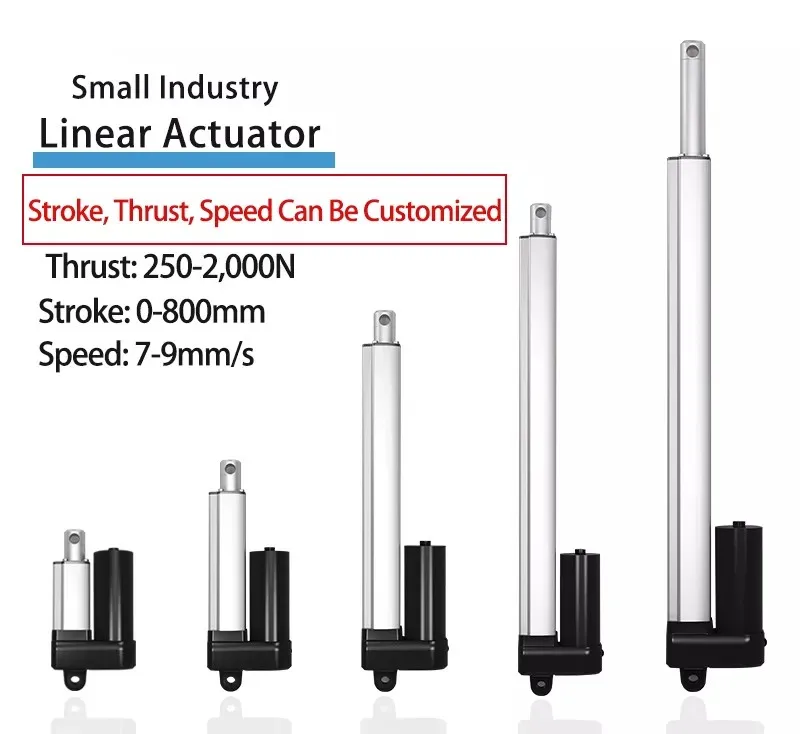

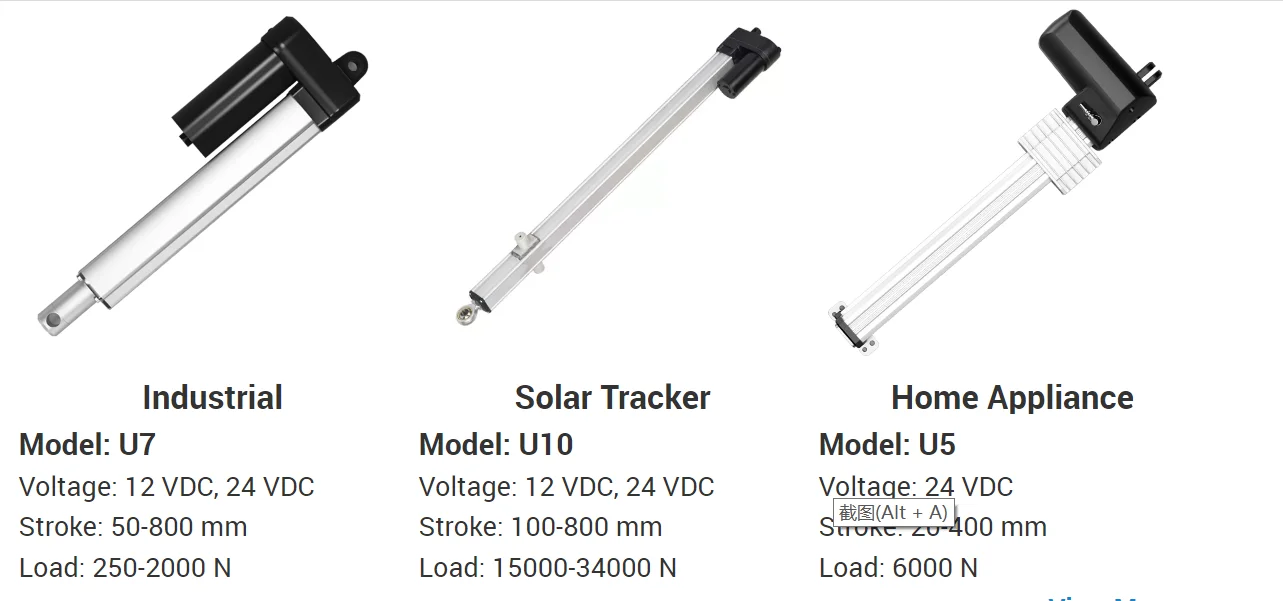

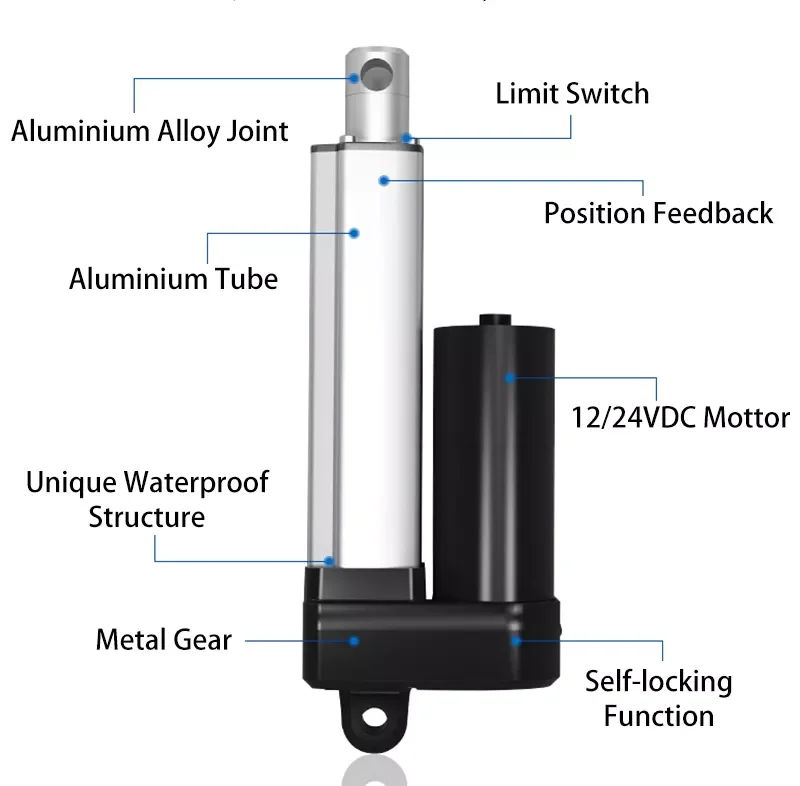

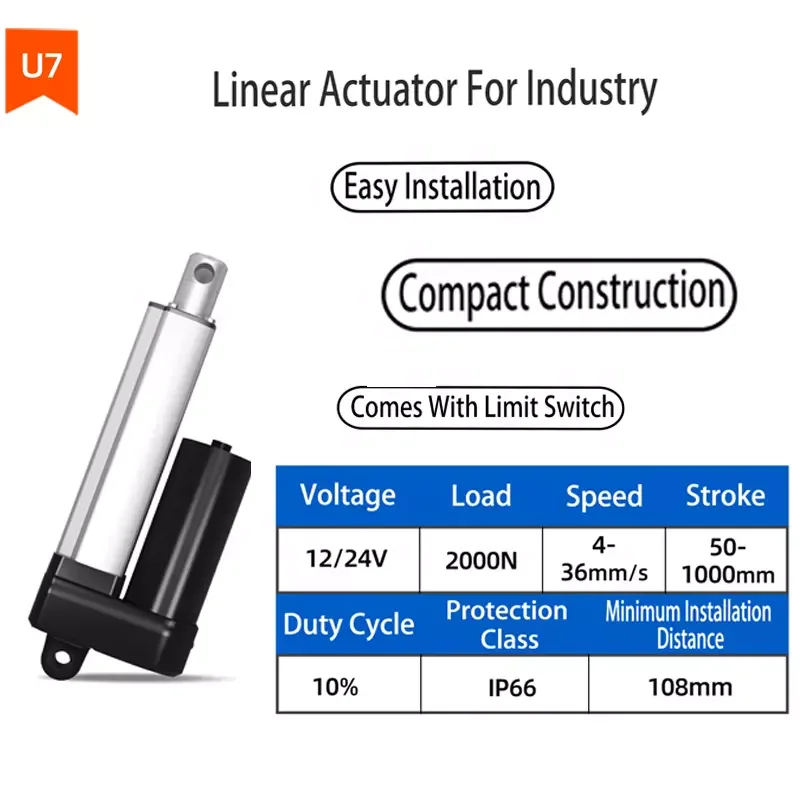

U7 24vdc linear actuator is a universal actuator which almost can be used anywhere it fits, with max. 2,000N push/pull capability

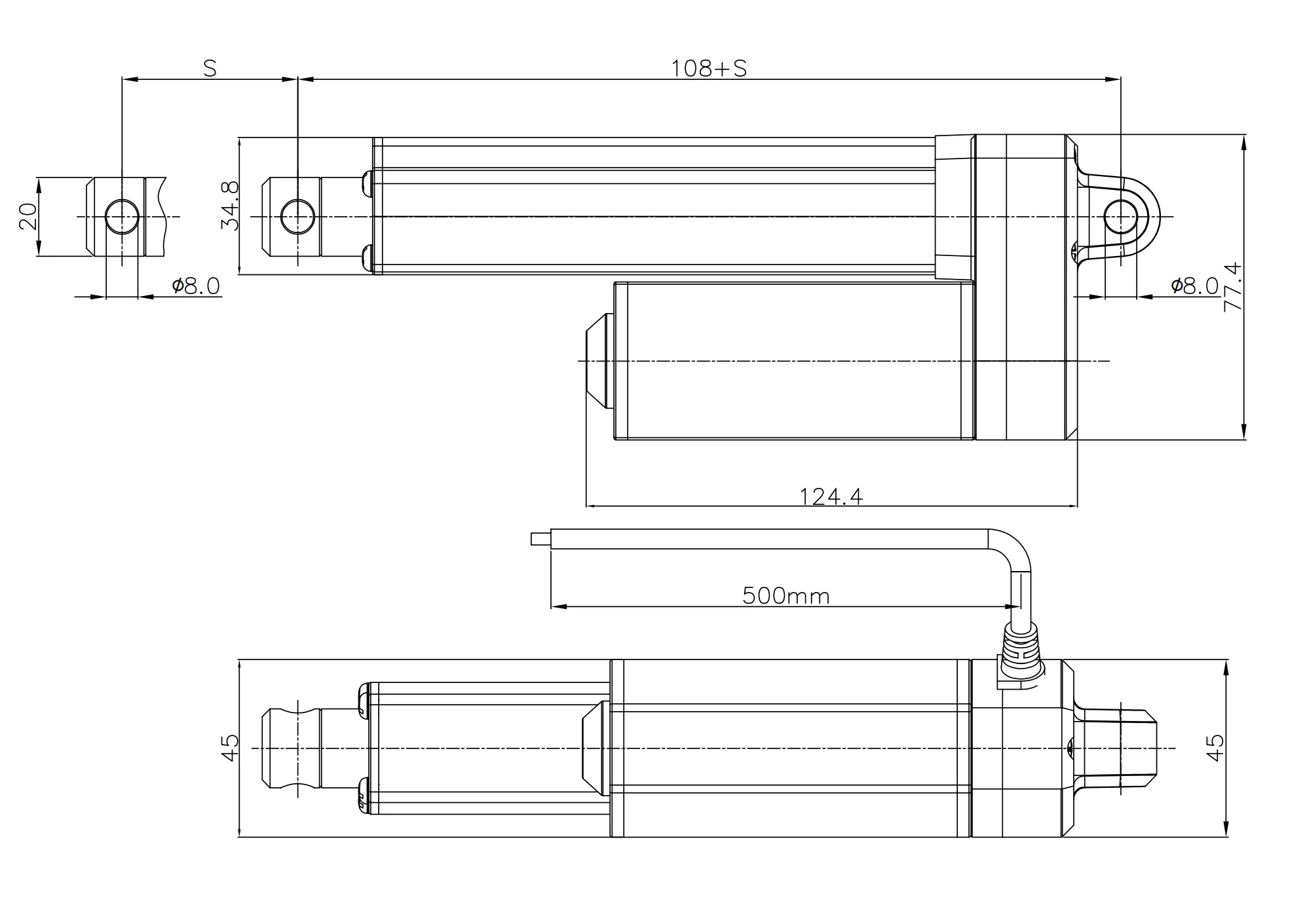

and wide range speed to be selected. It is a small linear actuator with small size of only 108mm+stroke retracted length. It is
also can be 12V linear actuator or 36V linear actuator. If low noise is requested, U7B is a better option.
and wide range speed to be selected. It is a small linear actuator with small size of only 108mm+stroke retracted length. It is
also can be 12V linear actuator or 36V linear actuator. If low noise is requested, U7B is a better option.
Code | Ratio | Max Load (N) | Current(A) | Rated Speed(mm/s) | ||||||||||
Push | Pull | No Load (24V) | Full Load (24V) | No Load (24V) | Full Load (24V) | |||||||||
Standard Motor(5200RPM) | ||||||||||||||
A | 35.3:1*2.3 | 2,000 | 2,000 | 1 | 3 | 5.4 | 5.0 | |||||||
B | 27.4:1*3.2 | 1,500 | 1,500 | 1 | 3 | 9.5 | 8.5 | |||||||
C | 17.3:1*3.2 | 1,000 | 1,000 | 1 | 2 | 14.1 | 12.5 | |||||||
D | 7.7:1*3.2 | 500 | 500 | 1 | 4 | 28.5 | 25 | |||||||
E | 7.7:1*2.3*2 | 200 | 200 | 1 | 4 | 43.5 | 40 | |||||||
Product Overview
Successful Project
SALES AND SERVICE NETWORK
FAQ
FREQUENTLY ASKED QUESTIONS
PROBLEM
1. Excuse me, is the module product I selected in stock?
When purchasing our module products, please communicate with us in time. If Wangwang's customer service is not online, please call Tel/whatsapp:86-15989856315. All the common specifications are in stock. For the customization of non-standard modules, please consult the customer service staff. After ordering according to the drawings provided by customers, the products will be delivered within 4-5 working hours.
2. Can the products I choose be customized according to my requirements?
Yes, the screw rod and guide rail can be processed according to your required length. The stroke, total length, screw rod diameter and lead, motor mounting plate, mounting hole, motor mounting method and various combinations of modules can be customized according to your requirements.
3. What is the repeated positioning accuracy of the module?
The repeated positioning release of screw module is 10.01MM, and the precision of synchronous belt module is 0.1MM.
4. What is the maximum load of the module?
The load of each product is different, and it is related to the size of the module, screw, motor and installation method. Please consult customer service staff for details.
5. How many MM can this module I chose run in 1 second?
This is related to your motor and lead. The specific calculation method is as follows: screw drive: walking speed per second-motor speed /60' screw lead.
Belt drive: walking speed per foot = speed of motor /60* number of guard wheels * width of groove.
6. Do you have a 3D picture of the product?
Yes, after your company signs the contract with our company, our company will give you a 3D drawing according to your company's requirements. If there is no problem, we will place an order for customized production.
PROBLEM
1. Excuse me, is the module product I selected in stock?
When purchasing our module products, please communicate with us in time. If Wangwang's customer service is not online, please call Tel/whatsapp:86-15989856315. All the common specifications are in stock. For the customization of non-standard modules, please consult the customer service staff. After ordering according to the drawings provided by customers, the products will be delivered within 4-5 working hours.
2. Can the products I choose be customized according to my requirements?
Yes, the screw rod and guide rail can be processed according to your required length. The stroke, total length, screw rod diameter and lead, motor mounting plate, mounting hole, motor mounting method and various combinations of modules can be customized according to your requirements.
3. What is the repeated positioning accuracy of the module?
The repeated positioning release of screw module is 10.01MM, and the precision of synchronous belt module is 0.1MM.
4. What is the maximum load of the module?
The load of each product is different, and it is related to the size of the module, screw, motor and installation method. Please consult customer service staff for details.
5. How many MM can this module I chose run in 1 second?
This is related to your motor and lead. The specific calculation method is as follows: screw drive: walking speed per second-motor speed /60' screw lead.
Belt drive: walking speed per foot = speed of motor /60* number of guard wheels * width of groove.
6. Do you have a 3D picture of the product?
Yes, after your company signs the contract with our company, our company will give you a 3D drawing according to your company's requirements. If there is no problem, we will place an order for customized production.

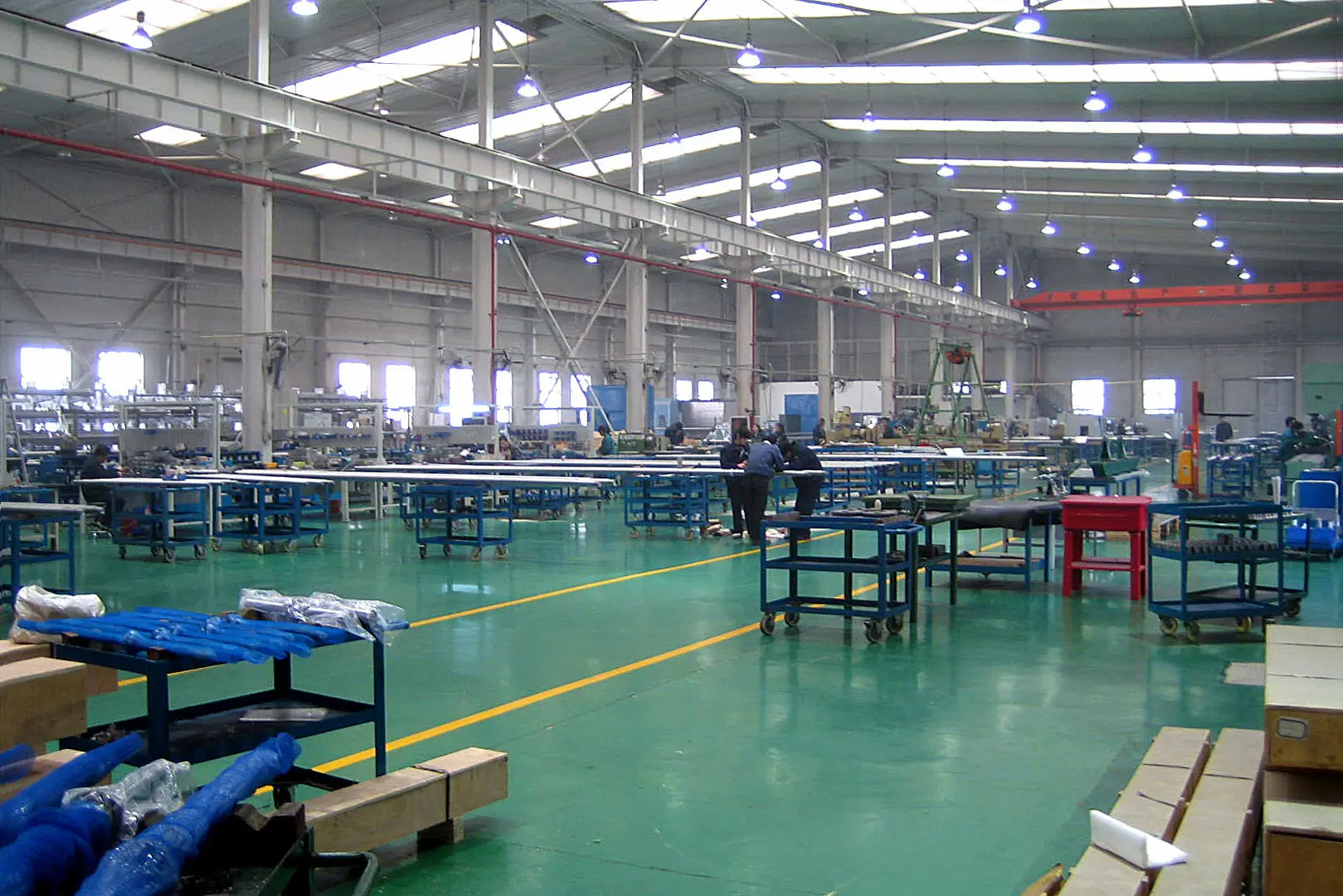

Company Profile
Company Profile

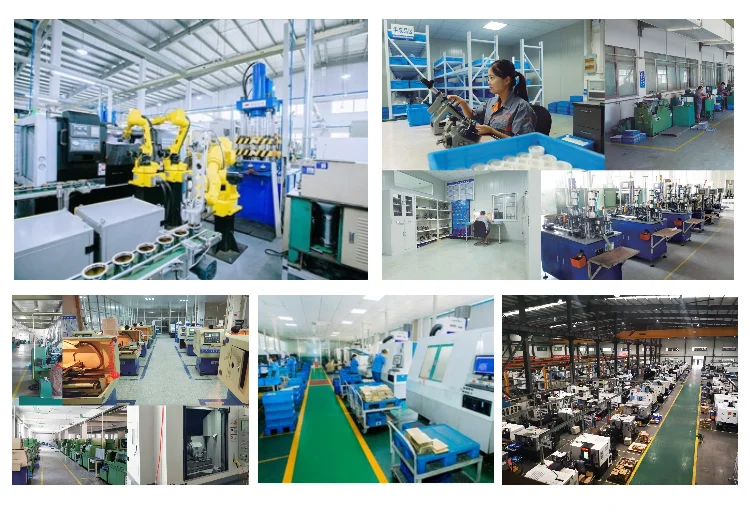

Chushitian Co., Ltd. has professional R&D engineers and sales teams, and has many years of export experience. The products are mainly used in 3C, robots, photovoltaics, medical care, smart furniture, drones, medical equipment, CNC machine tools, semiconductor equipment, military industry, 3D Printers, ships, electronic mechanical equipment, testing equipment, engineering machinery, metallurgical equipment, printing and packaging machinery, automobiles and automation industries. It has a close cooperative relationship with enterprises in various countries around the world, and has been recognized and trusted by customers
Our advantages: customizable, high quality, low cost, short delivery time.
