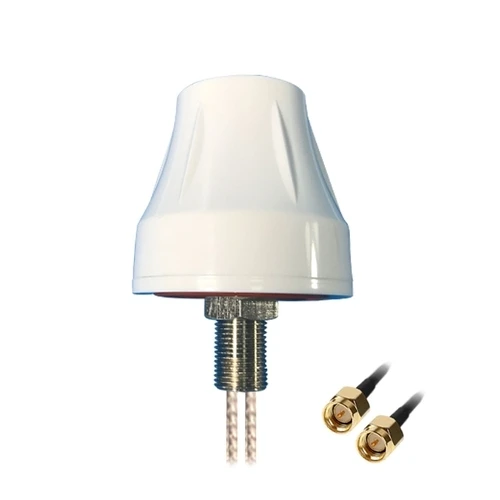

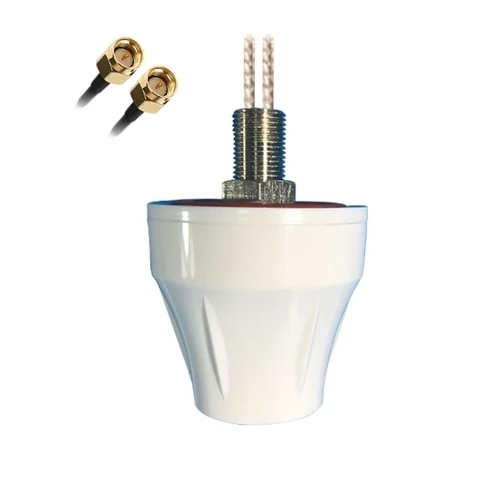

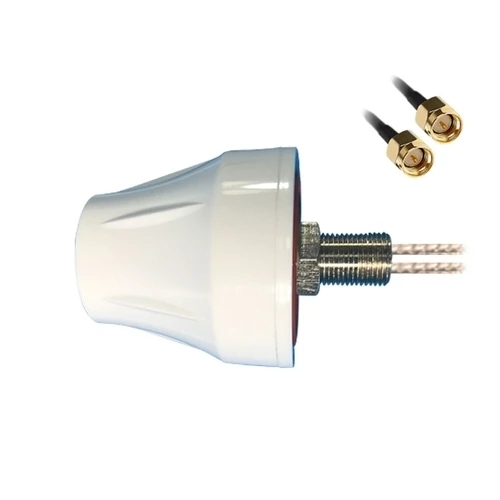

28 / 2dB Typical 1575.42MHz / 3 MHz Two combined Antennas GPS Antennas
- Category: >>>
- Supplier: Nanjing Shinewave Technology Co. Ltd.
Share on (1600698742913):
Product Overview
Description

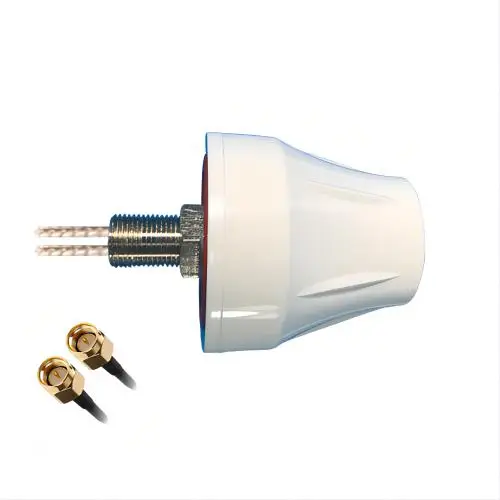

Product Display
Product Description:
Threaded bolt installation, will be best fixed on the roof, high accuracy antenna, easy installation provides the best value and flexibility.The GPS/GSM antenna is designed as a combined communications system to provide maximum performance and versatility for applications including fleet monitoring and asset tracking.
MECHANICAL SPECIFICATIONS
Electrical Characteristics | ||||
GPS | dielectric antenna | |||
frequency | 1575.42MHz±3 MHz | |||
Polarization | RHCP | |||
gain | 5dBi | |||
SWR | <1.5 | |||
input impedance | 50Ώ | |||
amplifier | ||||
amplifier gain | 28±2dB Typical | |||
noise factor | 1.5dB | |||
attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |||
voltage standing wave | <2.0 | |||
direct voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |||
DC | 11 Max | |||
GSM | frequency | 824~894/880~960/1710~1990MHz | ||
SWR | <2.0 | |||
GAIN | 2dBi | |||
polarization | Linear | |||
input impedance | 50Ώ | |||
mechanical parameter | ||||
·Housing | WHITE | |||
linetype | RG174 | |||
wire length | 3/5M(can be customization) | |||
contact | SMA Male(can be customization) | |||
enviromental parameter | ||||
operating temperature | -40℃~+80℃ | |||
temperature | 55%-75%RH | |||
waterproofing grade | IP67 | |||
Material of antenna | ABS | |||
· Installation Method | Screw | |||
· Dimension | Φ50x49 mm | |||
· Weight | 80g | |||
