weichai 150hp WP6C150 15 marine diesel boat engine for fisheries administration ship

Product Overview

Description

weichai 150hp WP6C150-15 marine diesel boat engine for fisheries administration ship

Parameters Table

Type	Four-stroke, water cooled, in-line, turbocharged and intercooled	Number of cylinders	6
Cylinder diameter/stroke	105×130(mm)	Displacement	6.75L
Oil consumption rate	≤0.8g/kW·h	Noise	≤105dB(A)
Minimum fuel consumption rate	195g/kW·h	Idle speed	650±30r/min
Torque reserve	25-35%	Rotation direction of crankshaft  (facing the free end)	Clockwise
Dimensions  Length × Width × Height/net weight	Mechanical pump 1185×744×1083(mm) 750kg

Series	Model	Air intake mode	Rated power kW/Ps	Speed  r/min	Fuel feeding mode	Emission level
WP6C	WP6C122-15	Turbocharged and intercooled	90/122	1500	Mechanical pump	IMOⅡ
	WP6C140-23	Turbocharged and intercooled	103/140	2300	Mechanical pump	IMOⅡ
	WP6C142-18	Turbocharged and intercooled	105/142	1800	Mechanical pump	IMOⅡ
	WP6C150-15	Turbocharged and intercooled	110/150	1500	Mechanical pump	IMOⅡ
	WP6C163-23	Turbocharged and intercooled	120/163	2300	Mechanical pump	IMOⅡ
	WP6C185-21	Turbocharged and intercooled	136/185	2100	Mechanical pump	IMOⅡ
	WP6C250-25	Turbocharged and intercooled	168/250	2500	Mechanical pump	IMOⅡ

Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.

Product description

Safe and reliable

• The high-strength design of structural parts such as engine block, piston and bearing bush ensures the reliability of diesel engine under high explosion pressure


• For turbocharger, starter, high-pressure oil pump and other important parts, global excellent suppliers are used


• Withstand the most stringent durability test and assessment; ensure the reliability of key parts and components; and the overhaul period of the whole engine is over 20000h


• Perfect self-diagnosis system, perfect failure protection mode, and safe control strategy

Strong power

• Accurate control by electronic control units, high injection pressure, small fluctuation of rotating speed, and strong power


• Low-speed and high-torque design with the torque reserve of 25%-35%, quick response, and fast speed increase

Economical and fuel-efficient

• The fuel injection law is optimized, the fuel injection pressure, fuel injection quantity and fuel injection time are accurately controlled, the fuel is fully atomized, and the minimum fuel consumption rate is 191g/kW•h

Comfortable and environmentally friendly

• It can realize multiple injections such as pre-injection and post-injection, and the noise and vibration are reduced by 20% compared with the mechanical pump system


• Water jacket exhaust pipe and water jacket exhaust tail pipe are used to reduce engine compartment temperature


• IMOⅡ ship emission standards are met

Strong practicability

• LCD Internet instruments, vibration isolators, and hand-pressed oil well pumps can be equipped to meet the requirements of different customers


• Horizontal air filter and rear turbocharger reduce the height of the whole engine and facilitate the layout of the engine compartment


• Different control strategies are adjusted according to different performance requirements


• Receive/output various control signals, which meet the requirements of automation control

                                                          Marine engine

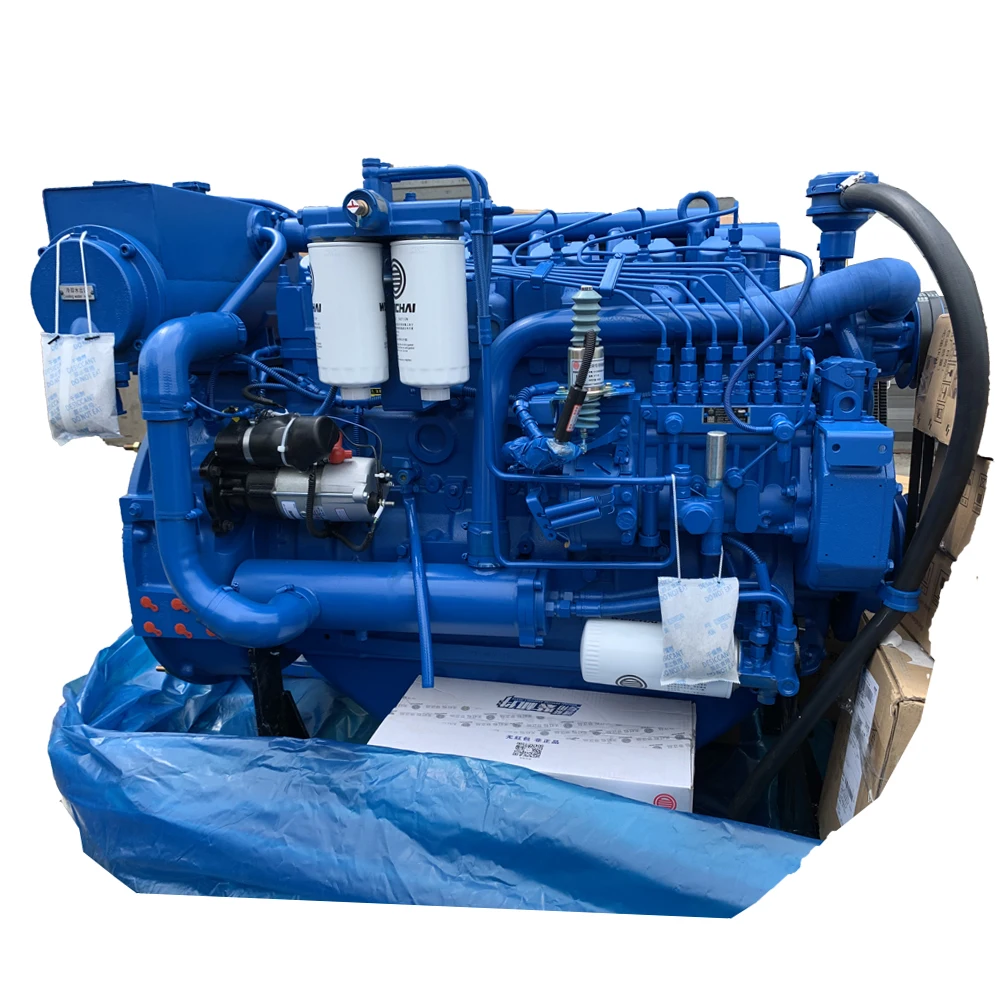

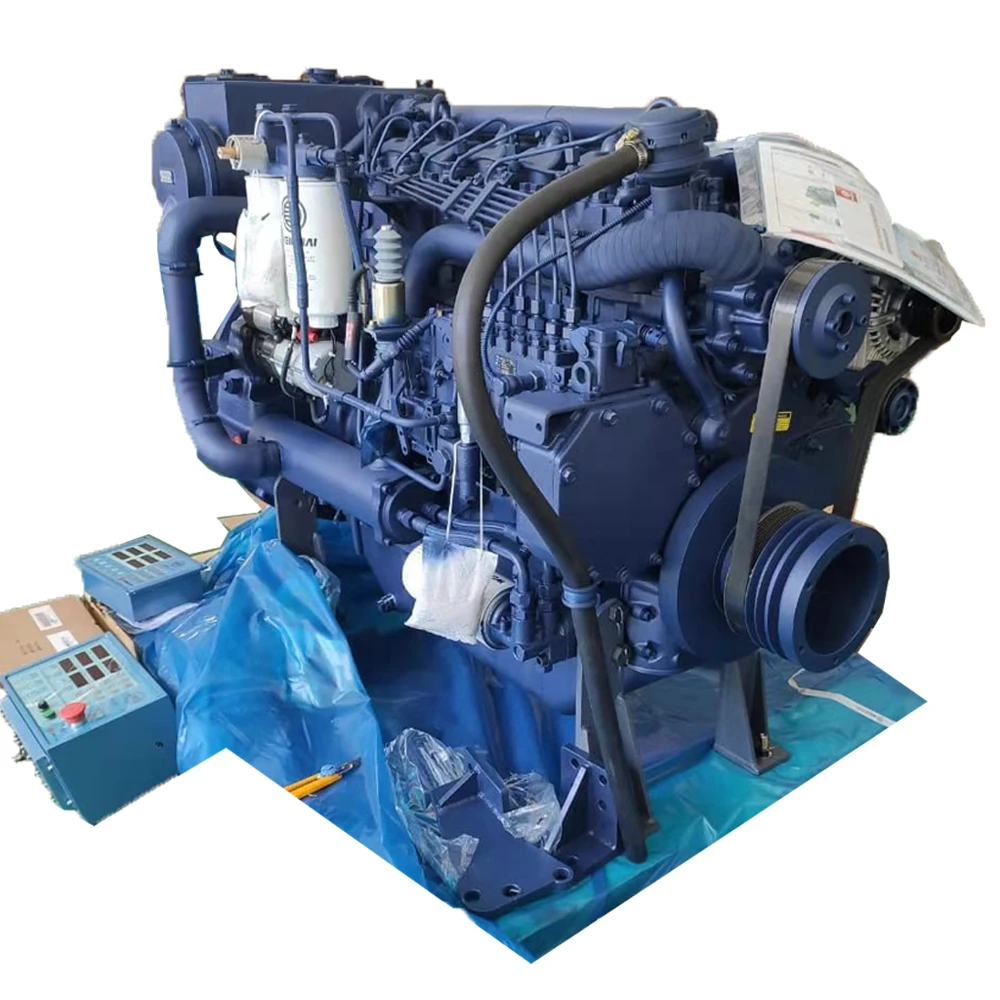

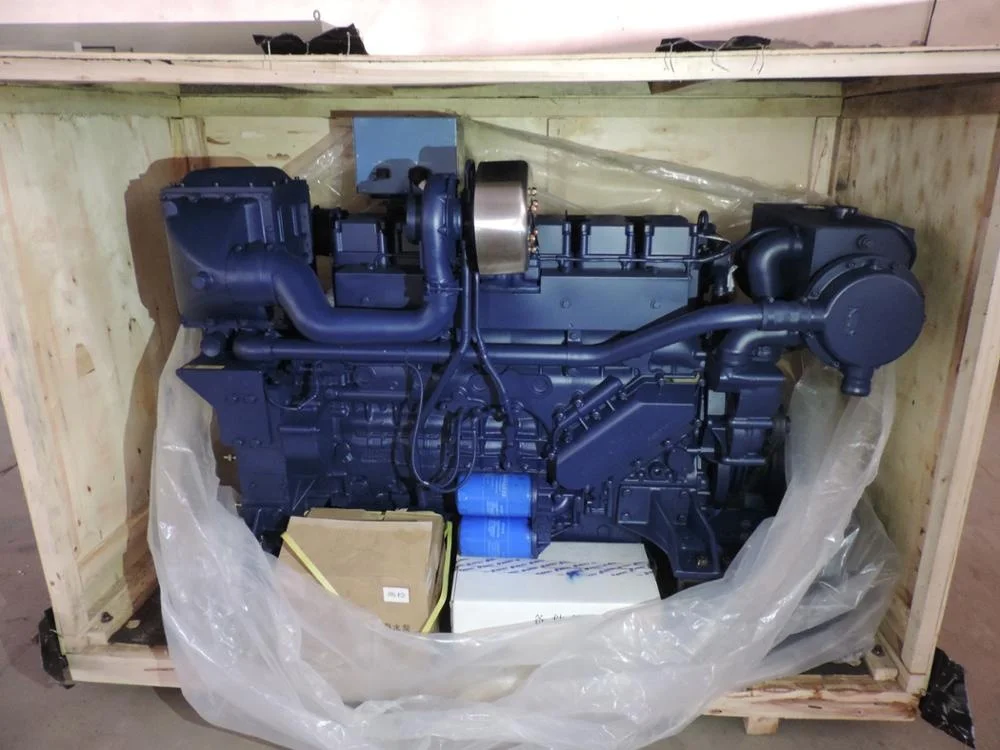

 Marine engine Detail Display
