US EU Global GPS Tracking Positions Find My Dog G61 Small Mini Type Pet Tracker

Item

Description

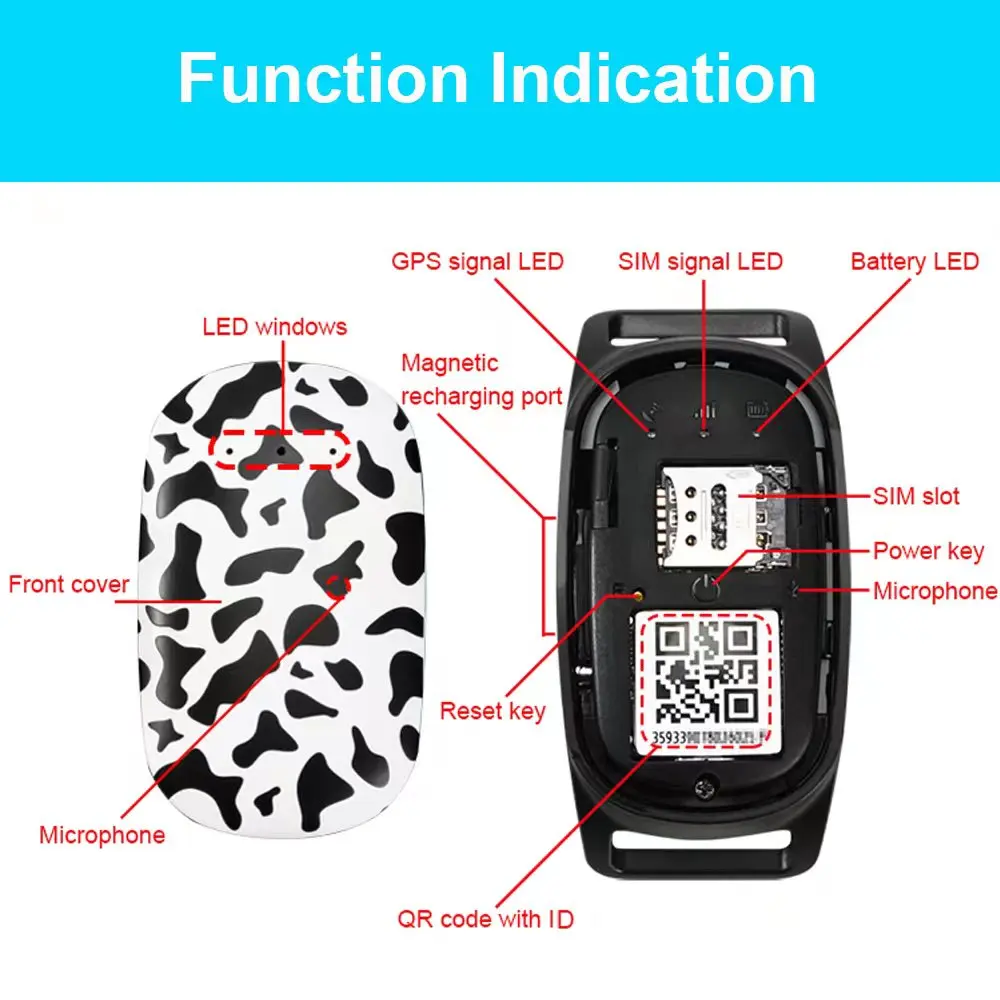

Main functions

Support: real-time GPS/AGPS/WIFI/4G Cat1/GSM positioning, remote pickup voice, electronic fence warning reminder, historical track query, power saving mode.

4G Band-CAT1

FDD-B1/B3/B5/B8;TDD-B34/B38/B39/B40/B41

Data speed

 LTE:maximum 10Mbps (DL)/maximum 5 Mbps (UL)                               EDGE:maximum 236.8 kbps (DL)/maximum 236.8 kbps (UL)                    GPRS:maximum 85.6 kbps (DL)/maximum 85.6 kbps (UL)

GNSS chip

GPS,GLONASS,BeiDou/Compass,Galileo,QZSS

Product Size

50.8mm*30.5mm*17mm

Working temperature

-20°C - +70°C

Working humidity

20%-80%

SIM card

Nano SIM card holder

Battery

3.7V 570mAh

Standby current

Less than 5mA

Charging

Magnetic charging

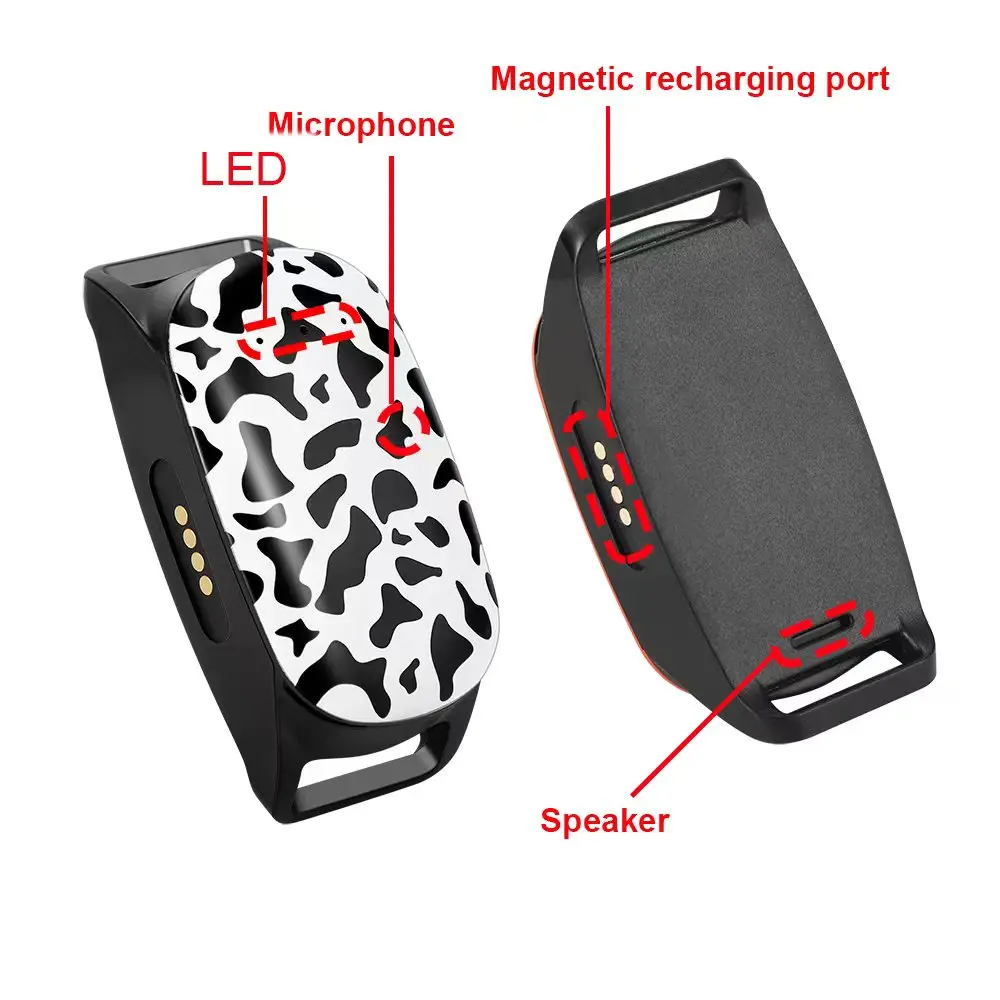

MIC

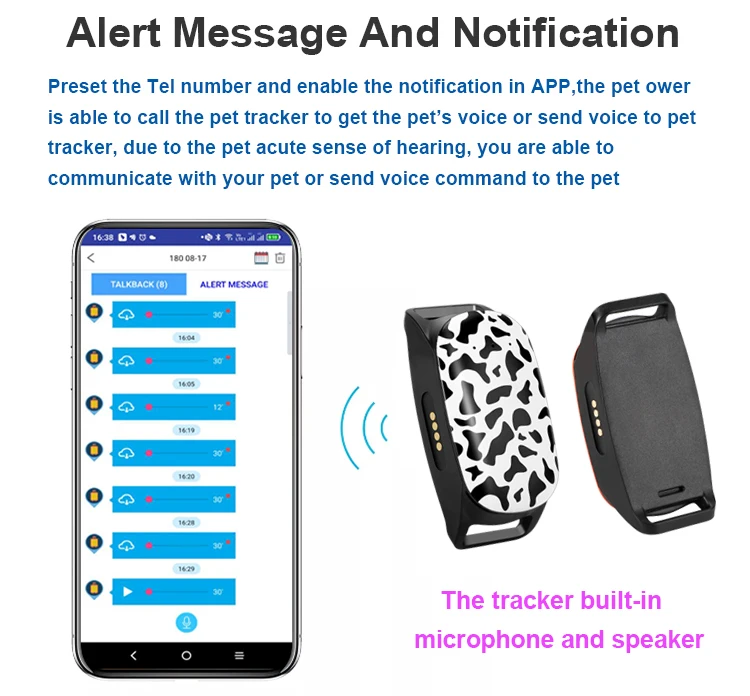

Omnidirectional microphone (pick up voice within 10 meters)

Sensor

3D G-Sensor

GPS positioning accuracy

within 10 meters

WIFI positioning accuracy

within 50 meters

Network positioning accuracy

50-200 meters

Speed accuracy

0.1Meter/second

GPS positioning time

Cold start: 38s(Open sky),Hot Start:2s(Open sky) (The specific time will vary depending on the environment)

Shell material

PC material injection molding, spraying

4G antenna

PIFA Antenna

Standby time

Determined by battery capacity and connection method

Operating Voltage

3.5-4.2V (3.4V low power automatic shutdown)

Recharging current

Charging 5V 500mAh (current can be set according to different battery capacity)

GPS Antenna

External passive high performance 12X12 Ceramic Antenna
