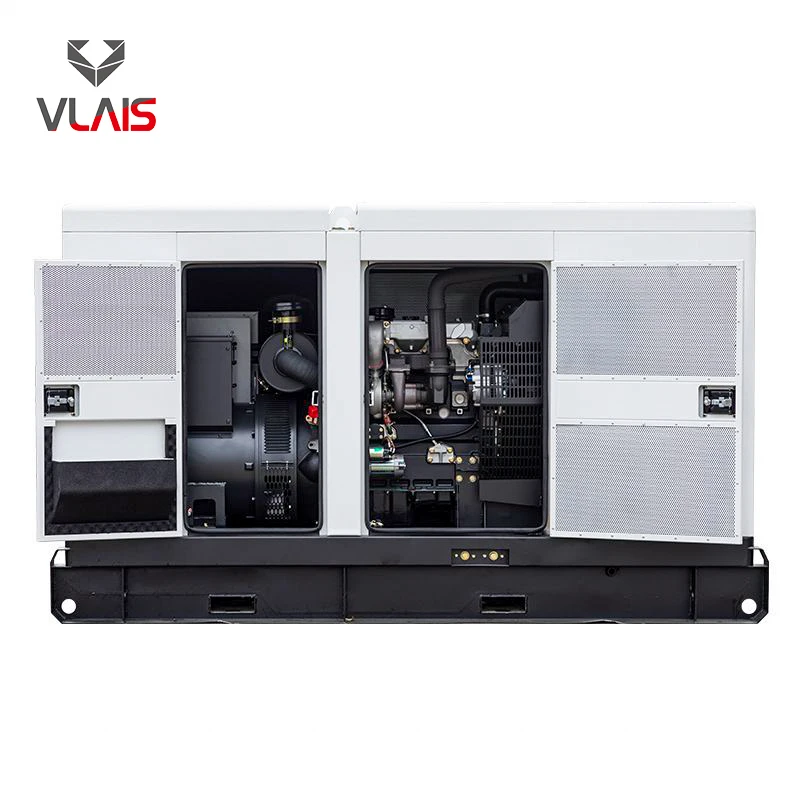

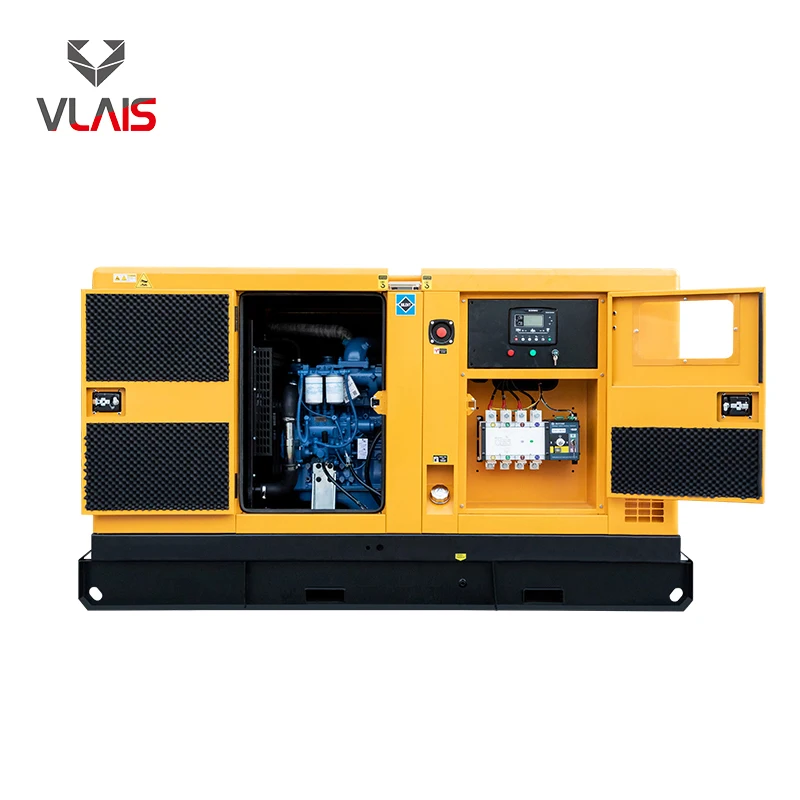

VLAIS 32kW/40kVA 230V/380V/50Hz Three phase diesel generator set made in China home backup energy standby genset

VLAIS 32kW/40kVA 230V/380V/50Hz Three phase diesel generator set made in China home backup energy standby genset

Price:$3,170.00 - $3,370.00

Price in USD:Details

Quantity:

Product Description

Diesel Generator Data Sheet
Generator Model	CP-R40
Rated Power	32KW/40KVA
Rated Voltage	230V/380V(Voltage can be customized)
Frequency	50HZ
Power Factor	COS=0.8
Weight(kg)	950KG
Cooling Method	Water-cooled
Start-up Mode	DC 18V/Electric Start
Diesel Engine Data Sheet
Brand	RICARDO
Model	K4100ZD
Number of Cylinder	4 Cylinder Vertical in Line
Speed	1500RPM(50hz)
Cycle	4 Stroke
Asp.	Turbo charged
Cooling Method	Water-cooling
Bore*Stroke(mm)	100*115
Compression Ratio	17:1
Speed Governor	Electronic
Fuel Consumption	251g/kw h
Fuel Tank	8-10 Running Time
Alternator Data Sheet
Brand	Stamford/ Marathon/ Leroysomer
Model	CP-184J
Connecting Type	Single Phase/Three Phase and Four Wires
Exciter Type	Single bearing, brushless, self-excited
Protection Grade	IP23
Insulation Class	H
Exciter Type	Brushless, Self-excited, AVR Controller
Altitude	≤1000m
Controller
Optional Controller Brand	Deepsea / ComAp / Smartgen
