Gala butterfly valve

Product Overview

Description

Gala butterfly valve

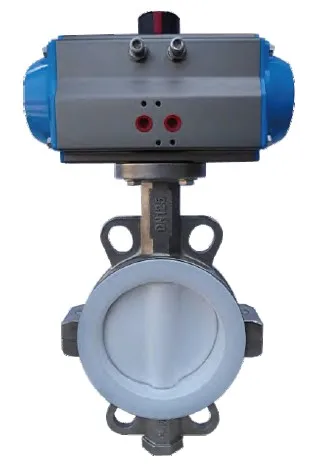

PTFE Lined Wafer Type Butterfly Valve

PTFE Lined Wafer Type Butterfly Valve TECHNICAL DATA

*Nominal diameter: 2 in - 24 in

*Face-to-face: EN 558 Series 20 (DIN 3202 T3 K1)

*ISO 5752 Series 20

*API 609 Table1

*BS 5155, Tab. 6 Series 4

*NF E 29-305.1



Flange accommodation: DIN 2501 PN 10/16

*ANSI B 16.5, Class 150

*MSS SP44 Class 150

*AWWA C 207

*AS 2129 Table D and E

*BS 10 Table D and E

*JIS B 2211-5 K

JIS B 2212-10K



Tightness check: DIN 3230 T3 BO (Leakage Rate 1)

ISO 5208, Category 3

API 598 Table 5 and

ANSI B 16-104, Class VI

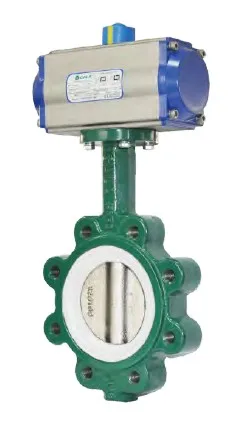

PTFE lined lug type butterfly valve TECHNICAL DATA

*Nominal diameter: 2 in -24 in ( DN50-DN600 )

*Face-to-face: EN 558 Series 20 (DIN 3202 T3 K1)

*ISO 5752 Series 20

*API 609 Table 1

*BS 5155, Tab. 6 Series 4

*NF E 29-305.1



Flange accommodation: DIN 2501 PN 10/16

ANSI B 16.5, Class 150

MSS SP44 Class 150

AWWA C 207

AS 2129 Table D and E

BS 10 Table D and E

JIS B 2211-5 K

JIS B 2212-10K



Tightness check: DIN 3230 T3 BO (Leakage Rate 1)

ISO 5208, Category 3

API 598 Table 5 and

ANSI B 16-104, Class VI
